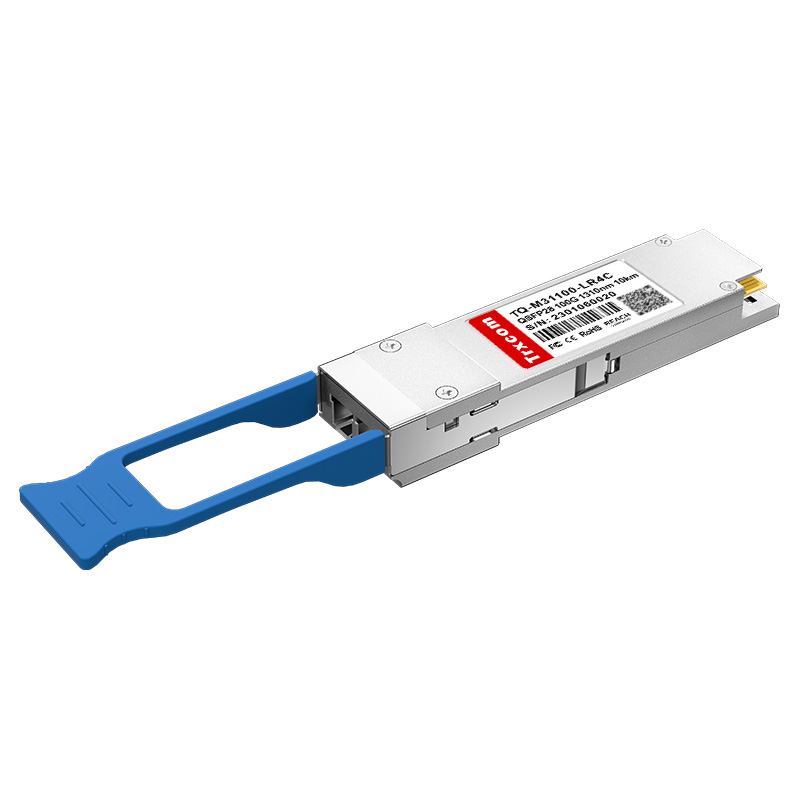

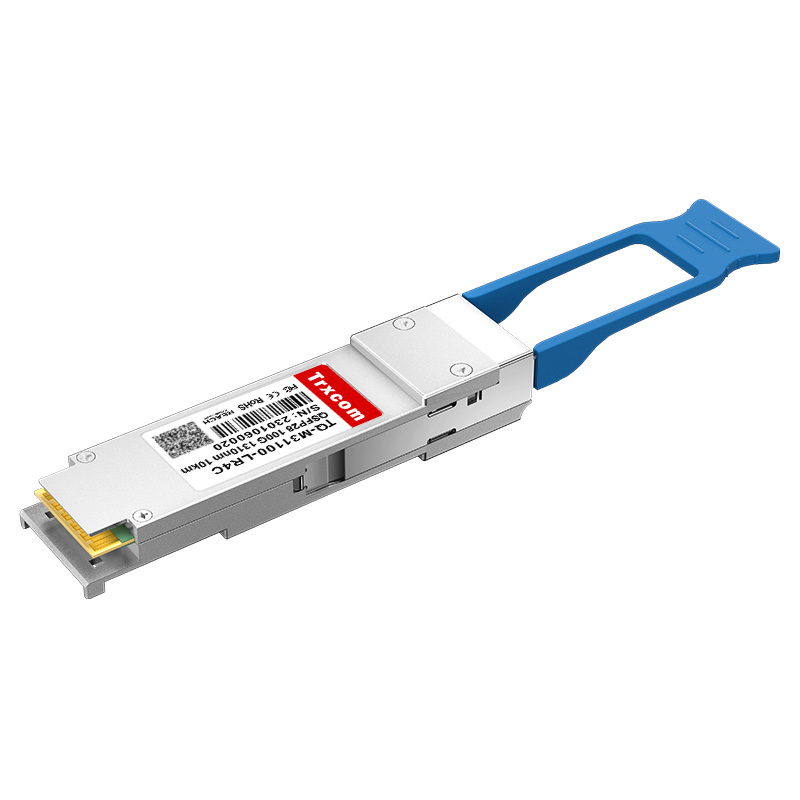

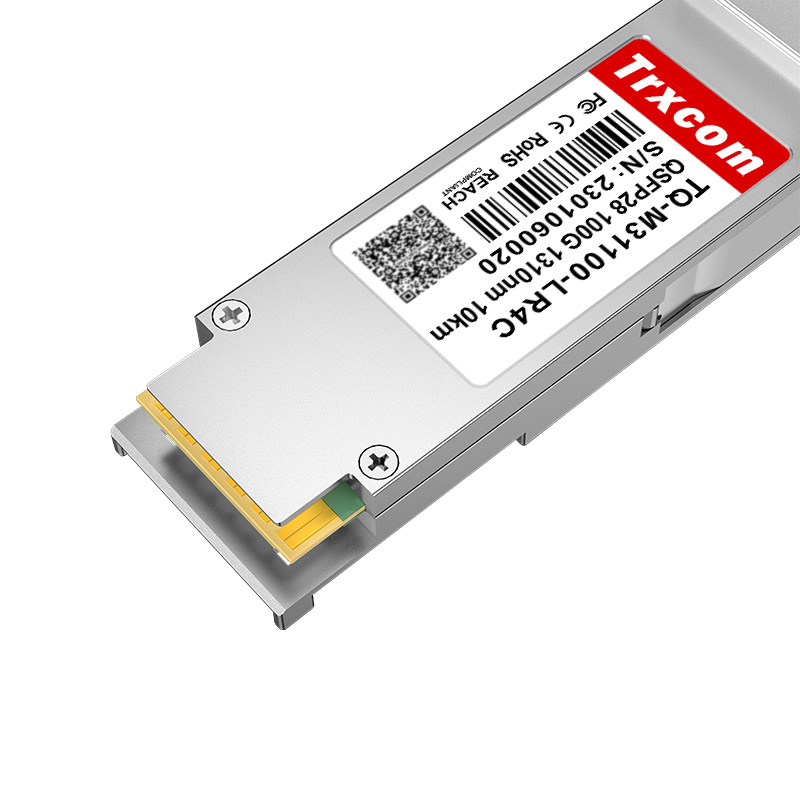

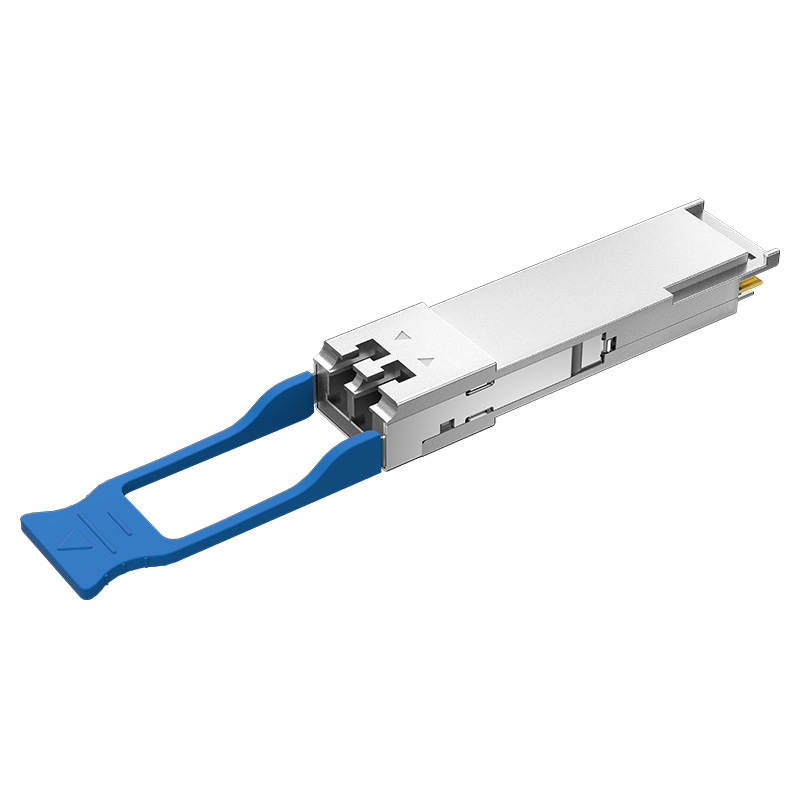

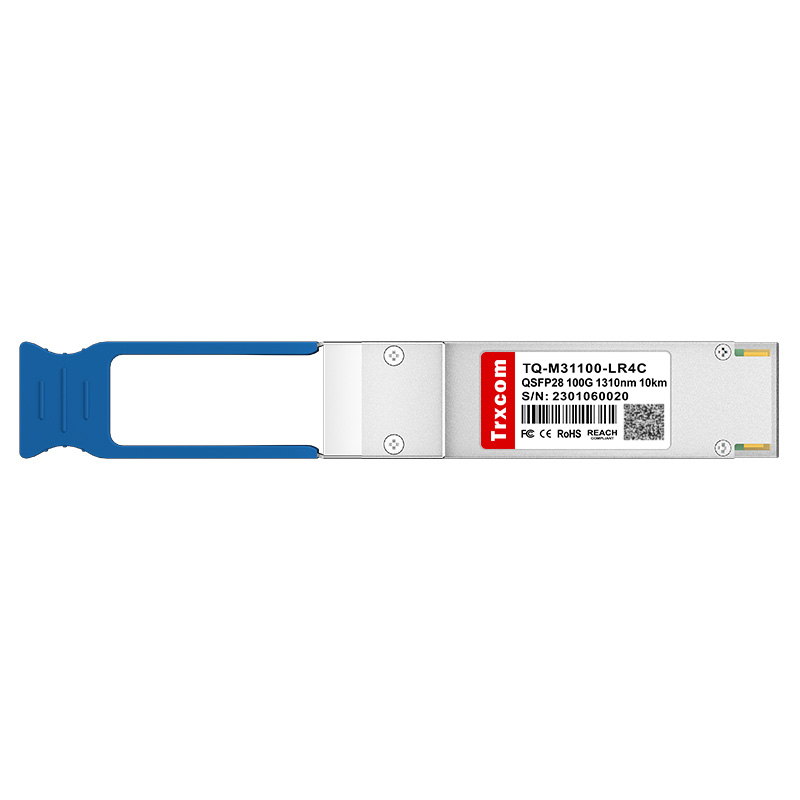

TQ-M31100-LR4C 100GBASE-LR4 QSFP28 4 x 25G NRZ 1310nm 10km Duplex LC/UPC SMF Transceiver Module
share
Parameter
Brand ： Trxcom
P/N ： TQ-M31100-DR4C
Form Factor ： QSFP28
Type ： Single Mode
Data Rate ： 100G
Model ： LR4
Connector ： Duplex LC
Distance ： ≤10km
Wavelength ： 1310nm
DetailReview(0)
Trxcom TQ-M31100-LR4C 100GBASE-LR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
The QSFP28 module provides 100GBase-LR4 throughput up to 10km over a standard pair of single mode fiber (SMF) with duplex LC connectors. This transceiver is compliant with IEEE 802.3 100GBASE-LR4, SFF-8665 and SFF-8636 standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G telecom connections, data center, high-performance computing networks, enterprise core and distribution layers, campus networks etc.
| Part Number | TQ-M31100-LR4C | Vendor Name | Trxcom |
| Form Factor | QSFP28 | Max. Data Rate | 103.125Gbps (4x 25.78Gbps) |
| Wavelength | 1310nm | Max. Cable Distance | 10km |
| Connector | Duplex LC/UPC | Media | SMF |
| Transmitter Type | 4 x LAN WDM EML | Receiver Type | PIN |
| TX Power | -4.3~4.5dBm | Minimum Receiver Power | -10.6dBm |
| Power Budget | 6.3dB | Receiver Overload | 4.5dBm |
| Max. Power Consumption | 3.5W | Extinction Ratio | >4dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C |
| Protocols | QSFP28 MSA, SFF-8636, IEEE 802.3‑2012, PSM4 MSA, CAUI-4 | Warranty | 5 Years |
Data Center
Telecommunications
Medical Equipment
Industrial Control
Consumer Electronics
Security System
Military Industry
