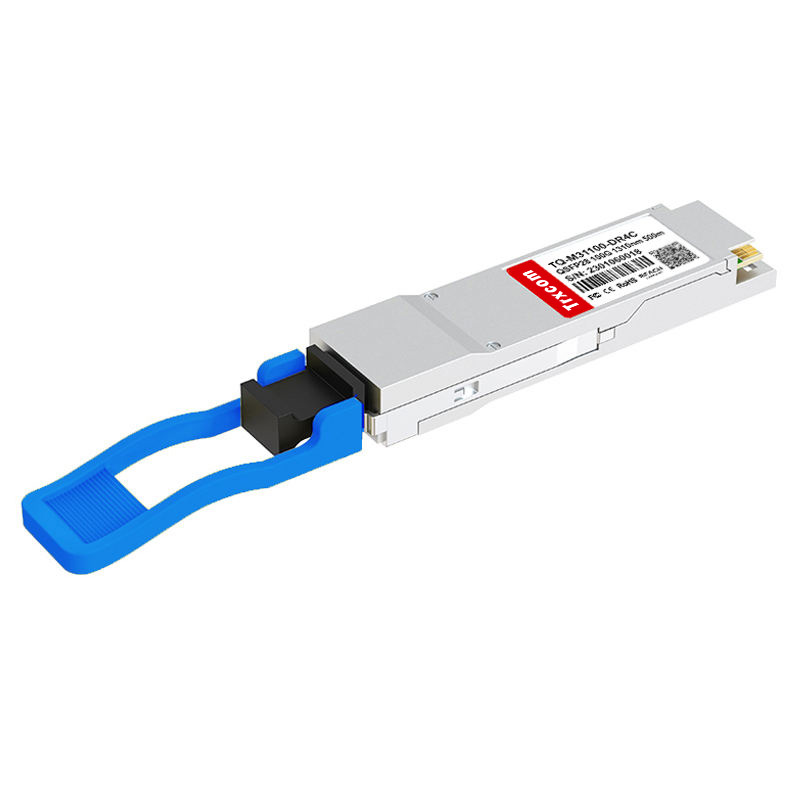

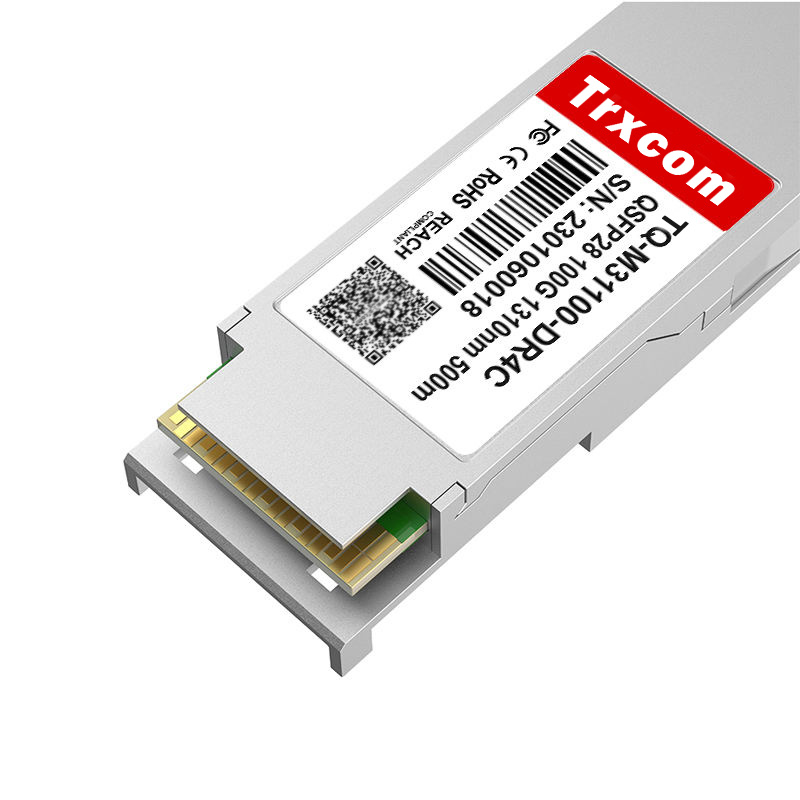

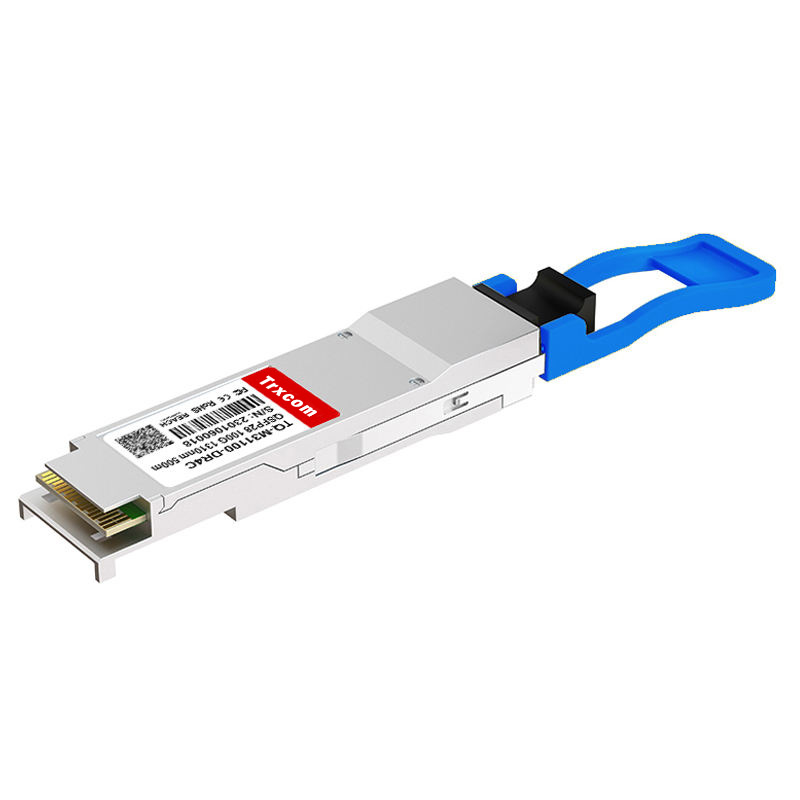

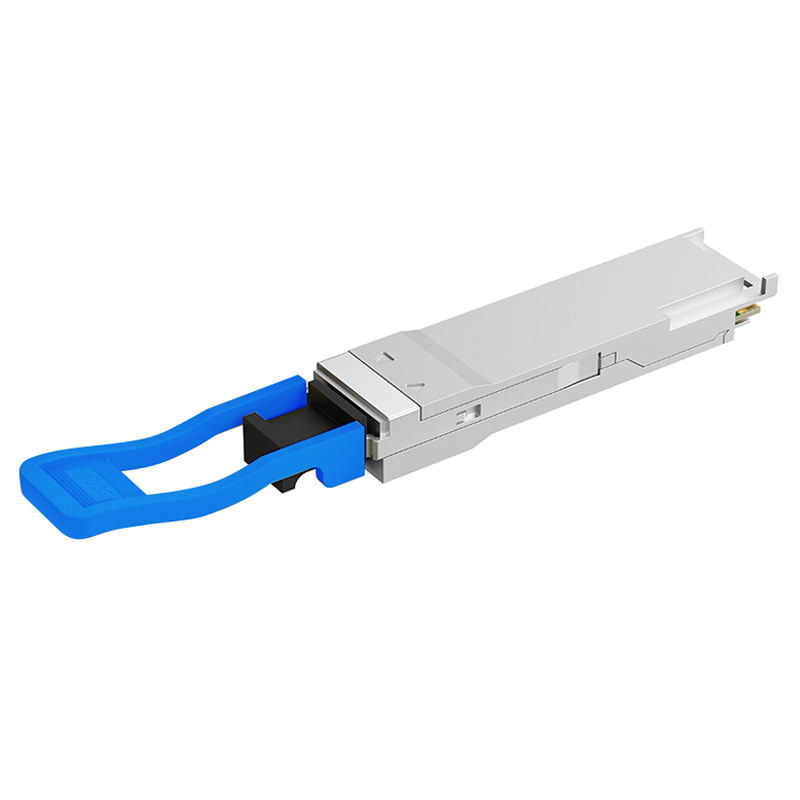

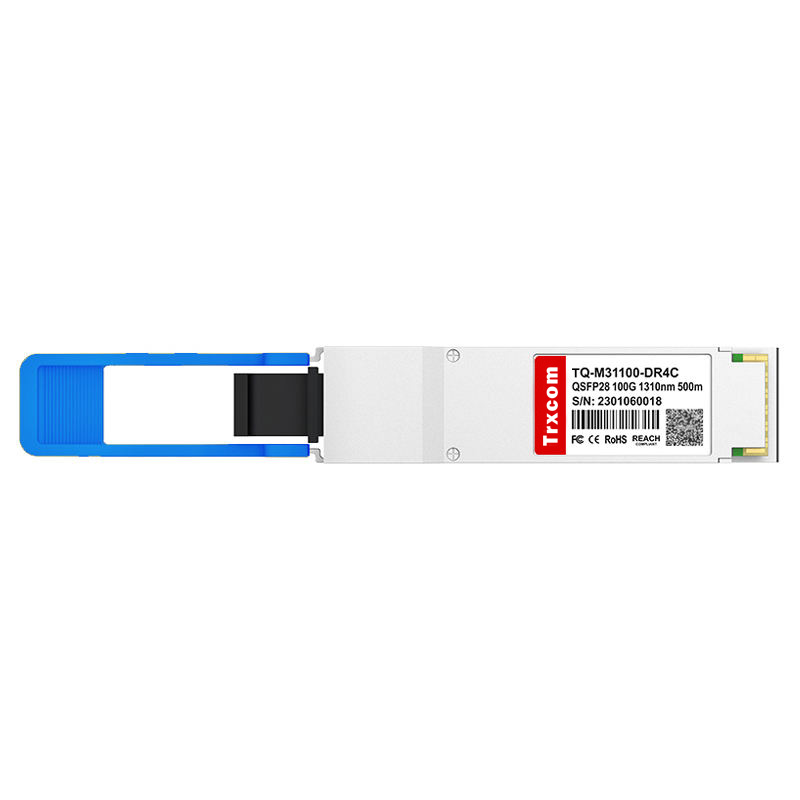

TQ-M31100-DR4C 100GBASE-PSM4 QSFP28 4 X 25G NRZ 1310nm 500m MPO-12/APC SMF Transceiver Module
share
Parameter
Brand ： Trxcom
P/N ： TQ-M31100-DR4C
Form Factor ： QSFP28
Type ： Single Mode
Data Rate ： 100G
Model ： DR4
Connector ： MPO-12/APC
Distance ： ≤500m
Wavelength ： 1310nm
DetailReview(0)
Trxcom TQ-M31100-DR4C 100GBASE-PSM4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 500m, MTP/MPO, DOM)
The 100GBASE QSFP28-PSM4 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 500m over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-PSM4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks,enterprise core and distribution layer applications.
| Part Number | TQ-M31100-DR4C | Vendor Name | Trxcom |
| Form Factor | QSFP28 | Max. Data Rate | 103.125Gbps (4x 25.78Gbps) |
| Wavelength | 1310nm | Max. Cable Distance | 500m@OS2 |
| Connector | MTP/MPO-12 APC | Media | SMF |
| Transmitter Type | 4x DFB | Receiver Type | PIN |
| TX Power | -9.4~2dBm | Minimum Receiver Power | -12.66dBm |
| Power Budget | 3.26dB | Receiver Overload | 2dBm |
| Max. Power Consumption | 3.5W | Extinction Ratio | >3.5dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C |
| Protocols | QSFP28 MSA, SFF-8636, IEEE 802.3‑2012, CAUI-4 | Warranty | 5 Years |
Data Center
Telecommunications
Medical Equipment
Industrial Control
Consumer Electronics
Security System
Military Industry
