TQ-CW100-LR4C 100GBASE-LR4 QSFP28 4 x 25G NRZ 1310nm 10km Duplex LC/UPC SMF Transceiver Module

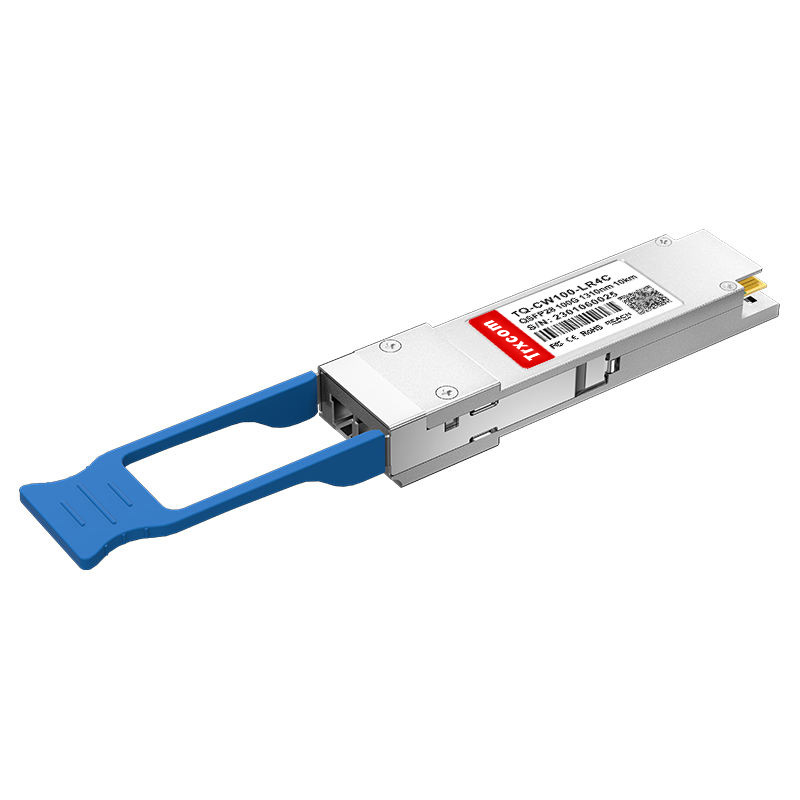

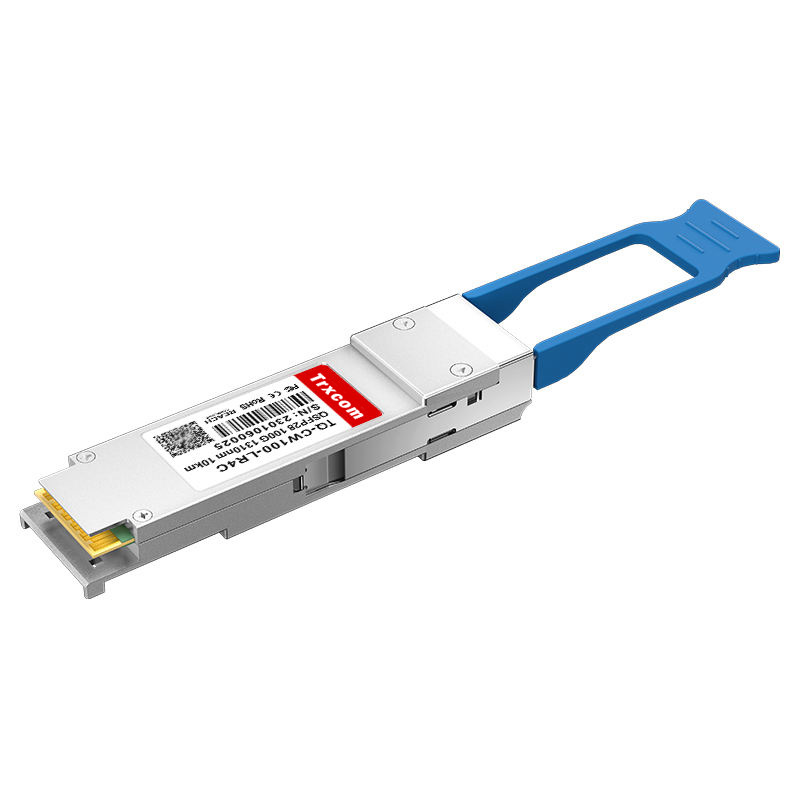

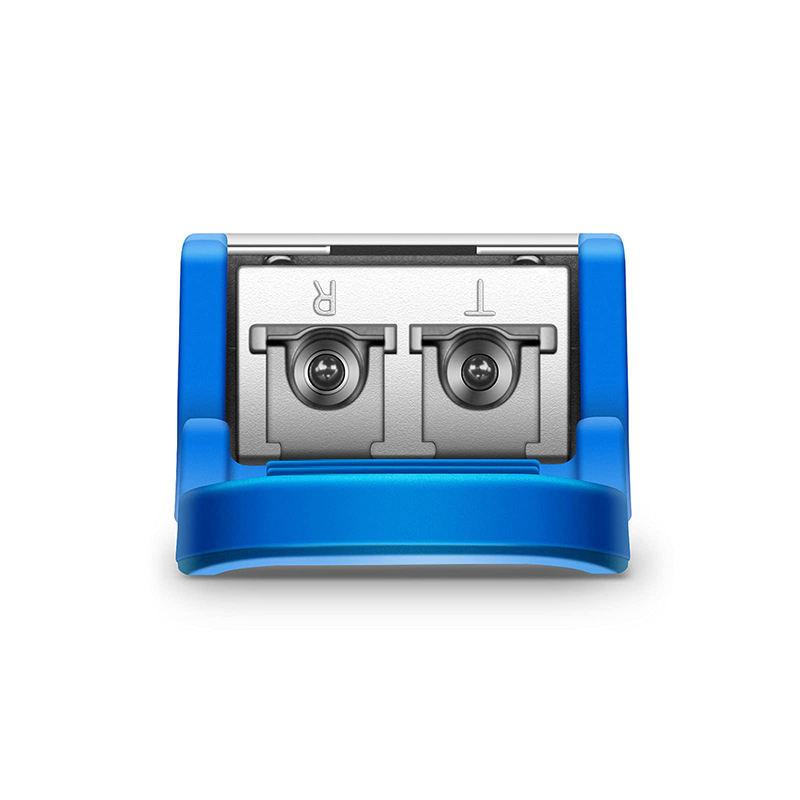

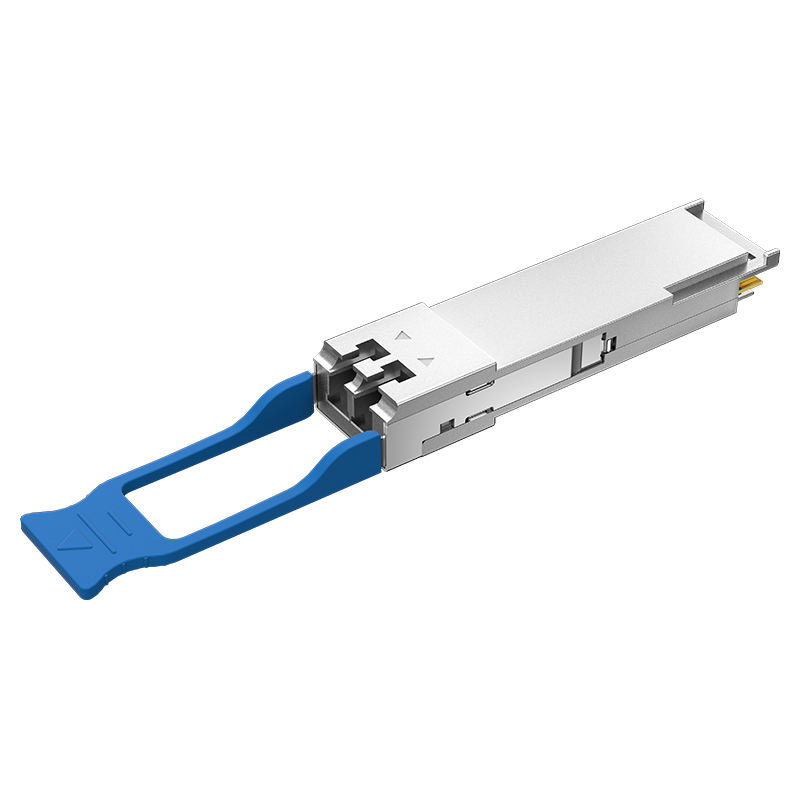

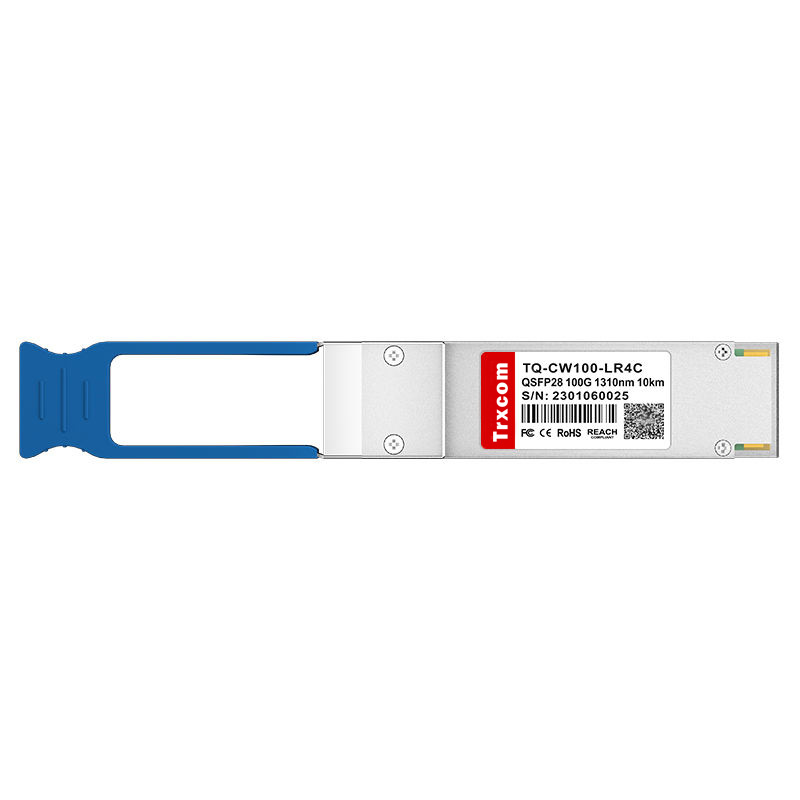

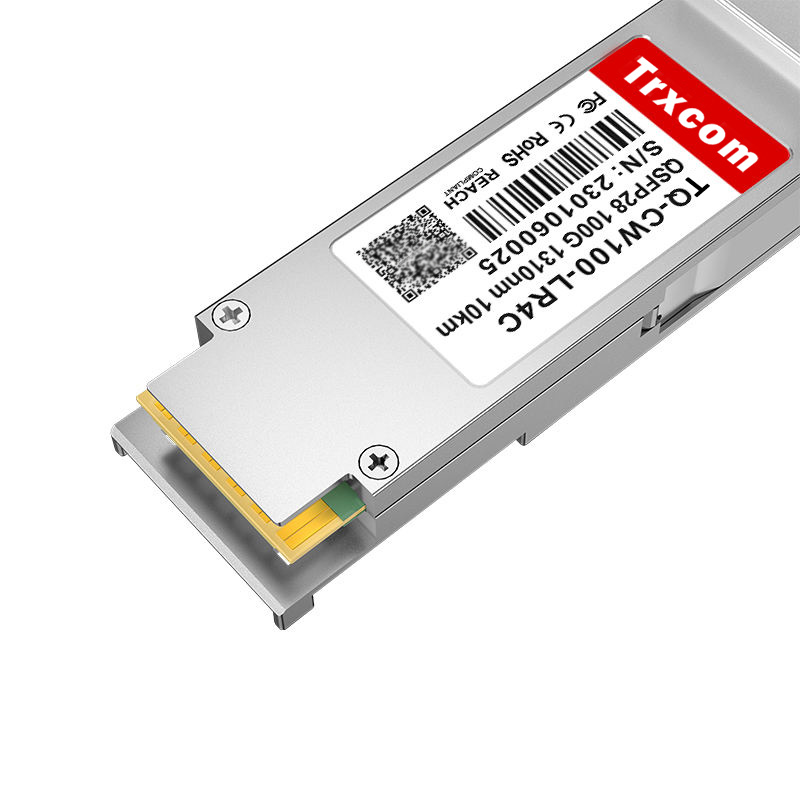

Trxcom TQ-CW100-LR4C 100GBASE-LR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
The 100GBASE-LR4 QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as telecom, service provider applications and also 5G wireless network, suitable for both outdoor and indoor deployments.
| Part Number | TQ-CW100-LR4C | Vendor Name | Trxcom |
| Form Factor | QSFP28 | Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
| Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | LAN WDM EML | Receiver Type | PIN |
| TX Power | -4.3~4.5dBm | RX Power | -10.6~4.5dBm |
| Power Budget | 6.3dB | Extinction Ratio | >4dB |
| Power Consumption | ≤4.5W | DDM/DOM | Supported |
| Modulation (Electrical) | 4x 25G-NRZ | Modulation (Optical) | 4x 25G-NRZ |
| Packaging Technology | BOX Packaging | Industrial Temperature Range | 0 to 70°C |
| CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Host FEC | Supported |
| Protocols | IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA Compliant | Warranty | 5 Years |
