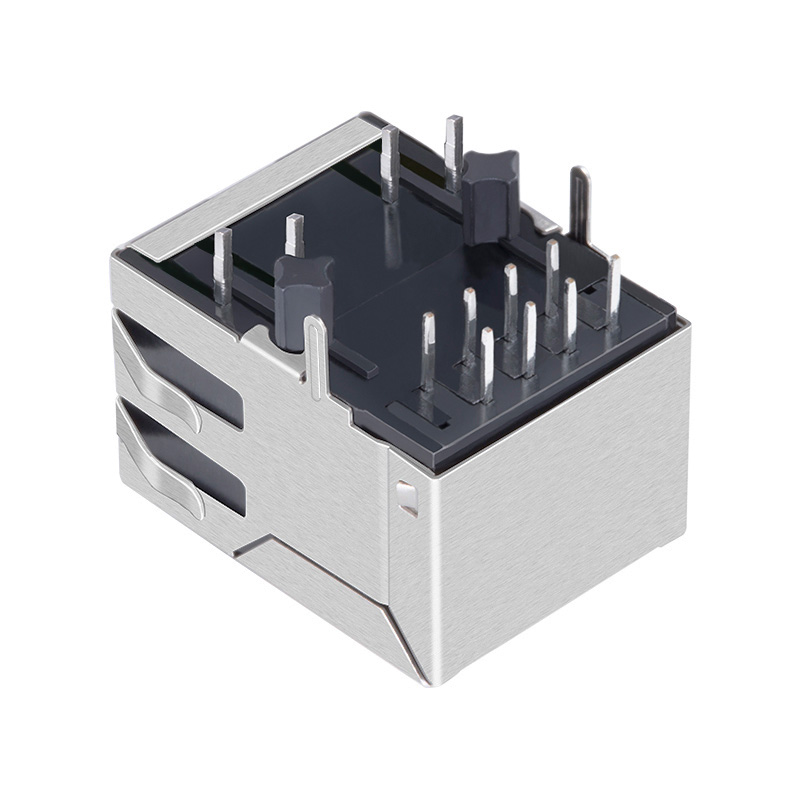

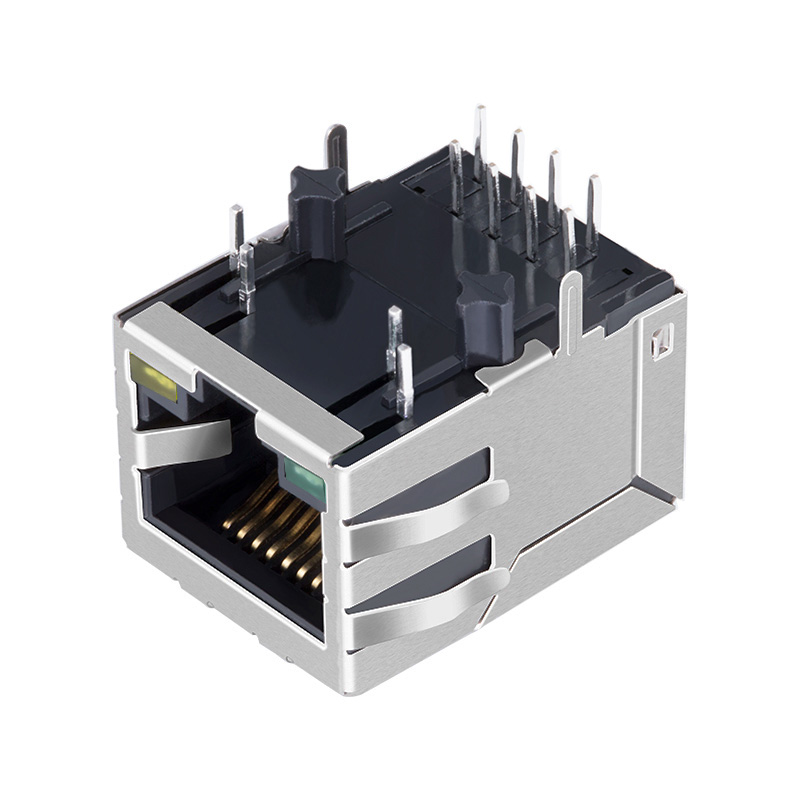

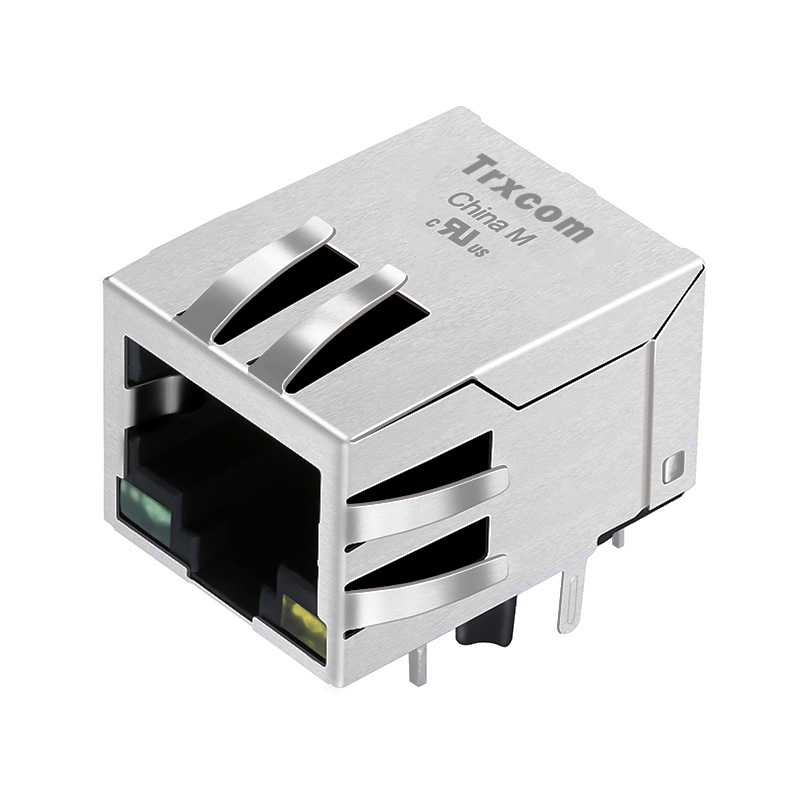

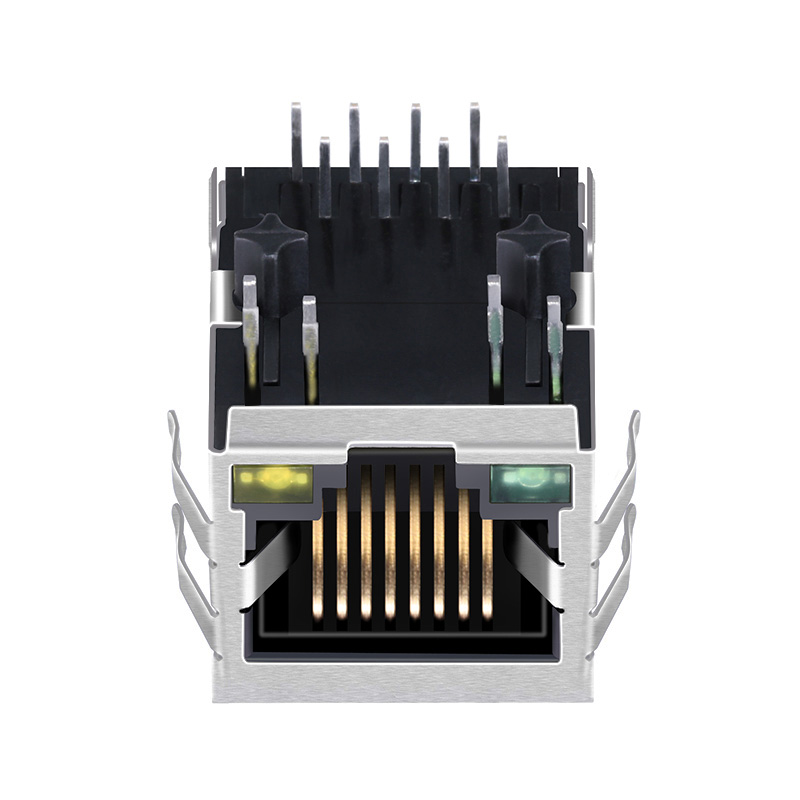

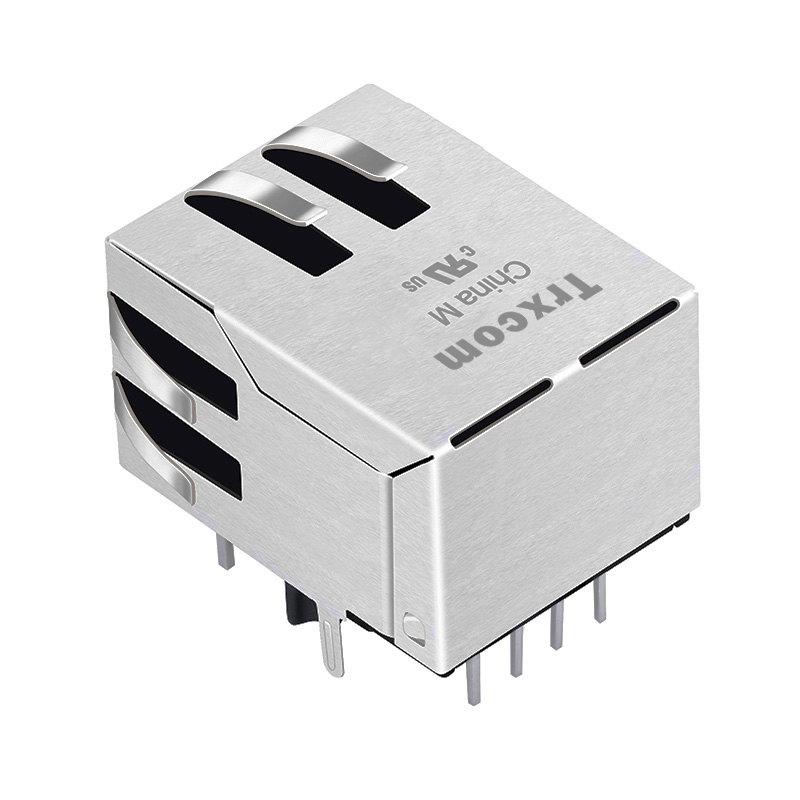

Pulse JKM-0008NL Compatible 10/100 Base-T Right Angle RJ45 8 Pin Connector Tab Down Green/Yellow Led

Name: Pulse JKM-0008NL Compatible 10/100 Base-T Right Angle RJ45 8 Pin Connector Tab Down Green/Yellow Led
Availability: InStock

Facebook

Line

Tumblr

Parameter

Brand: ： Trxcom

P/N: ： TRJ0011ABNL

Compatible Brand: ： Pulse

Compatible P/N: ： JKM-0008NL

Port: ： 1X1

Rate: ： 10/100Base-T

PoE: ： NONE-PoE

Latch: ： Down

LED: ： Green/Yellow

Mount: ： 0℃ to 70℃

Shield Tabs: ： Yes

Compatible Brand:

Pulse

Compatible P/N:

JKM-0008NL

J0011D21BNL

Get a Quote

Download

Consult products

DetailReview(0)

Pulse JKM-0008NL Compatible Trxcom TRJ0011ABNL 10/100 Base-T Right Angle RJ45 8 Pin Connector for Hub and Switches( Single Port, Tab Down, Green/Yellow Led)

The Pulse JKM-0008NL Compatible TRJ0011ABNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Switches, Ethernet Control, Hub and Entrance Guard System.

Trxcom Part Number	TRJ0011ABNL	Pulse Part Number	JKM-0008NL
Connector Type	Jack	Mounting Type	Through Hole
Number of Positions/Contacts	8p8c(RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	Down	Cores per Port	4
Orientation	90° Angle (Right)	PCB Mount Angle	THT Solder
Shield EMI Tabs	Without	LED Option	Green/Yellow&Leds
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.524/13.30	Package Length (Inches/mm)	0.837/21.25
Package Width (Inches/mm)	0.627/15.93	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	Yes
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T、C
