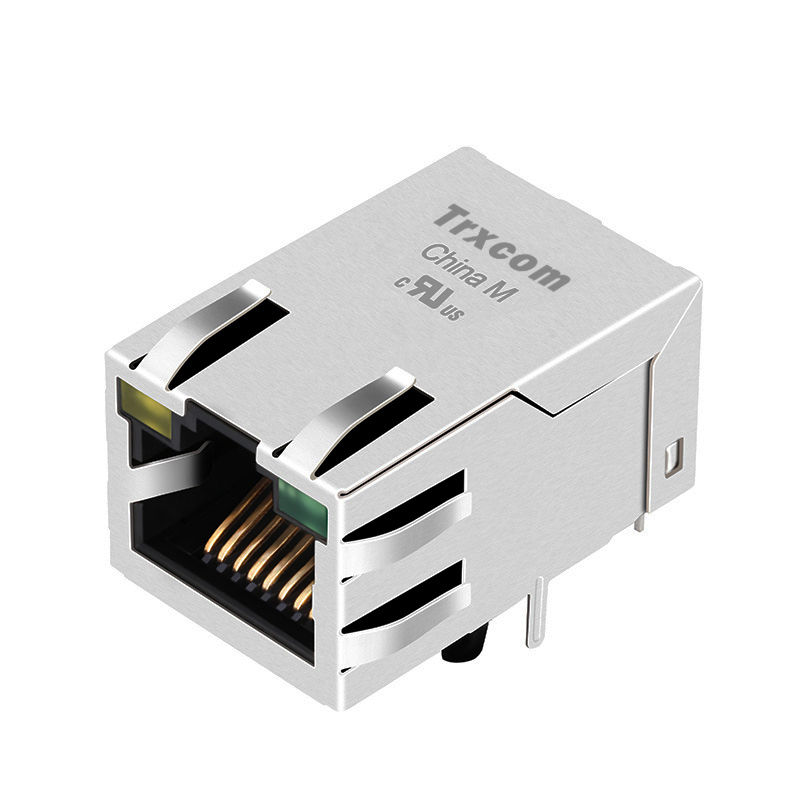

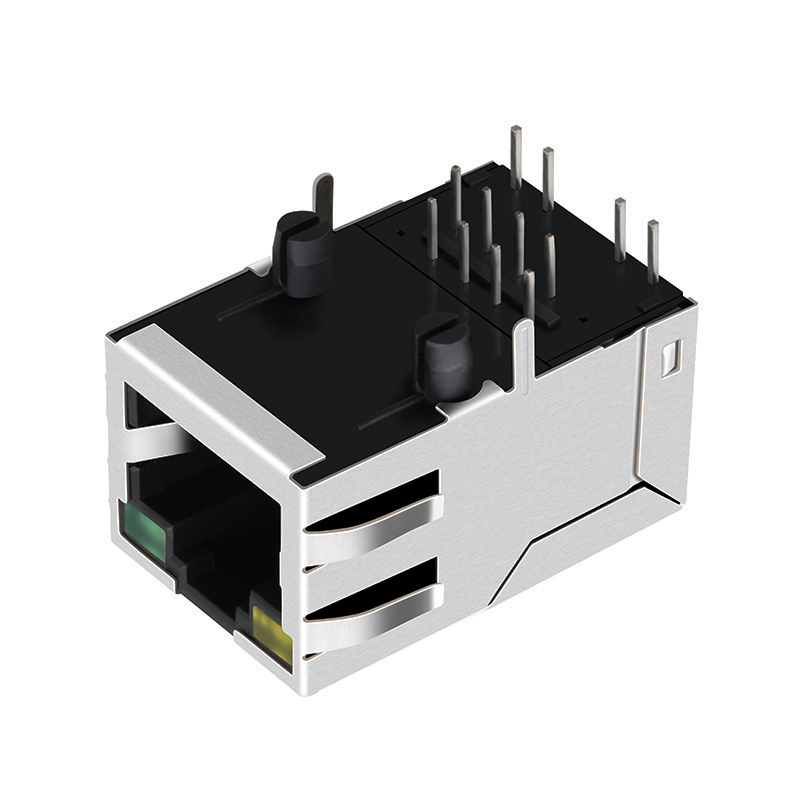

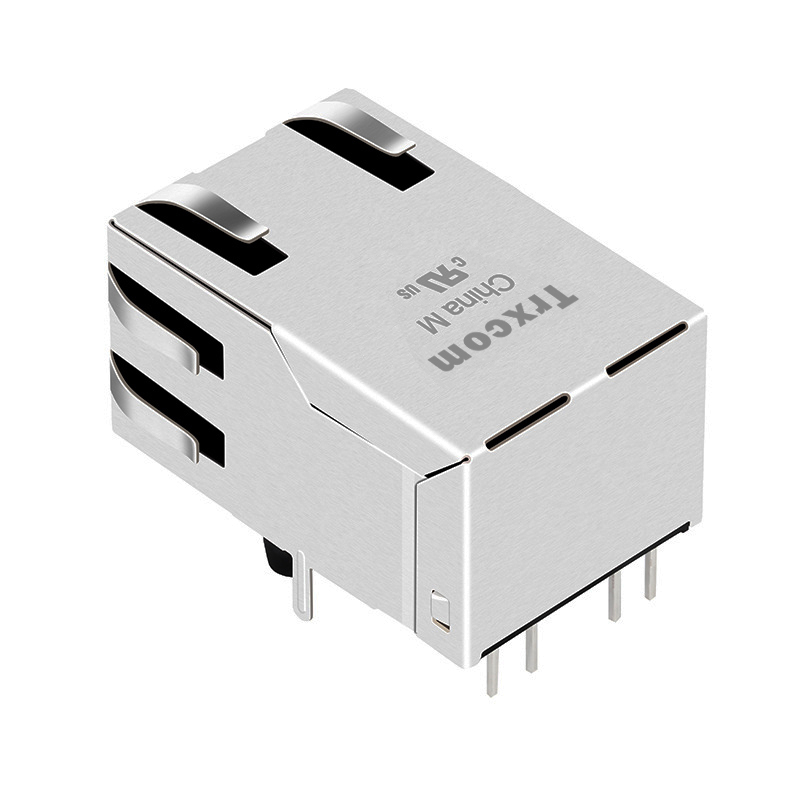

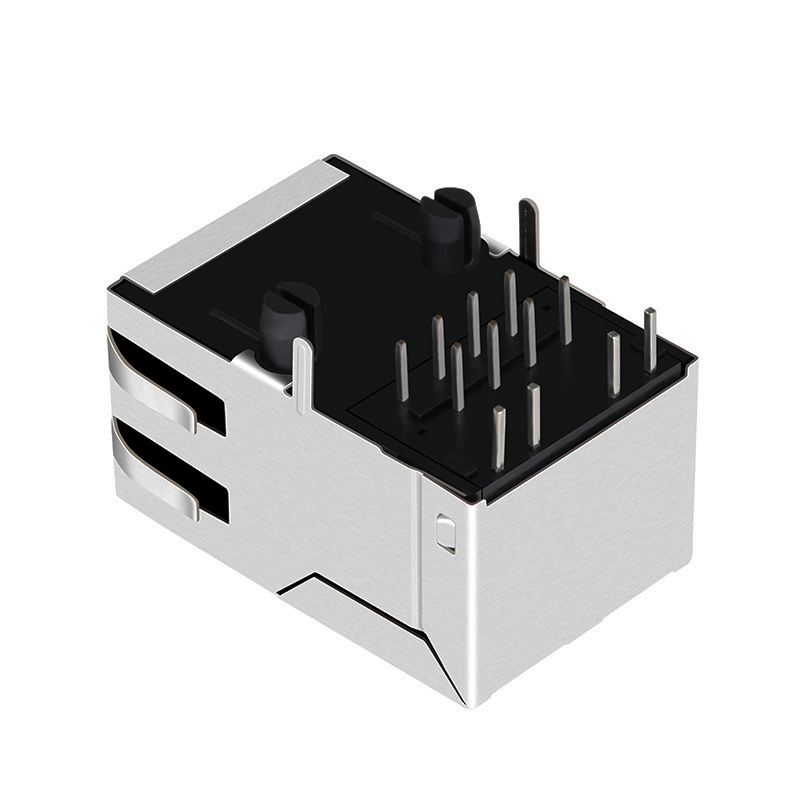

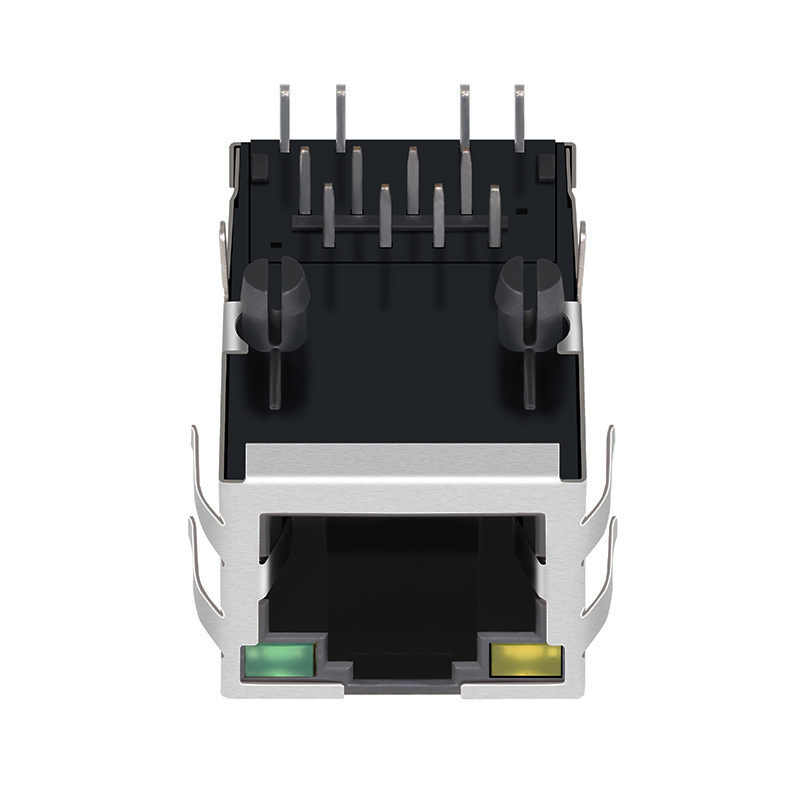

HR911168C Compatible 10/100 Base-T Single Port Industrial RJ45 MagJack Tab Up Yellow/Green Led
share
Parameter
Brand: ： Trxcom
P/N: ： TRJ1014AGNL
Compatible P/N: ： HR911168C
Port: ： 1X1
Rate: ： 10/100Base-T
PoE: ： NONE-PoE
Latch: ： Up
LED: ： Yellow/Green
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
Compatible P/N:
HY911168C
DetailReview(0)
HR911168C Compatible Trxcom TRJ1014AGNL 10/100 Base-T shielded RJ45 Mag Jack for Smart Camera and Game Controller (1x1 Port, Tab Up, Yellow/Green Led)
The HR911168C Compatible TRJ1014AGNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Solar Inverter, Game Controller, Smart Camera and Game Controller.
| Trxcom Part Number | TRJ1014AGNL | Compatible Part Number | HR911168C |
| Connector Type | Jack | Mounting Type | Through Hole |
| Number of Positions/Contacts | 8p8c(RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100 Base-T |
| Latch | UP | Cores per Port | 4 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | THT Solder |
| Shield EMI Tabs | With | LED Option | Yellow/Green Leds |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.530/13.45 | Package Length (Inches/mm) | 0.994/25.25 |
| Package Width (Inches/mm) | 0.636/16.15 | Temperature | 0℃ to 70℃ |
| Bst Circuit | No | AutomDX | Yes |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T、C |
Quality Certifications
We strictly control product quality, including strict control of manufacturer qualifications, quality control processes and production process standards, and compliance with various certifications and safety standards. Currently, our products comply with industry standards and mainstream quality certifications, such as ISO 9001, ISO 14001, CE, RoHS, REACH, UL, etc. For more details, please visit the Compliance Center Center to get documents.
