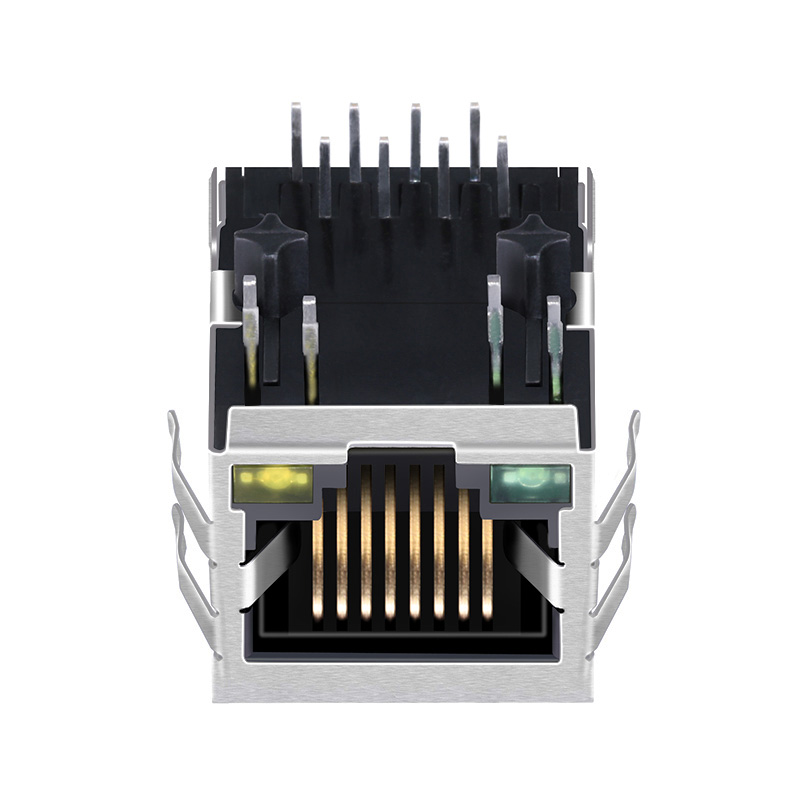

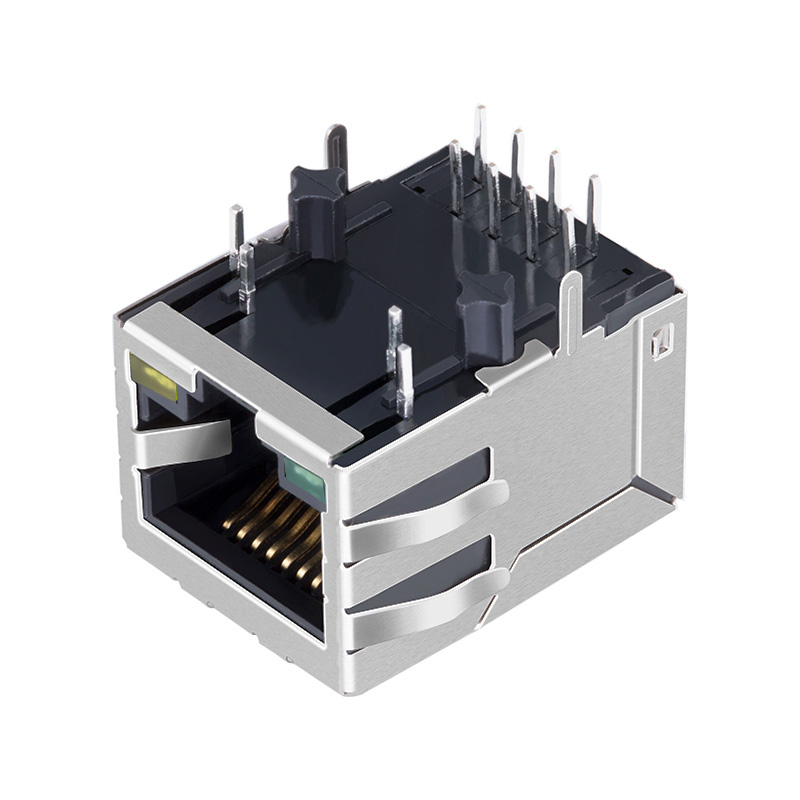

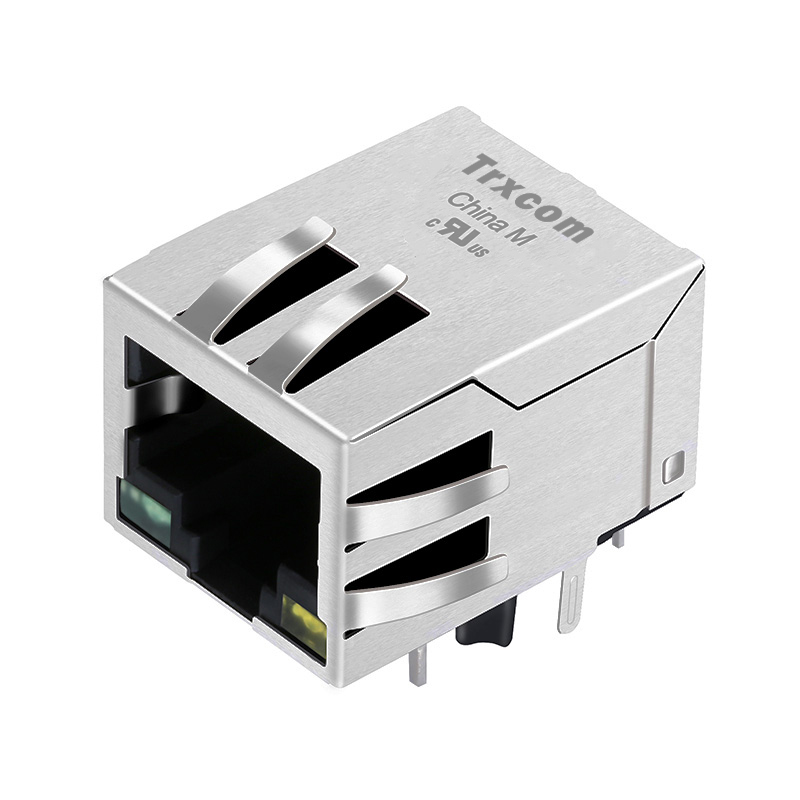

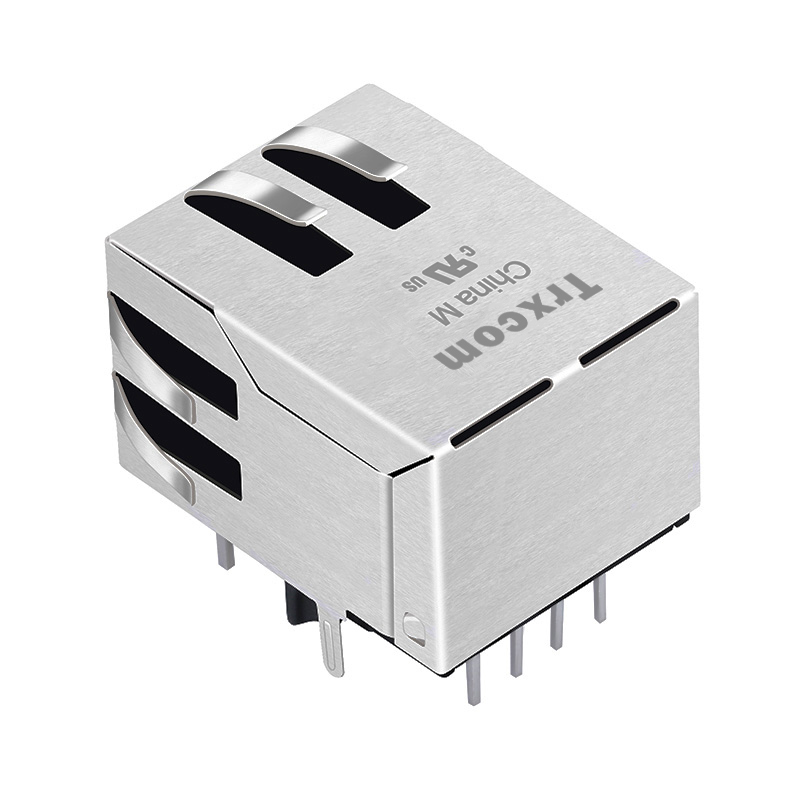

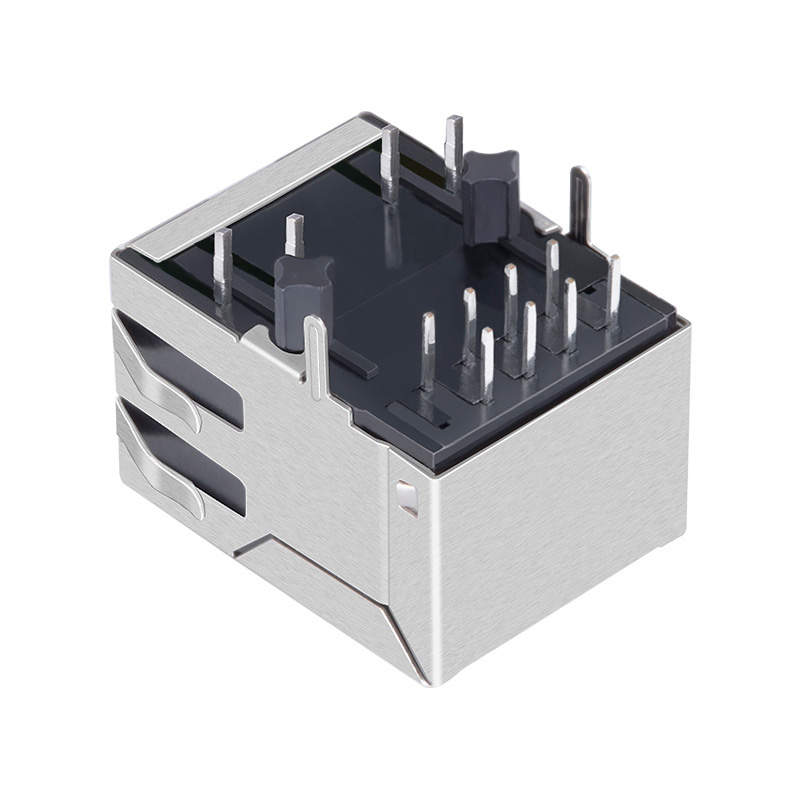

TRJ4284AHNL 10/100 Base-T RJ45 Connector With Magnetics Tab Down Green/Yellow Led
share
5.0 1
Parameter
Brand: ： Trxcom
P/N: ： TRJ4284AHNL
Port: ： 1X1
Rate: ： 10/100Base-T
PoE: ： NONE-PoE
Latch: ： Down
LED: ： Green/Yellow
Mount: ： -40℃ to +85°C
Shield Tabs: ： Yes
DetailReview(0)
Trxcom TRJ4284AHNL 10/100 Base-T 8P8C Ethernet RJ45 Connector Green/Yellow LED Tab Down
The Trxcom TRJ4284AHNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Network Firewall, Switches and Entrance Guard System.
| Part Number | TRJ4284AHNL | Brand | Trxcom |
| Connector Type | Jack | Mounting Type | Through Hole |
| Number of Positions/Contacts | 8p8c(RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100 Base-T |
| Latch | Down | Cores per Port | 4 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | THT Solder |
| Shield EMI Tabs | With | LED Option | Green/Yellow&Leds |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.528/13.30 | Package Length (Inches/mm) | 0.838/21.25 |
| Package Width (Inches/mm) | 0.626/15.95 | Temperature | -40℃ to 85℃ |
| Bst Circuit | Yes | AutomDX | Yes |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T、C |
