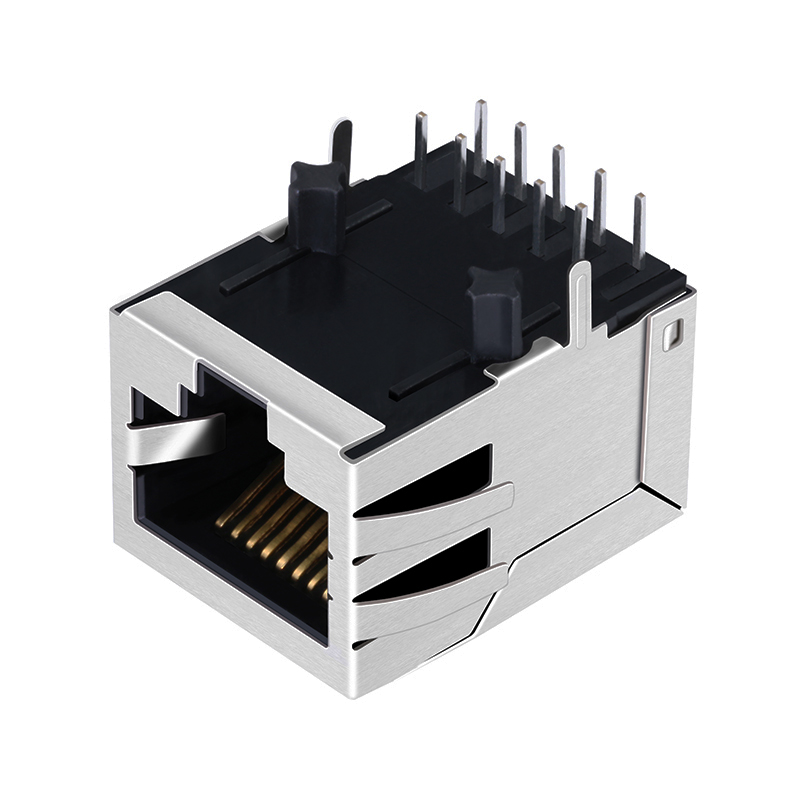

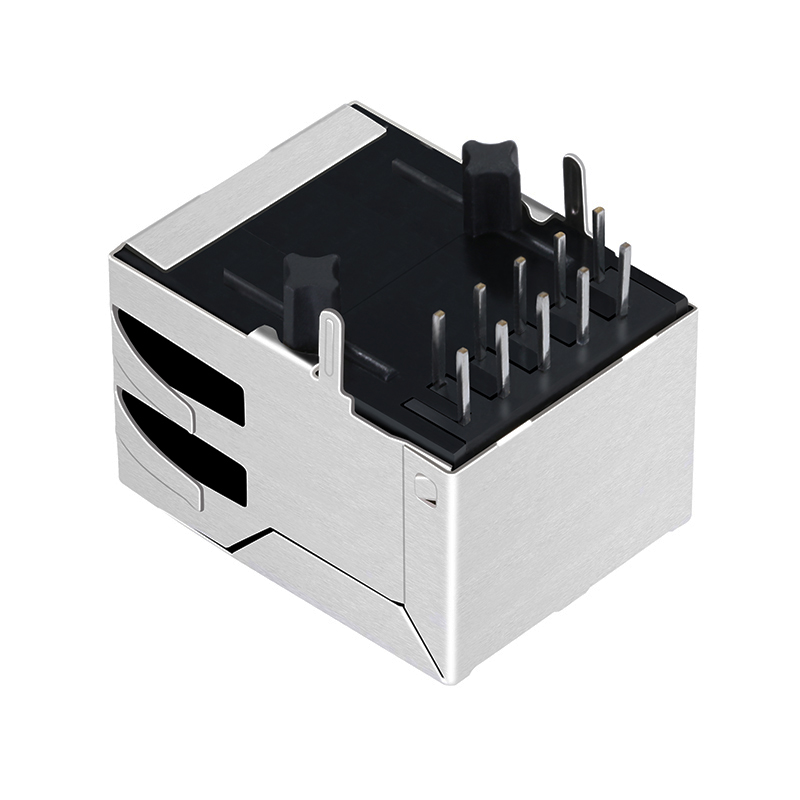

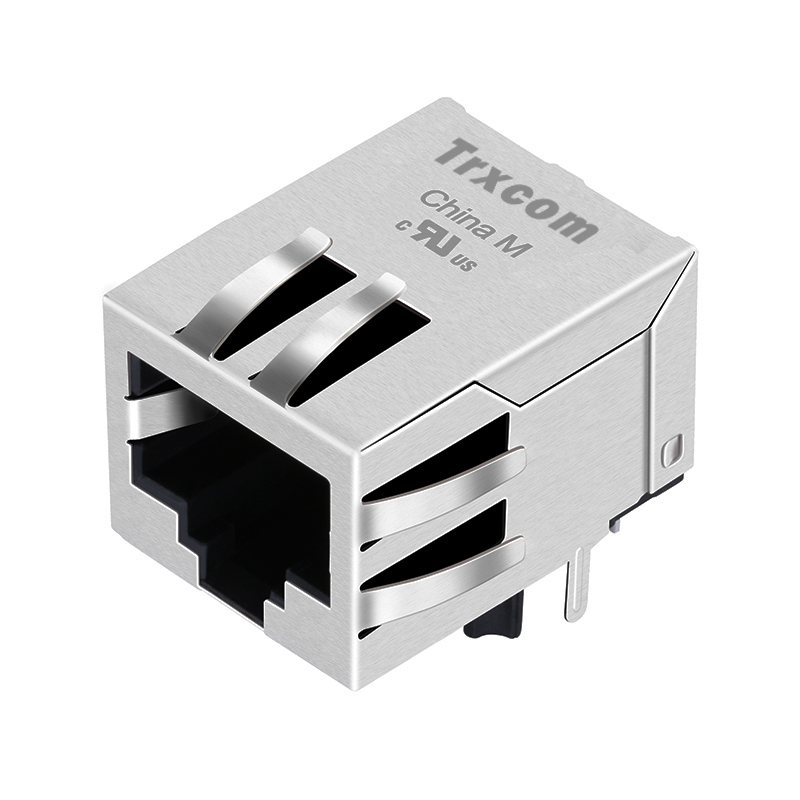

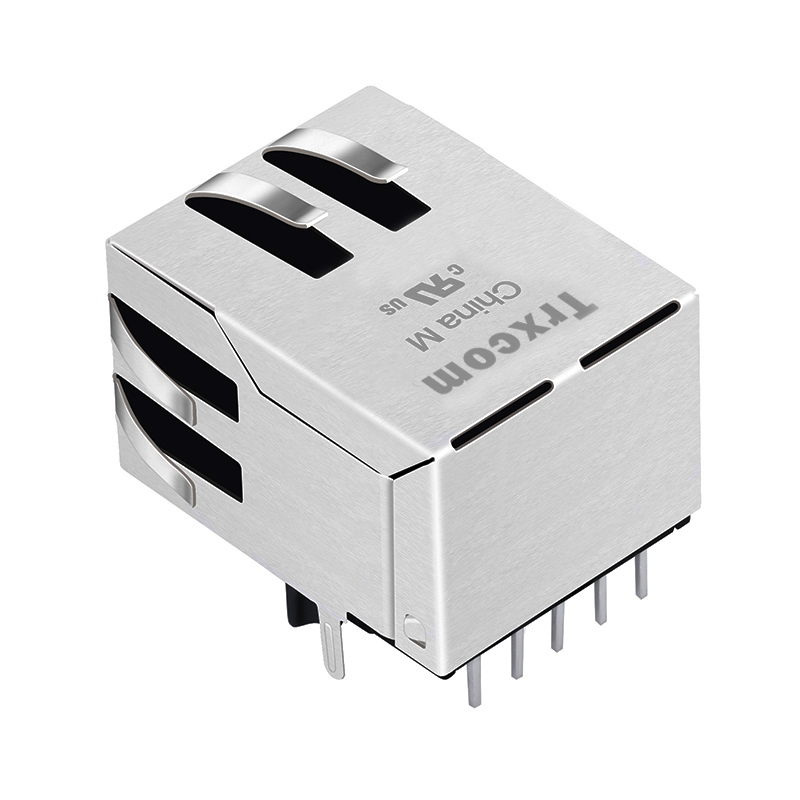

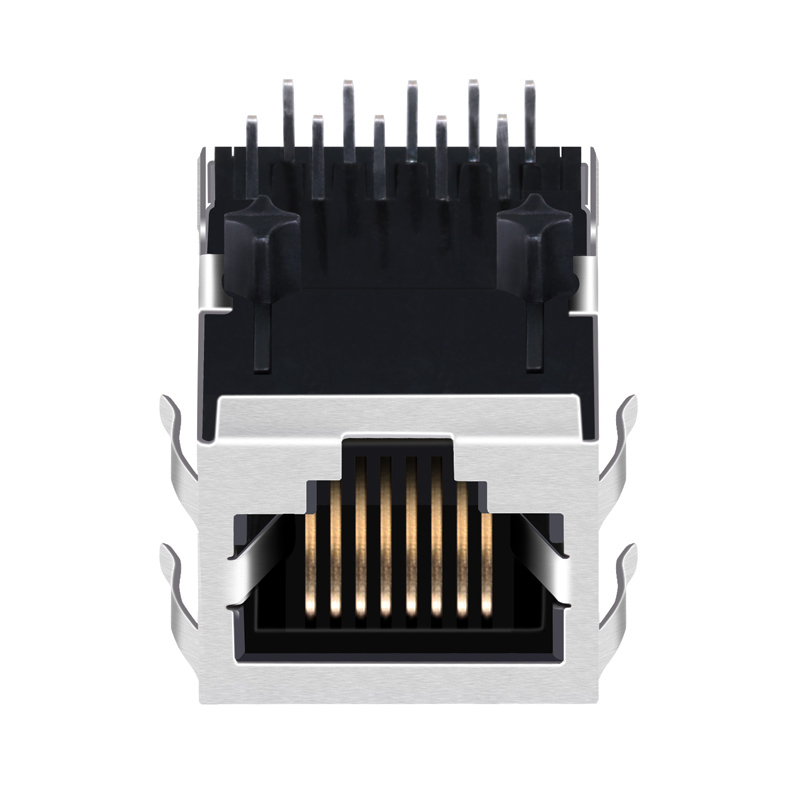

TRJG0813CNL 100/1000 Base-T RJ45 with Integrated Magnetics Ethernet Connector Tab Down Without Led
share
Parameter
Brand: ： Trxcom
P/N: ： TRJG0813CNL
Port: ： 1X1
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Down
LED: ： No LED
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
DetailReview(0)
Trxcom TRJG0813CNL 100/1000 Base-T RJ45 with Integrated Magnetics Ethernet Connector for Video Recorder and Entrance Guard System (Single Port, Tab Down, Without Led)
The TRJG0813CNL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Solar Inverter, Game Controller, Entrance Guard System and Intercom.
| Part Number | TRJG0813CNL | Brand | Trxcom |
| Connector Type | Jack | Mounting Type | Through Hole |
| Number of Positions/Contacts | 10p8c(RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100/1000 Base-T |
| Latch | Down | Cores per Port | 8 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | THT Solder |
| Shield EMI Tabs | With | LED Option | Without |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.528/13.40 | Package Length (Inches/mm) | 0.839/21.30 |
| Package Width (Inches/mm) | 0.626/15.90 | Temperature | -40℃ to 85℃ |
| Bst Circuit | No | AutomDX | Yes |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T、C |
