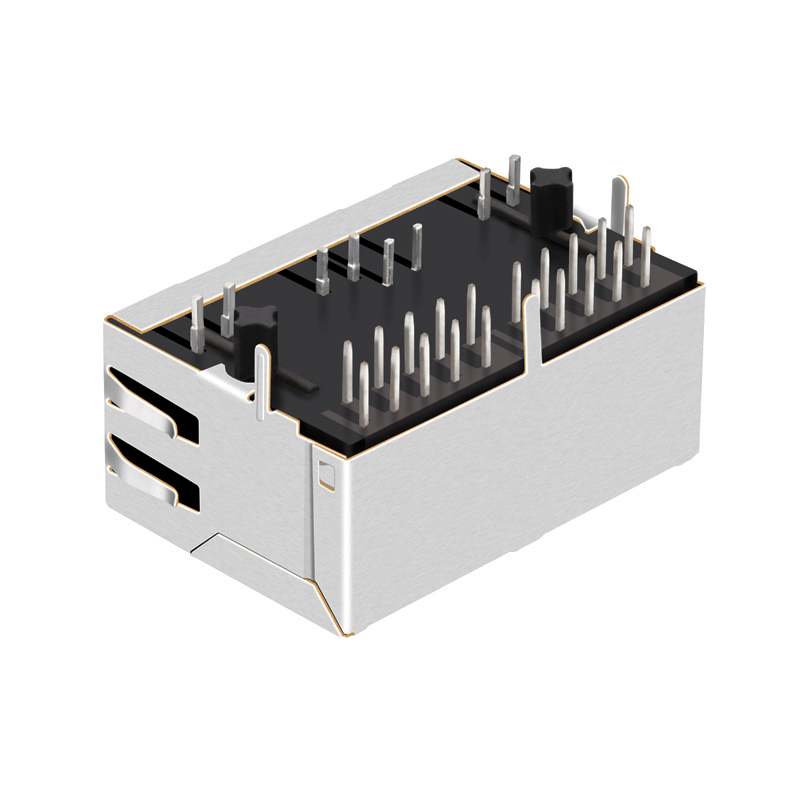

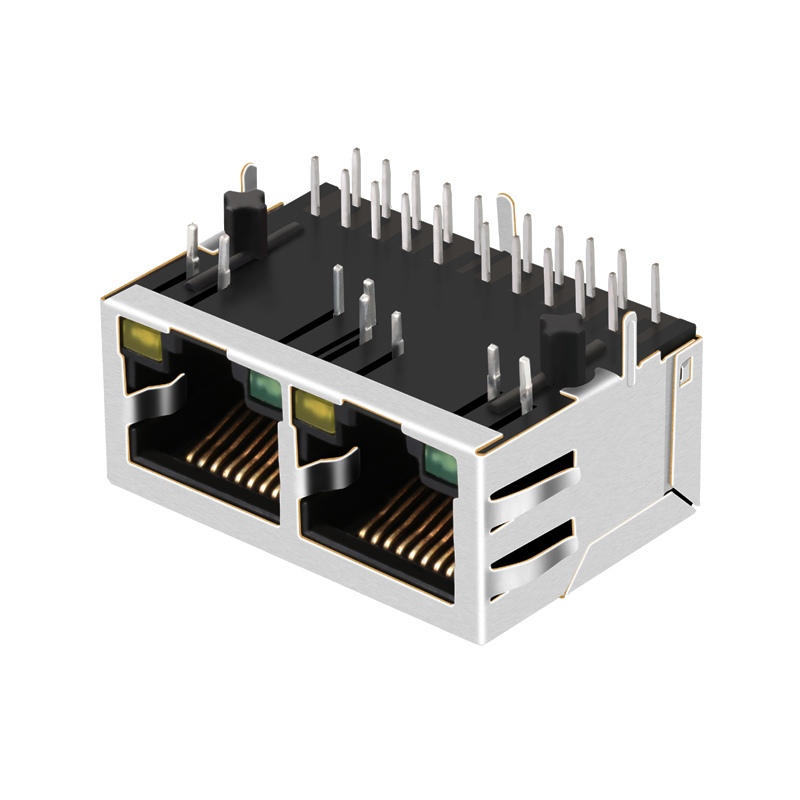

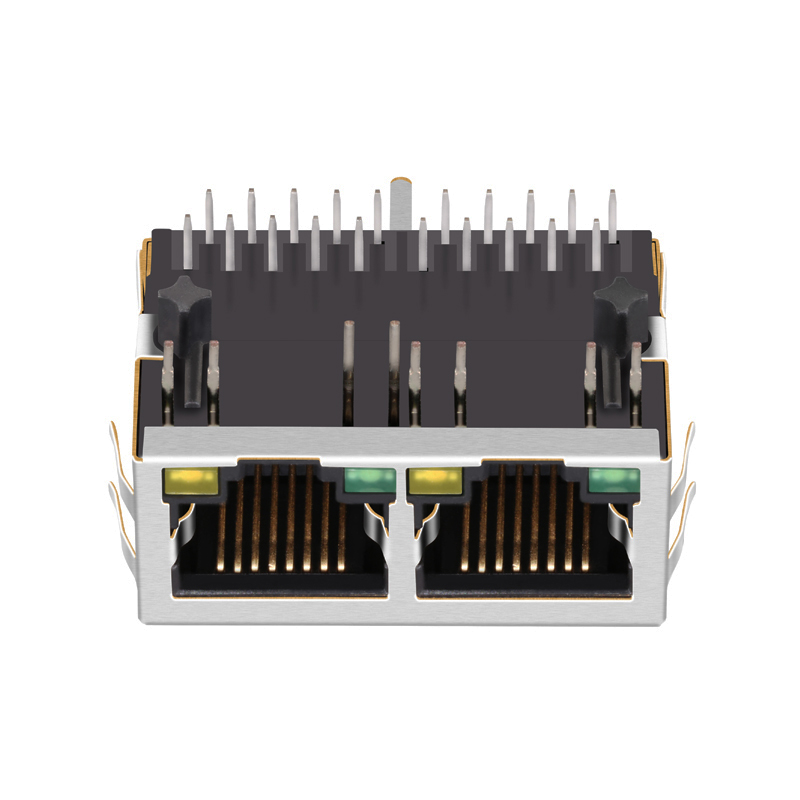

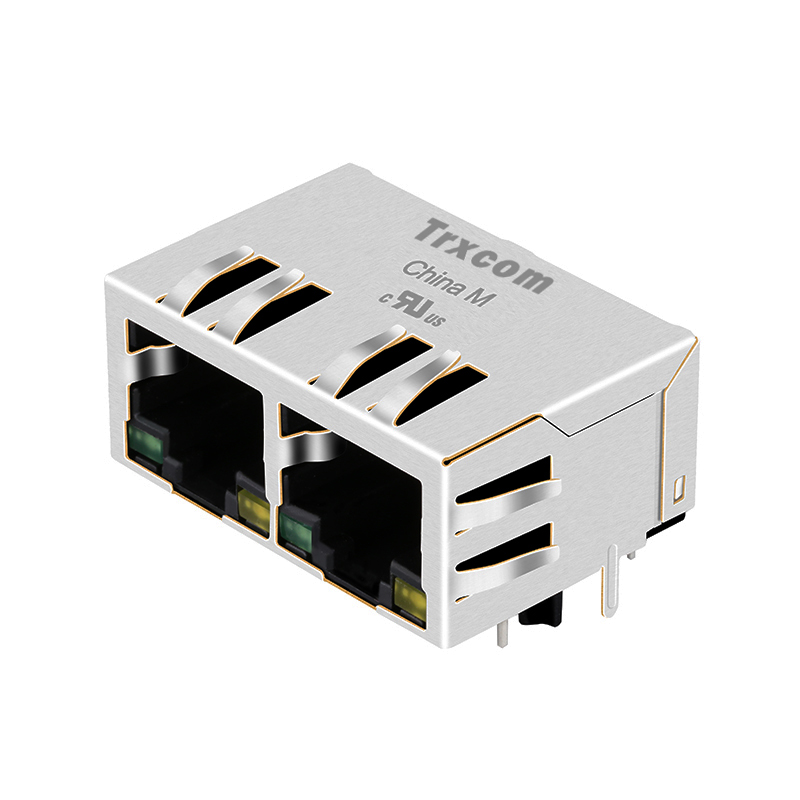

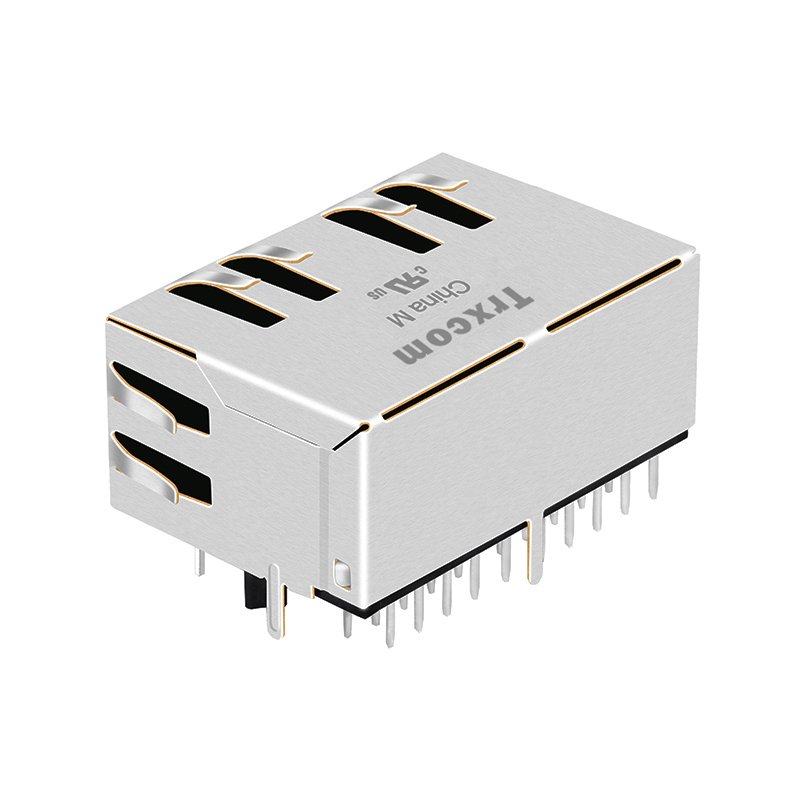

Pulse JXD0-2015NL Compatible TRJG26945AENL 1x2 Port Ethernet RJ45 MagJack 1000 Base-T Tab Down Green/Yellow LED

Name: Pulse JXD0-2015NL Compatible TRJG26945AENL 1x2 Port Ethernet RJ45 MagJack 1000 Base-T Tab Down Green/Yellow LED
Availability: InStock

Facebook

Line

Tumblr

Parameter

Brand: ： Trxcom

P/N: ： TRJG26945AENL

Compatible Brand: ： Pulse

Compatible P/N: ： TRJG26945AENL

Port: ： 1X2

Rate: ： 1000Base-T

PoE: ： NONE-PoE

Latch: ： Down

LED: ： Green/Yellow

Mount: ： -40℃ to +85°C

Shield Tabs: ： Yes

Compatible Brand:

Pulse

Compatible P/N:

JXD0-2015NL

Get a Quote

Download

Consult products

DetailReview(0)

Pulse JXD0-2015NL Compatible Trxcom TRJG26945AENL 10/100/1000 Base-T RJ45 Ethernet MagJack for Game Controller and Automation (1x2 Port ,Tab Down,Green/Yellow LED)

The TRJG26945AENL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Card, Optical Terminal ,Game Controller and Automation.

Trxcom Part Number	TRJG26945AENL	Pulse Part Number	JXD0-2015NL
Connector Type	Jack	Mounting Type	Through Hole
Number of Positions/Contacts	10p8c(RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x2 Port	Speed	10/100/1000 Base-T
Latch	UP	Cores per Port	8
Orientation	90° Angle (Right)	PCB Mount Angle	THT Solder
Shield EMI Tabs	With	LED Option	Green/Yellow Leds
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.527/13.39	Package Length (Inches/mm)	0.839/21.30
Package Width (Inches/mm)	01.213/30.80	Temperature	-40℃ to 85℃
Bst Circuit	No	AutomDX	Yes
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T、C
