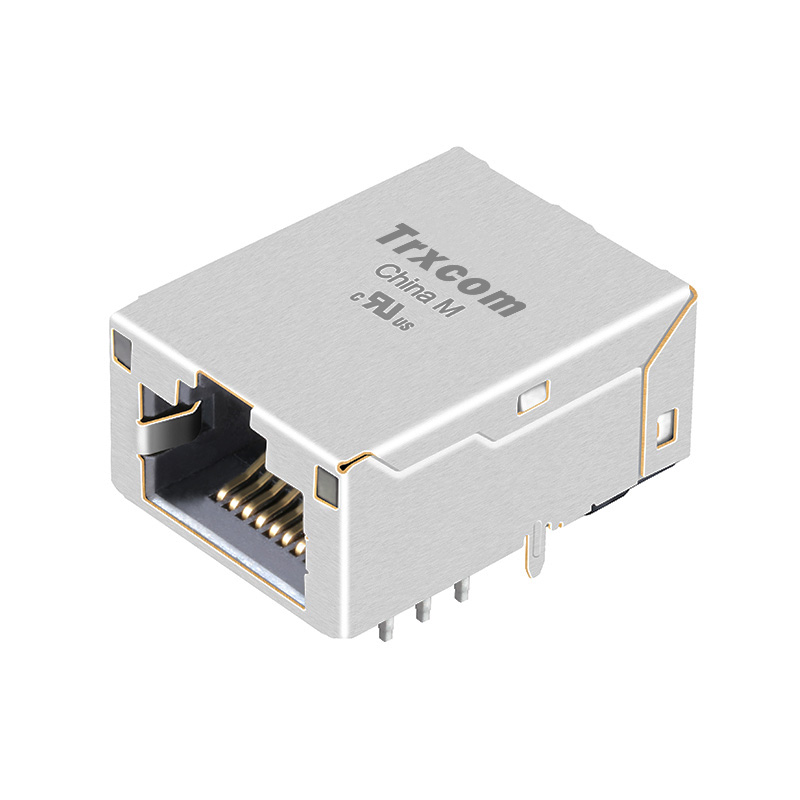

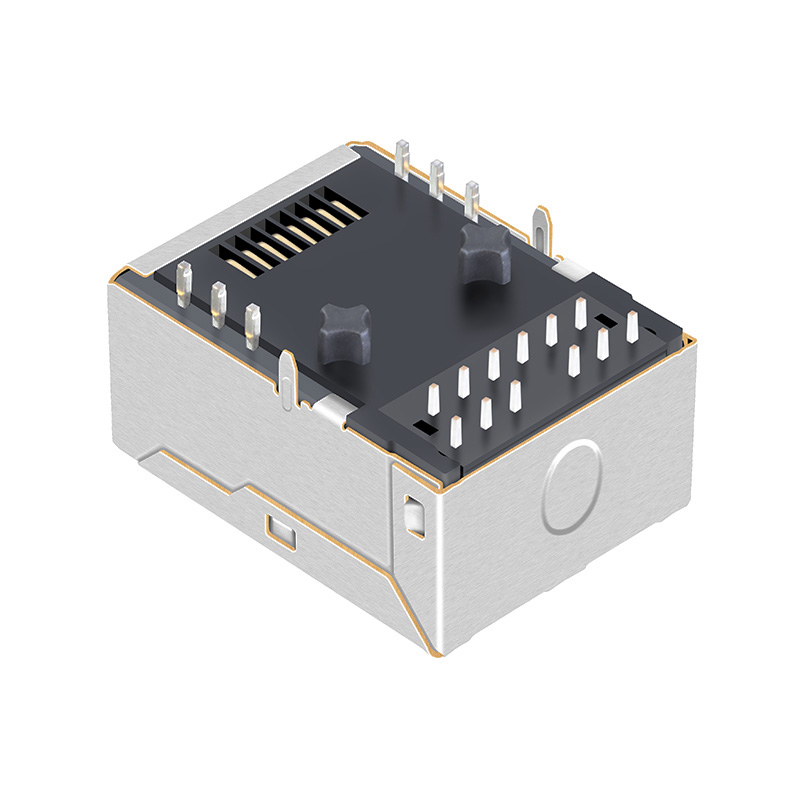

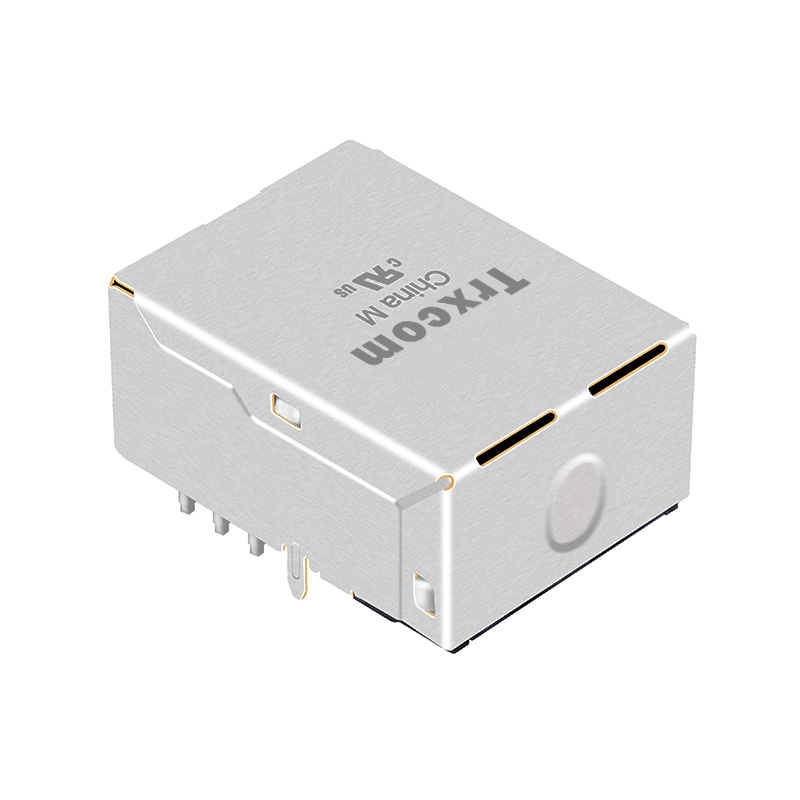

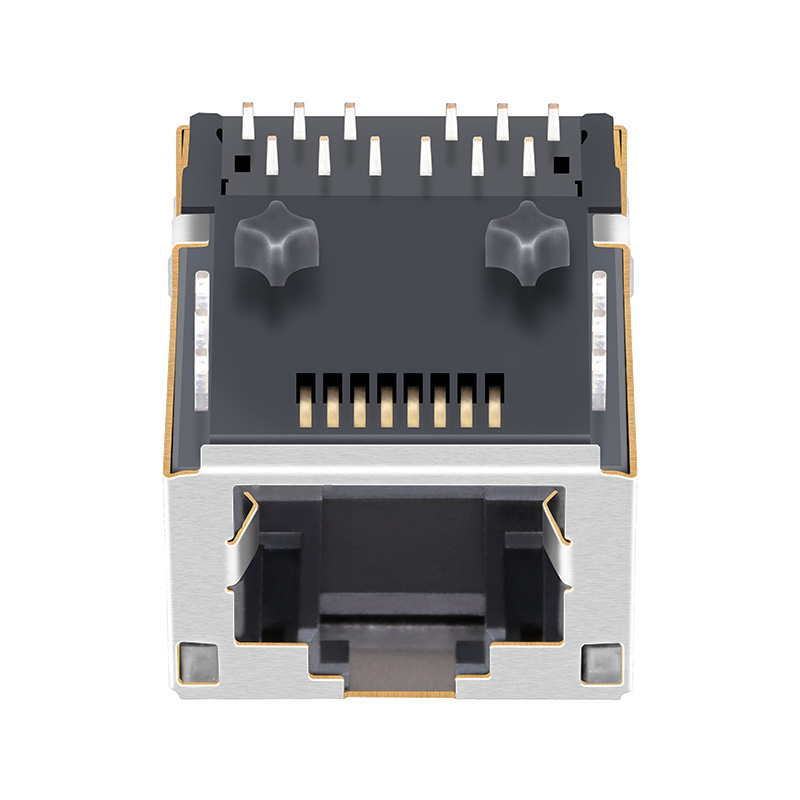

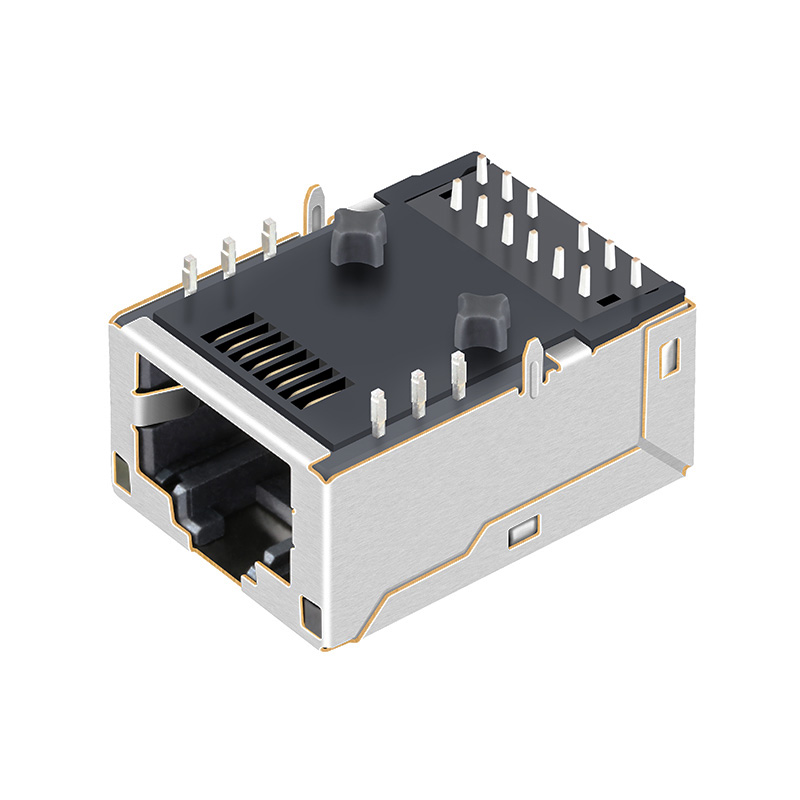

Pulse J0G-0003NL Compatible TRJK7003B98NL 10/100/1000 Base-T Low Profile RJ45 Magjack Connector Yellow&Green/Green LED Tab Up

Name: Pulse J0G-0003NL Compatible TRJK7003B98NL 10/100/1000 Base-T Low Profile RJ45 Magjack Connector Yellow&Green/Green LED Tab Up
Availability: InStock

Facebook

Line

Tumblr

Parameter

Brand: ： Trxcom

P/N: ： TRJK7003B98NL

Compatible Brand: ： Pulse

Compatible P/N: ： J0G-0003NL

Port: ： 1X1

Rate: ： 1000Base-T

PoE: ： NONE-PoE

Latch: ： Up

LED: ： Yellow & Green / Green

Mount: ： 0℃ to 70℃

Shield Tabs: ： No

Compatible Brand:

Pulse

Compatible P/N:

J0G-0003NL

Get a Quote

Consult products

DetailReview(0)

Pulse J0G-0003NL Compatible TRJK7003B98NL 10/100/1000 Base-T Low Profile RJ45 Magjack Connector For Solar Inverter ( Height 11.30mm Green/Yellow LED Tab Up)

The TRJK7003B98NL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, Set-top Box, Fieldbus System .

Part Number	TRJK7003B98NL	Pulse Part Number	J0G-0003NL
Connector Type	Jack	Mounting Type	Through Hole
Number of Positions/Contacts	10p8c(RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100/1000 Base-T
Latch	UP	Cores per Port	8
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Yellow&Green/Green Leds
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.445/11.30	Package Length (Inches/mm)	0.95/24.13
Package Width (Inches/mm)	0.700/17.78	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	Yes
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T、C
