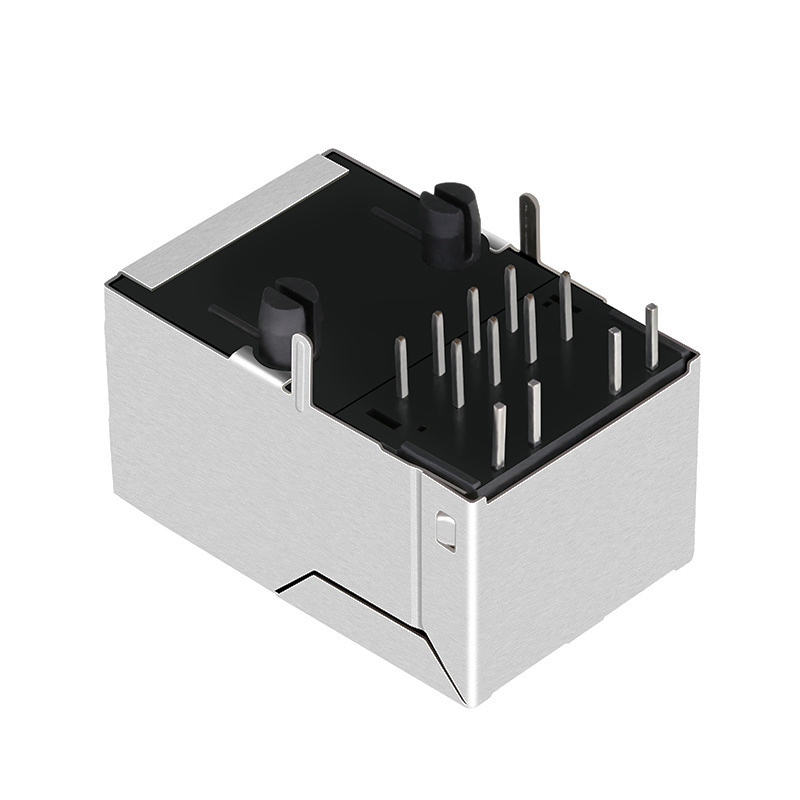

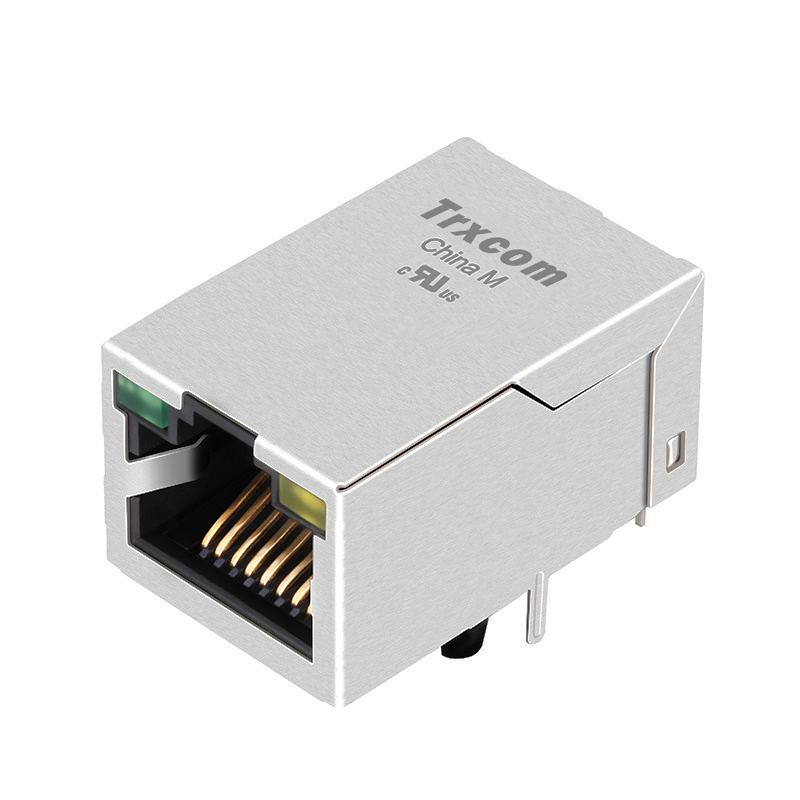

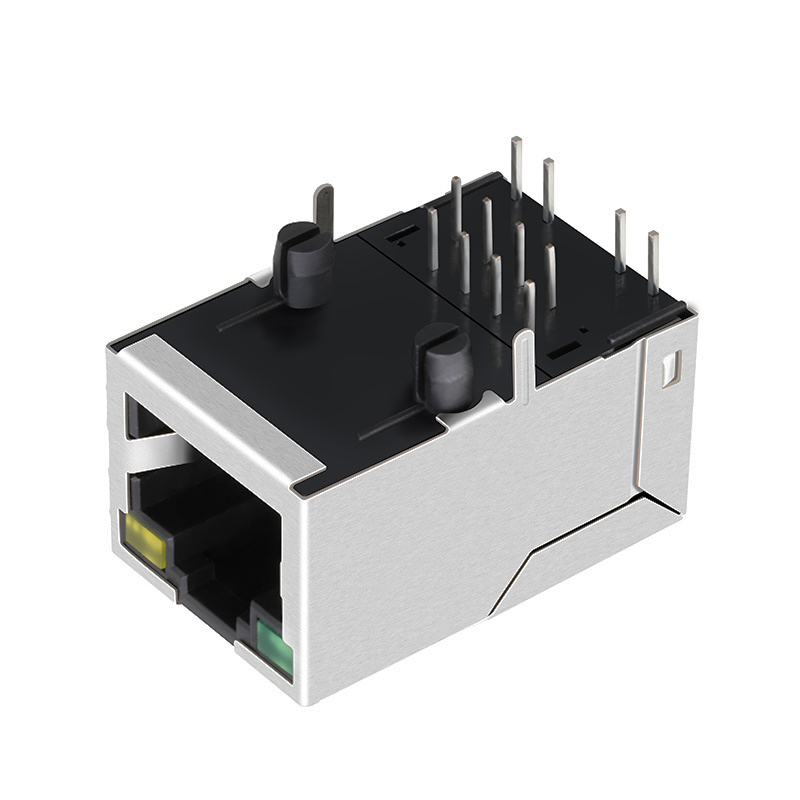

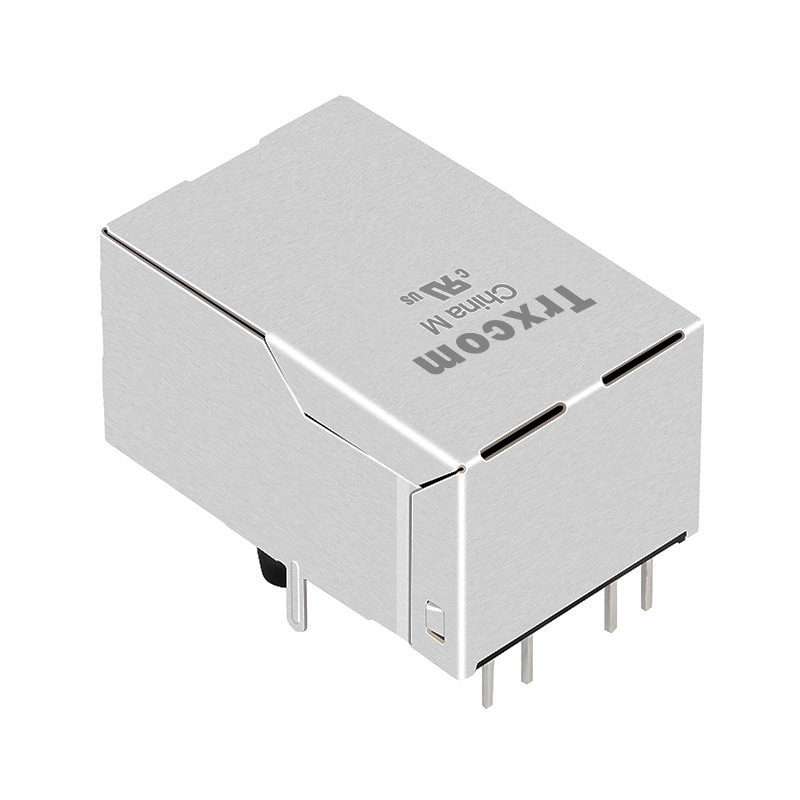

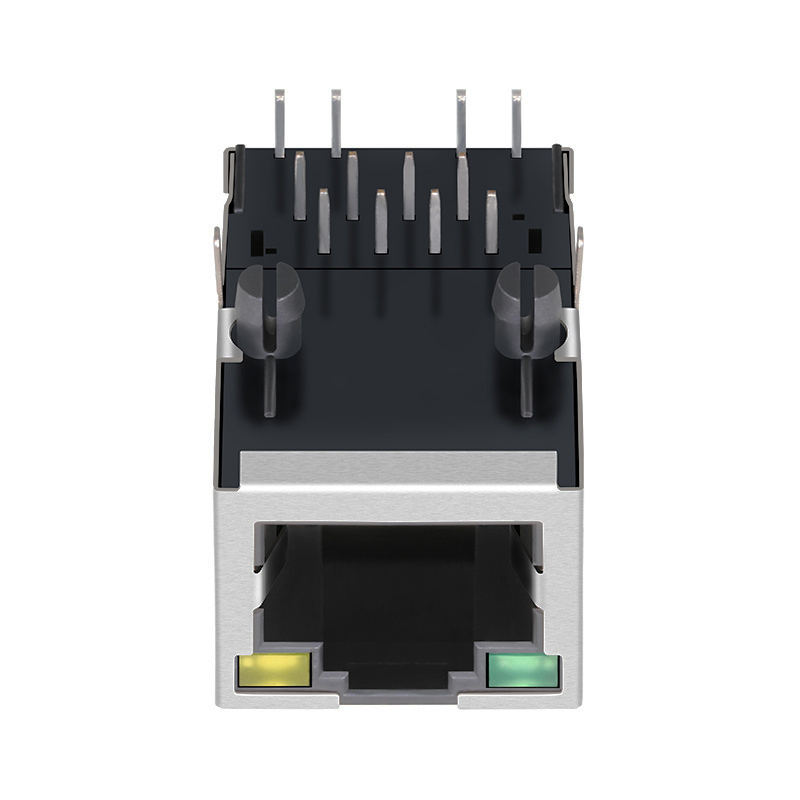

Pulse J1011F01PNL Compatible TRJ1011BBNL 100 Base-T Single Port RJ45 Jack with Transformer Tab Up Green/Yellow Led

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJ1011BBNL
Compatible Brand: ： Pulse
Compatible P/N: ： J1011F01PNL
Port: ： 1X1
Rate: ： 10/100Base-T
PoE: ： NONE-PoE
Latch: ： Up
LED: ： Green/Yellow
Mount: ： 0℃ to 70℃
Shield Tabs: ： No
Compatible Brand:
Pulse
Compatible P/N:
J00-0061NL
Get a Quote
Consult products
DetailReview(0)

Pulse J1011F01PNL Compatible TRJ1011BBNL 10/100 Base-T RJ45 Jack with Transformer for Digital Camera and Smart Meters (Single Port, Tab Up, Green/Yellow Led)

The Trxcom TRJ1011BBNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as The Handheld Device, Game Controller, Patient Care and Game Controller.

Trxcom Part NumberTRJ1011BBNLPulse Part NumberJ1011F01PNL
Connector TypeJackMounting TypeThrough Hole
Number of Positions/Contacts8p8c(RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x1 PortSpeed10/100 Base-T
LatchUPCores per Port4
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithoutLED OptionGreen/Yellow Leds
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.530/13.45Package Length (Inches/mm)0.994/25.25
Package Width (Inches/mm)0.636/16.15Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYes
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT、C
