RU2-1150HU13 Compatible 1000 Base-T Ethernet RJ45 Jack with Dual USB LAN Transformer
share
Parameter
Brand: ： Trxcom
P/N: ： TRJU4281A64NL
Port: ： RJ45/USB
Rate: ： 1000Base-T
PoE: ： NONE-PoE
LED: ： Orange-Green/Yellow
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
DetailReview(0)

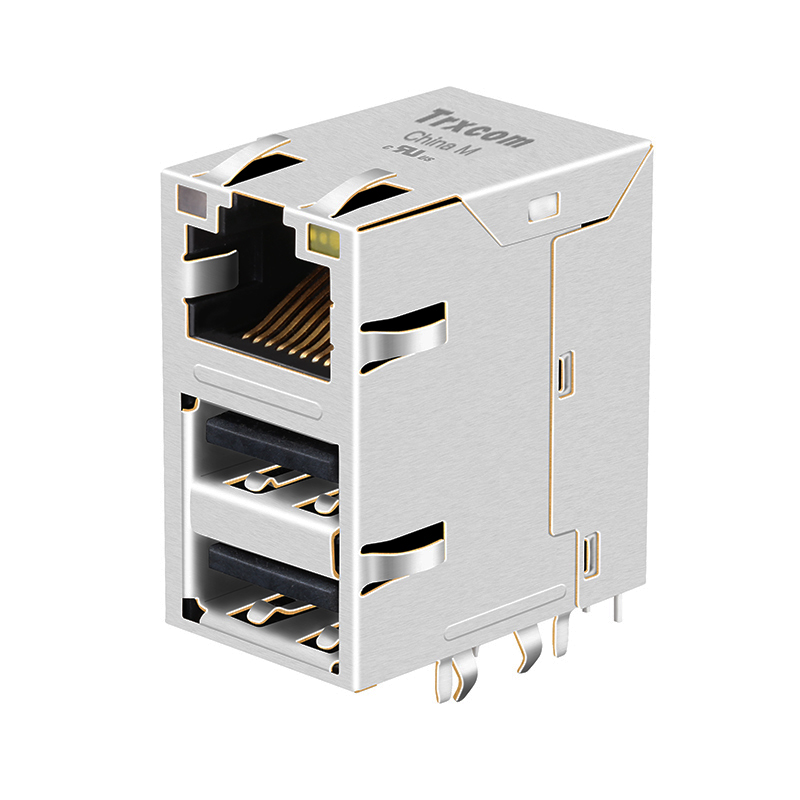

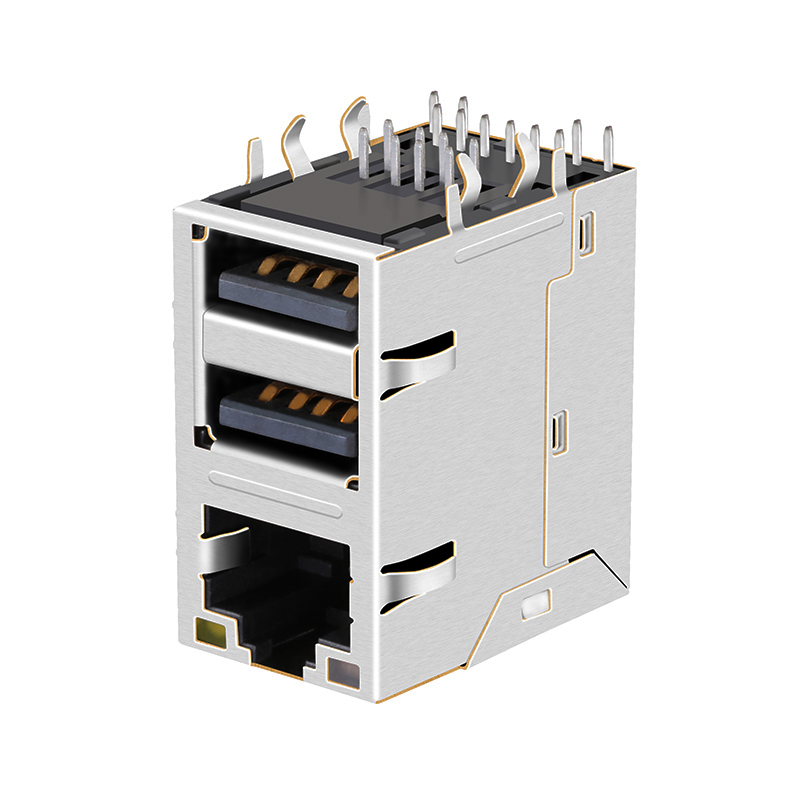

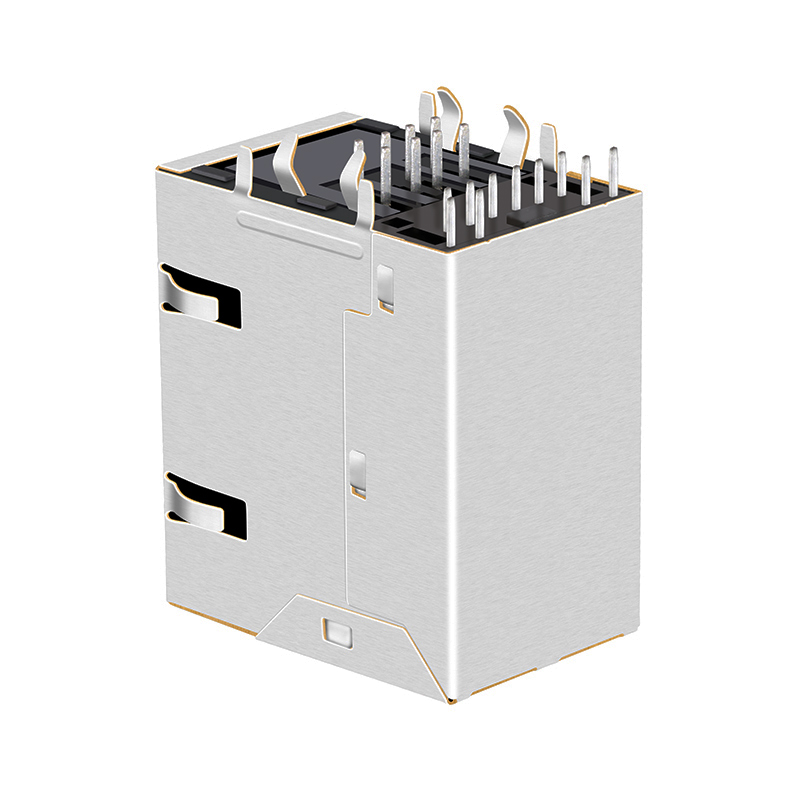

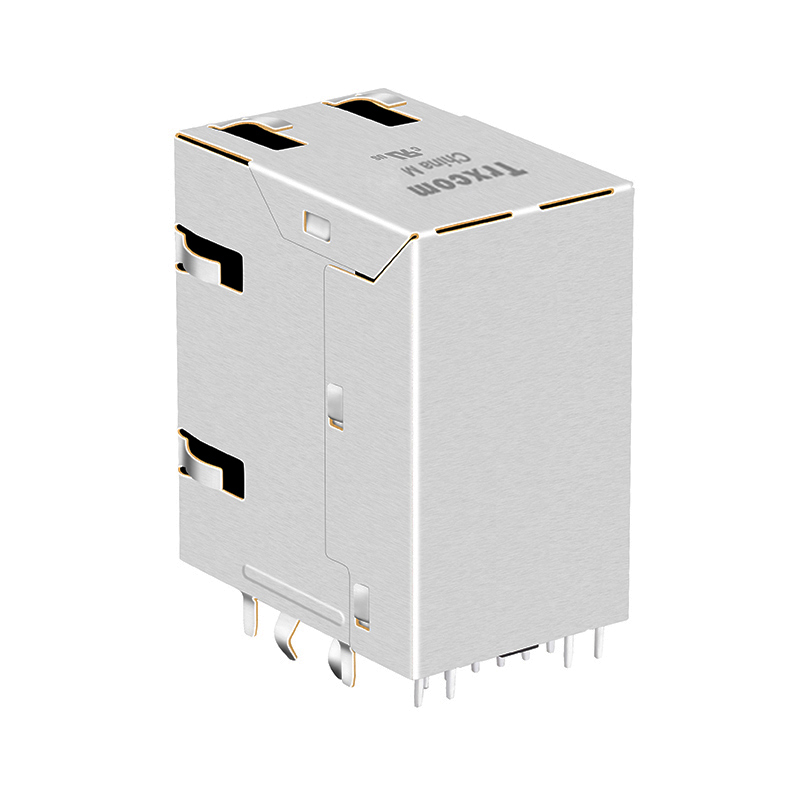

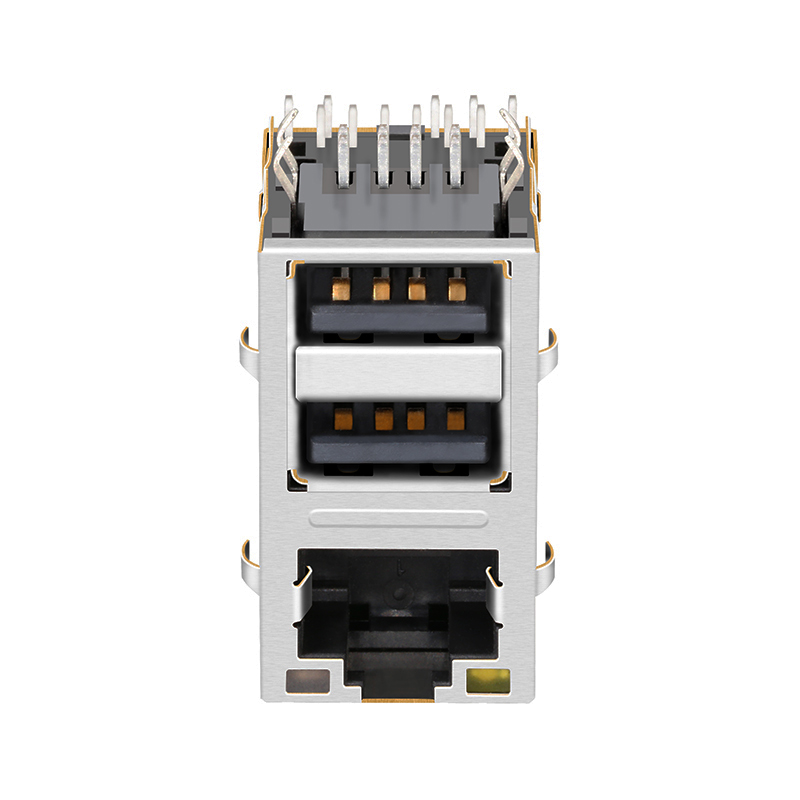

Trxcom TRJU4281A64NL 10/100/1000 Base–T RJ45 connector with dual USB interfaces, suitable for TVs and industrial computers (shrapnel facing up, orange, green/yellow indicator lights)
Trxcom TRJU4281A64NL supports 10/100/1000 Base–T speeds and complies with IEEE 802.3, UL, Reach, RoHS, ISO9001, ISO14001 standards. It can be used in devices such as TVs, industrial computers, media players, and game controllers.
| Part number | TRJU4281A64NL | Brand | Trxcom) |
| Connector type | Jack | Mounting type | THT |
| Number of Positions/Contacts | 10p8c (RJ45, Ethernet) | Application-Lan | Ethernet (non-PoE) |
| Number of Ports | Single Port with Dual USB | Speed | 10/100/1000 Base-T |
| Latch | Up | Cores per Port | 8 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With | LED Option | Orange&Green/Yellow |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 1.174/29.82 | Package Length (Inches/mm) | 1.008/25.60 |
| Package Width (Inches/mm) | 0.665/16.90 | Temperature | 0℃ ~ 70℃ |
| Bst Circuit | Yes | AutomDX | YES |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T, C |
