Parameter
P/N ： TQ-LW40-L64C
Form Factor ： QSFP+
Type ： Single Mode
Data Rate ： 40G
Model ： ZR4
Connector ： Duplex LC
Distance ： ≤60km
Get a Quote
Consult products
DetailReview(0)

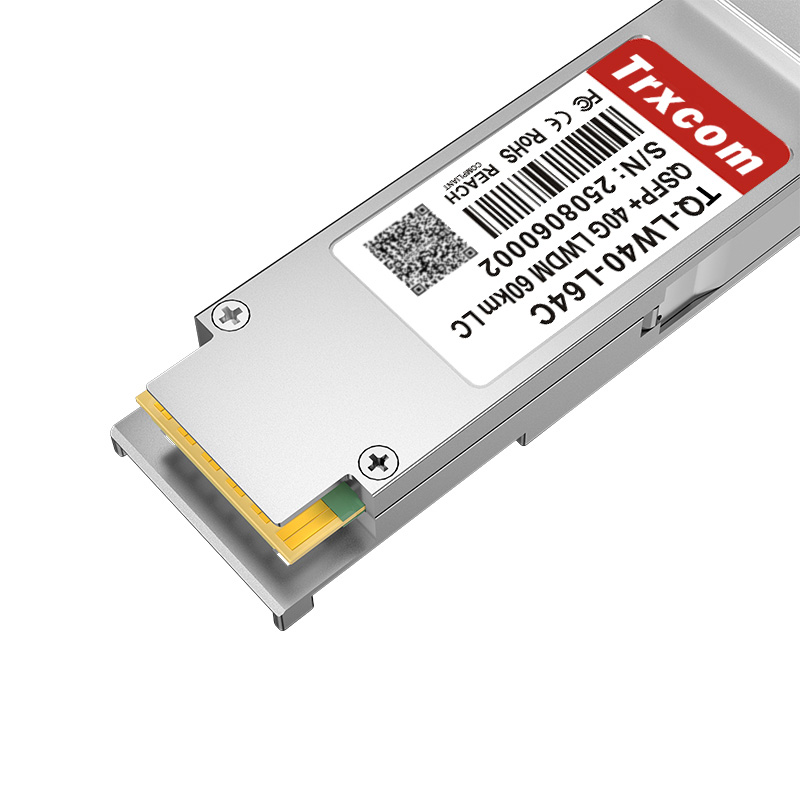

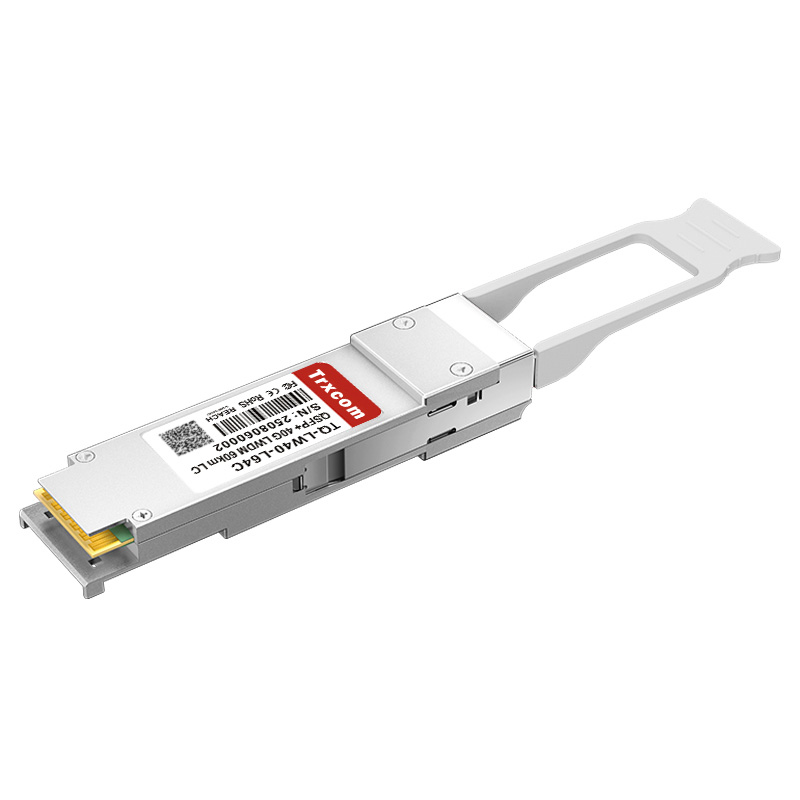

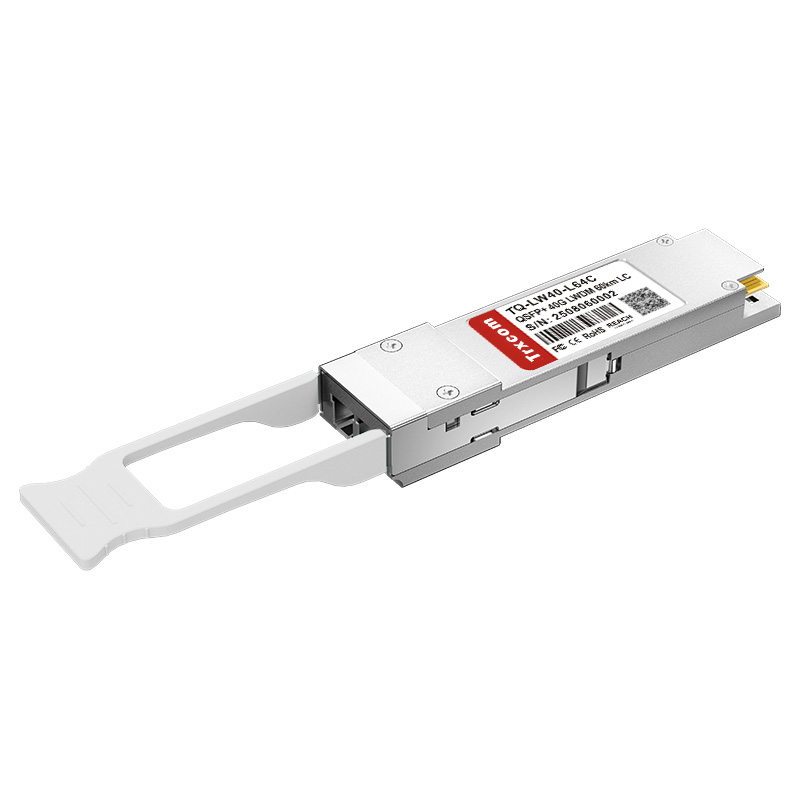

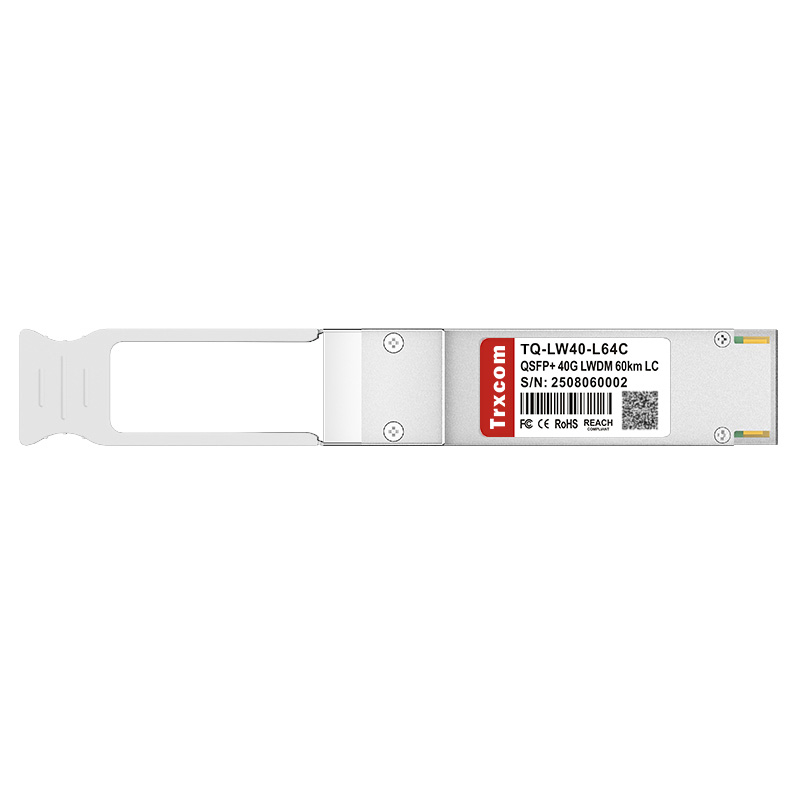

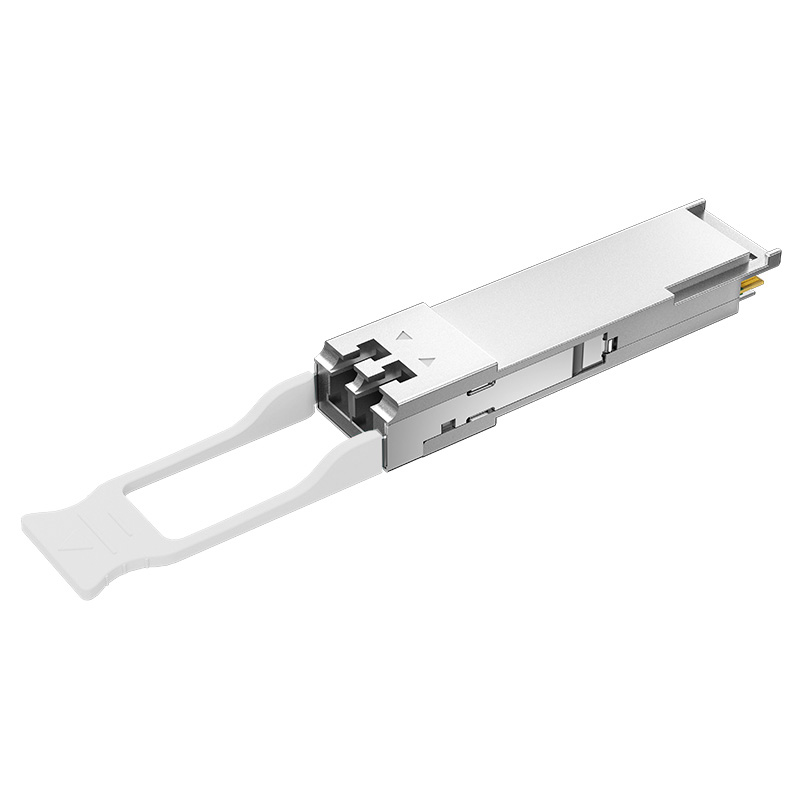

Trxcom TQ-LW40-L64C 40Gb/s LAN WDM QSFP+ Transceiver Hot Pluggable Single mode (SMF, 60km, LC, DOM)

Features:

4 lanes MUX/DEMUX design

Integrated LAN WDM TOSA / ROSA

Up to 11.2Gbps per channel bandwidth

Aggregate bandwidth of > 40Gbps

Duplex LC connector

Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ZR4

QSFP MSA compliant

APD photo-detector

Up to 60 km transmission

Compliant with QDR/DDR Infiniband data rates

Single +3.3V power supply operating

Built-in digital diagnostic functions

Temperature range 0°C to 70°C

RoHS Compliant Part

Trxcom Part NumberTQ-LW40-L64CVendor NameTrxcom
Form FactorQSFP+Max Data Rate40Gbps
Wavelength1310nmMax Cable Distance60km
ConnectorDuplex LCMediaSMF
Transmitter TypeDFB CWDMReceiver TypeAPD
Power Consumption≤3.3WTemperature range0°C to +70°C
Host FECSupportedProtocolsCaseOTN OTU3, 40G Ethernet, SATA/SAS3, MSA Compliant
