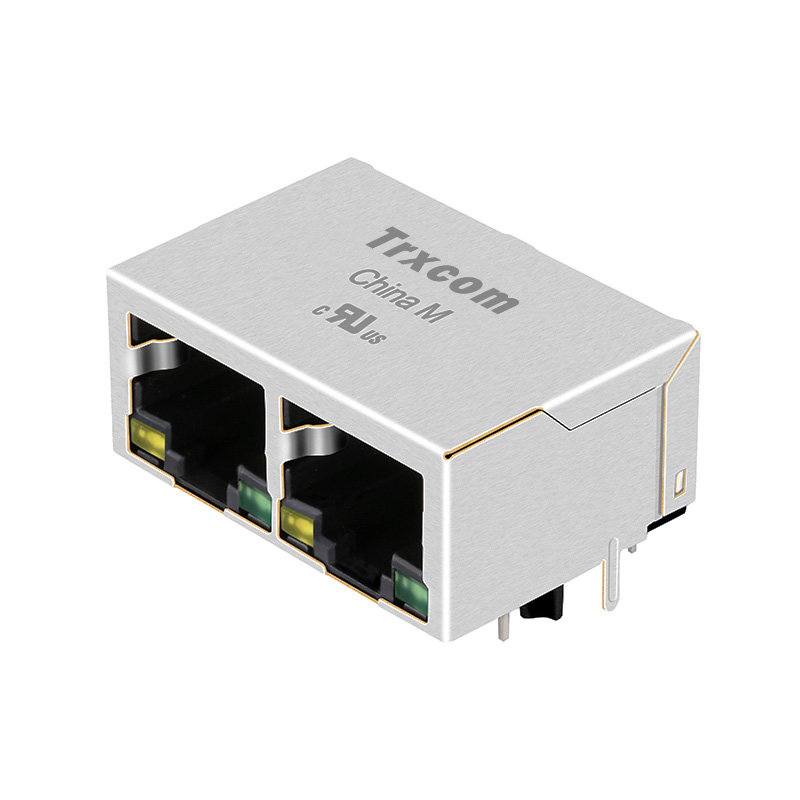

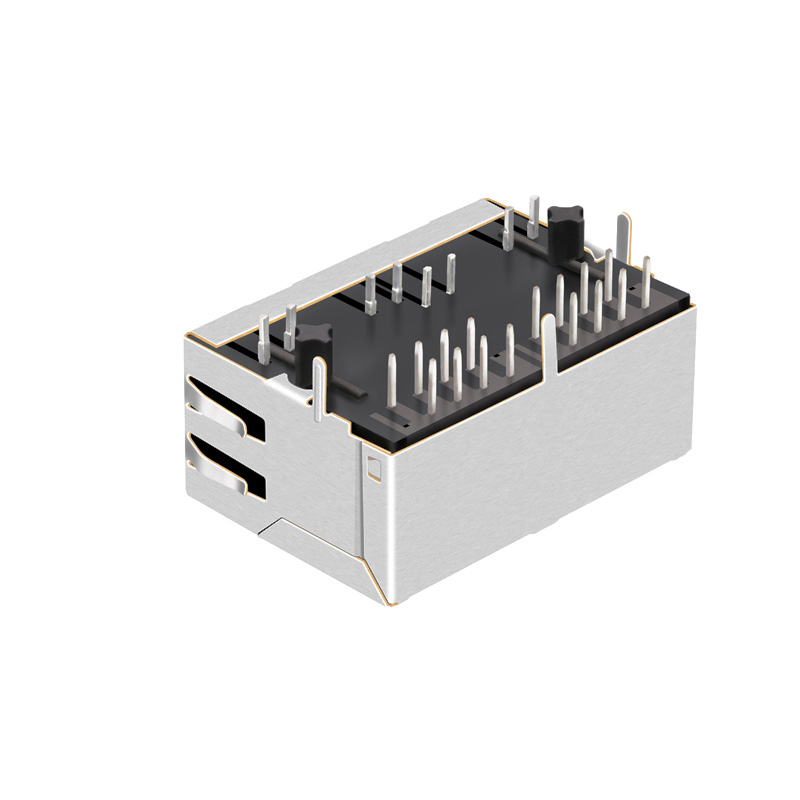

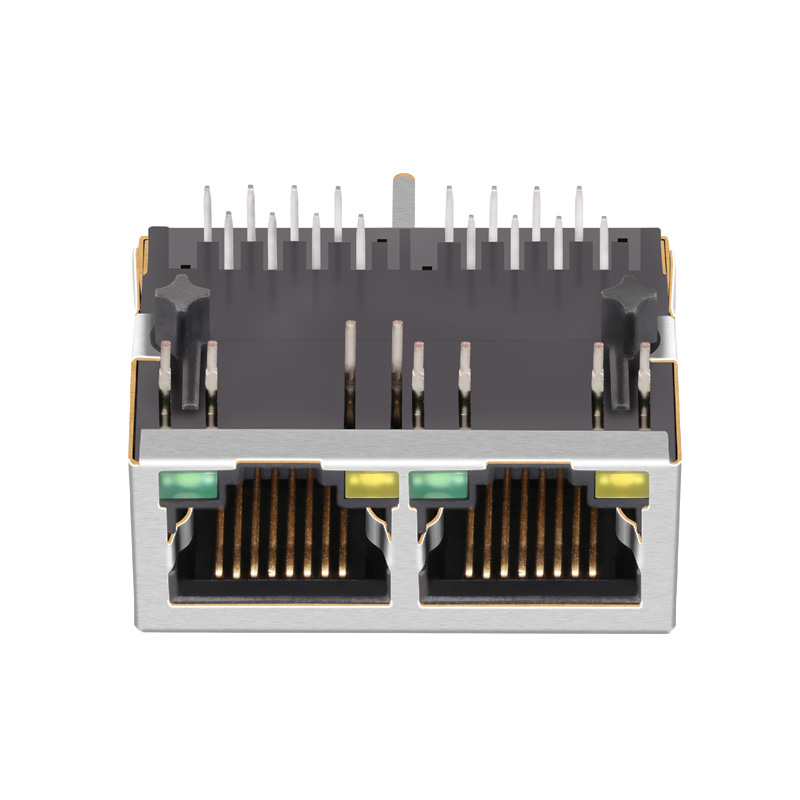

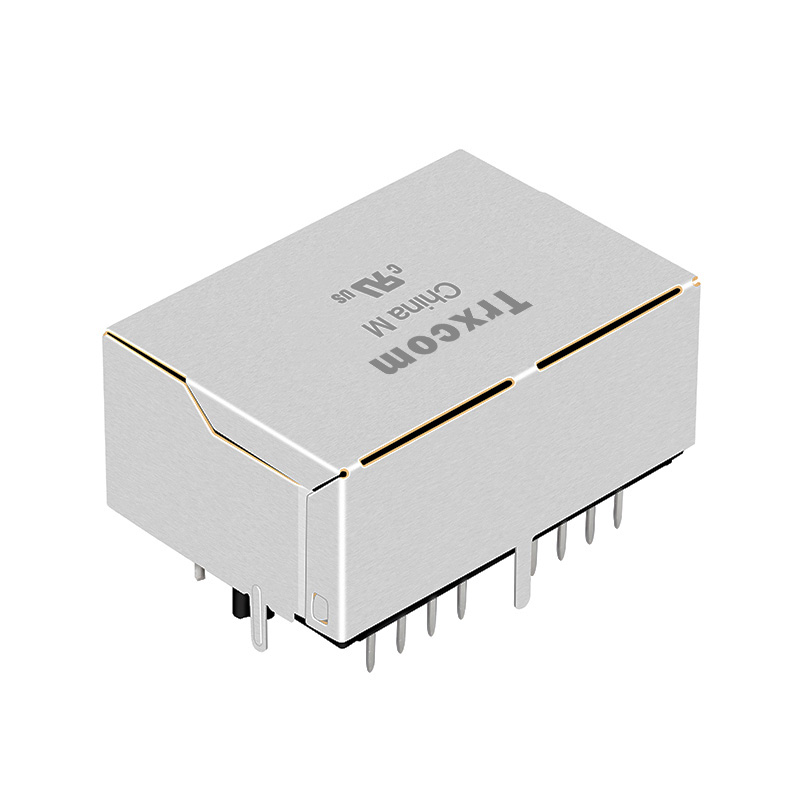

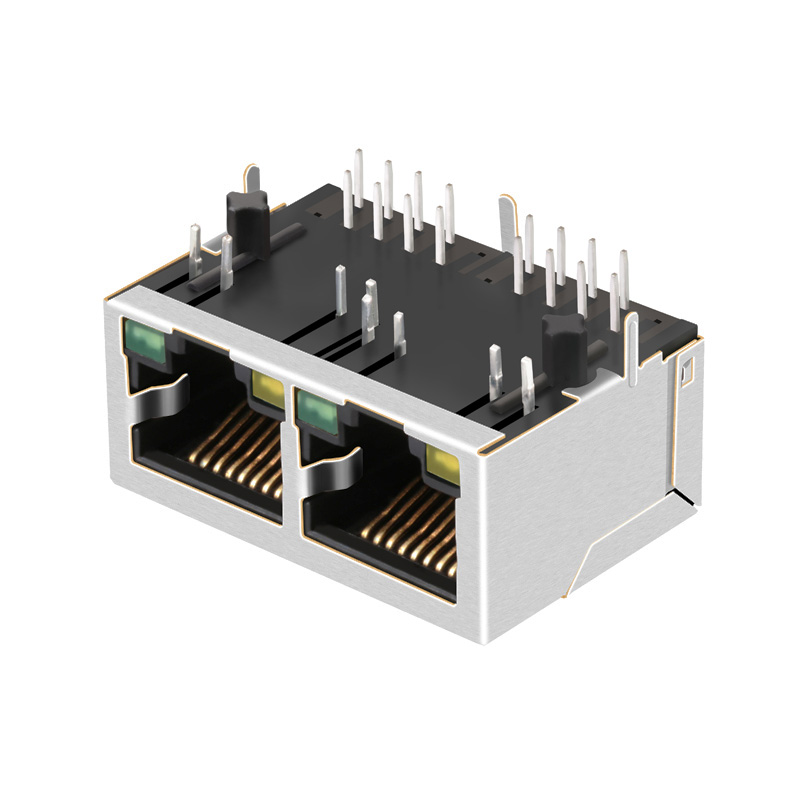

100/1000 Base-T 1x2 Port RJ45 Female Connector Tab Down Green/Yellow LED TRJG26901BENL

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJG26901BENL
Port: ： 1X2
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Down
LED: ： Yellow/Green
Mount: ： 0℃ to 70℃
Shield Tabs: ： No
Get a Quote
Consult products
DetailReview(0)

Trxcom TRJG26901BENL 100/1000 Base-T RJ45 Female Connector for Game Controller and Automation (1x2 Port , Tab Down,Green/Yellow LED)

The Trxcom TRJG26901BENL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Card, Optical Terminal ,Game Controller and Automation.

Part NumberTRJG26901BENLConnector TypeJack
Part StatusActiveMounting TypeThrough Hole
Number of Positions/Contacts10p8c (RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x2 PortSpeed100/1000 Base-T
LatchDownCores per Port8
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithoutLED OptionGreen/Yellow
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.527/13.39Package Length (Inches/mm)0.839/21.30
Package Width (Inches/mm)1.212/30.80Temperature-40℃ TO 85℃
Bst CircuitYesAutomDXYES
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C
