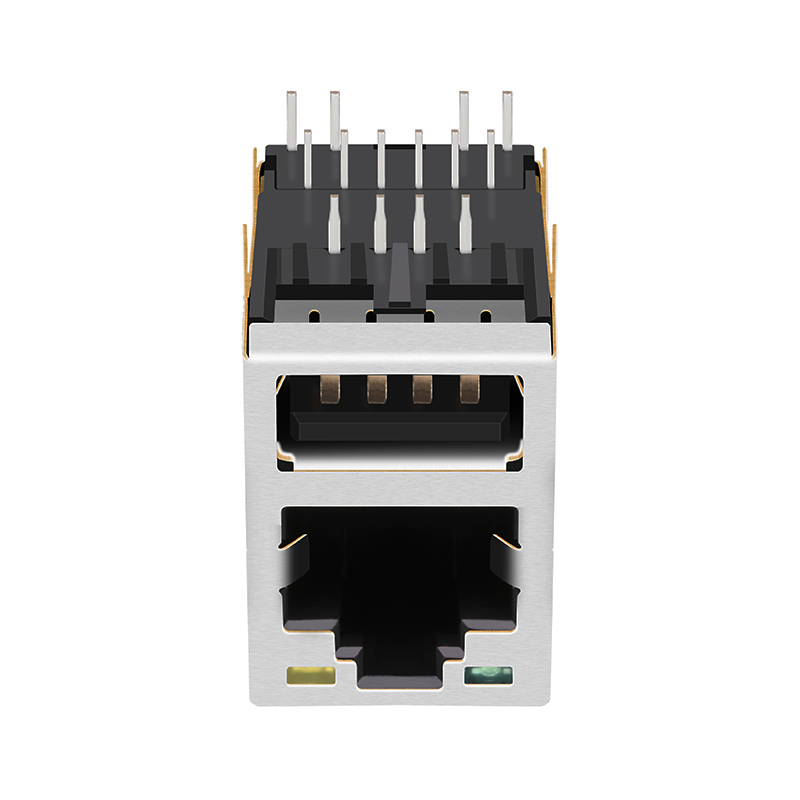

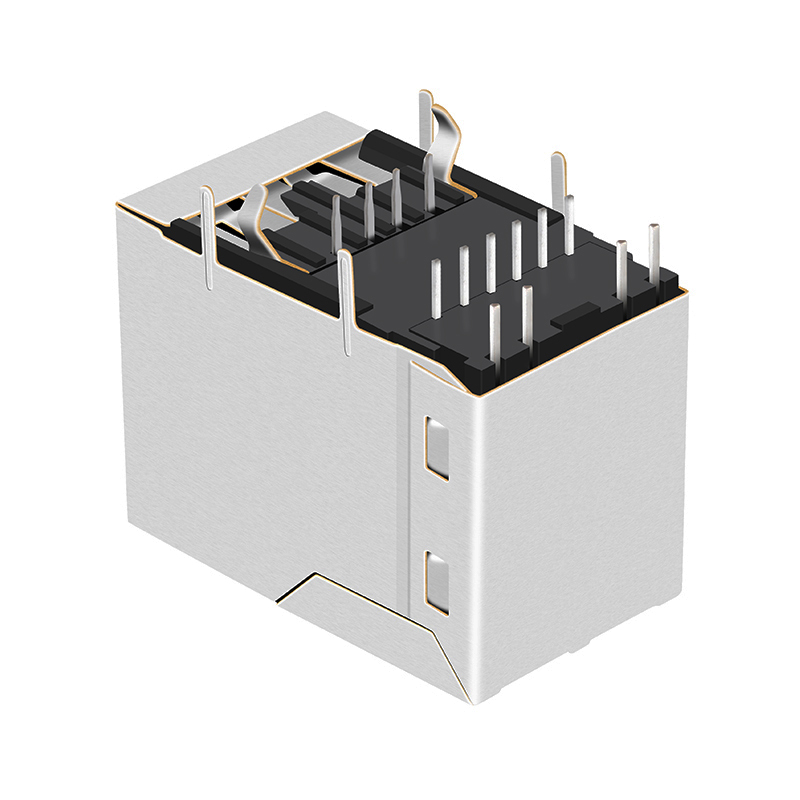

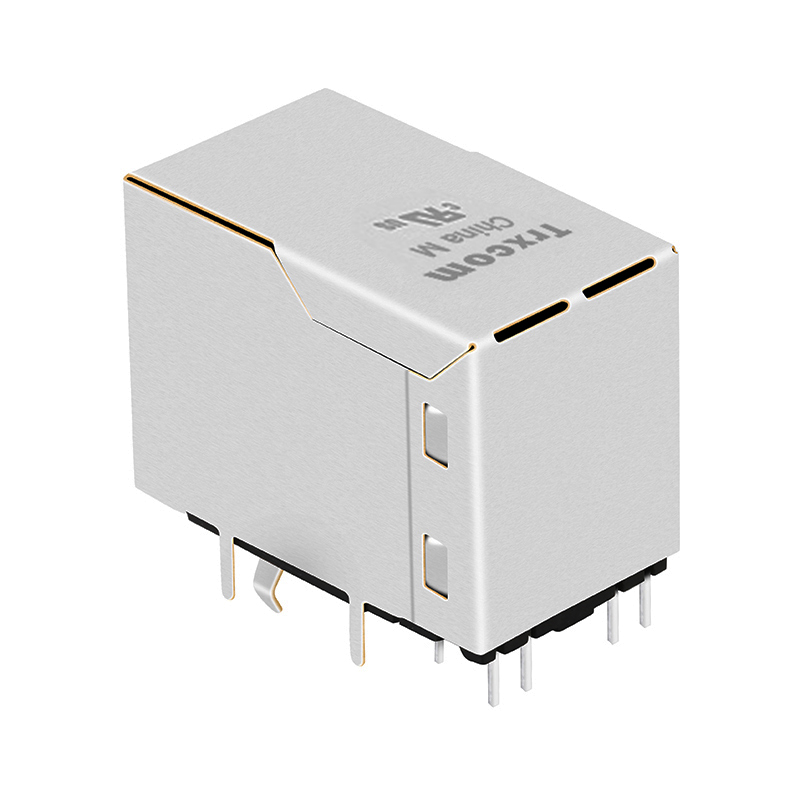

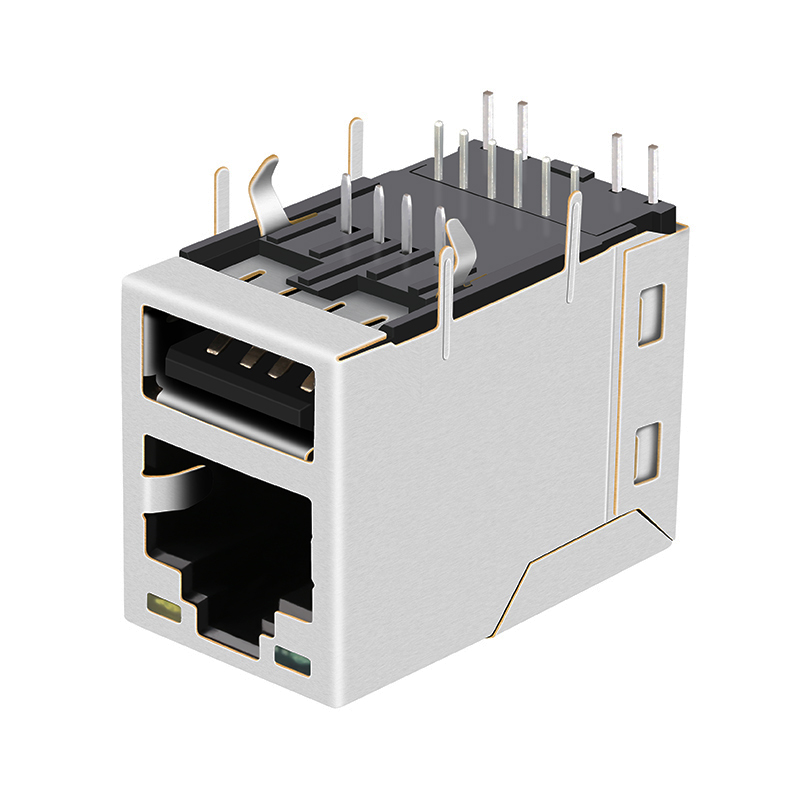

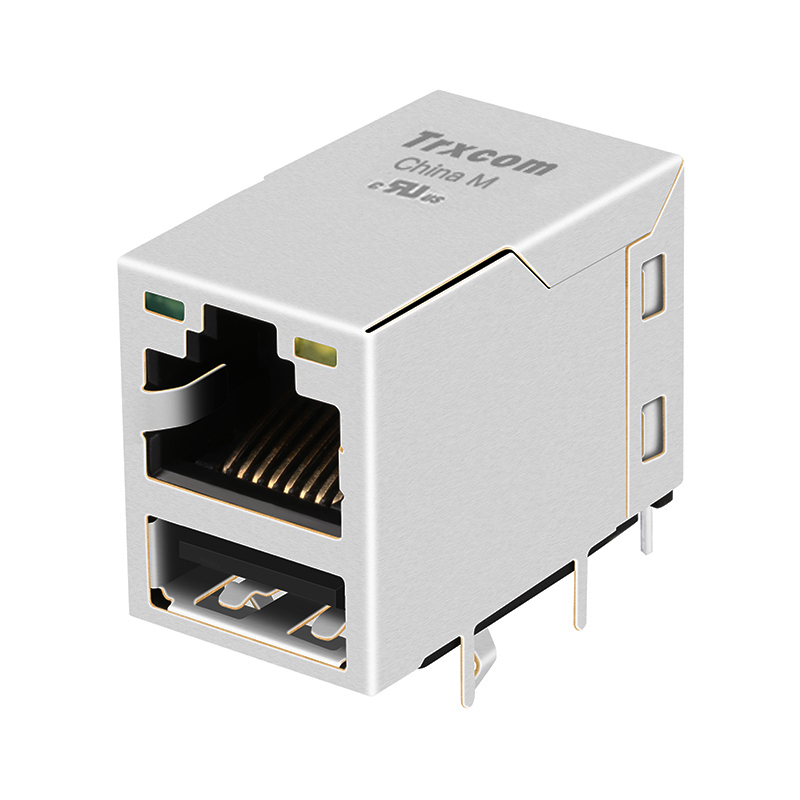

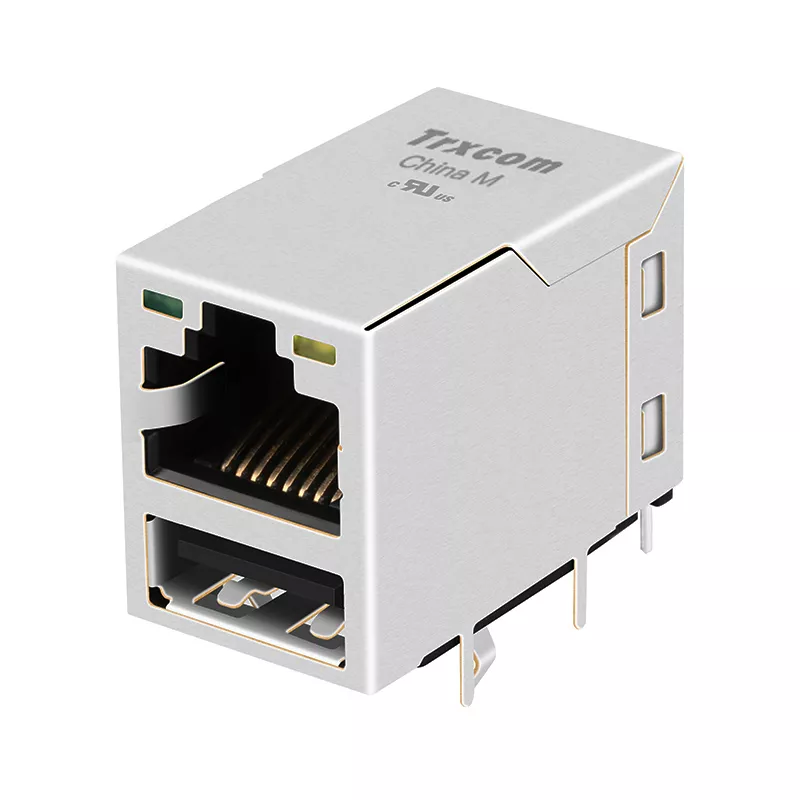

TRJU3024BHNL 1000 Base-T RJ45 Magjack With Single USB Green/Yellow LED

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJU3024BHNL
Port: ： RJ45/USB
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Up
LED: ： Green/Yellow
Mount: ： -40℃ to +85°C
Shield Tabs: ： No
Get a Quote
Consult products
DetailReview(0)

Trxcom TRJU3024BHNL RJ45 Magjack with Single USB with 10/100/1000 Base-T Integrated Magnetics, Green/Yellow LED,Tab Up,RoHS

TRJU3024BHNL supports 10/100/1000 Base-T transmission rates and complies with IEEE 802.3, UL, Reach, RoHS, ISO9001 and ISO14001 standards. It is applicable to scenarios such as smart cameras, monitoring systems, input/output controllers and alarm devices.

Part NumberTRJU3324BHNLBrandTrxcom
Connector TypeJackMounting TypeThrough Hole
Number of Positions/Contacts10p8c(RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of PortsSingle Port with Single USBSpeed100/1000 Base-T
LatchUPCores per Port8
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithoutLED OptionGreen/Yellow
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.886/22.50Package Length (Inches/mm)1.083/27.50
Package Width (Inches/mm)0.736/18.70Temperature-40℃ to 85℃
Bst CircuitYesAutomDXYes
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT、C
