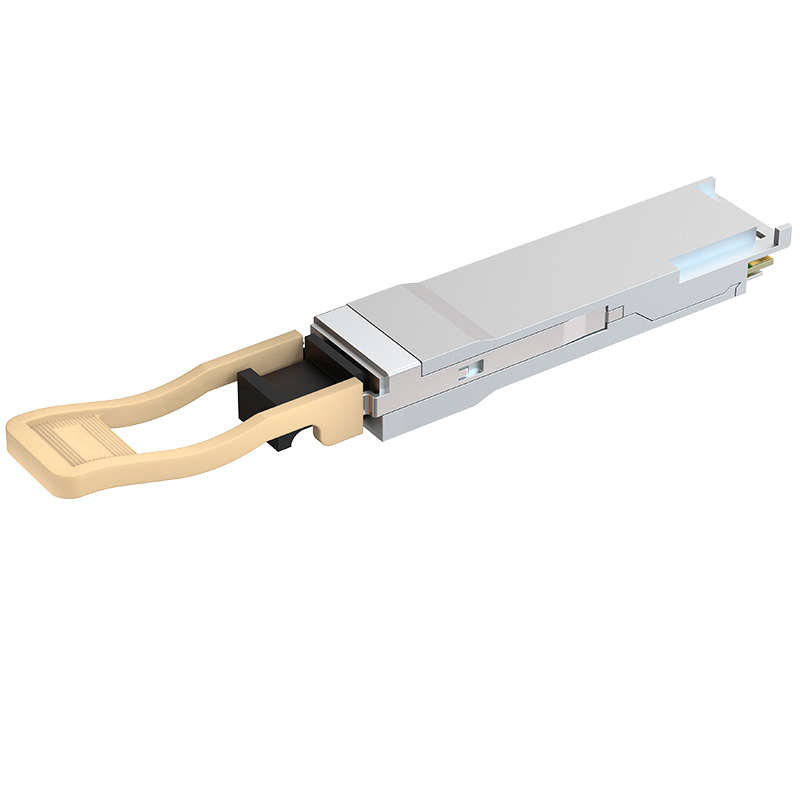

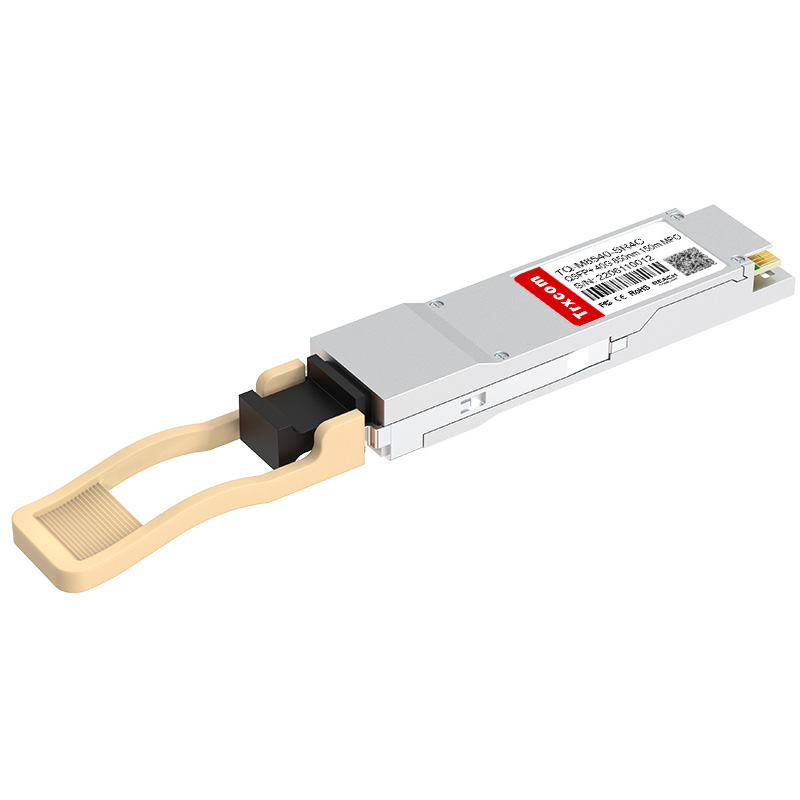

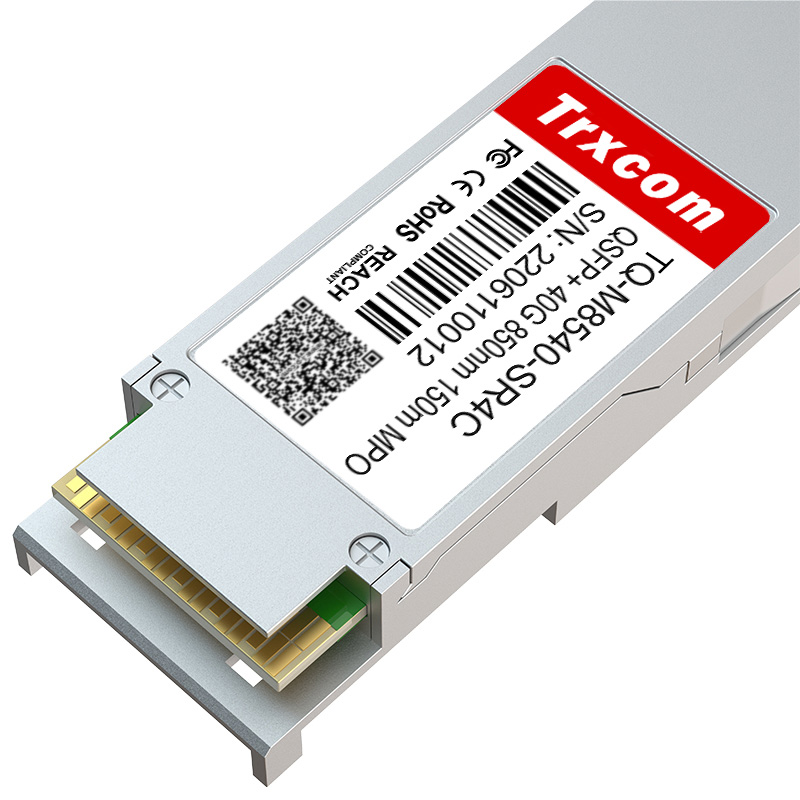

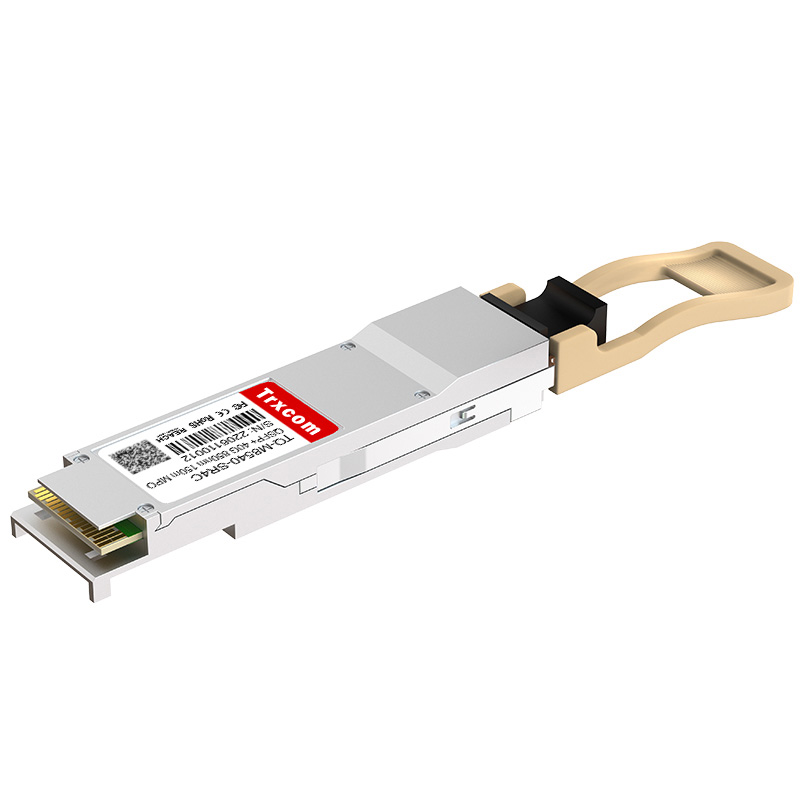

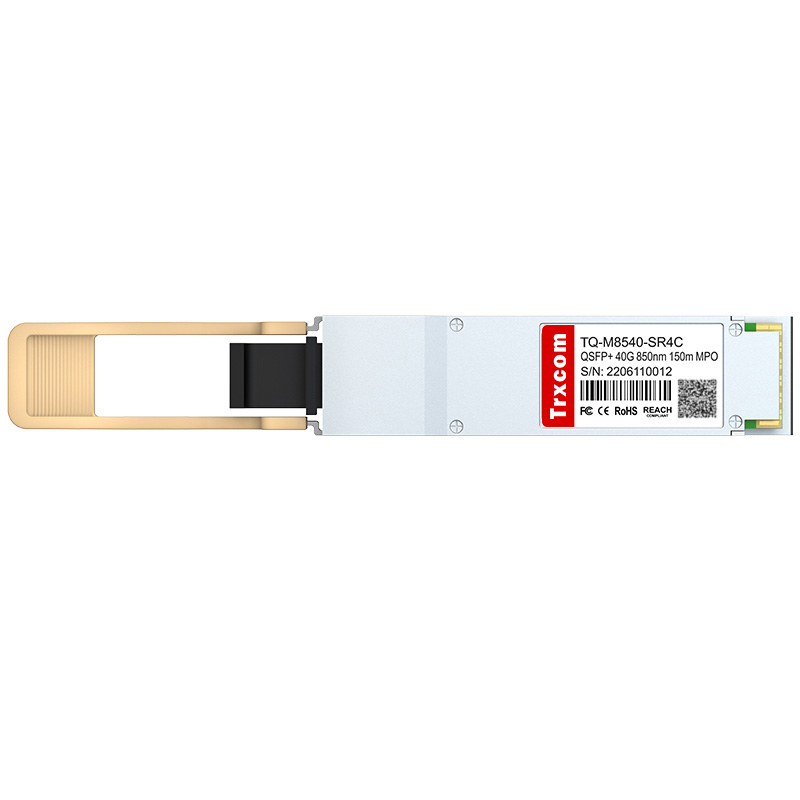

TQ-M8540-SR4C 40G QSFP+ SR4 850nm 150m DOM MPO-12/UPC MMF Optical Transceiver Module
share
Parameter
P/N ： TQ-M8540-SR4C
Form Factor ： QSFP+
Type ： Multi Mode
Data Rate ： 40G
Model ： SR4
Connector ： MPO-12/UPC
Distance ： ≤150m
Wavelength ： 850nm
DetailReview(0)
TQ-M8540-SR4C 40G QSFP+ SR4 Optical Transceiver Module(MMF, 850nm, 150m,MPO-12/UPC ,DOM)
Product Features
4 independent full-duplex channels
High Channel Capacity: 40Gbps per module
Up to 11.2Gbps Data rate per channel
MTP/MPO optical connector
High Reliability 850nm VCSEL technology
Maximum link length of 100m links on OM3 multimode fiber or 150m links on OM4 multimode fiber
Hot Pluggable
Power dissipation＜1.5W
Real Time Digital Diagnostic Monitoring
| Trxcom Part Number | TQ-M8540-SR4C | Vendor Name | Trxcom |
| Form Factor | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 850nm | Max Cable Distance | 150m@OM4/100m@OM3 |
| Connector | MTP/MPO-12 Male | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| ProtocolsCase | ≤IEEE 802.3 40GBASE-SR4, SFF-8436 | Temperature range | 0°C to +70°C |
Data Center
Telecommunications
Medical Equipment
Industrial Control
Consumer Electronics
Security System
Military Industry
