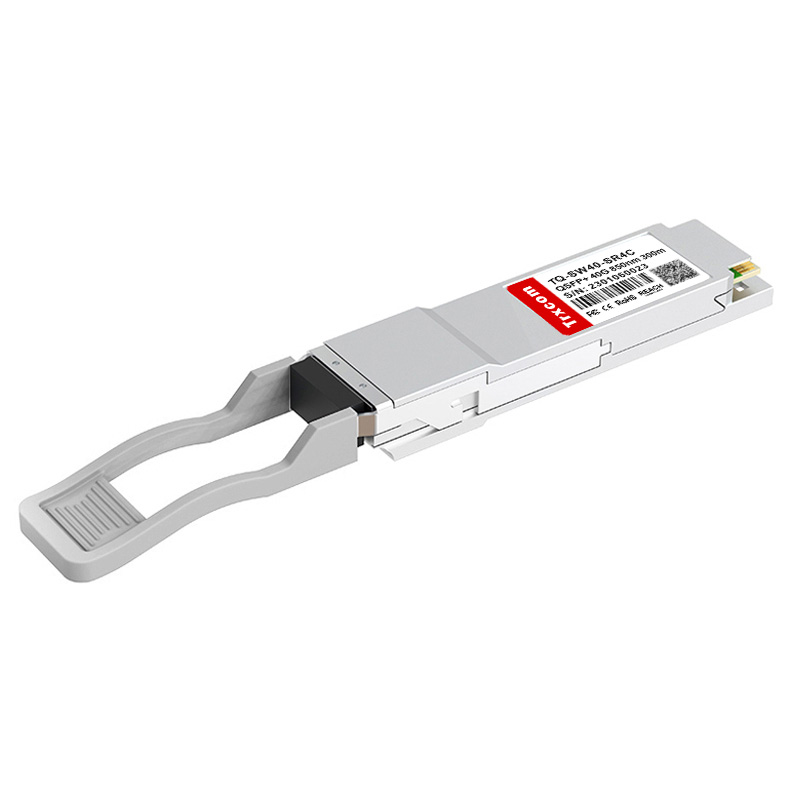

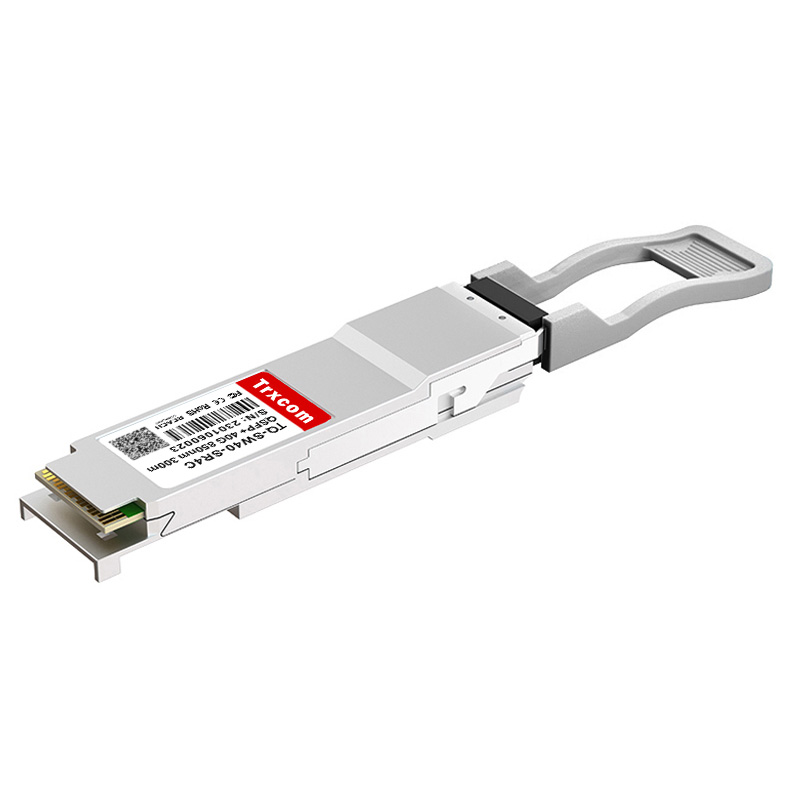

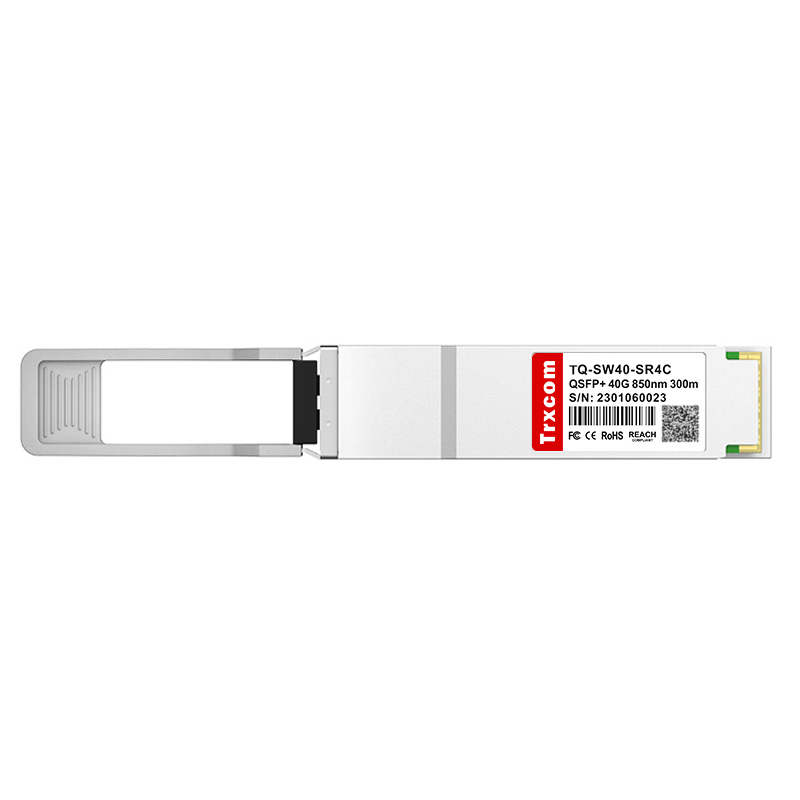

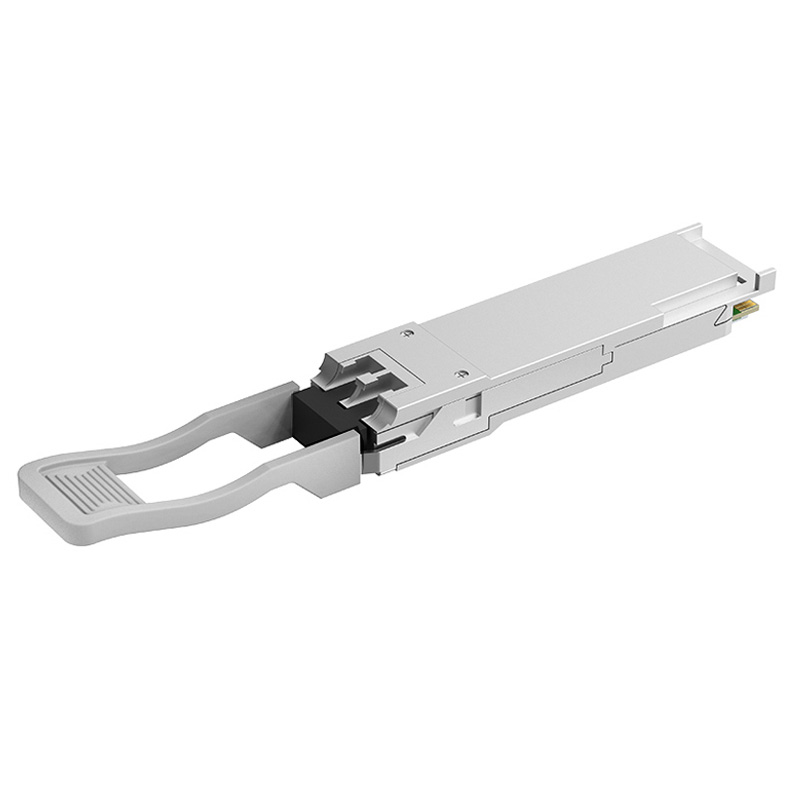

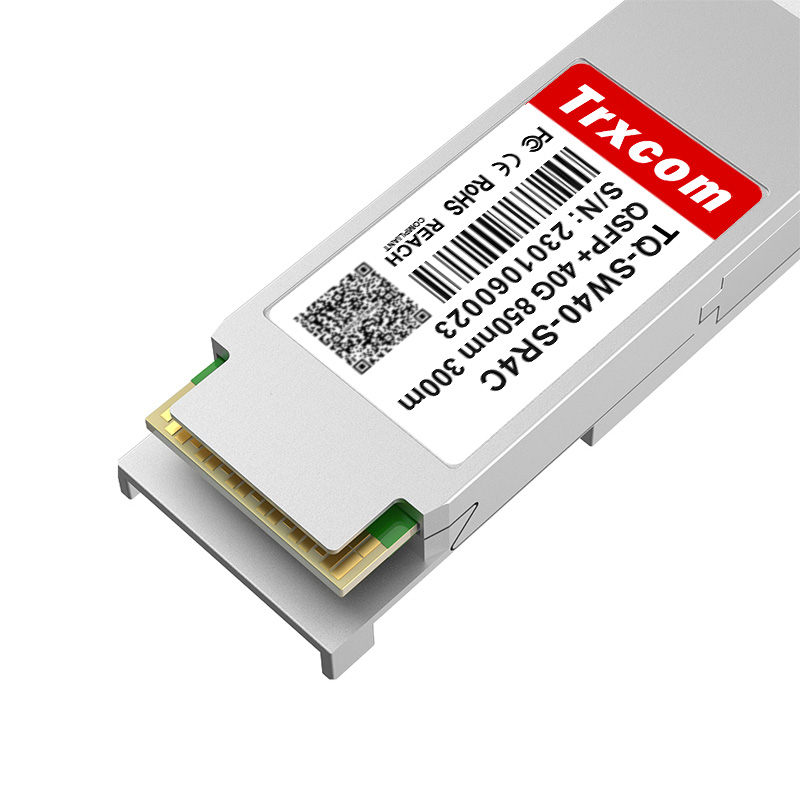

TQ-SW40-SR4C 40G QSFP+ SWDM4 OM4 350m DOM Duplex LC/UPC MMF Optical Transceiver Module

Trxcom TQ-SW40-SR4C 40G QSFP+ SWDM4 OM4 350m Optical Transceiver Module(MMF, 850/880/910/940nm, 350m, LC, DOM)

This QSFP+ optical module adopts a duplex LC interface. It features a SWDM transmitter based on 4-channel 10Gb/s VCSEL, supporting a maximum link distance of 240 meters over OM3 multimode fiber (350 meters over OM4 fiber). The module complies with the IEEE 802.3ba standard, QSFP+ Multi-Source Agreement standard, SWDM Multi-Source Agreement standard and SFF-8636 standard. It achieves full interoperability with all standard 40GBASE-SR4 interfaces and supports host Forward Error Correction (FEC) and Electromagnetic Compatibility (EMC). It supports plug-and-play and hot-swappable functionality. The receiver adopts a PIN photodiode, with a commercial operating temperature range from 0℃ to +70℃. It is applicable to campus networks, data centers, cloud deployments, high-performance computing environments, as well as interconnection among switches, routers, servers and transmission equipment. Equipped with a comprehensive quality inspection solution, it ensures stable operation of devices.

Product Features:

Compliant with QSFP+ MSA

Compliant with SWDM MSA

Compliant with SFF-8636

Compliant with IEEE 802.3ba

Hot-pluggable QSFP+ form factor

4x10Gb/s VCSEL-based SWDM transmitter

Supports 41.2Gbps aggregate bit rate

Power dissipation<3.5W

Maximum link length of 240m on OM3 MMF and 350m on OM4 MMF

Duplex LC receptacles

XLPPI electrical interface

RoHS complian
