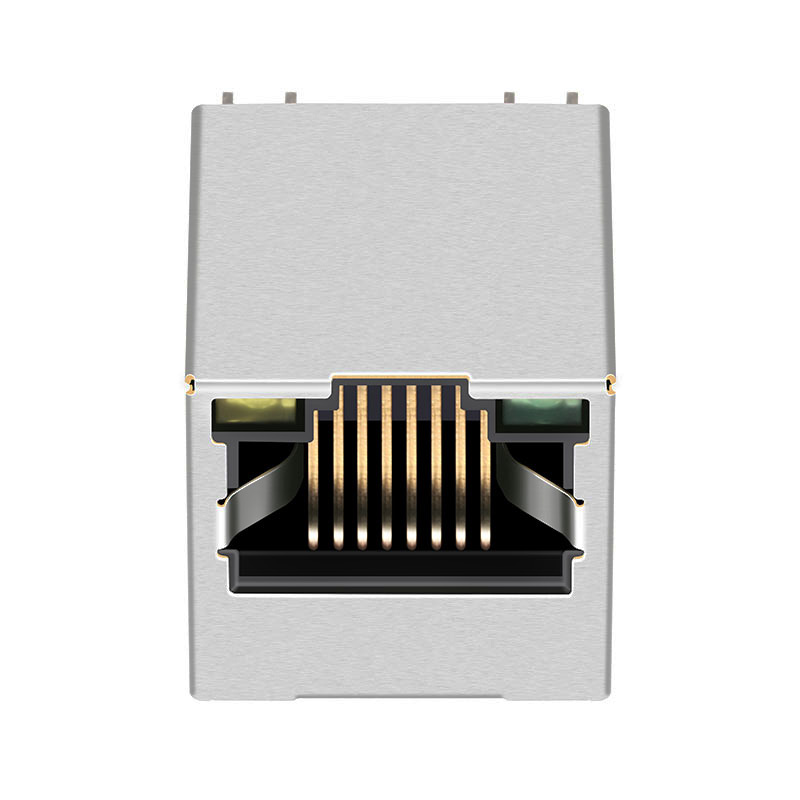

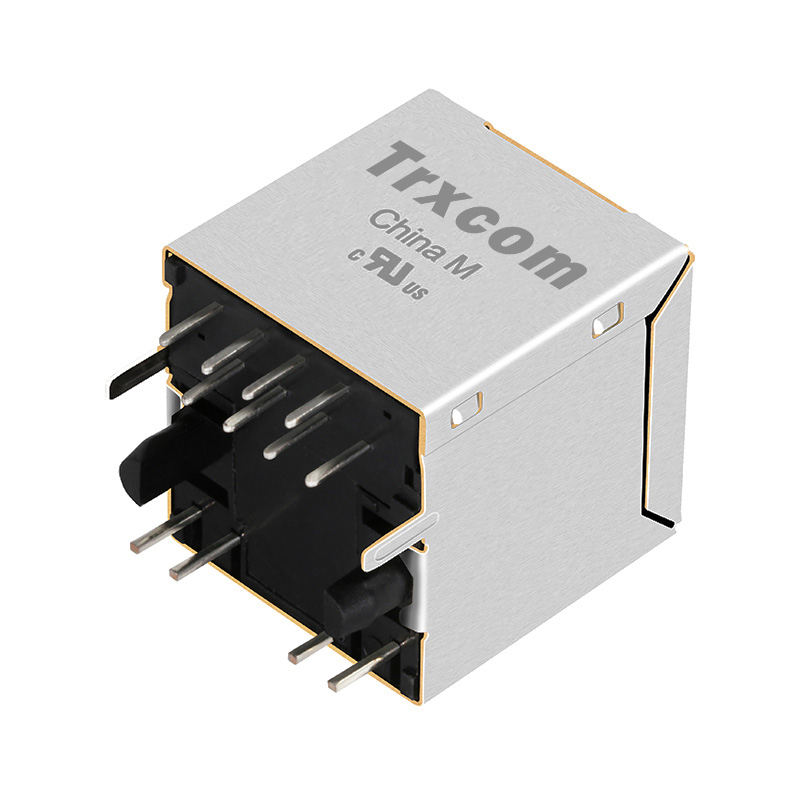

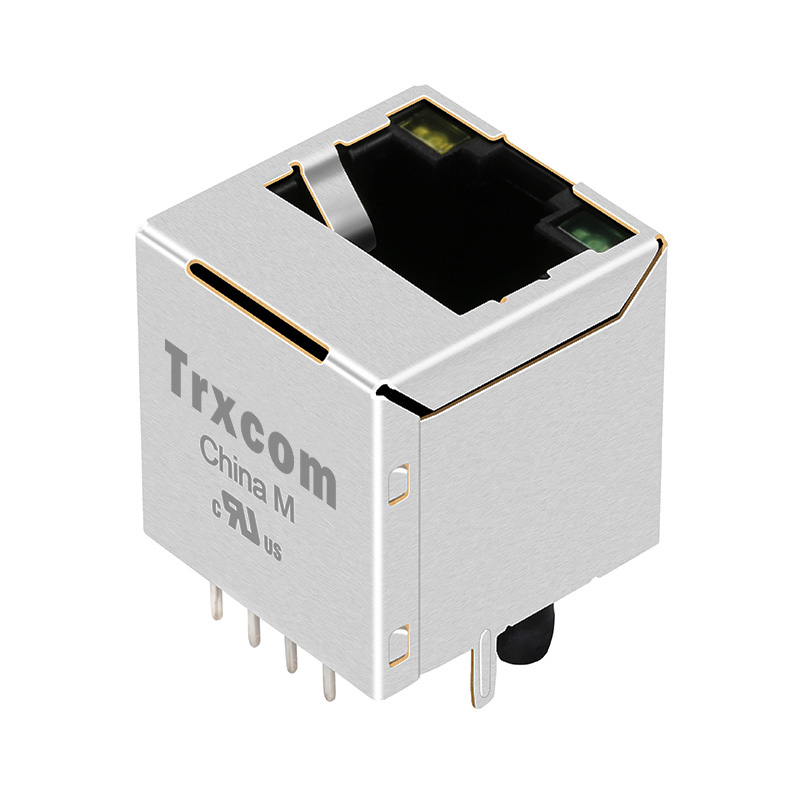

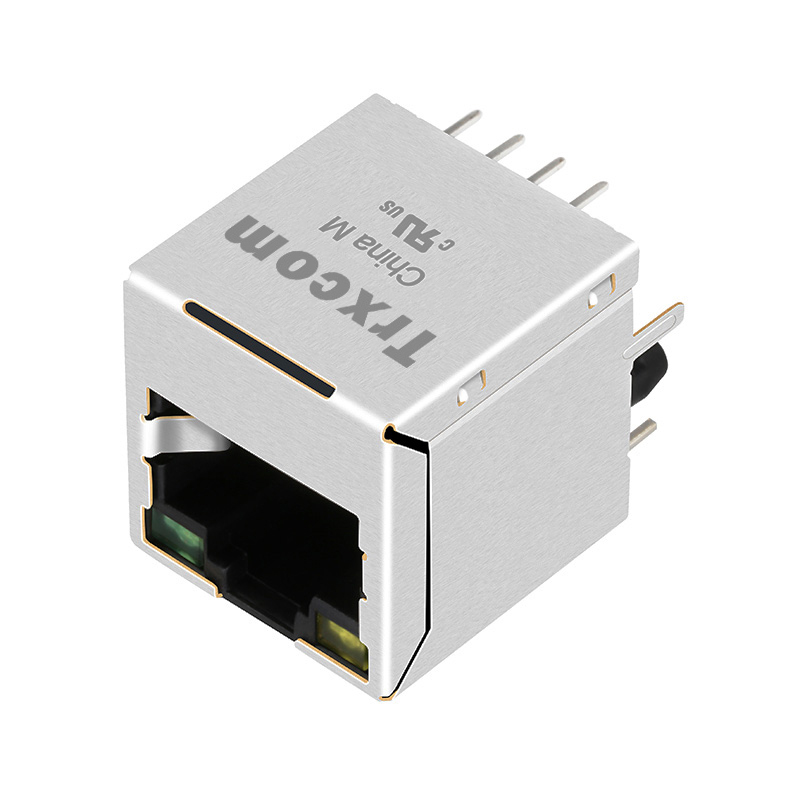

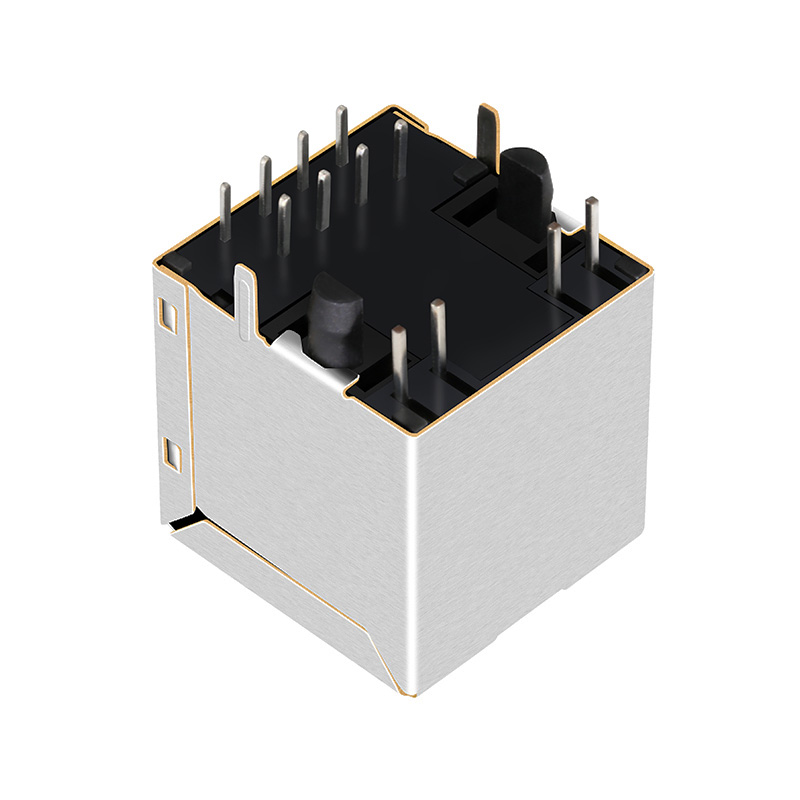

TRJD0012BENL 10/100Base-T Vertical RJ45 Connector pcb mount Green/Yellow LED

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJD0012BENL
Port: ： 1X1
Rate: ： 10/100Base-T
PoE: ： PoE
Latch: ： Vertical
LED: ： Green/Yellow
Mount: ： 0℃ to 70℃
Shield Tabs: ： No
Get a Quote
Consult products
DetailReview(0)

Trxcom TRJD0012BENL 10/100Base-T Vertical RJ45 Connector pcb mount For Embedded Main Board (Top Entry,Green/Yellow LED)

The Trxcom TRJD0012BENL supports 10/100 Base-T transmission rates and complies with IEEE 802.3, UL, REACH, RoHS, ISO9001 and ISO14001 standards. It is applicable to devices such as input/output controllers, alarms and routers.

Part NumberTRJD0012BENLBrandTrxcom
Connector TypeJackMounting TypeThrough Hole
Number of Positions/Contacts8p8c(RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x1 PortSpeed10/100 Base-T
LatchUPCores per Port4
Orientation180° Angle (Right)PCB Mount AngleTHT Solder
Shield EMI TabsWithoutLED OptionGreen/Yellow
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.665/16.90Package Length (Inches/mm)0.657/16.70
Package Width (Inches/mm)0.630/16.00Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYes
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT、C
