5-Port Gigabit Industrial Switch
share
Parameter
brand ： Trxcom
Model ： TRD05G
Number of Ports ： 5 Port
PoE Type ： No PoE
Downstream Port ： 1G RJ45
Uplink Port ： 1G RJ45
Management Functions ： No
DetailReview(0)

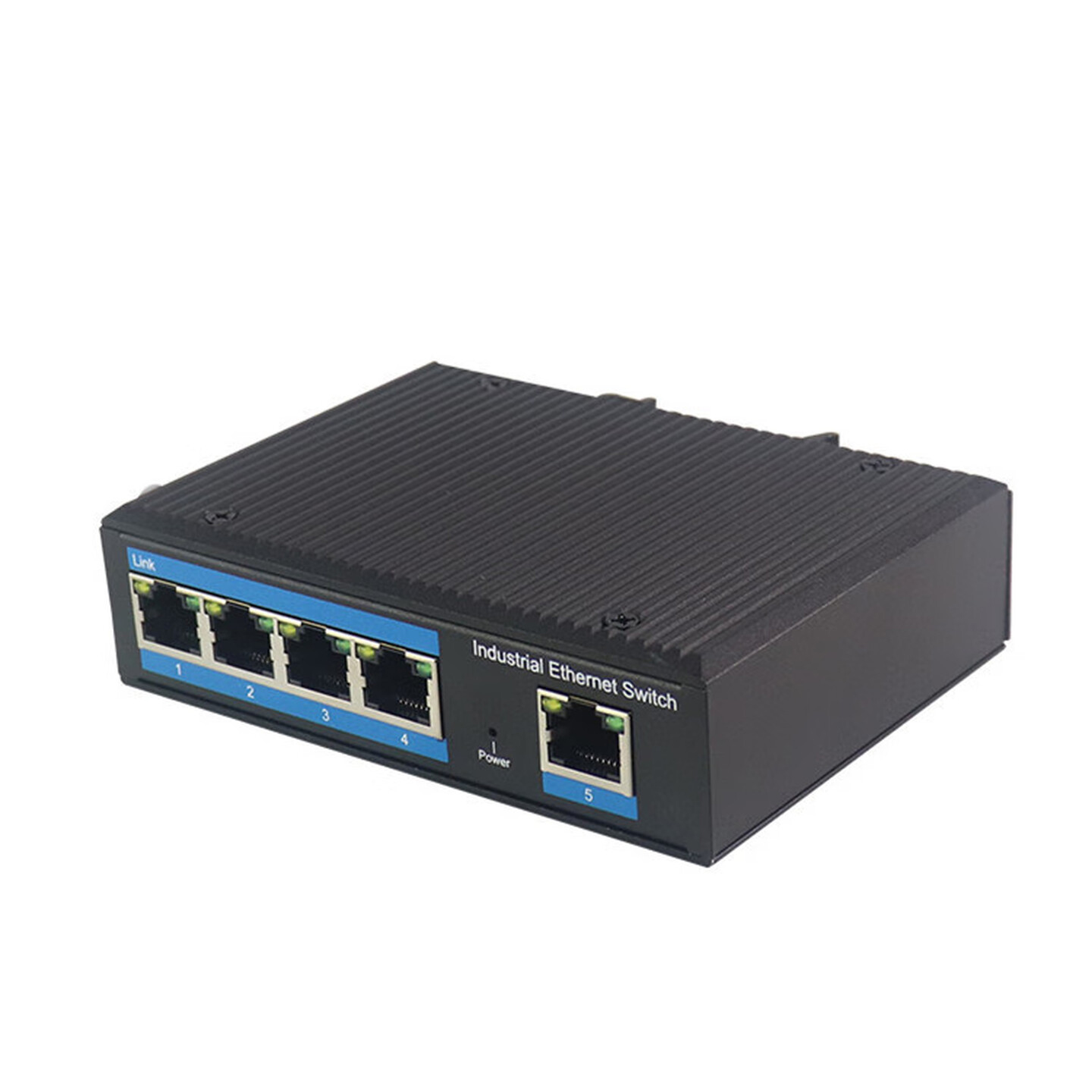

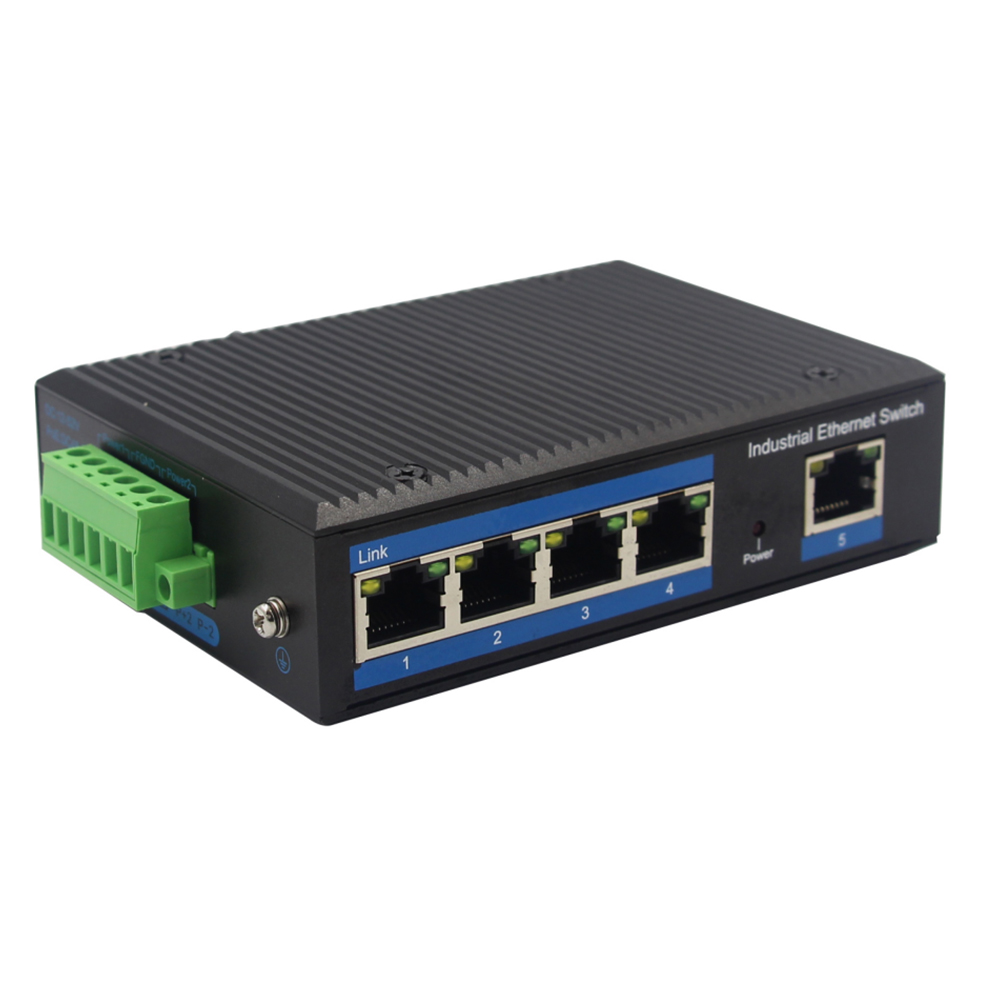

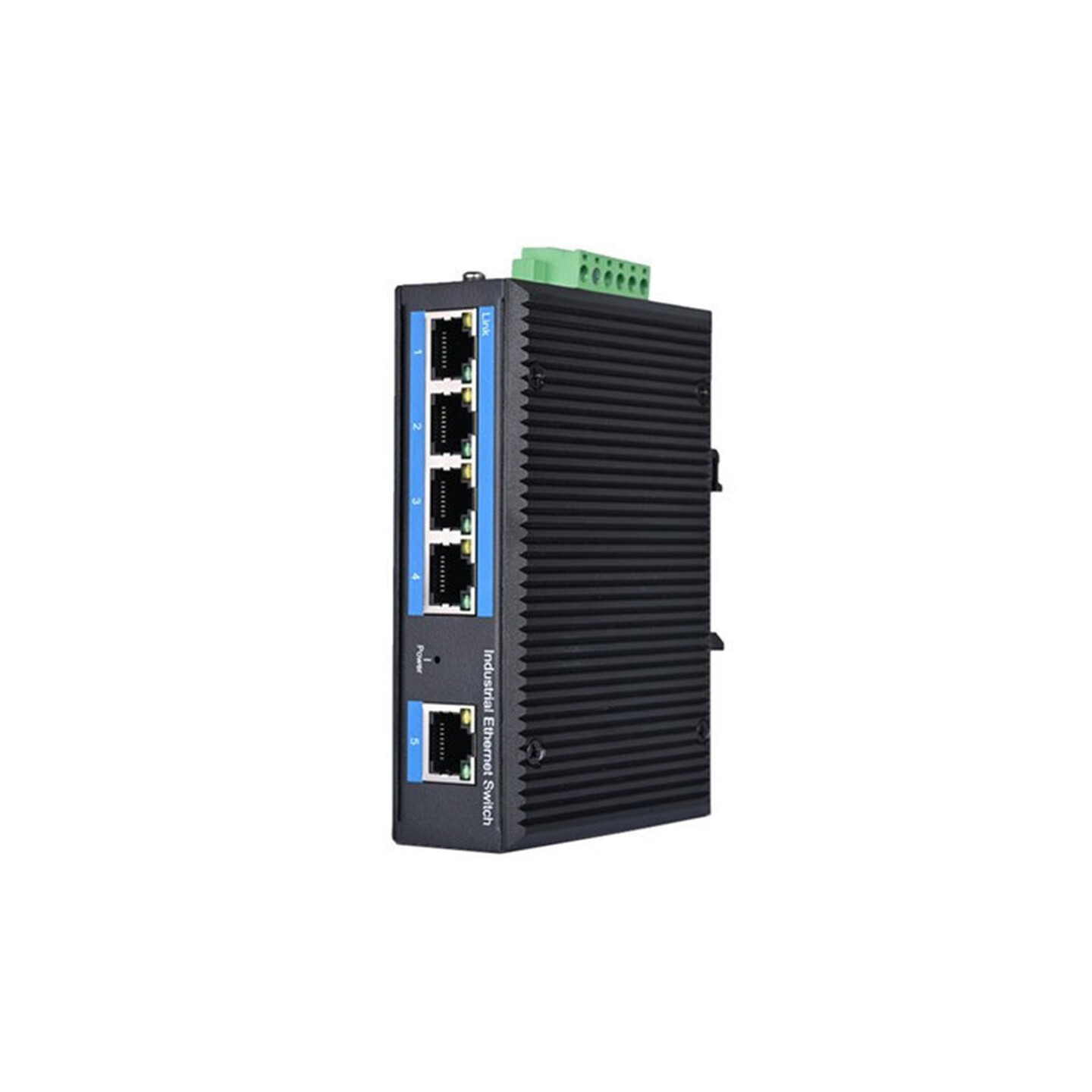

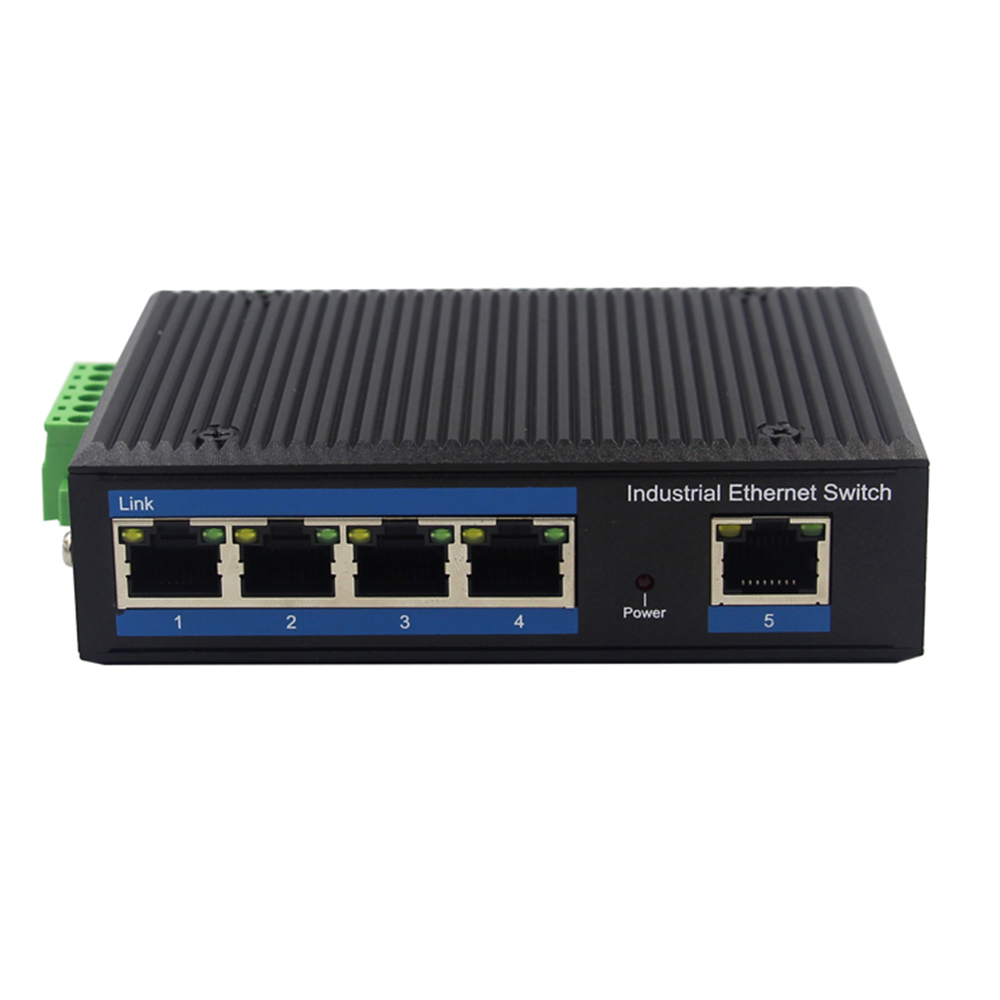

TRD05G Industrial-grade Gigabit 5-port Ethernet Switch (Gigabit, 4+1 RJ45 Ports, Network Switch, Industrial Grade)
Industrial-grade Ethernet Switch with 1 Gigabit uplink electrical port + 4 Gigabit downlink electrical ports, supporting 1 10/100/1000Base-TX uplink electrical port and 4 10/100/1000Base-TX downlink electrical ports. The product complies with FCC, CE and RoHS standards. The TRD05G switch features an operating temperature range of -40℃ to 80℃. It boasts excellent sturdiness to adapt to various harsh environments and can be easily installed in compact control cabinets. With rail mounting capability, wide-temperature operation, an IP40 protection grade enclosure and LED indicator lights, the TRD05G is a plug-and-play industrial-grade device that provides a reliable and convenient networking solution for users' Ethernet equipment.
| Product Name | 1000M 5-Port Industrial-grade Ethernet Switch | Product Model | TRD05G |
| Product Description | Industrial Ethernet Switch with 1-port Gigabit Uplink Electrical Port + 4-port Gigabit Downlink Electrical Port | Port Description | 5 RJ45 ports |
| RJ45 port | 10/100/1000BaseT (X) auto-detection, full/half duplex MDI/MDI-X auto-adaptation | Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x |
| Operating Temperature | -40～80 °C | Storage Temperature | -40～85 °C |
| Relative Humidity | 5%～95% (Non-condensing) | Industry Standard | EMI：FCC Part 15 Subpart B Class A，EN 55022 Class A |
| Transmission Mode | Store-and-forward | MAC address | 2K |
| Cache | 1.2Mbit | Backplane Bandwidth | 14G |
| Switching delay | <10μs | Power consumption | <3W |
| Input Voltage | DC12-52V (Dual Power Redundant Backup) | Connection Terminal | Phoenix Terminal |
| Power Supply Function | Supports dual power supply redundancy, built-in 4.0A overcurrent protection and reverse connection protection | Shell | IP40 protection rating, metal enclosure |

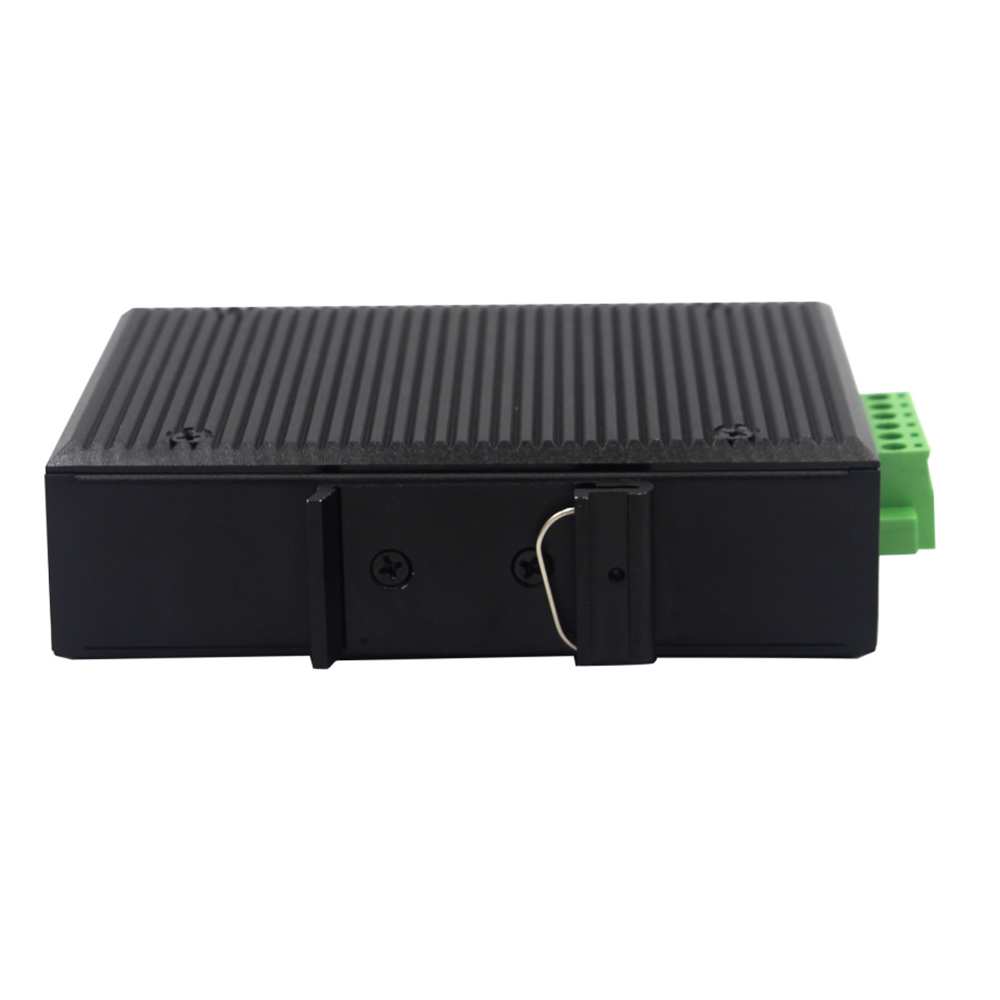

| Installation Method | DIN rail type, wall-mounted installation | Heat Dissipation Method | Natural cooling, fanless |
| Weight | 0.36Kg | Size | 118 x 85.8 x 33.5mm(Width x Depth x Height) |
| LED indicator | Power Indicator: PWR; Port Indicator: Electrical Port (Link) | Protection Grade | IP40 |
| Authentication | CE, FCC, RoHS, ISO9001:2008, MIIT Network Access License, Public Security Bureau Inspection Report | Mean Time Between Failures | 300,000 hours |
| Warranty | 5 years |
