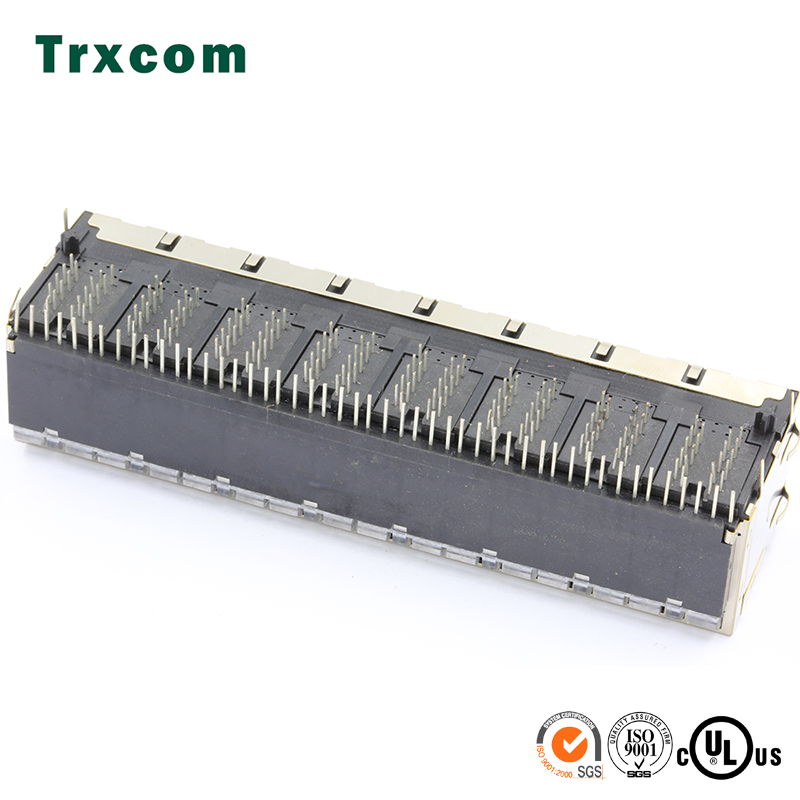

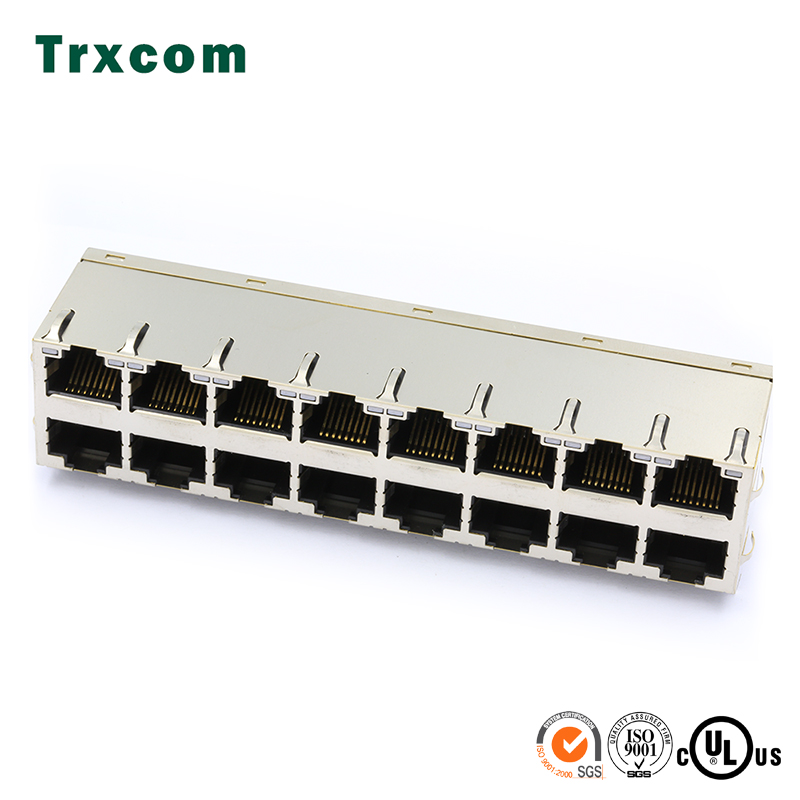

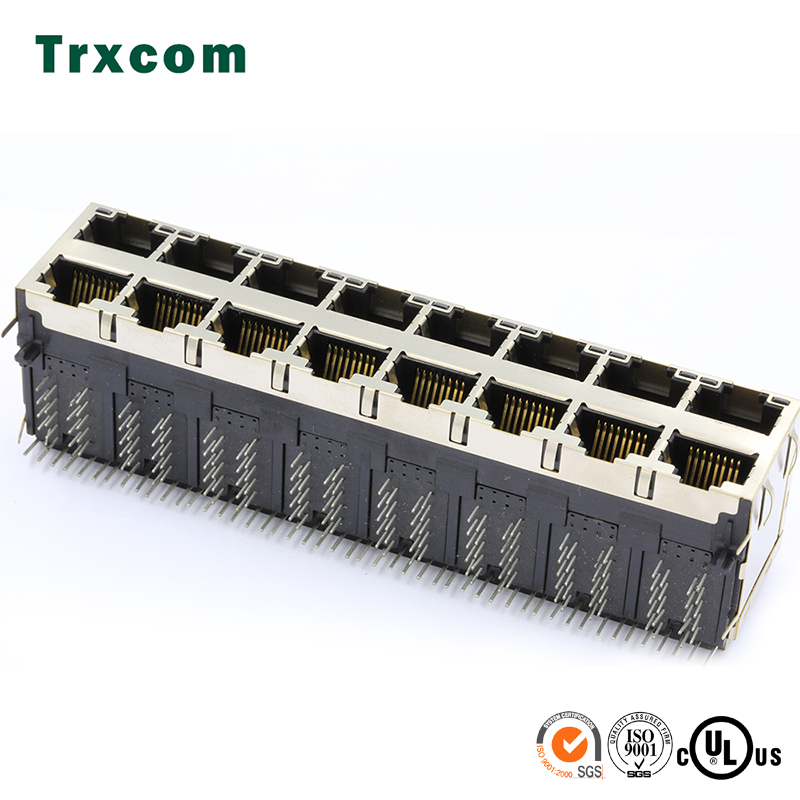

1000 Base-T RJ45 2x8 Port PCB Connectors with Green/Yellow Leds

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
Port: ： 2X8
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Up/Down
LED: ： Yellow/Green
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

1000 Base-T RJ45 2x8 Port PCB Connectors with Green/Yellow Leds

The Trxcom 2×8-port RJ45 connector supports transmission rates of 10/100/1000Base-T and complies with relevant standards including IEEE 802.3, UL, REACH, RoHS, ISO9001 and ISO14001. It is suitable for application scenarios such as digital cameras, routers, automation equipment and network firewalls.

Part NumberTRJG87531AHNLBrandTrxcom
Connector TypeJackMounting TypeThrough Hole
Number of Positions/Contacts8p8c(RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports2x8 PortSpeed10/100 Base-T
LatchBothCores per Port12
Orientation90° Angle (Right)PCB Mount AngleTHT Solder
Shield EMI TabsWithLED OptionGreen/Yellow
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)1.015/25.79Package Length (Inches/mm)1.116/28.35
Package Width (Inches/mm)4.530/115.06Temperature0℃ TO +70℃0℃ TO +70℃
Bst CircuitYesAutomDXYes
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT、C

Quality Certifications

We strictly control product quality, including strict control of manufacturer qualifications, quality control processes and production process standards, and compliance with various certifications and safety standards. Currently, our products comply with industry standards and mainstream quality certifications, such as ISO 9001, ISO 14001, CE, RoHS, REACH, UL, etc. For more details, please visit the Compliance Center Center to get documents.
