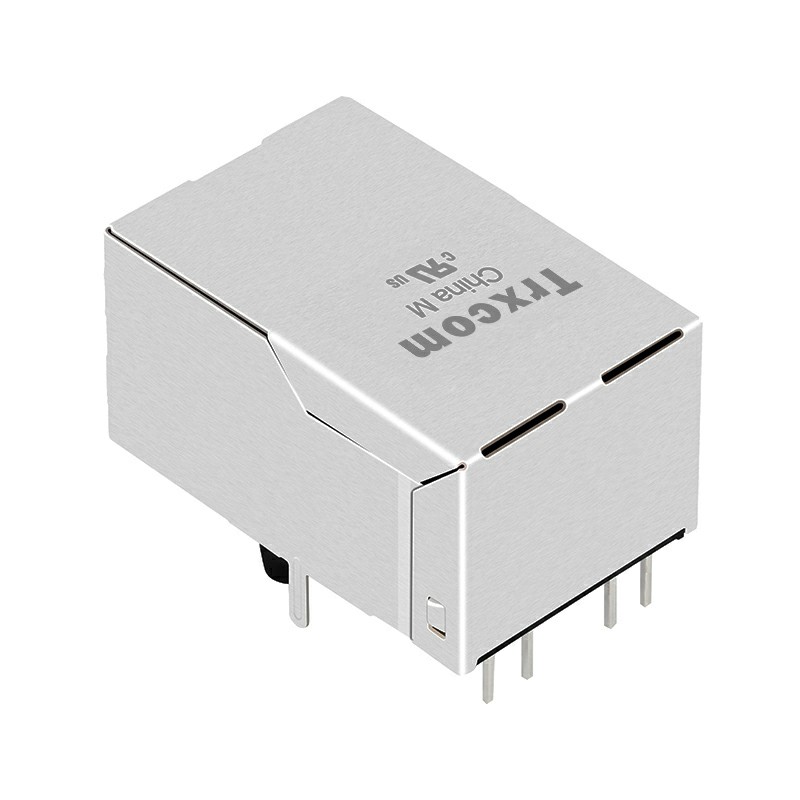

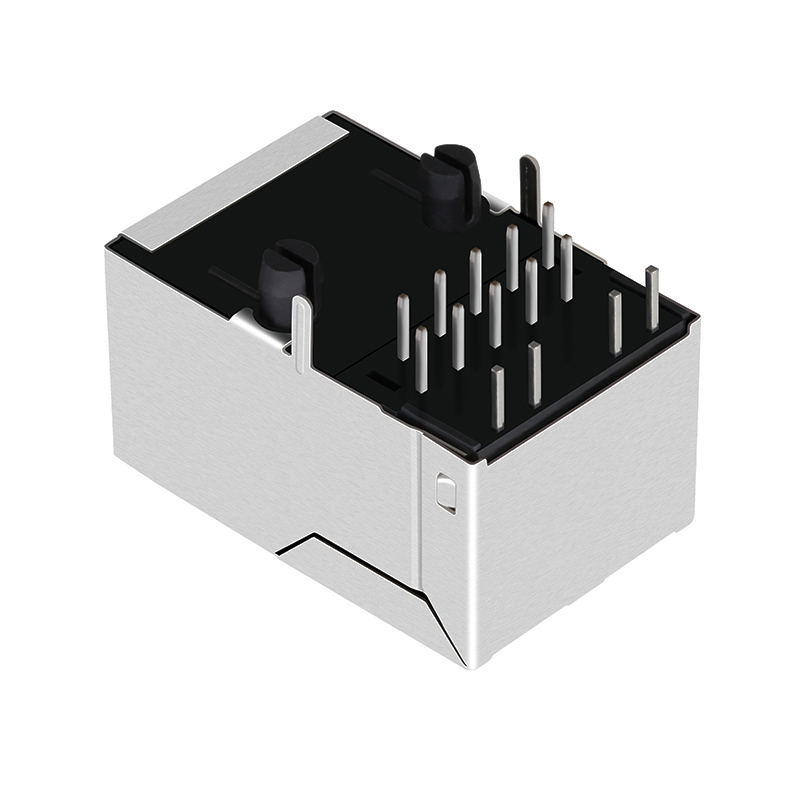

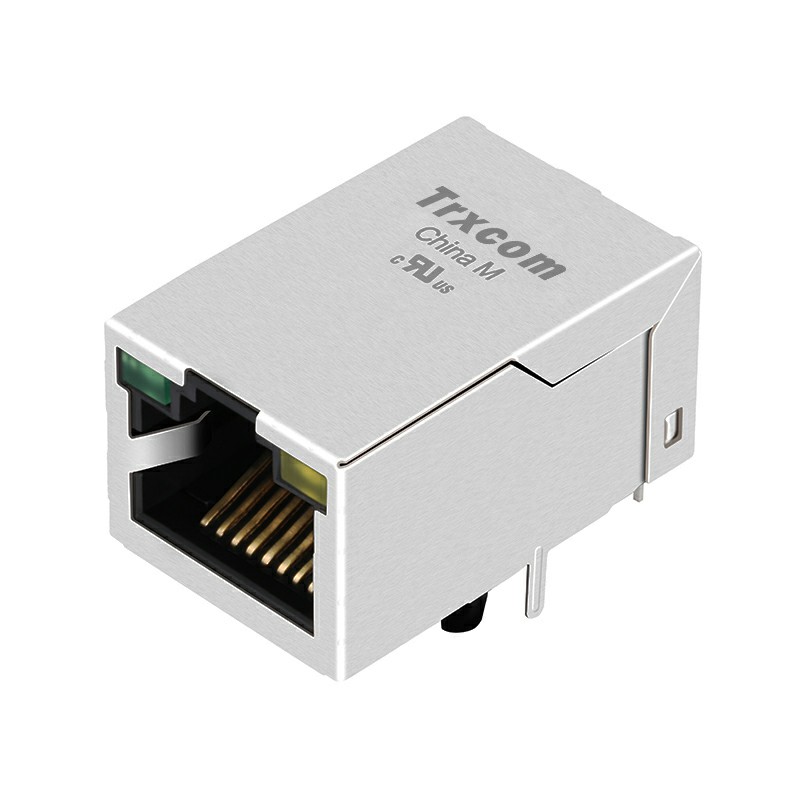

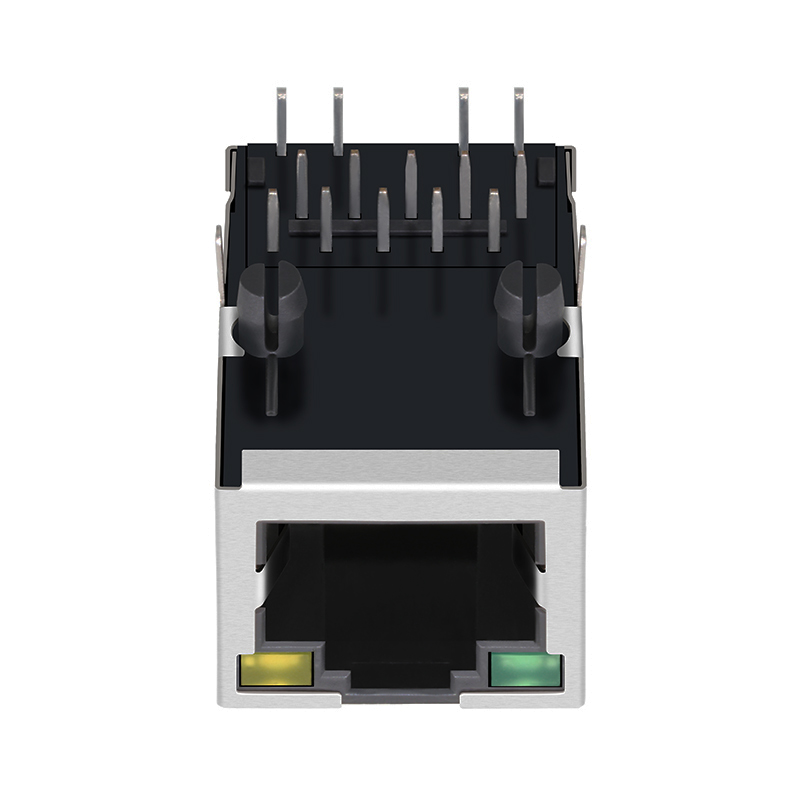

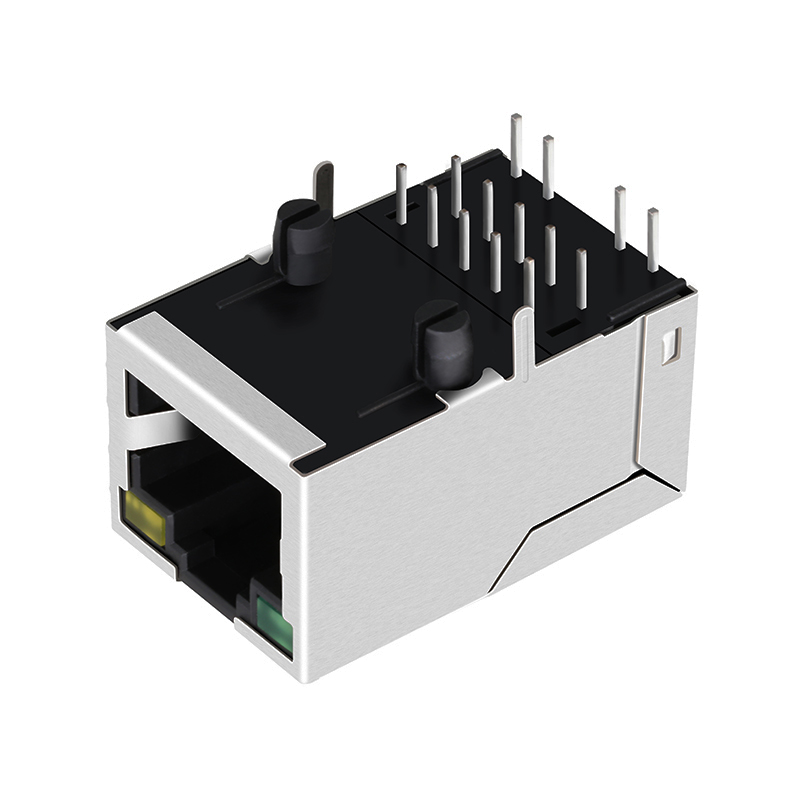

TRJG17401B9NL 100/1000 Base-T Tab Up Yellow&Green/Green Led Single Port 8P8C RJ45 PCB Connector
share
Parameter
Brand: ： Trxcom
P/N: ： TRJG17401B9NL
Port: ： 1X1
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Up
LED: ： Yellow&Green/Green
Mount: ： 0℃ to 70℃
Shield Tabs: ： No
DetailReview(0)
Trxcom TRJG17401B9NL 100/1000 Base-T 8P8C RJ45 PCB Connector for Digital Camera and Smart Meters (Single Port, Tab Up, Yellow&Green/Green Led)
TRJG17401B9NL supports 100/1000 Base-T transmission rates and complies with IEEE 802.3, UL, REACH, RoHS, ISO9001 and ISO14001 relevant standards. It is applicable to application scenarios such as digital cameras, routers, automation equipment and network firewalls.
| Part Number | TRJG17401B9NL | Brand | Trxcom |
| Connector Type | Jack | Mounting Type | Through Hole |
| Number of Positions/Contacts | 10p8c(RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100/1000 Base-T |
| Latch | UP | Cores per Port | 8 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | THT Solder |
| Shield EMI Tabs | Without | LED Option | Yellow&Green/Green Leds |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.530/13.45 | Package Length (Inches/mm) | 0.994/25.25 |
| Package Width (Inches/mm) | 0.636/16.15 | Temperature | -40℃ to 85℃ |
| Bst Circuit | No | AutomDX | Yes |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T、C |
Quality Certifications
We strictly control product quality, including strict control of manufacturer qualifications, quality control processes and production process standards, and compliance with various certifications and safety standards. Currently, our products comply with industry standards and mainstream quality certifications, such as ISO 9001, ISO 14001, CE, RoHS, REACH, UL, etc. For more details, please visit the Compliance Center Center to get documents.
