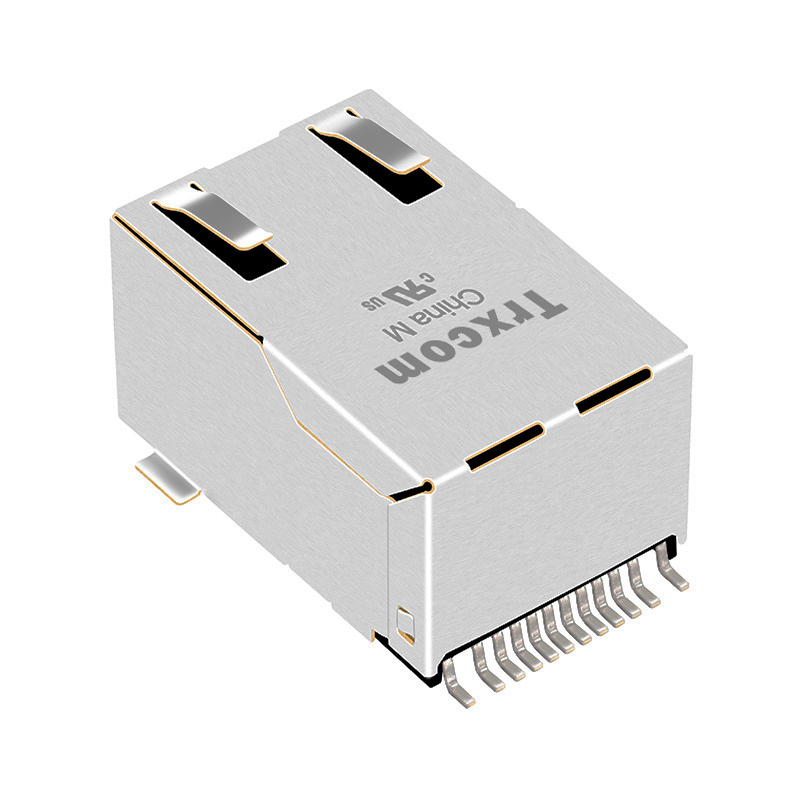

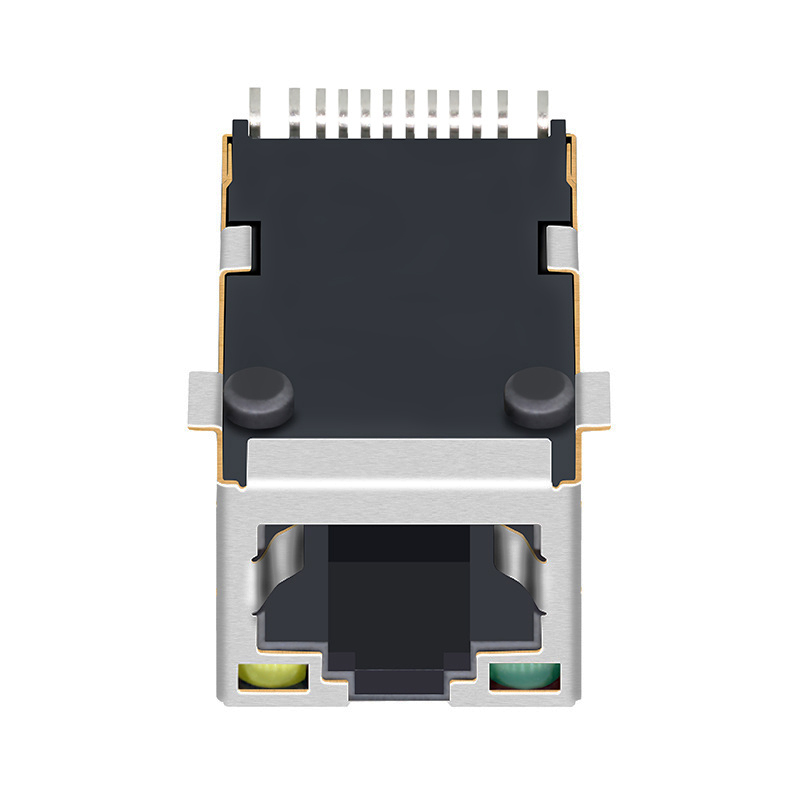

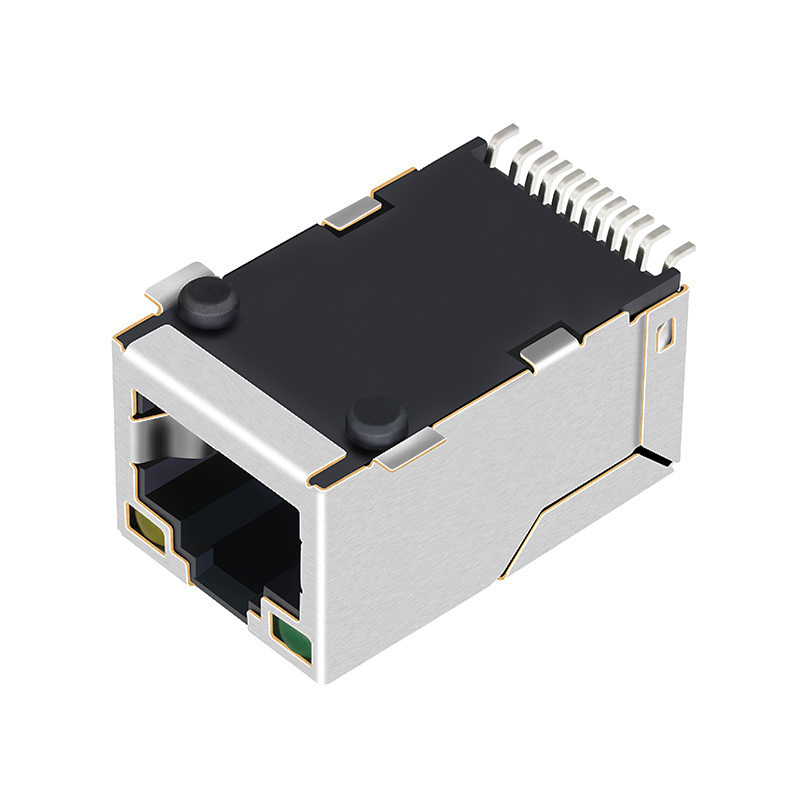

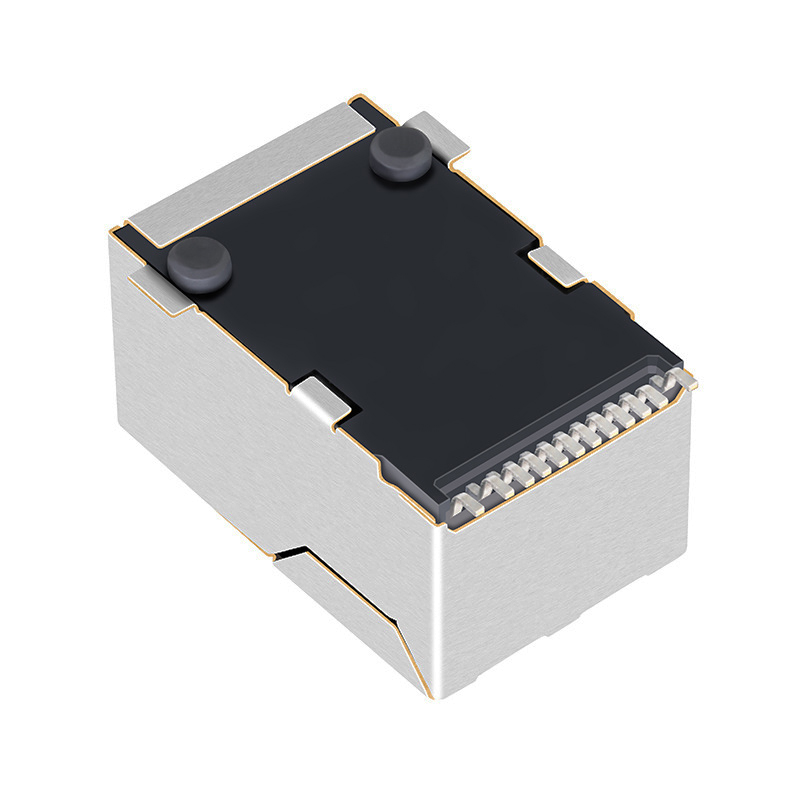

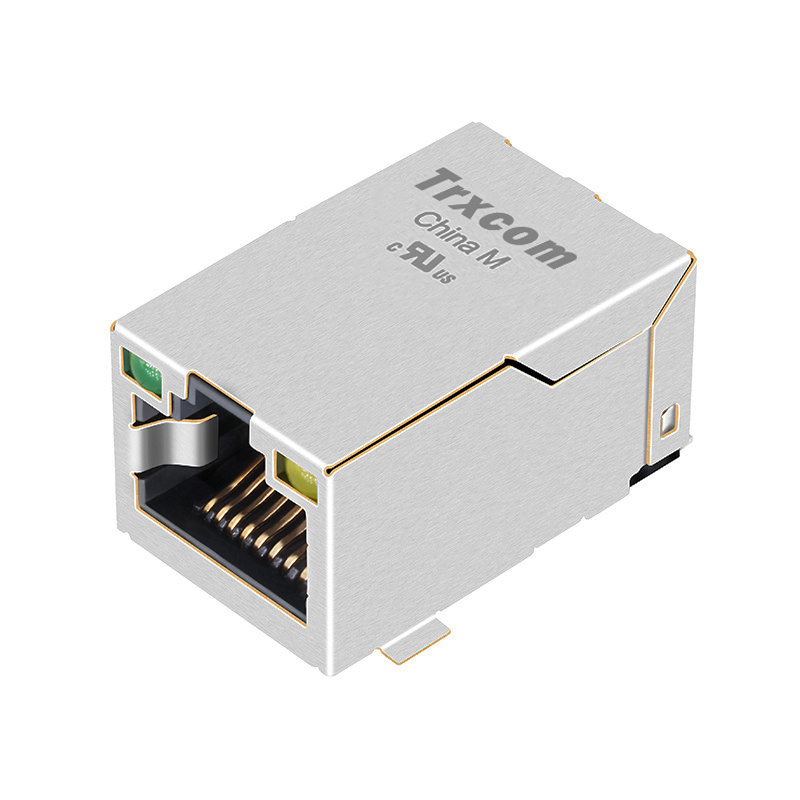

TRJG19801BGNL 100/1000 Base-T SMD RJ45 Integrated Magnetic Jack Tab Up Green/Yellow Led

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJG19801BGNL
Port: ： 1X1
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Up
LED: ： Green/Yellow
Mount: ： 0℃ to 70℃
Shield Tabs: ： No
Get a Quote
Consult products
DetailReview(0)

Trxcom TRJG19801BGNL 100/1000 Base-T RJ45 Integrated Magnetic Jack for Surgical Equipment Guard System   (Tab Up,   Green/Yellow Led)

The Trxcom TRJG19801BGNL supports 100/1000 Mbps Base-T network speed and complies with relevant standards including IEEE 802.3, UL, REACH, RoHS, ISO9001 and ISO14001. It can be applied in scenarios such as monitoring systems, embedded motherboards and media players.

Part NumberTRJG19801BGNLBrandTrxcom
Connector TypeJackMounting TypeSurface Mount
Number of Positions/Contacts12p8c(RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x1 PortSpeed100/1000 Base-T
LatchUPCores per Port8
Orientation90° Angle (Right)PCB Mount AngleSurface Mount
Shield EMI TabsWithoutLED OptionGreen/Yellow
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.536/13.61Package Length (Inches/mm)1.00/25.40
Package Width (Inches/mm)0.634/16.10Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYes
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT、C
