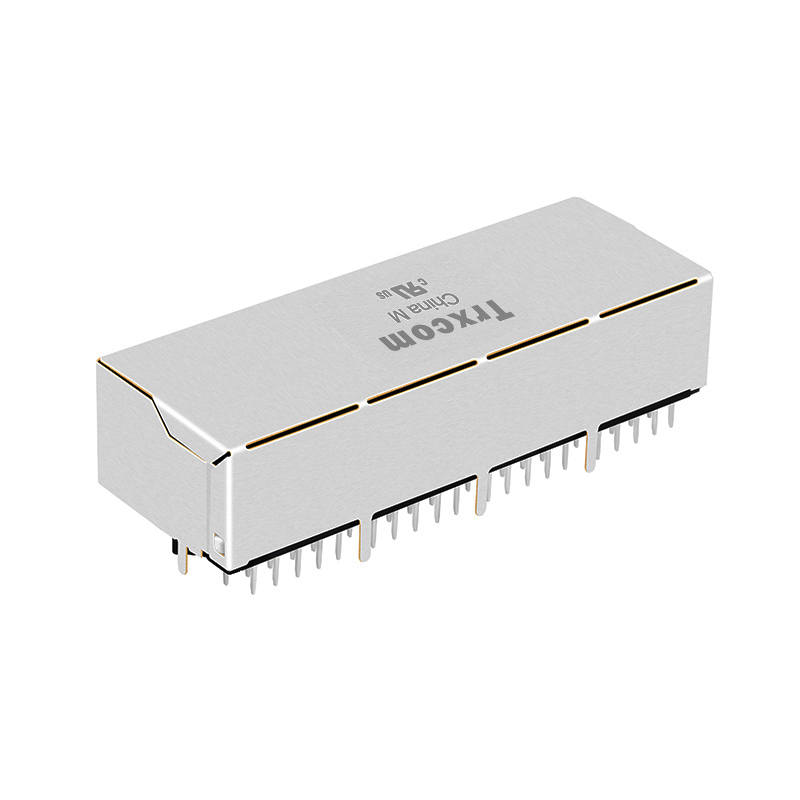

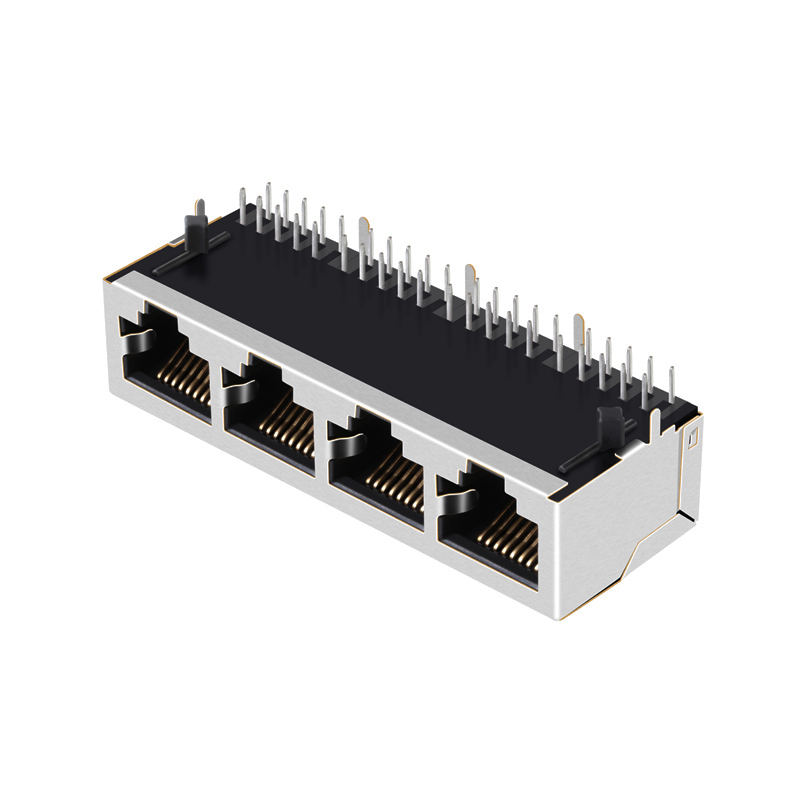

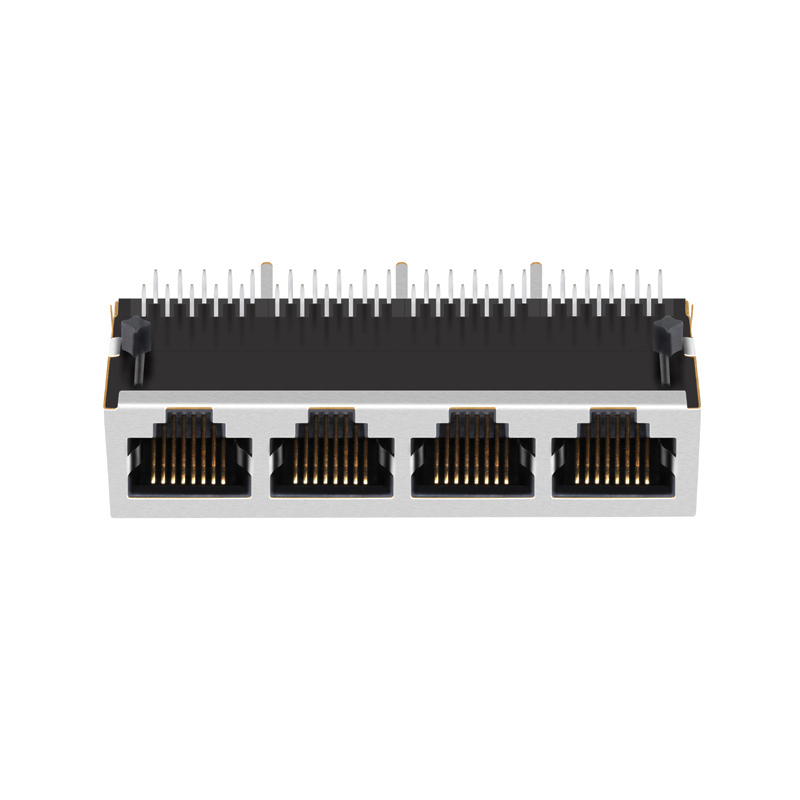

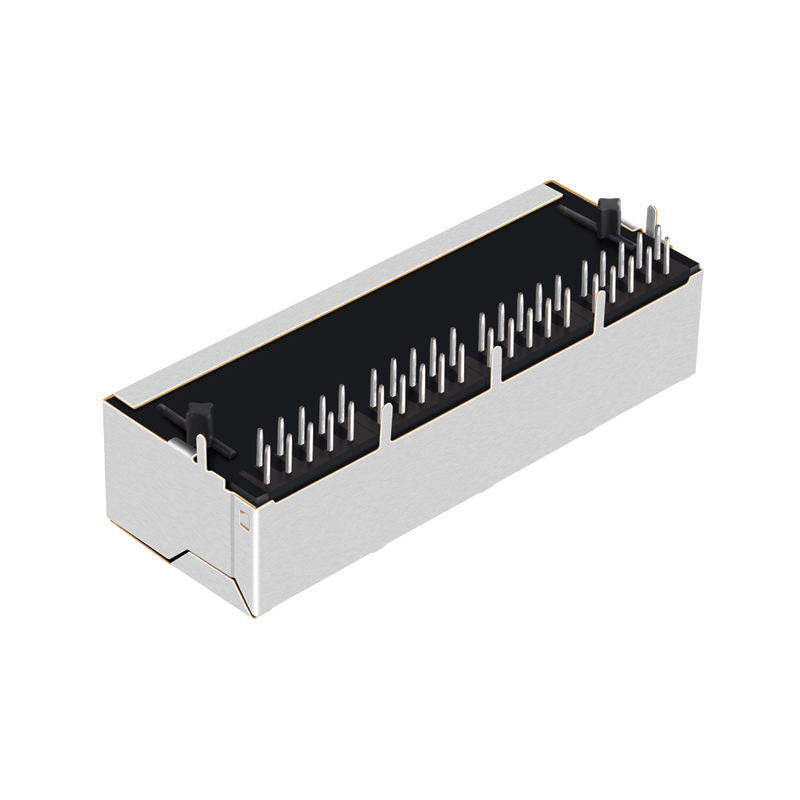

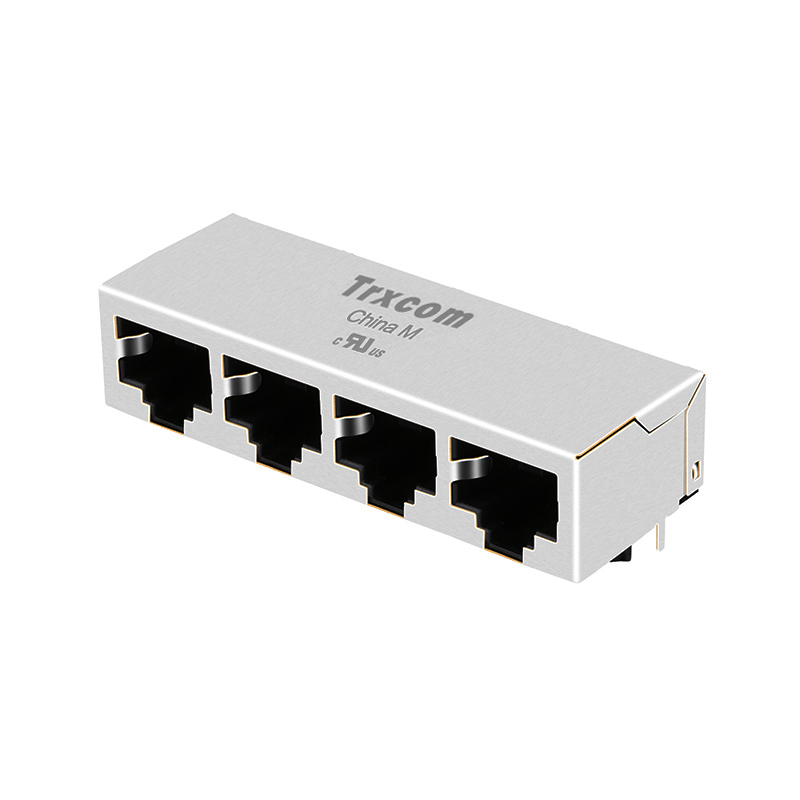

TRJG46901DNL 10/100/1000 Base-T Magnetics RJ45 1x4 Port Connectors with Transformer Tab Down Without LED

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJG46901DNL
Port: ： 1X4
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Up
LED: ： No LED
Mount: ： 0℃ to 70℃
Shield Tabs: ： No
Get a Quote
Consult products
DetailReview(0)

TRXCOM TRTRJG46901DNL   10/100/1000 Base-T Filtered Connectors for Switching Power and Network Firewall (1x4 Port , Tab Down ,Without LED)

The TRJG46901DNL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as VoIP Gateways, PoE Repeater,Switching Power and Network Firewall.

Part NumberTRTRJG46901DNLBrandTrxcom
Connector TypeJackMounting TypeThrough Hole
Number of Positions/Contacts10p8c(RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x4 PortSpeed10/100/1000 Base-T
LatchDownCores per Port8
Orientation90° Angle (Right)PCB Mount AngleTHT Solder
Shield EMI TabsWithoutLED OptionWithout LED
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.536/13.61Package Length (Inches/mm)0.839/21.30
Package Width (Inches/mm)2.328/59.12Temperature 0℃ TO 70℃
Bst CircuitYesAutomDXYes
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT、C
