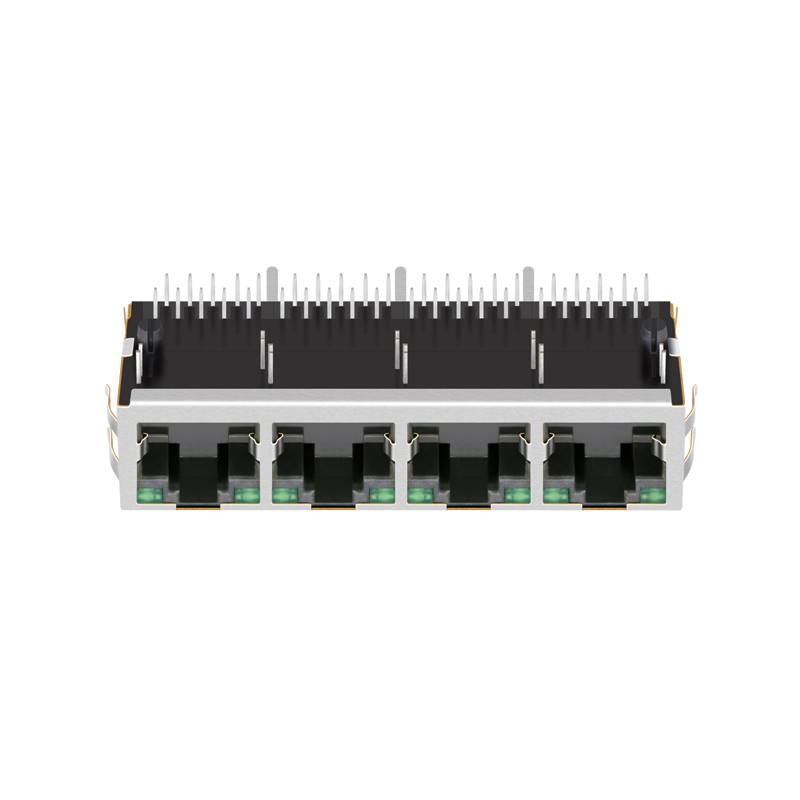

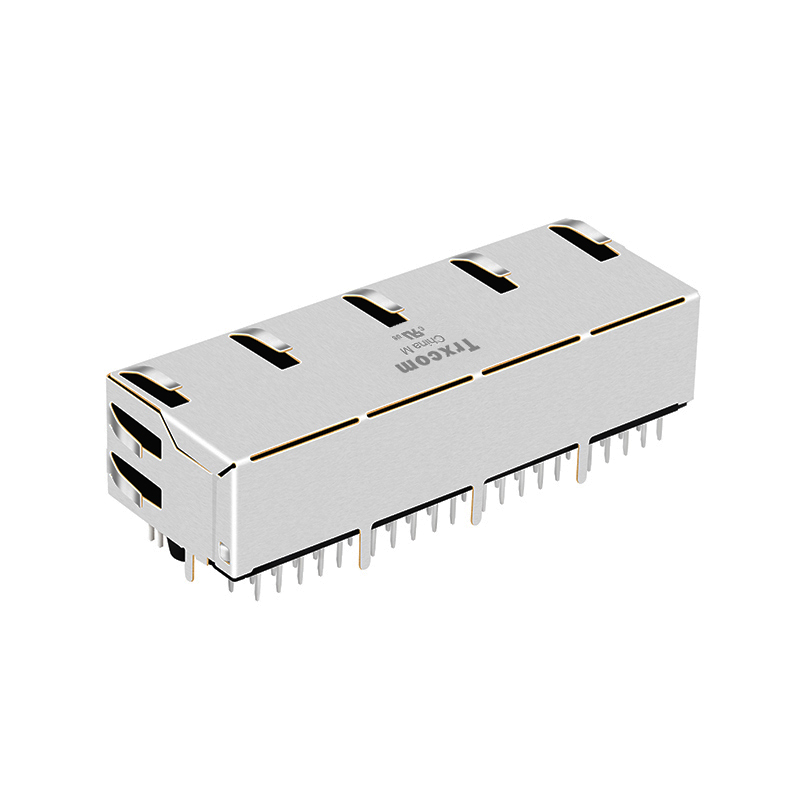

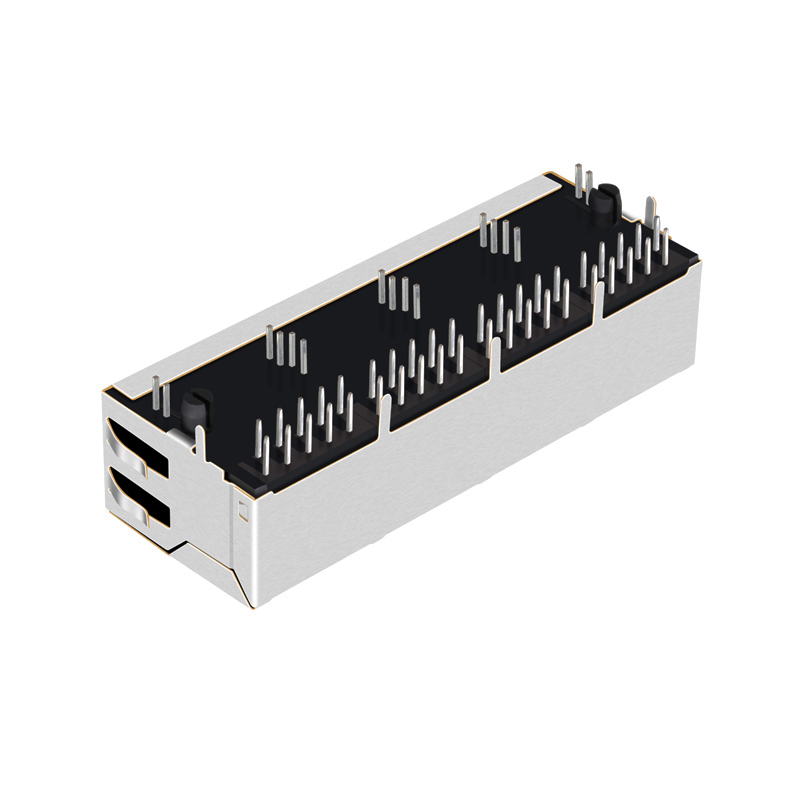

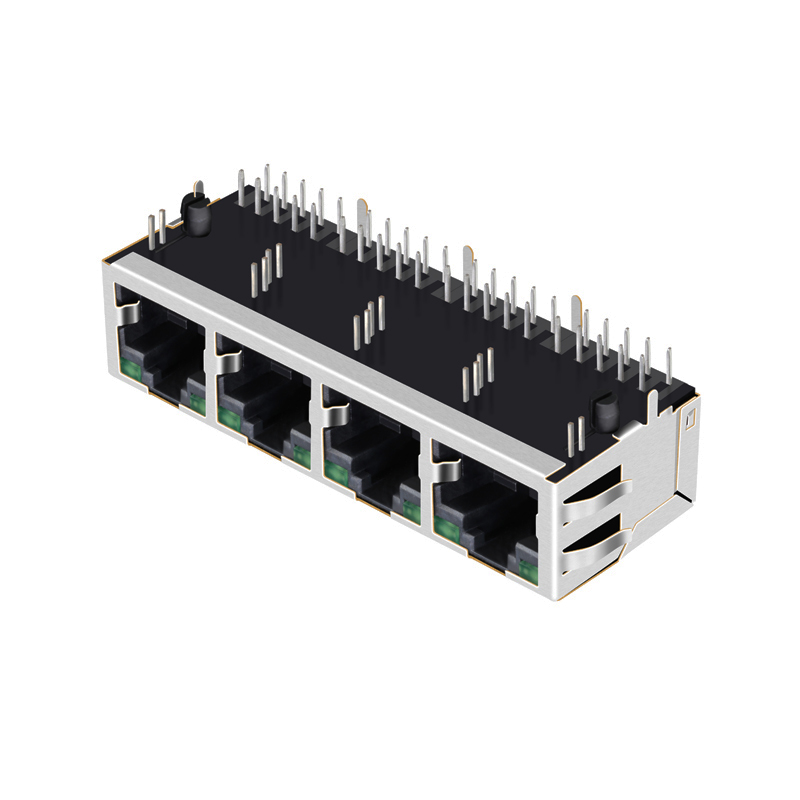

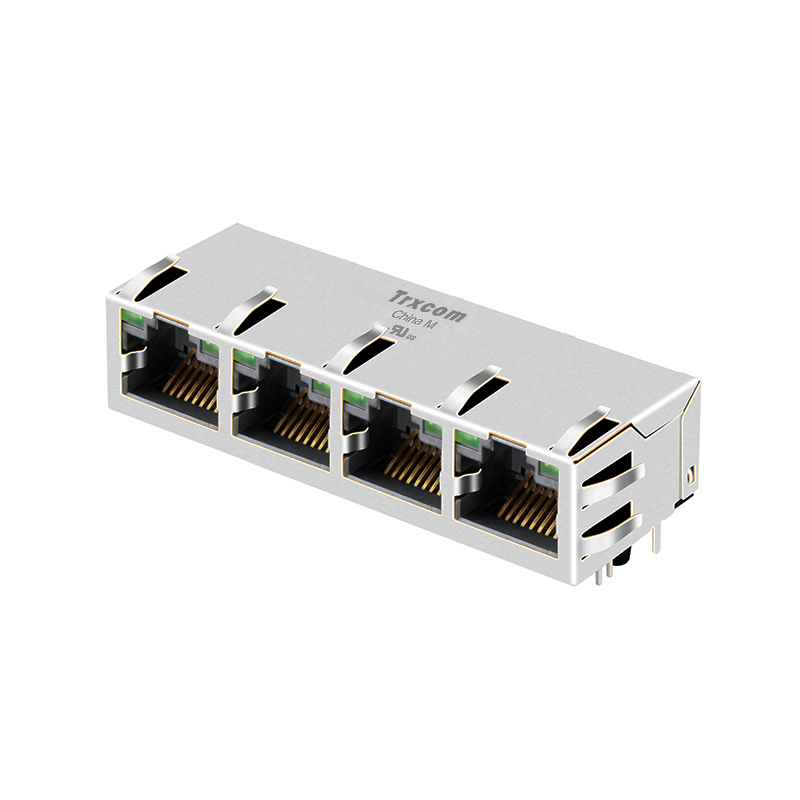

TRJG48851AFNL 1x4 Port RJ45 Jacks with Magnetics 100/1000 Base-T Tab Up Green/Green LED

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJG48851AFNL
Port: ： 1X4
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Up
LED: ： Green/Green
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

TRXCOM TRJG48851AFNL 10/100/1000 Base-T RJ45 Jacks with Magnetics For Smart Meters and Satellite (1x4 Port , Tab Up ,Green/Green LED)

The TRJG48851AWNL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Meters, Satellite,Set-top Box and Smart Home.

Part NumberTRJG48851AFNLBrandTrxcom
Connector TypeJackMounting TypeThrough Hole
Number of Positions/Contacts10p8c(RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x4 PortSpeed10/100/1000 Base-T
LatchUPCores per Port8
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionGreen/Green Leds
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.545/13.84Package Length (Inches/mm)1.00/25.41
Package Width (Inches/mm)2.338/59.39Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYes
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT、C
