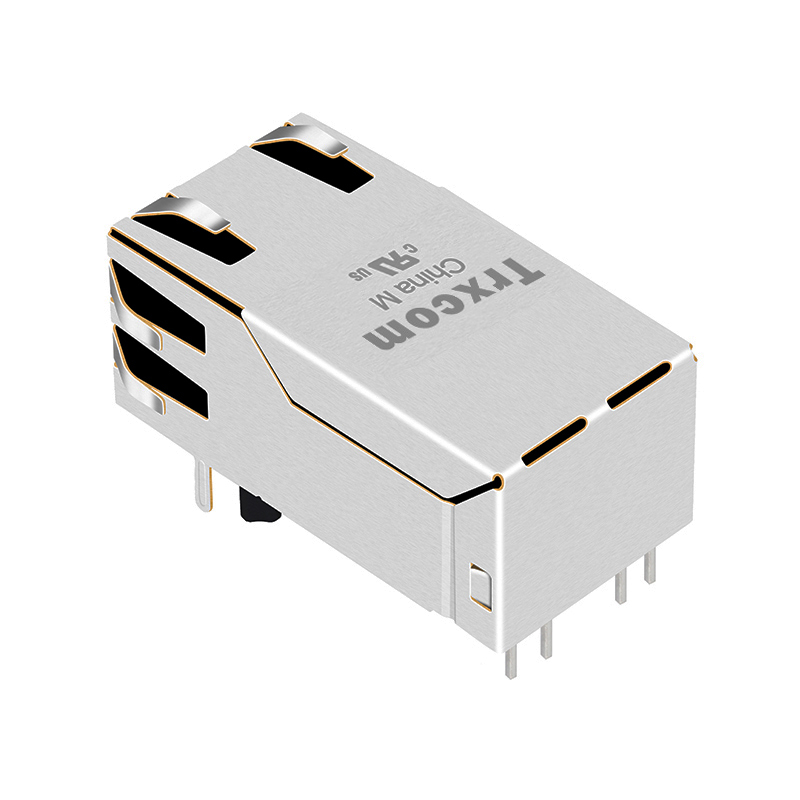

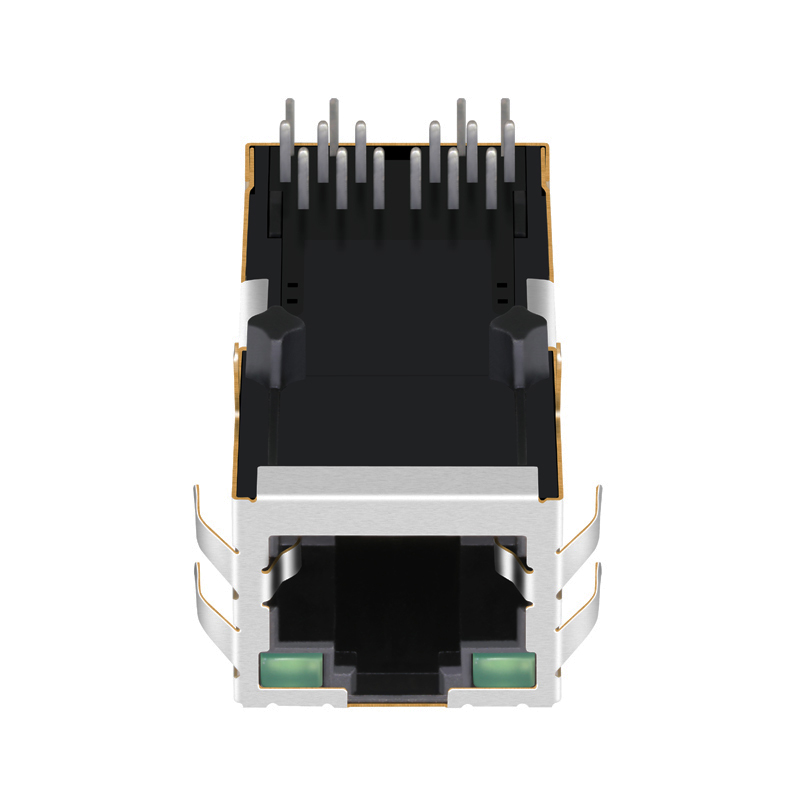

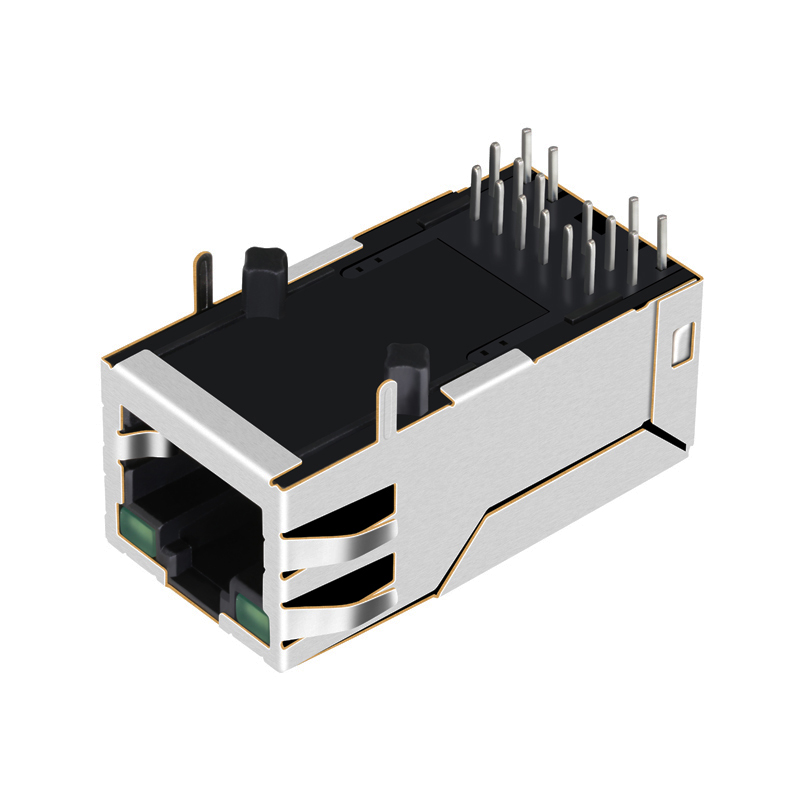

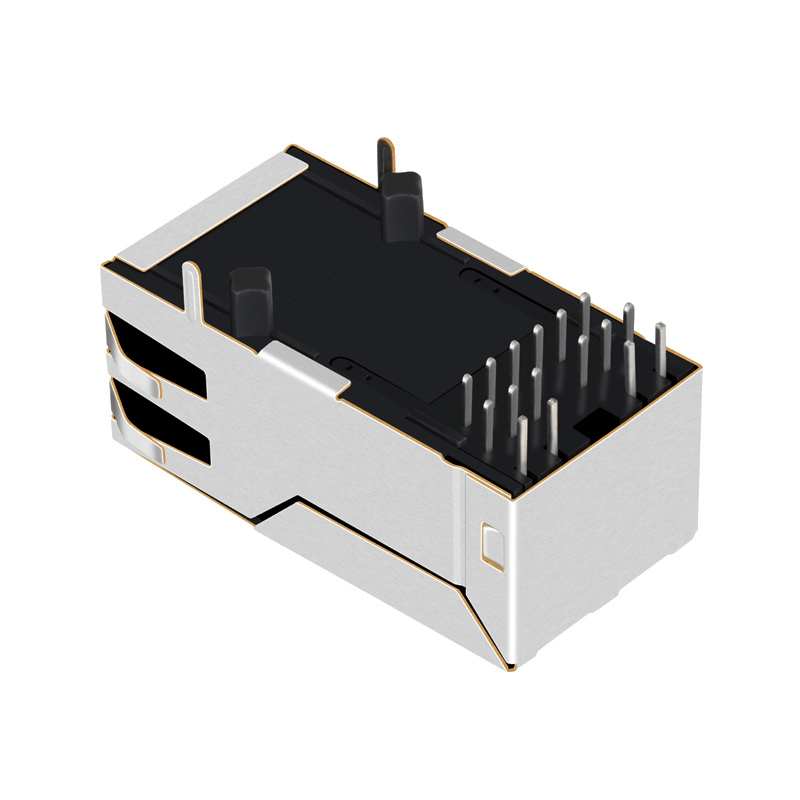

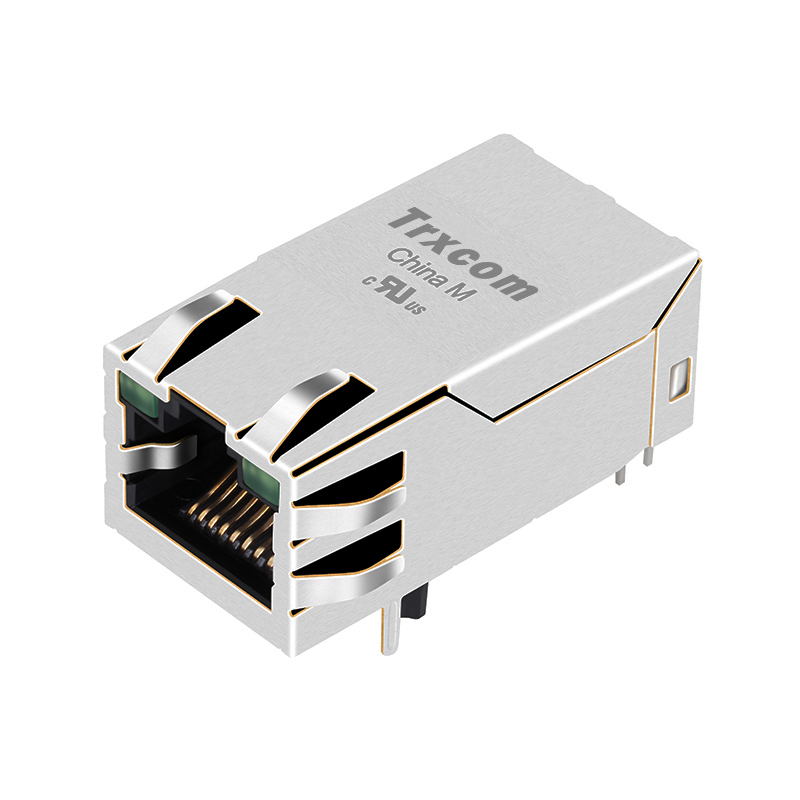

TRJK0014AWNL 100/1000 Base-T Tab Up Green/Green Led 1x1 Port Shielded RJ45 ICM Connector

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJK0014AWNL
Port: ： 1X1
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Up
LED: ： Green/Green
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

Trxcom TRJK0014AWNL 100/1000 Base-T Shielded RJ45 ICM Connector for Solar Inverter and Network Firewall (POE+, 1x1 Port, Tab Up, Green/Green Led)

The TRJK0014AWNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Home, , Solar Inverter and Game Controller.

Part NumberTRJK0014AWNLBrandTrxcom
Connector TypeJackMounting TypeThrough Hole
Number of Positions/Contacts12p8c(RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x1 PortSpeed10/100/1000 Base-T
LatchUPCores per Port8
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionGreen/Green Leds
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.531/13.50Package Length (Inches/mm)1.30/33.02
Package Width (Inches/mm) 0.654/16.60Temperature 0℃ TO 70℃
Bst CircuitYesAutomDXYes
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT、C
