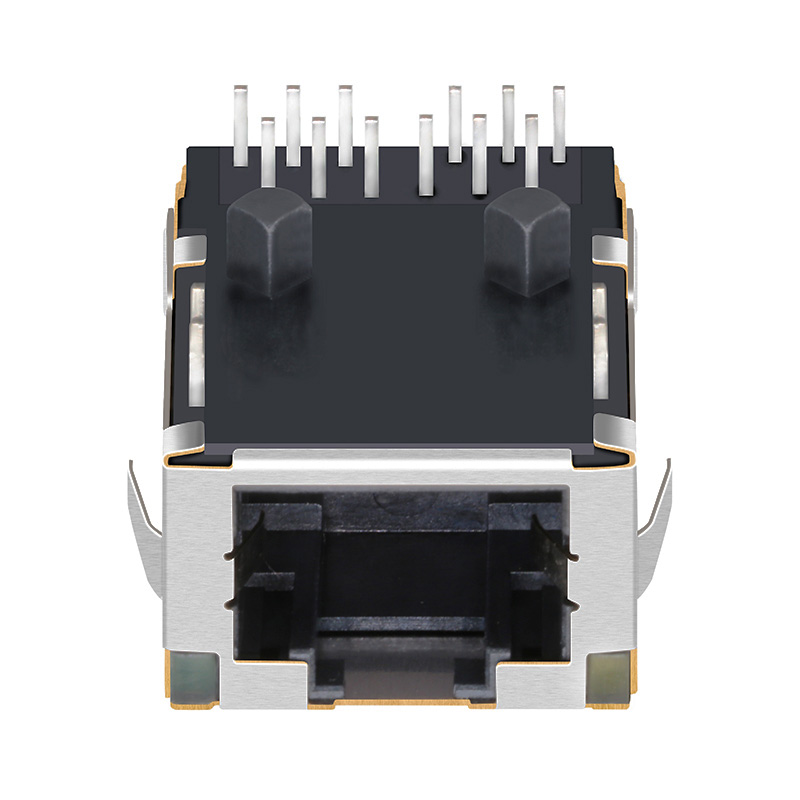

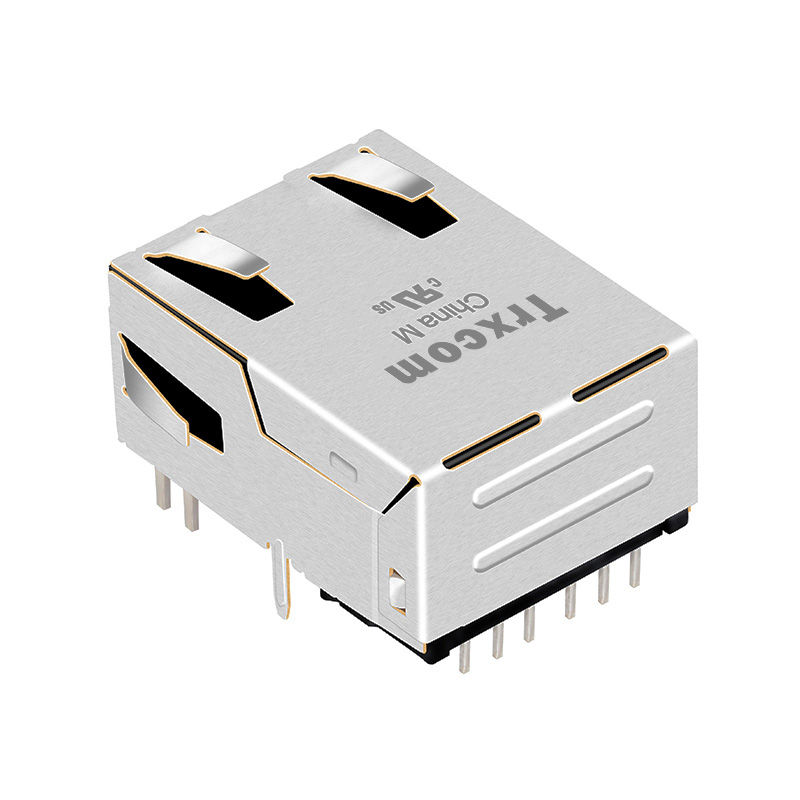

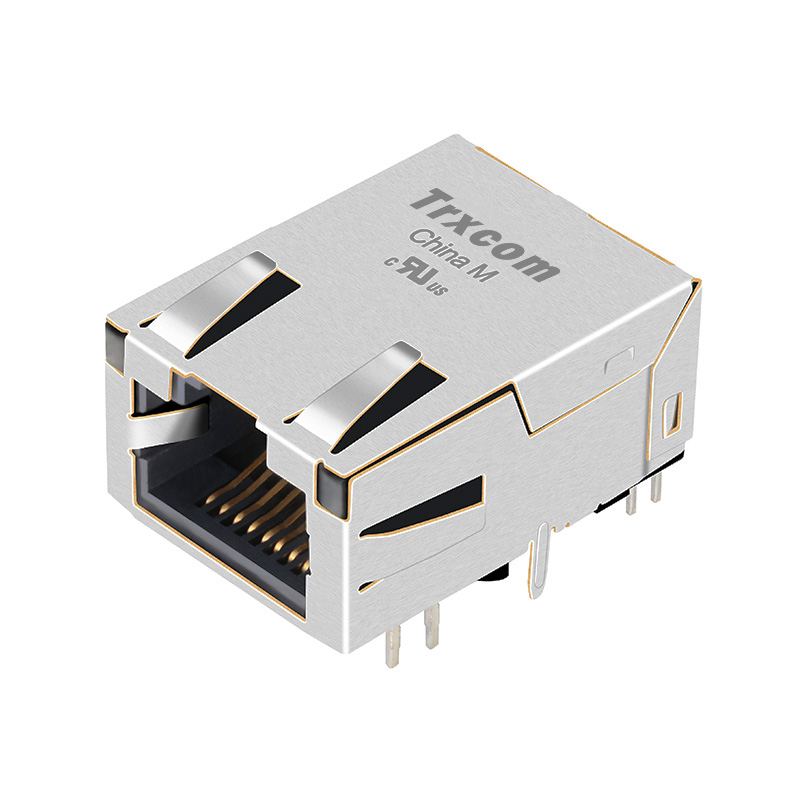

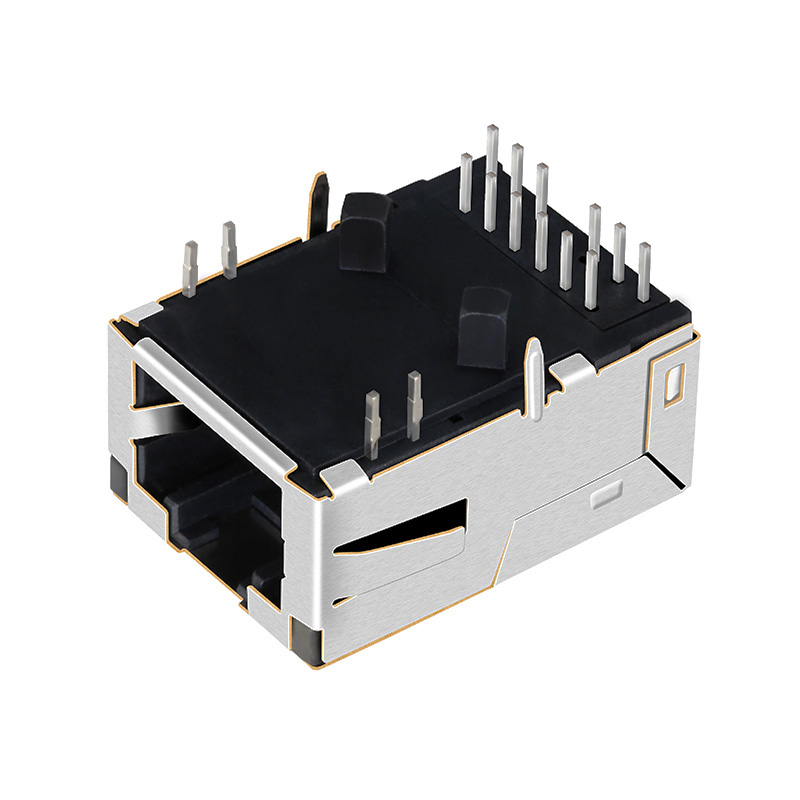

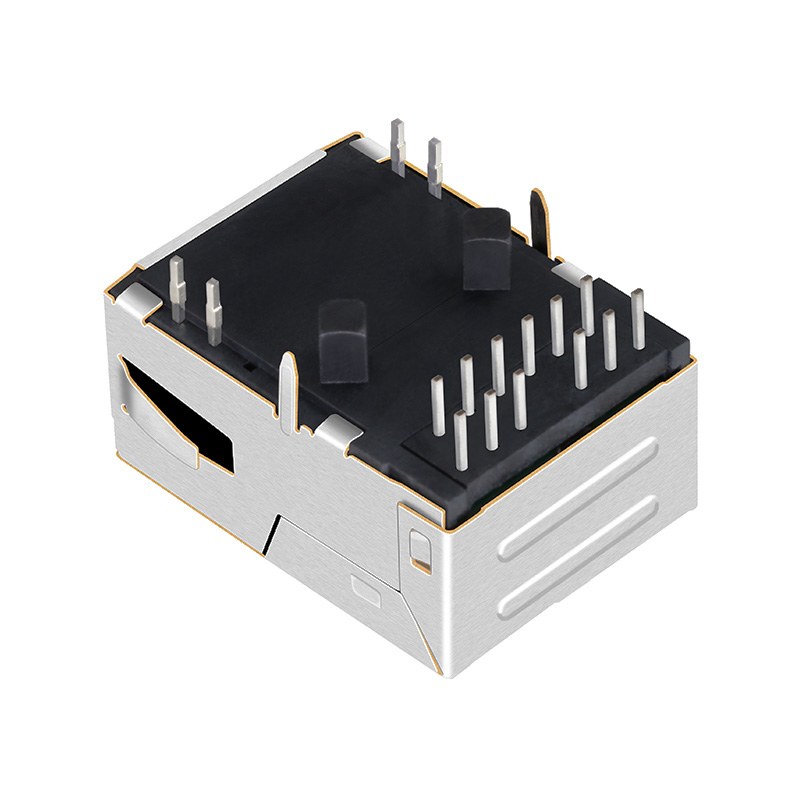

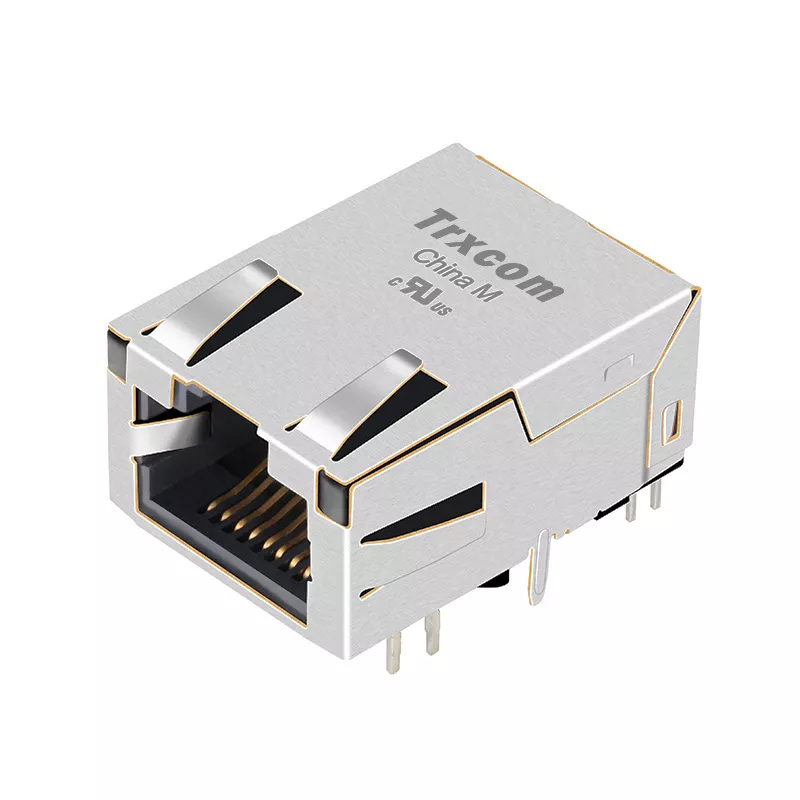

TRJK7001AGNL 10/100 Base-T Low Profile rj45 connector Yellow/Green LED Tab Up
Trxcom TRJK7001AGNL 10/100 Base-T Low Profile RJ45 connector For Smart Camera ( Height 11.30mm,Yellow/Green LED ,Tab Up)
TRJK7001AGNL supports the 10/100 Base-T network speed specification and complies with IEEE 802.3 standards, UL certification, REACH regulations, Restriction of Hazardous Substances standards, ISO9001 quality management system and ISO14001 environmental management system specifications. It can be applied to device scenarios such as network firewalls, video recorders and smart home devices.
| Part Number | TRJK7001AGNL | Brand | Trxcom |
| Connector Type | Jack | Mounting Type | Through Hole |
| Number of Positions/Contacts | 8p8c(RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100 Base-T |
| Latch | UP | Cores per Port | 4 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With | LED Option | Yellow/Green Leds |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.445/11.30 | Package Length (Inches/mm) | 0.946/24.04 |
| Package Width (Inches/mm) | 0.700/17.78 | Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes | AutomDX | Yes |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T、C |
