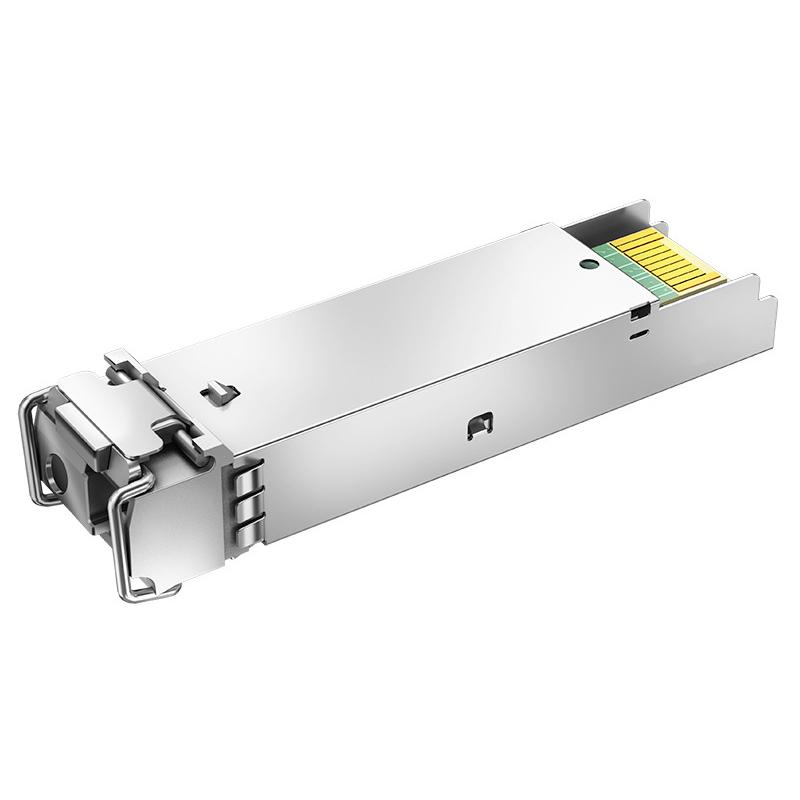

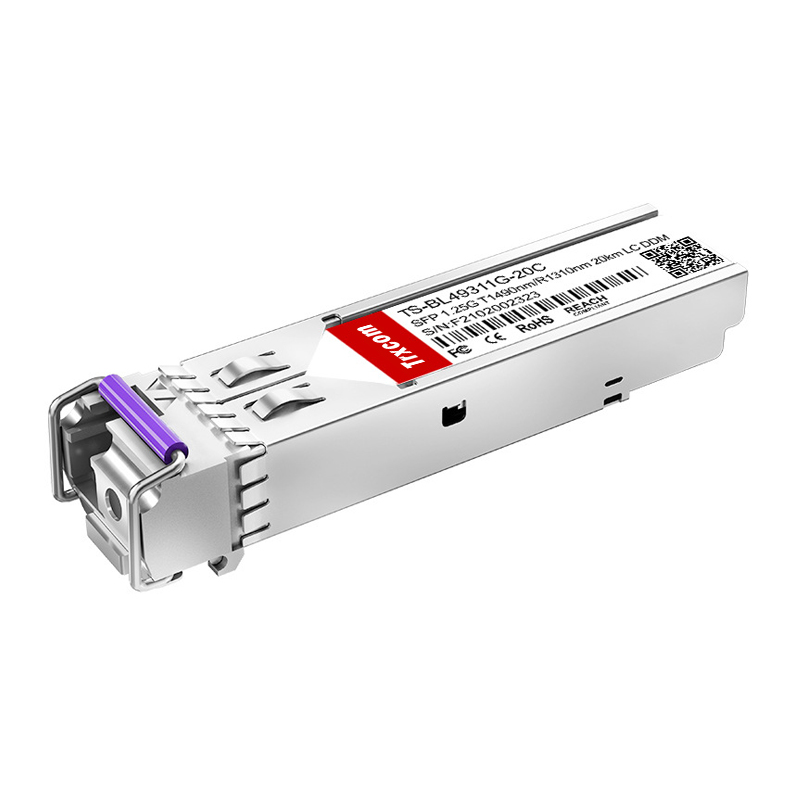

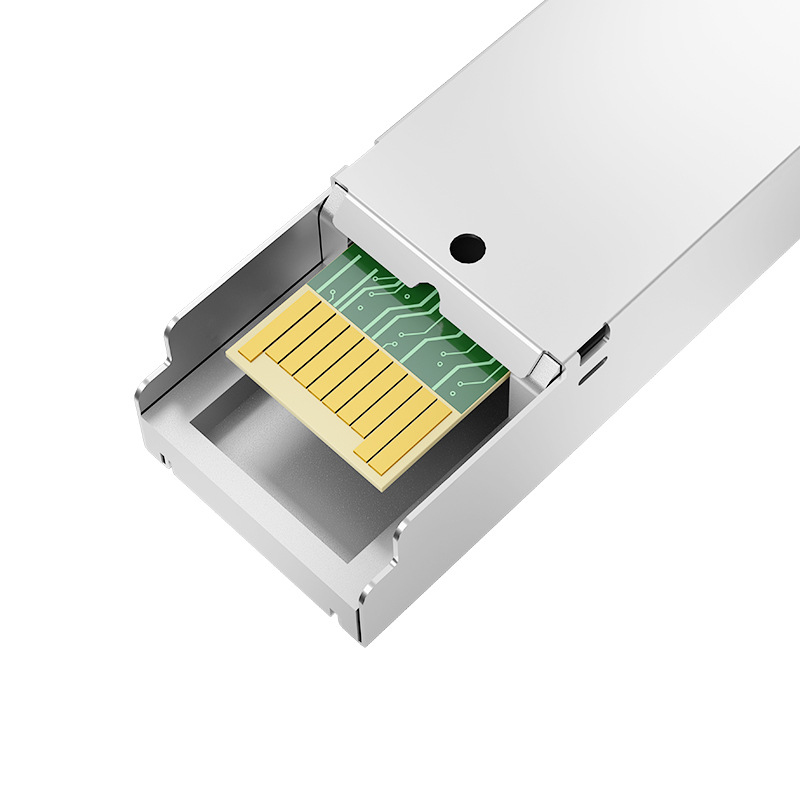

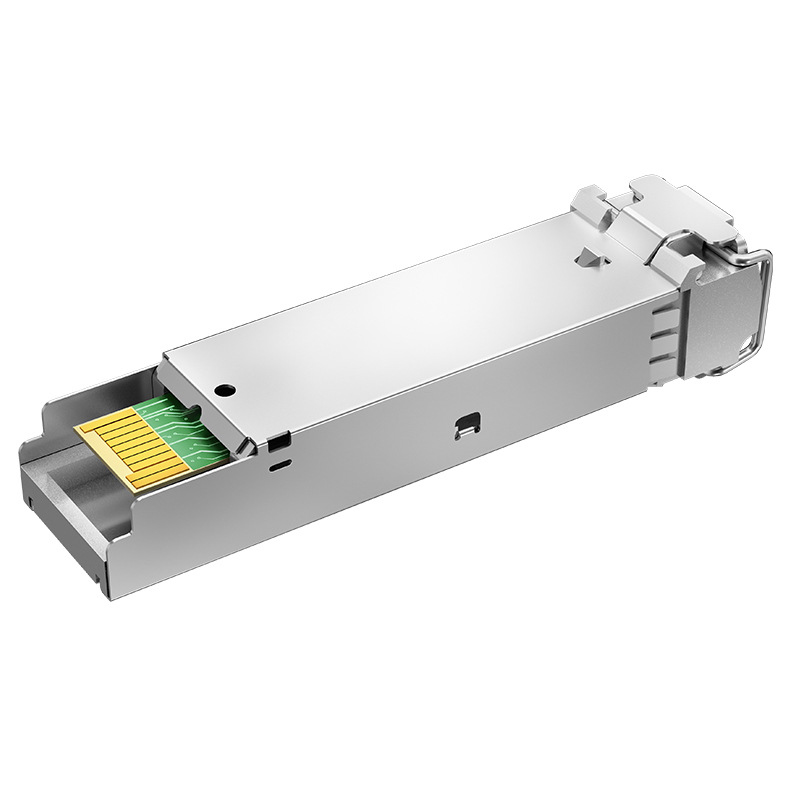

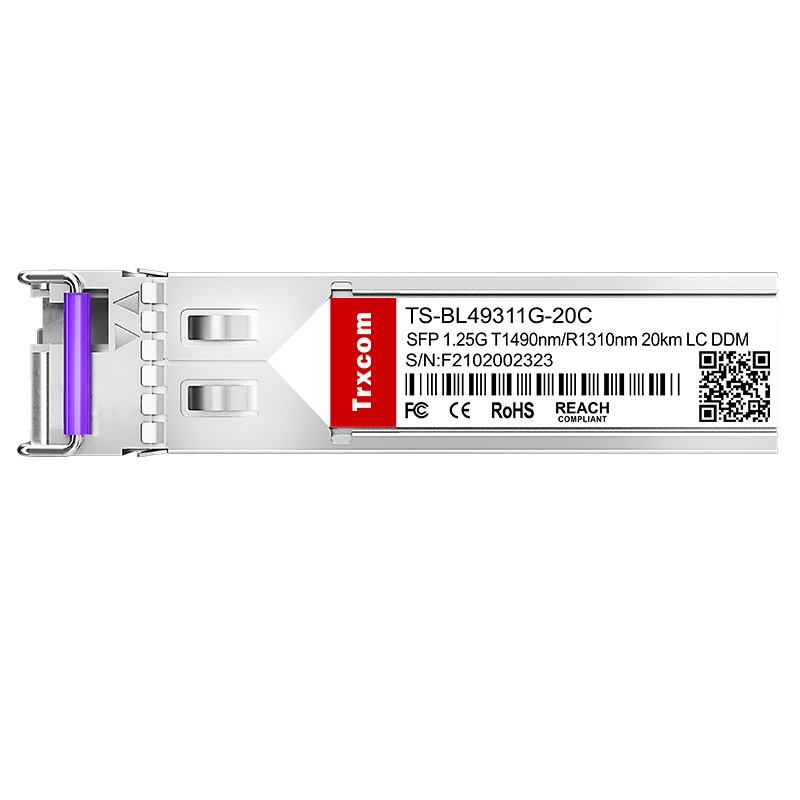

TS-BL49311G-20C SFP 1G BiDi 1490nm-TX/1310nm-RX 20km DOM Simplex LC/UPC SMF Optical Transceiver Module
share
Parameter
P/N ： TS-BL49311G-20C
Form Factor ： SFP
Type ： Single Mode
Data Rate ： 1G
Connector ： Simplex LC
Distance ： ≤20km
Wavelength ： 1490nm-TX/1310nm-RX
DetailReview(0)
TRXCOM TS-BL49311G-20C SFP 1G BiDi Simplex LC/UPC Optical Transceiver Module(SMF, 1490nm-TX/1310nm-RX, 20km, DOM)
The TS-BL49311G-10C SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 20km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
| Trxcom Part Number | TS-BL49311G-20C | Vendor Name | Trxcom |
| Form Factor | SFP | Max Data Rate | 1.25Gbps |
| Wavelength | 1490nm-TX/1310nm-RX | Max Cable Distance | 20km |
| Connector | Simplex LC | Optical Components | DFP BiDi |
| Media | SMF | DOM Support | Yes |
| TX Power | -9 to 0dBm | RX Power | -23 to -1dBm |
| Receiver Sensitivity | ＜-23dBm | Receiver Overload | -1dBm |
| Operating case temperature | 0 to 70°C | Protocols | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
Matched Pairs: It must be used in pairs with SFP 1310nm-TX/1490nm-RX.
Data Center
Telecommunications
Medical Equipment
Industrial Control
Consumer Electronics
Security System
Military Industry
