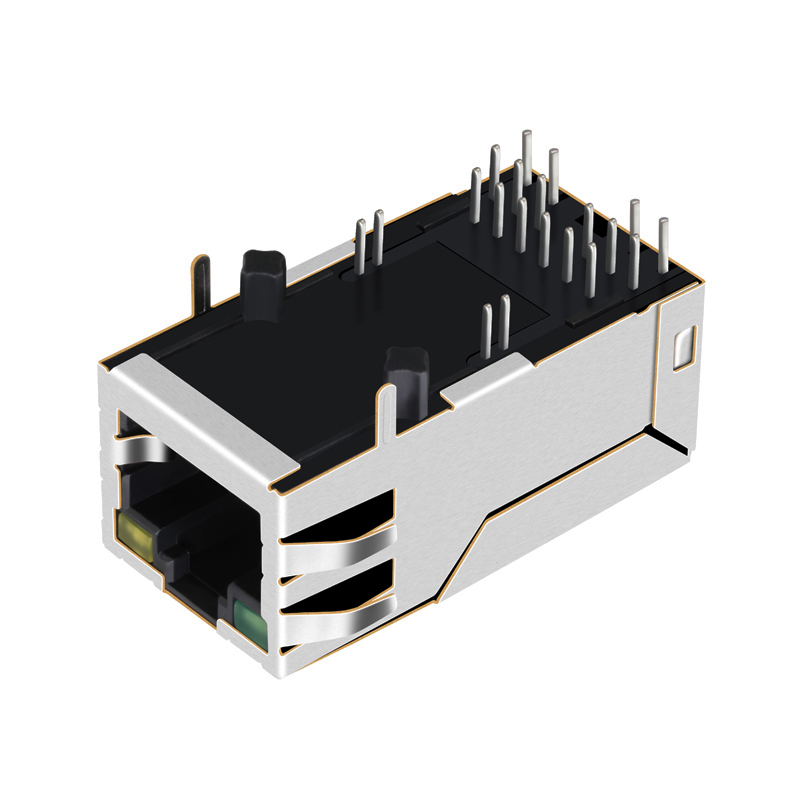

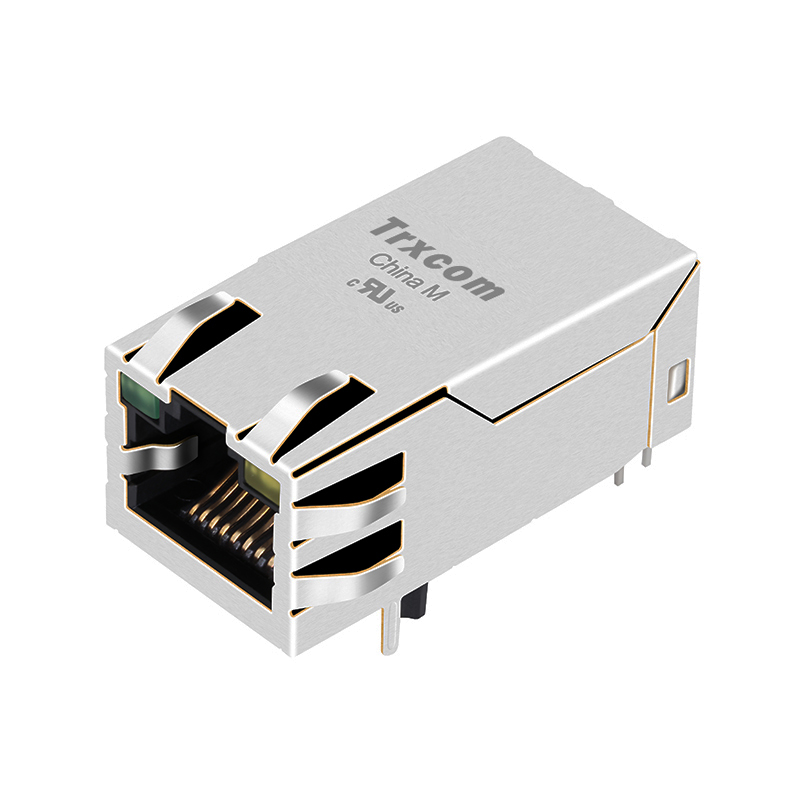

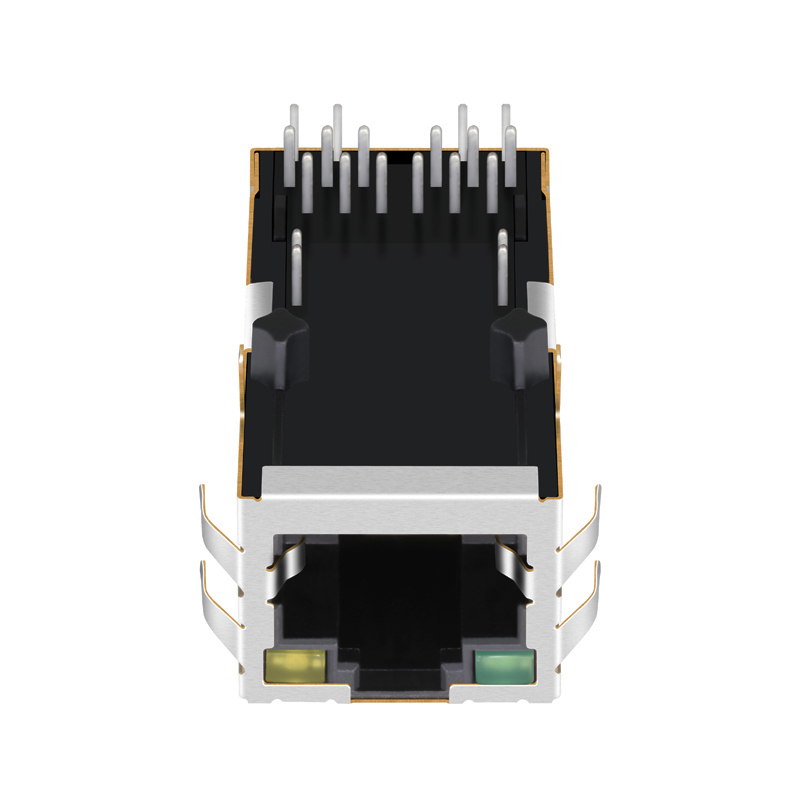

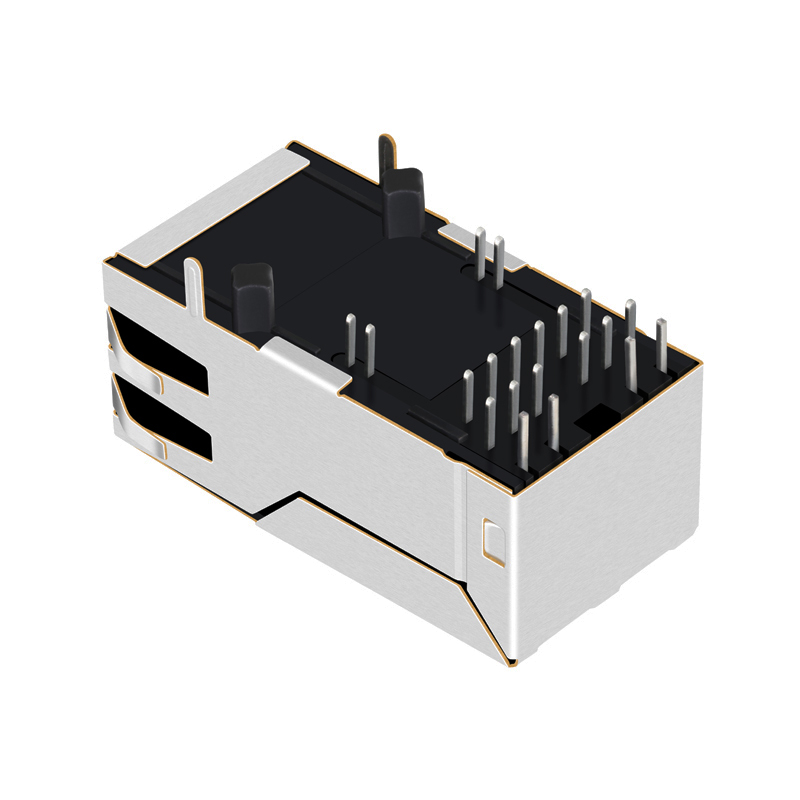

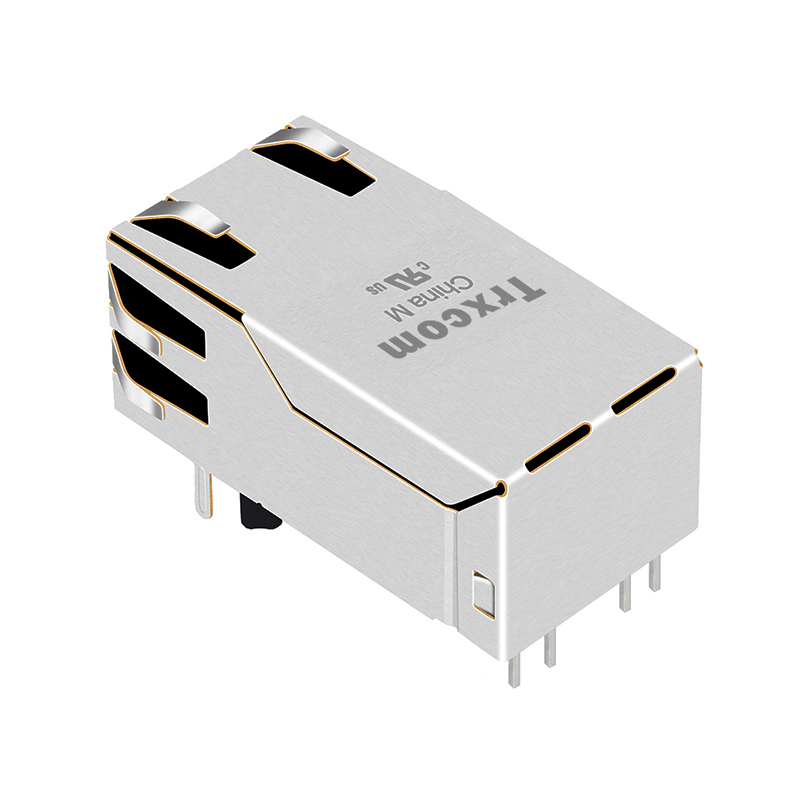

TRJK9093AHNL 10G Base-T POE++ RJ45 Jack with Integrated Magnetics Single Port Tab Up With Green/Yellow Led
share
Parameter
Brand: ： Trxcom
P/N: ： TRJK9093AHNL
Port: ： 1X1
Rate: ： 10GBase-T
PoE: ： PoE++
Latch: ： Up
LED: ： Green/Yellow
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
DetailReview(0)
Trxcom TRJK9093AHNL 10G Base-T RJ45 Jack with integrated magnetics for Video Recorder and Smart Meters ( POE++, Single Port, Tab Up, Green/Yellow Led)
The TrxcomTR JK9093AHNL supports speed 10G Base-T, It is compliant with IEEE 802.3 bt, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can be used to support applications, such as Monitoring System, Embedded Main Board, Video Recorder and Smart Meters.
| Part Number | TRJK9093AHNL | Brand | Trxcom |
| Connector Type | Jack | Mounting Type | Through Hole |
| Number of Positions/Contacts | 12p8c(RJ45, Ethernet) | Application-Lan | Ethernet(PoE++) |
| Number of Ports | 1x1 Port | Speed | 10G Base-T |
| Latch | UP | Cores per Port | 8 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With | LED Option | Green/Yellow Leds |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.531/13.50 | Package Length (Inches/mm) | 1.280/32.50 |
| Package Width (Inches/mm) | 0.654/16.60 | Temperature | 0℃ TO 70℃ |
| Bst Circuit | No | AutomDX | Yes |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T、C |
Quality Certifications
We strictly control product quality, including strict control of manufacturer qualifications, quality control processes and production process standards, and compliance with various certifications and safety standards. Currently, our products comply with industry standards and mainstream quality certifications, such as ISO 9001, ISO 14001, CE, RoHS, REACH, UL, etc. For more details, please visit the Compliance Center Center to get documents.
