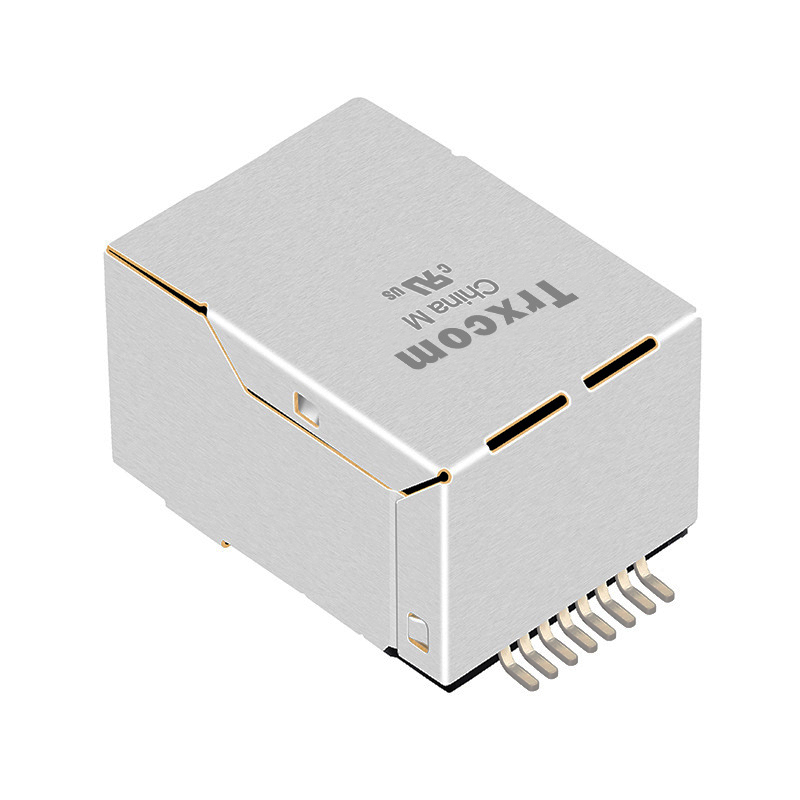

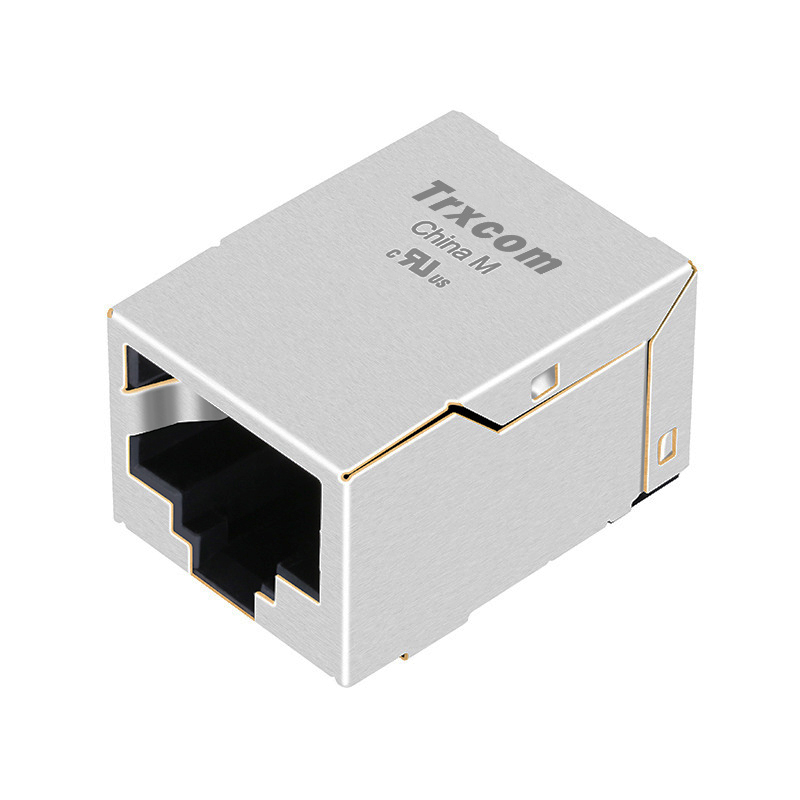

TRJ19111DNL 10/100 Base-T SMD RJ45 Female Connector Without LED Tab Down

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJ19111DNL
Port: ： 1X1
Rate: ： 10/100Base-T
PoE: ： NONE-PoE
Latch: ： Down
LED: ： No LED
Mount: ： 0℃ to 70℃
Shield Tabs: ： No
Get a Quote
Consult products
DetailReview(0)

Trxcom TRJ19111DNL 10/100 Base-T SMD RJ45 Connector For Patient Care ( Tab Down ,Without LED )

The Trxcom TRJ19111DNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Embedded Main Board,   Router and Surgical Equipment .

Part NumberTRJ19111DNLBrandTrxcom
Connector TypeJackMounting TypeSurface Mount
Number of Positions/Contacts8p8c(RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x1 PortSpeed10/100 Base-T
LatchUPCores per Port4
Orientation90° Angle (Right)PCB Mount AngleSurface Mount
Shield EMI TabsWithoutLED OptionWithout Leds
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.536/13.61Package Length (Inches/mm)0.833/21.15
Package Width (Inches/mm)0.631/16.04Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYes
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT、C
