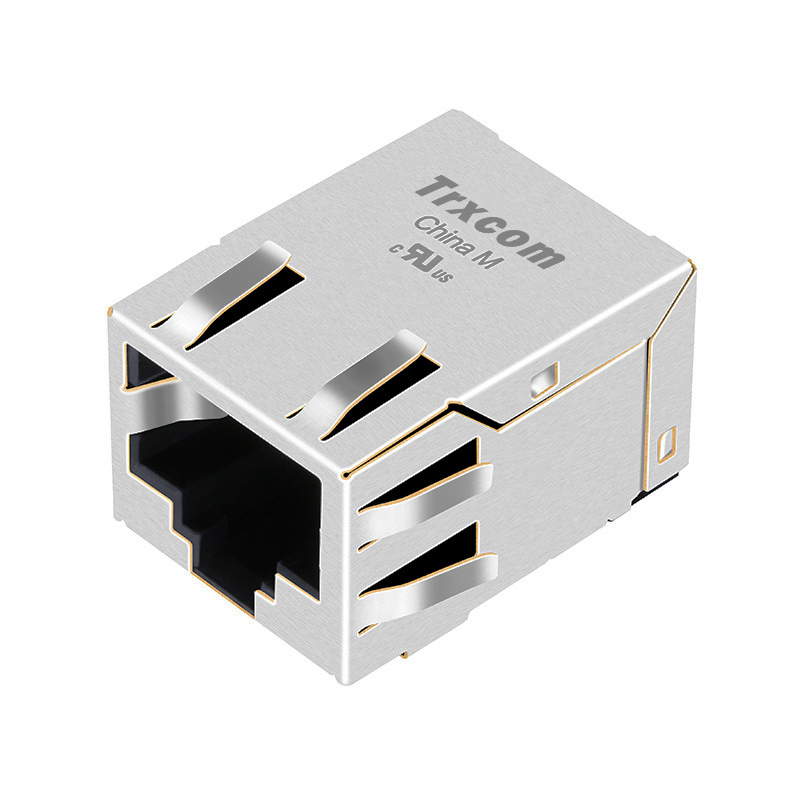

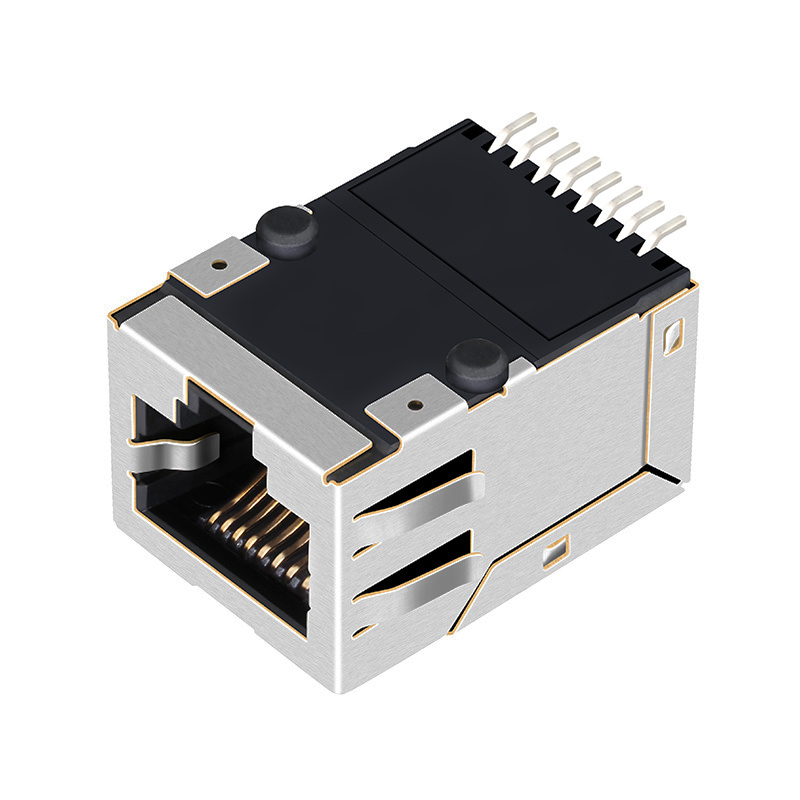

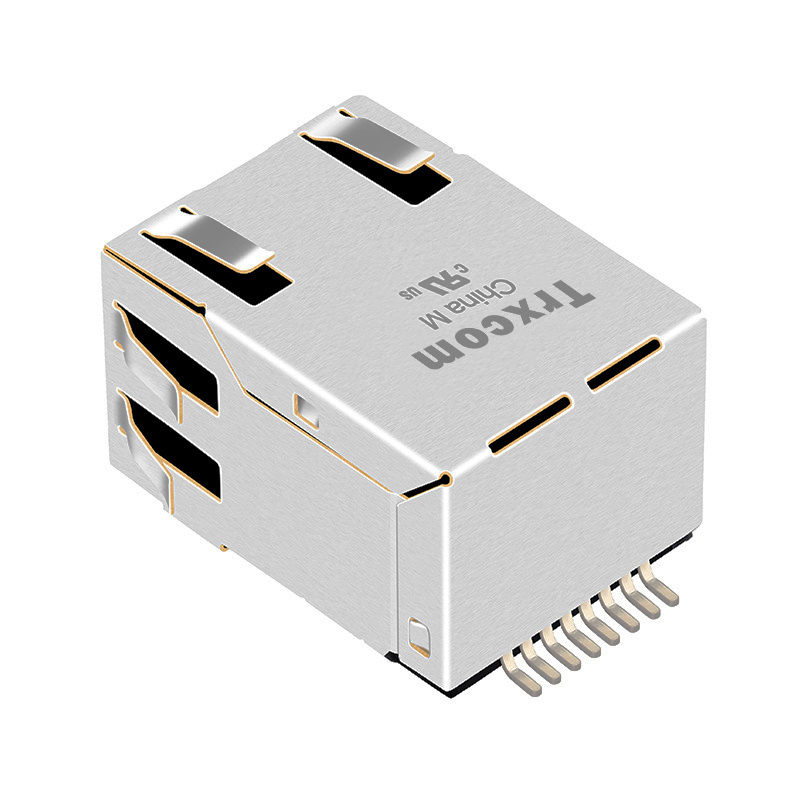

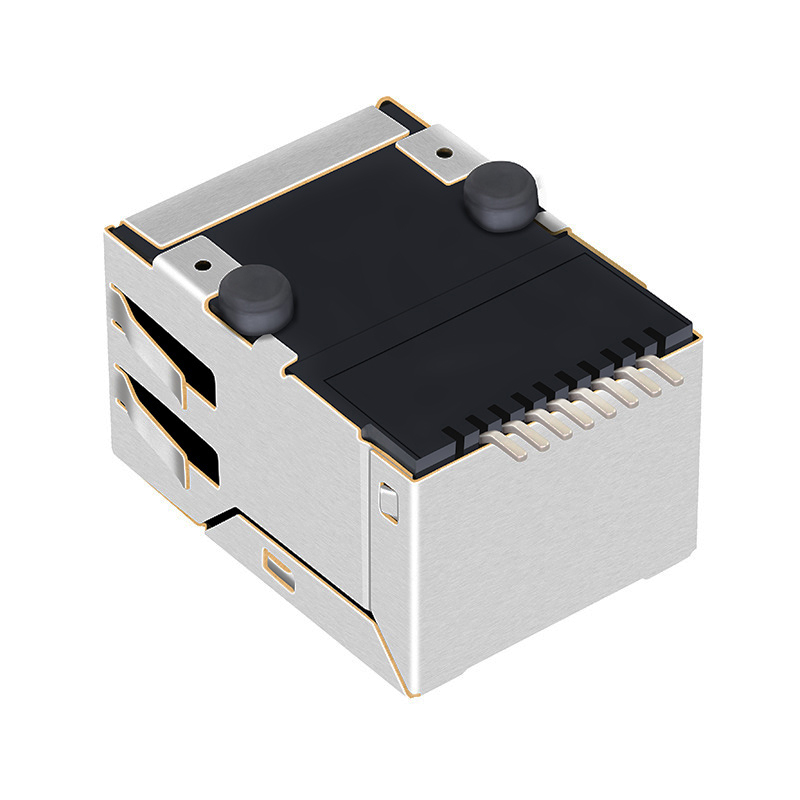

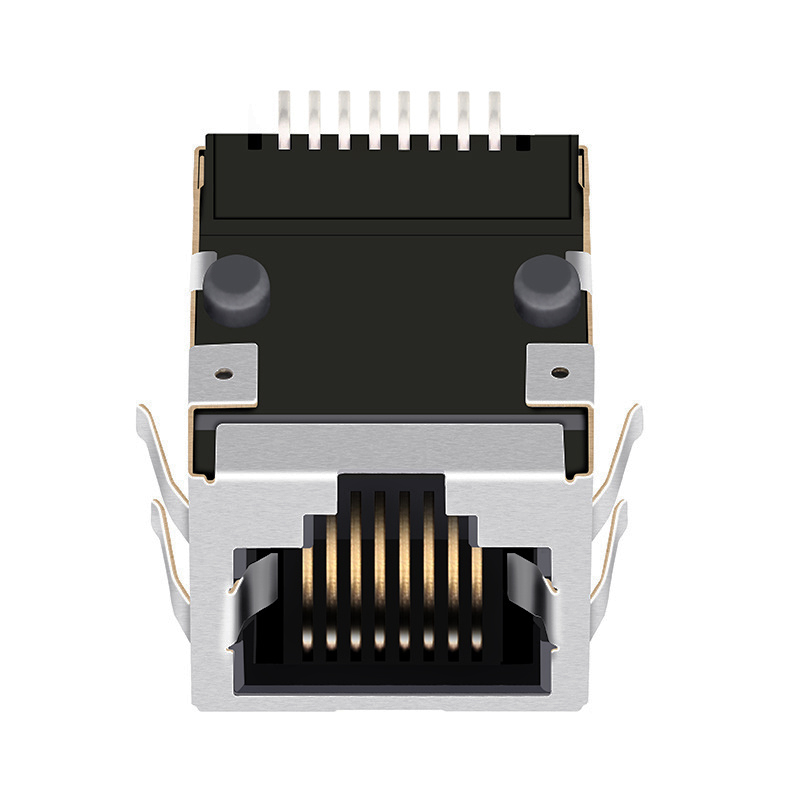

TRJ19111CNL 10/100 Base-T 8P8C Magnetic Jack SMT RJ45 Modular Connector
Trxcom TRJ19111CNL SMT RJ45 Female Connector with 10/100 Base-T Integrated Magnetics, Without LED, Tab Down, RoHS
The Trxcom TRJ19111CNL supports 10/100 Base-T network speed and adopts a surface-mount installation method. It complies with IEEE 802.3, UL, REACH, RoHS, ISO9001 and ISO14001 relevant standards. It can be applied in scenarios such as network printers, smart home gateways, industrial control equipment and desktop cash registers.
| Part Number | TRJ19111DNL | Brand | Trxcom |
| Connector Type | Jack | Mounting Type | Surface Mount |
| Number of Positions/Contacts | 8p8c(RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100 Base-T |
| Latch | UP | Cores per Port | 4 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | Surface Mount |
| Shield EMI Tabs | With | LED Option | Without Leds |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.536/13.61 | Package Length (Inches/mm) | 0.833/21.15 |
| Package Width (Inches/mm) | 0.631/16.04 | Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes | AutomDX | Yes |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T、C |
