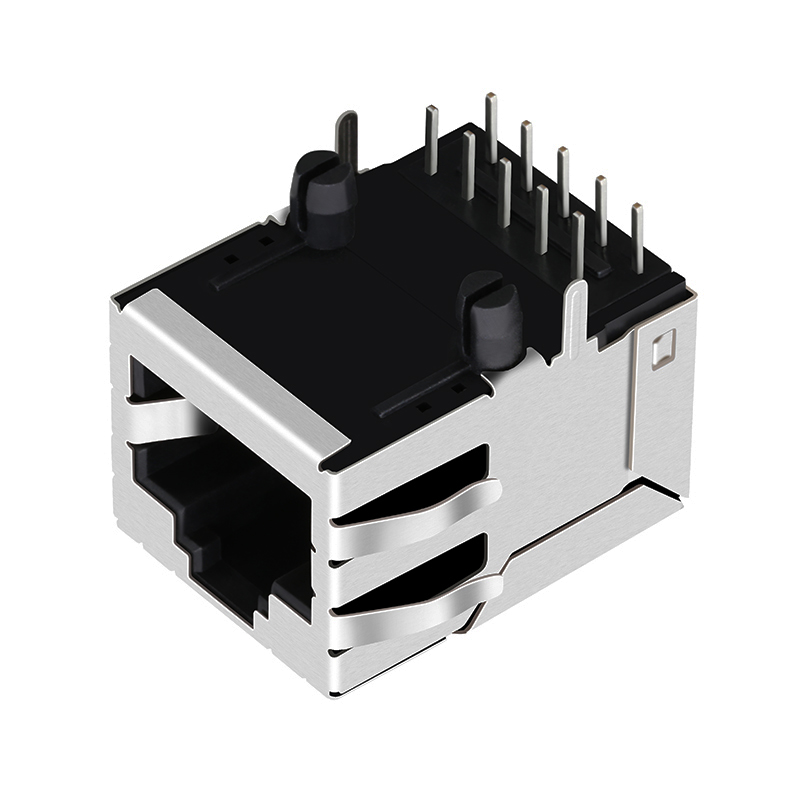

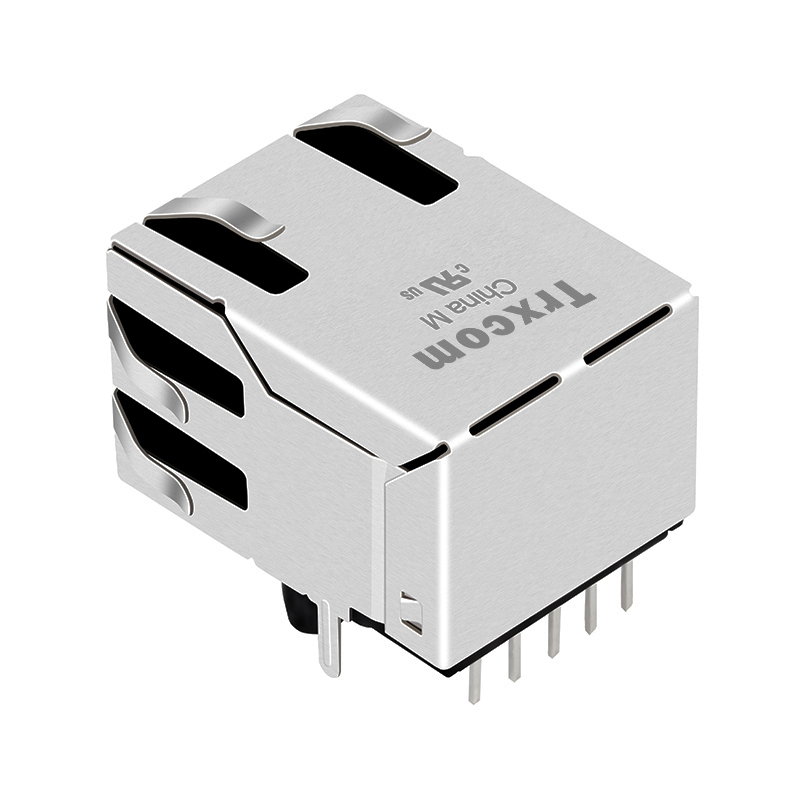

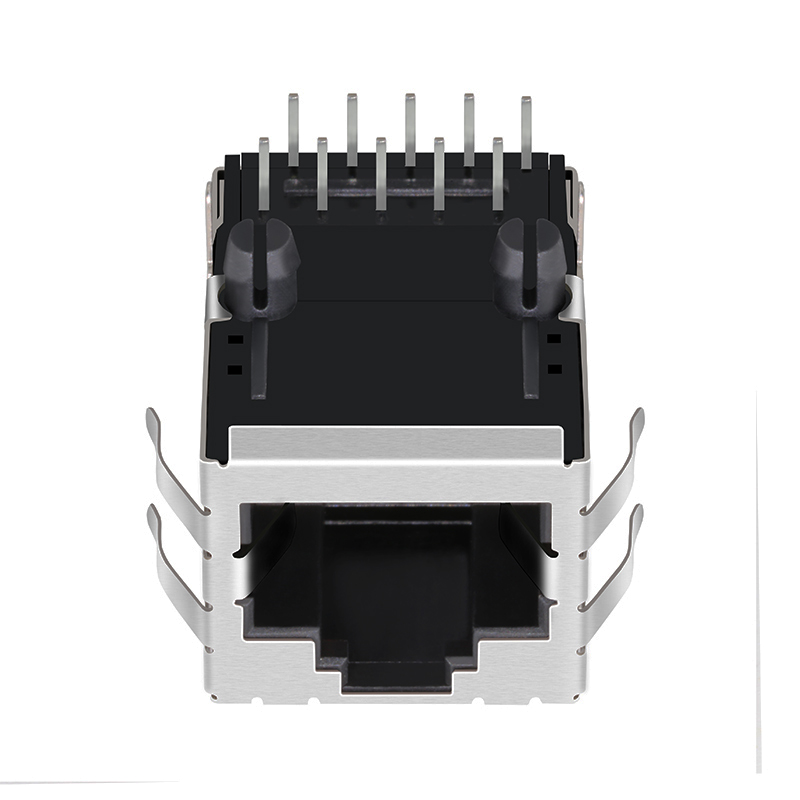

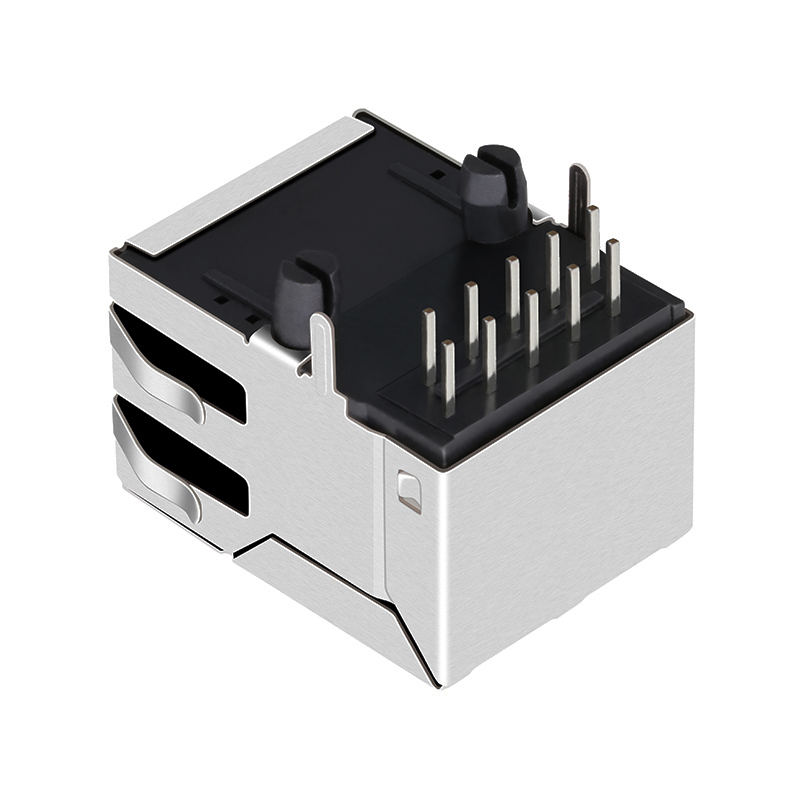

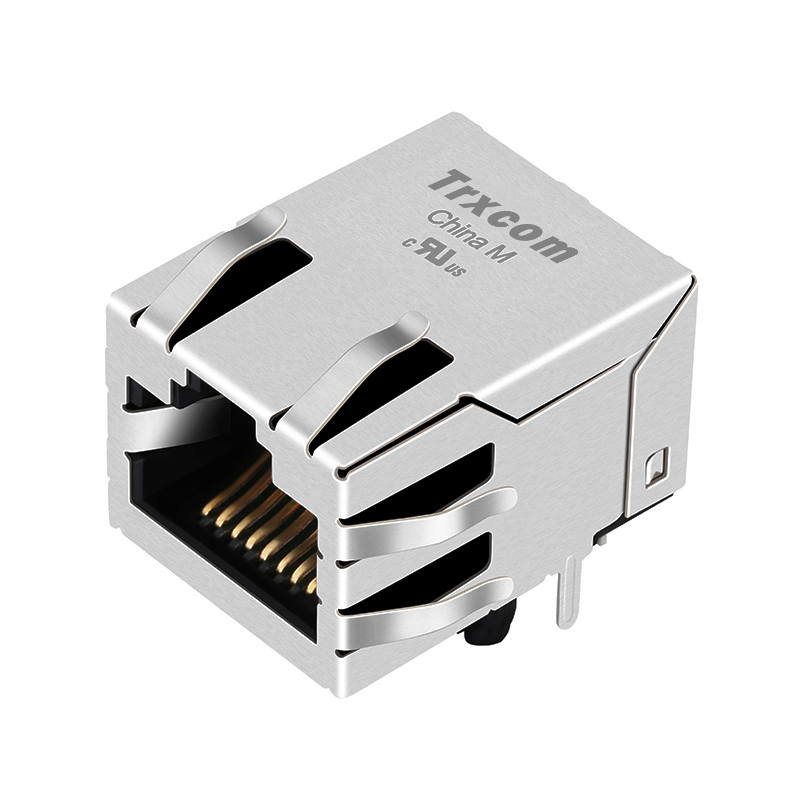

TRJ16314CNL 10/100 Base-T Tab Up Without Led Single Port 8P8C RJ45 Jack Connector
share
Parameter
Brand: ： Trxcom
P/N: ： TRJ16314CNL
Port: ： 1X1
Rate: ： 10/100Base-T
PoE: ： NONE-PoE
Latch: ： Up
LED: ： No LED
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
DetailReview(0)
Trxcom TRJ16314CNL Single Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics, Without LED, Tab Up, RoHS
The Trxcom TRJ16314CNL supports 10/100 Base-T network speed and complies with IEEE 802.3, UL, REACH, RoHS, ISO9001 and ISO14001 standards. It can be applied in scenarios such as 100Mbps unmanaged switches, access control controllers, network cameras and video recorders.
| Part Number | TRJG17401B9NL | Brand | Trxcom |
| Connector Type | Jack | Mounting Type | Through Hole |
| Number of Positions/Contacts | 8p8c(RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100 Base-T |
| Latch | UP | Cores per Port | 4 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With | LED Option | Without Leds |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.530/13.45 | Package Length (Inches/mm) | 0.837/21.25 |
| Package Width (Inches/mm) | 0.628/15.95 | Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes | AutomDX | Yes |
| Diodes | Contact Mating Area Plating | GOLD 6u"/15u"/30u" | |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T、C |
