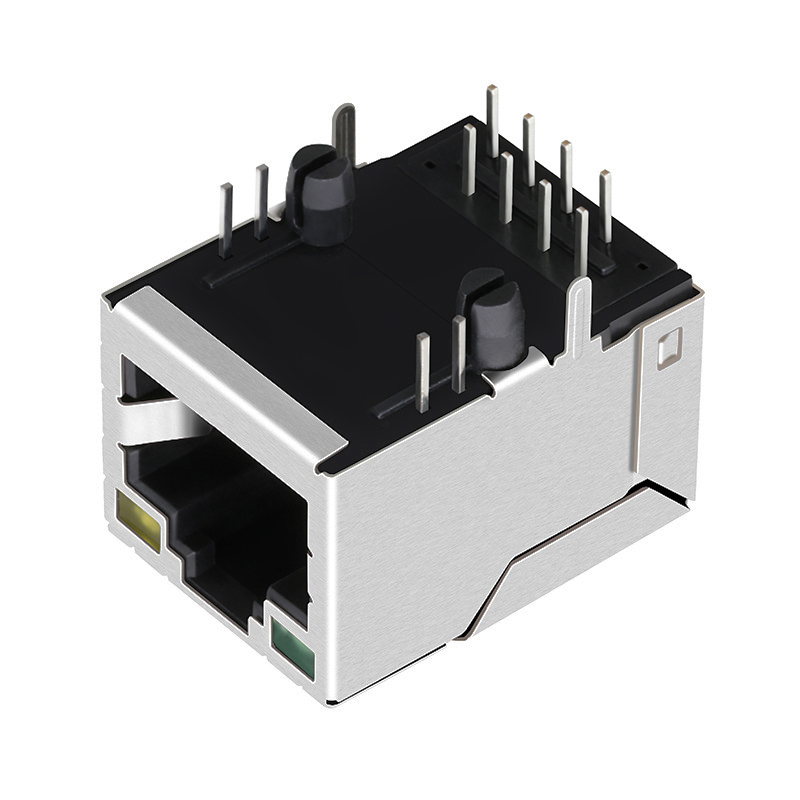

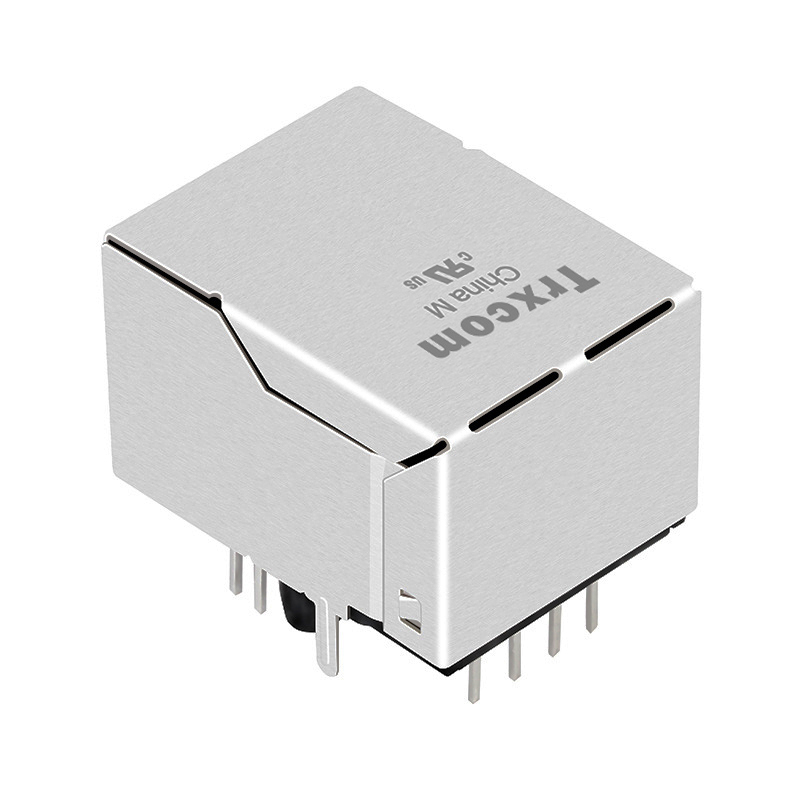

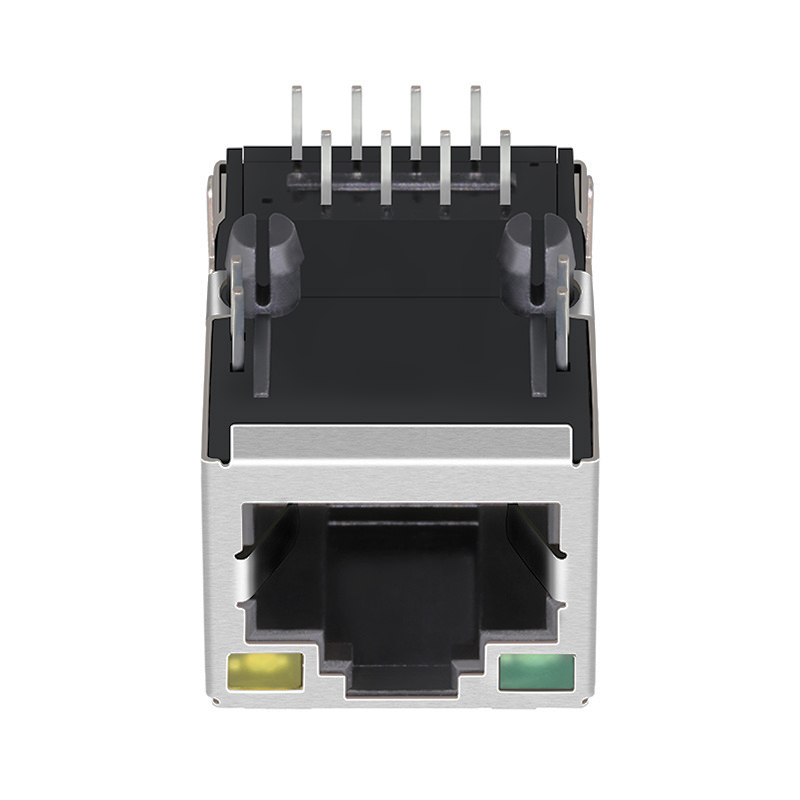

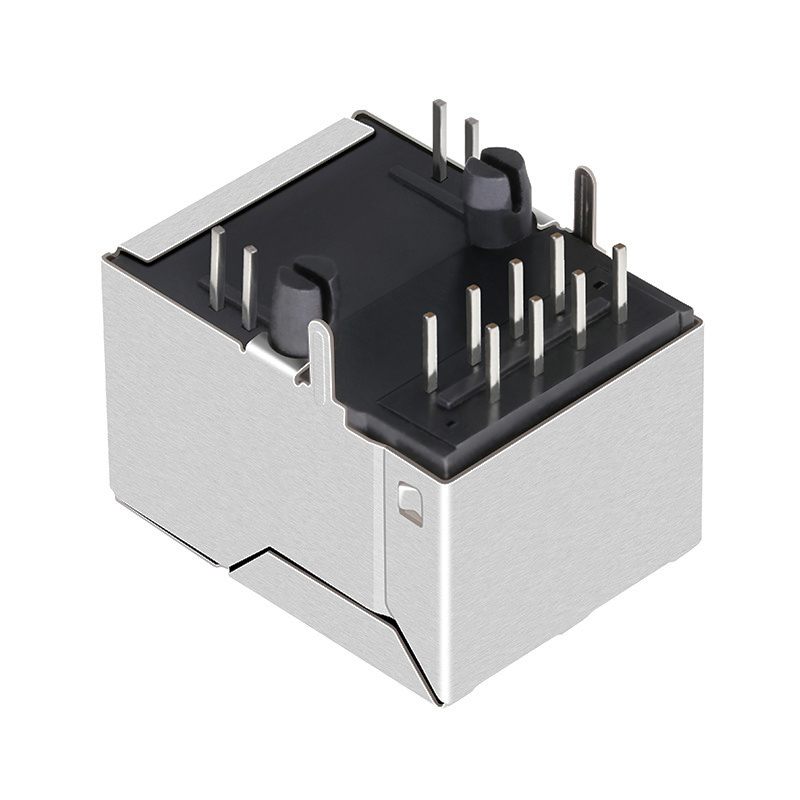

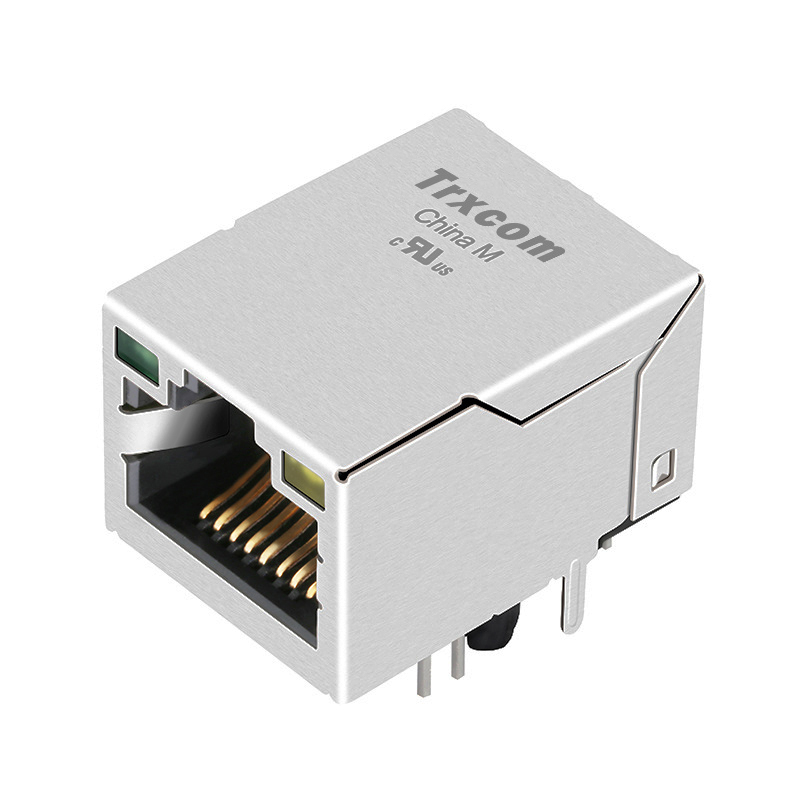

TRJ16314B4NL 10/100 Base-T Single Port Rectifier Bridge PoE Shielded RJ45 Female Connector Green/Yellow Led Tab Up
share
Parameter
Brand: ： Trxcom
P/N: ： TRJ16314B4NL
Port: ： 1X1
Rate: ： 10/100Base-T
PoE: ： NONE-PoE
Latch: ： Up
LED: ： Green/Yellow
Mount: ： 0℃ to 70℃
Shield Tabs: ： No
DetailReview(0)
Trxcom TRJ16314B4NL 10/100 Base-T Shielded RJ45 Female Connector for Monitoring System and Smart Meters (Rectifier Bridge, Single Port, Tab Up, Green/Yellow Led)
The TRJ16314B4NL model from Trxcom supports 10/100 Base-T network speed and complies with relevant standards including IEEE 802.3, UL, REACH, RoHS, ISO9001 and ISO14001. It can be applied in scenarios such as smart meters, photovoltaic inverters, automation equipment and video recorders.
| Part Number | TRJ16314B4NL | Brand | Trxcom |
| Connector Type | Jack | Mounting Type | Through Hole |
| Number of Positions/Contacts | 10p8c(RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100/1000 Base-T |
| Latch | UP | Cores per Port | 8 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | THT Solder |
| Shield EMI Tabs | Without | LED Option | Green/Yellow Leds |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.535/13.60 | Package Length (Inches/mm) | 0.846/21.50 |
| Package Width (Inches/mm) | 0.630/16.00 | Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes | AutomDX | Yes |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T、C |
