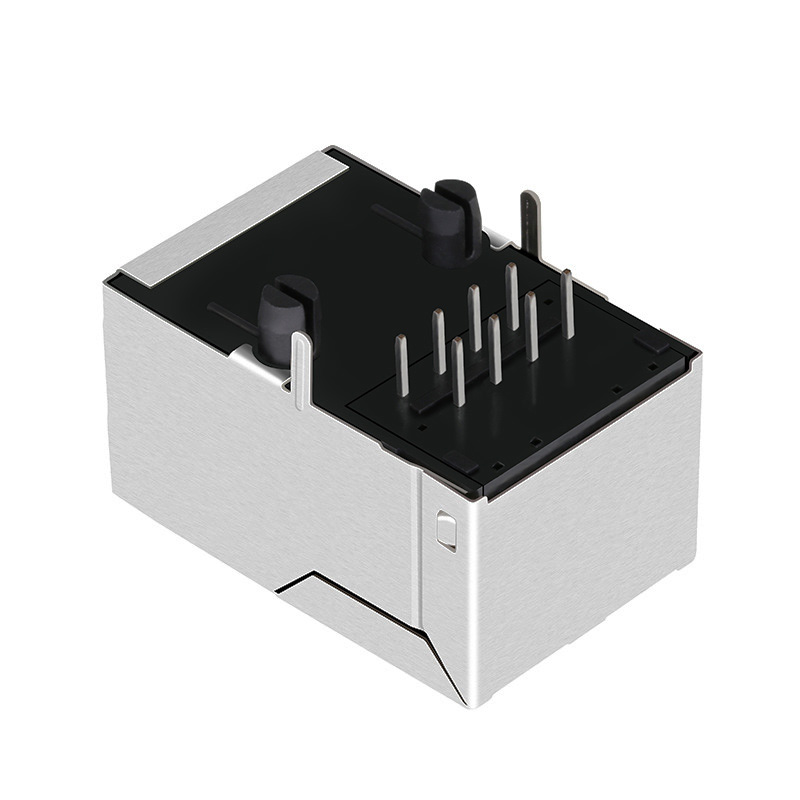

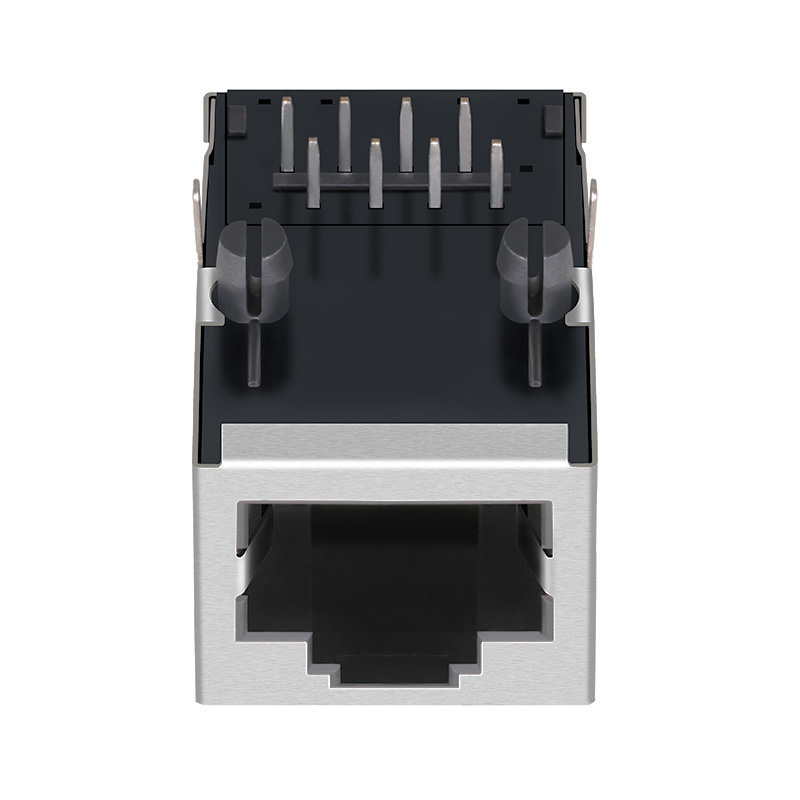

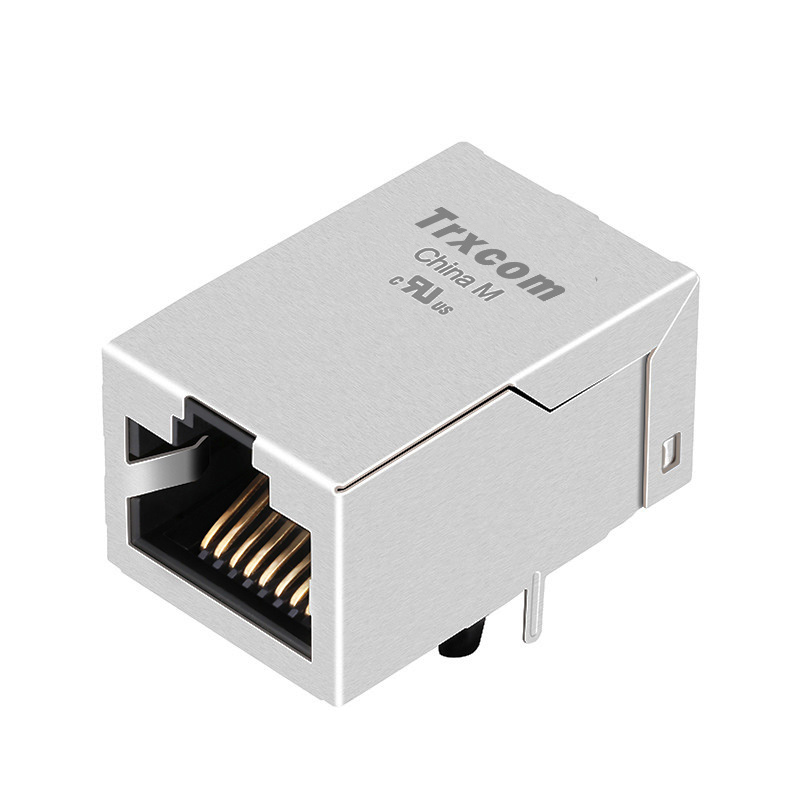

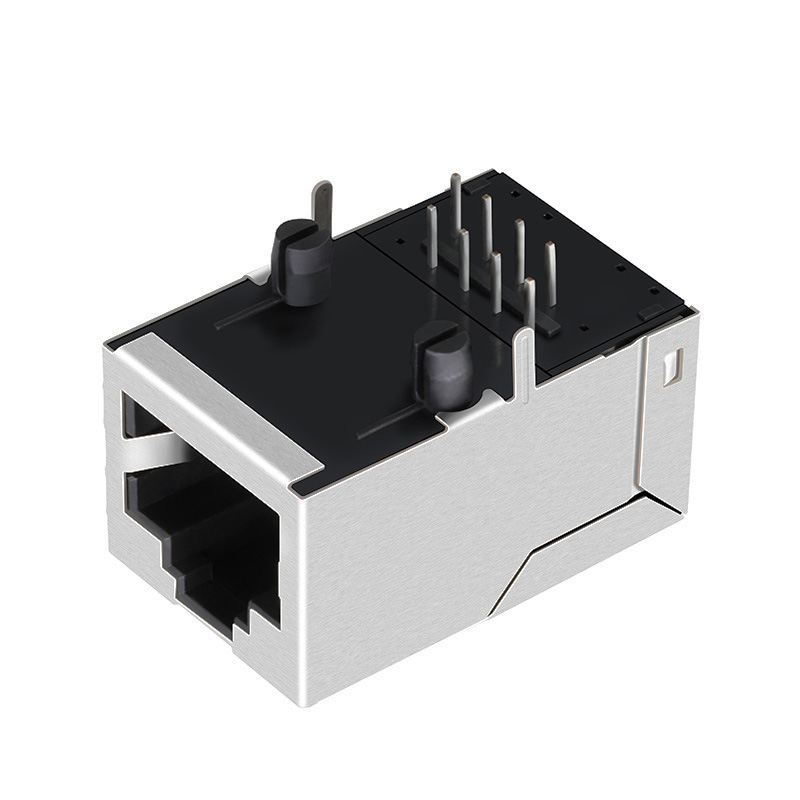

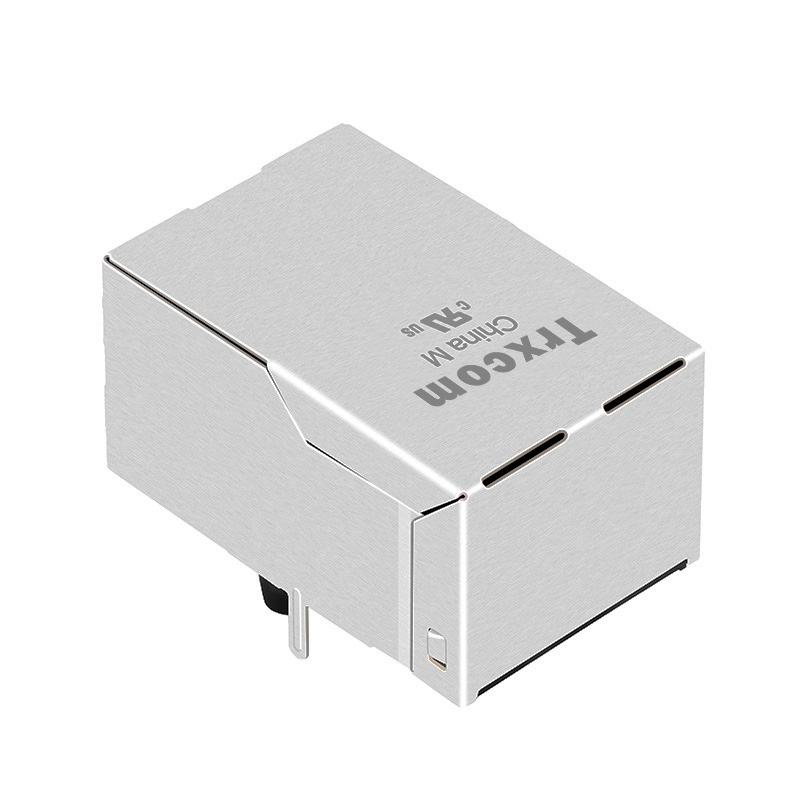

TRJ16013DNL 10/100 Base-T Tab Up Without Led 1 Port Modular RJ45 Female Connectors

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJ16013DNL
Port: ： 1X1
Rate: ： 10/100Base-T
PoE: ： NONE-PoE
Latch: ： Up
LED: ： No LED
Mount: ： -40℃ to +85°C
Shield Tabs: ： No
Get a Quote
Consult products
DetailReview(0)

Trxcom TRJ16013DNL Single Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics, Without LED, Tab Up, RoHS

The TRJ16013DNL model from Trxcom supports 10/100 Base-T network speed and complies with relevant standards including IEEE 802.3, UL, REACH, RoHS, ISO9001 and ISO14001. It can be applied in scenarios such as handheld devices, game consoles and medical monitoring equipment.

Part NumberTRJ16013DNLBrandTrxcom
Connector TypeJackMounting TypeThrough Hole
Number of Positions/Contacts8p8c(RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x1 PortSpeed10/100 Base-T
LatchUPCores per Port4
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithoutLED OptionWithout Leds
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.531/13.50Package Length (Inches/mm)0.839/21.30
Package Width (Inches/mm)0.628/15.95Temperature-40℃ TO 85℃
Bst CircuitYesAutomDXYes
Diodes
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT、C
