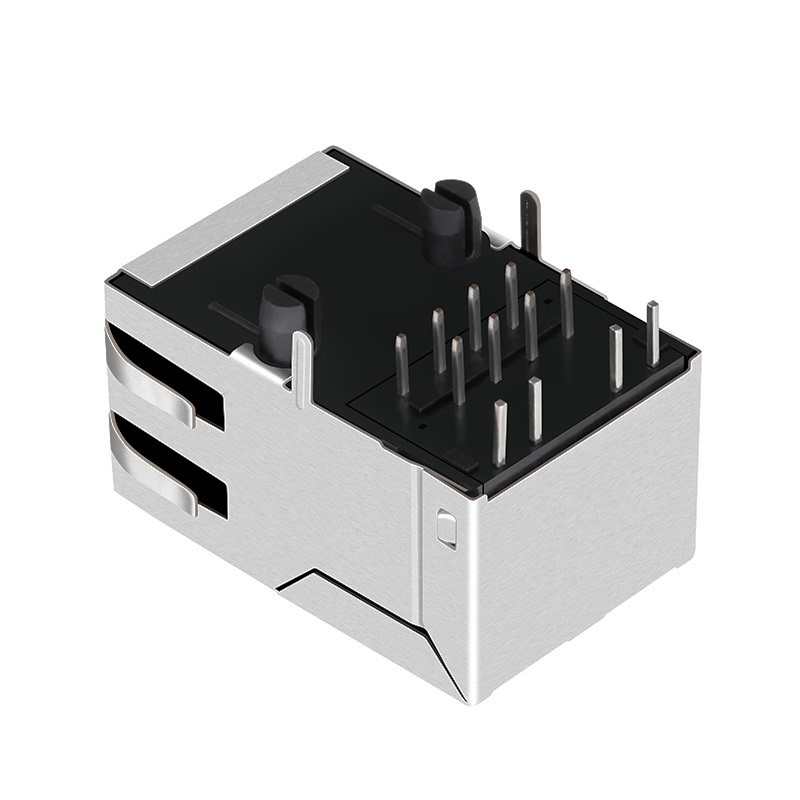

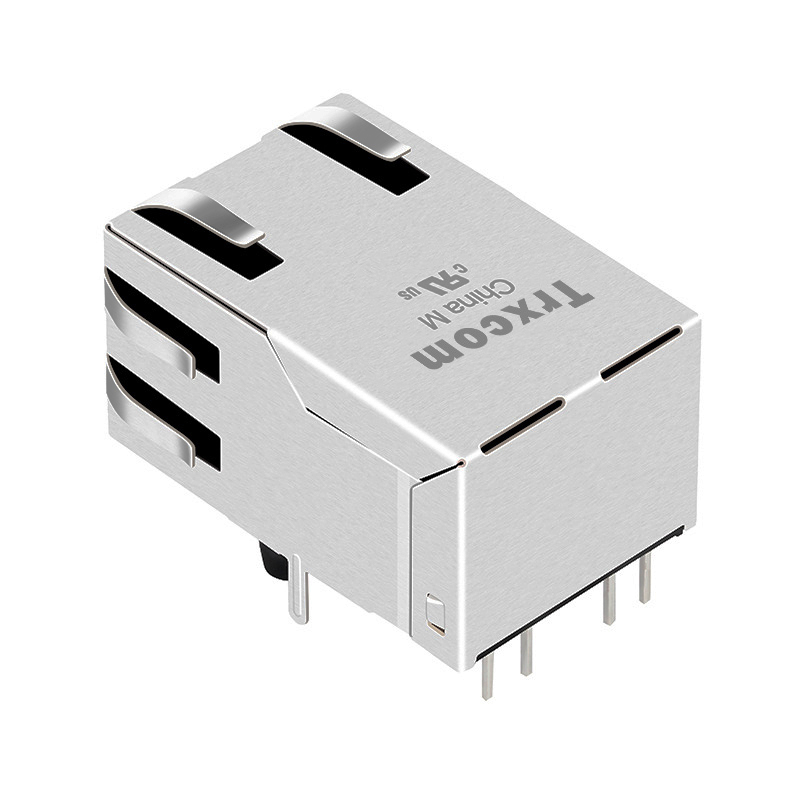

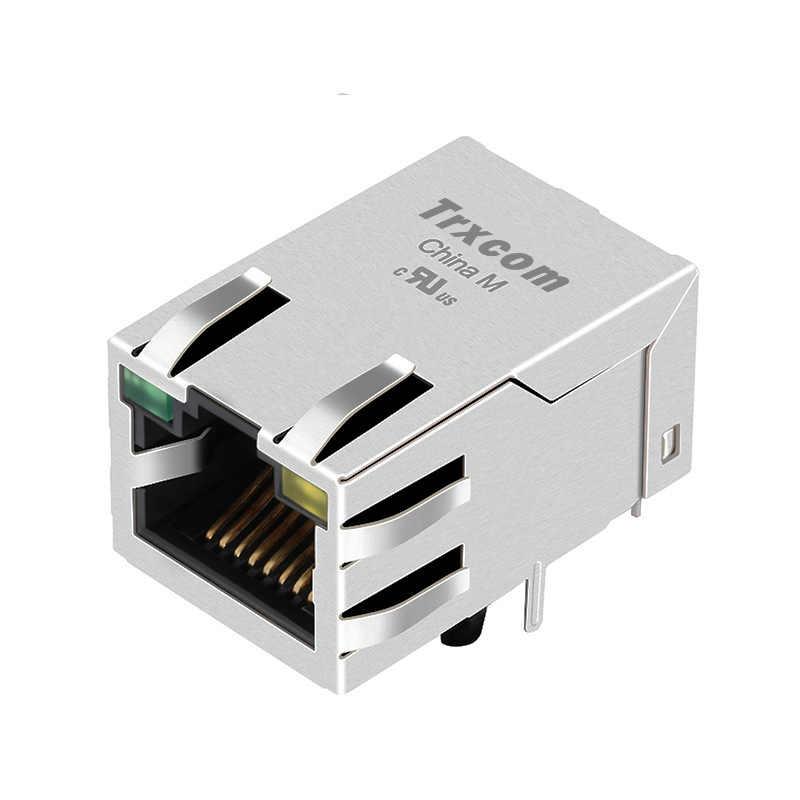

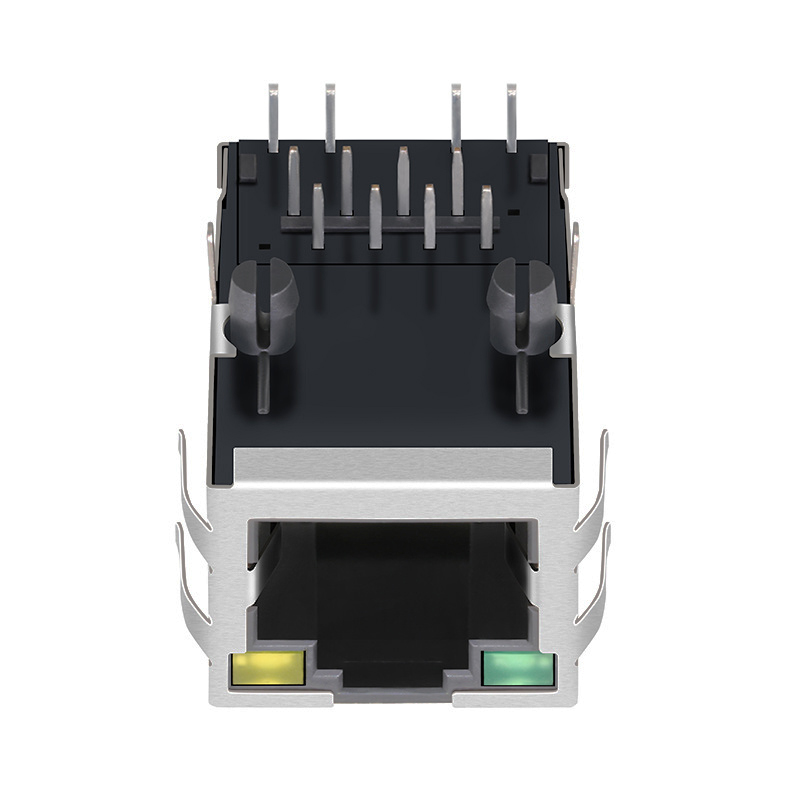

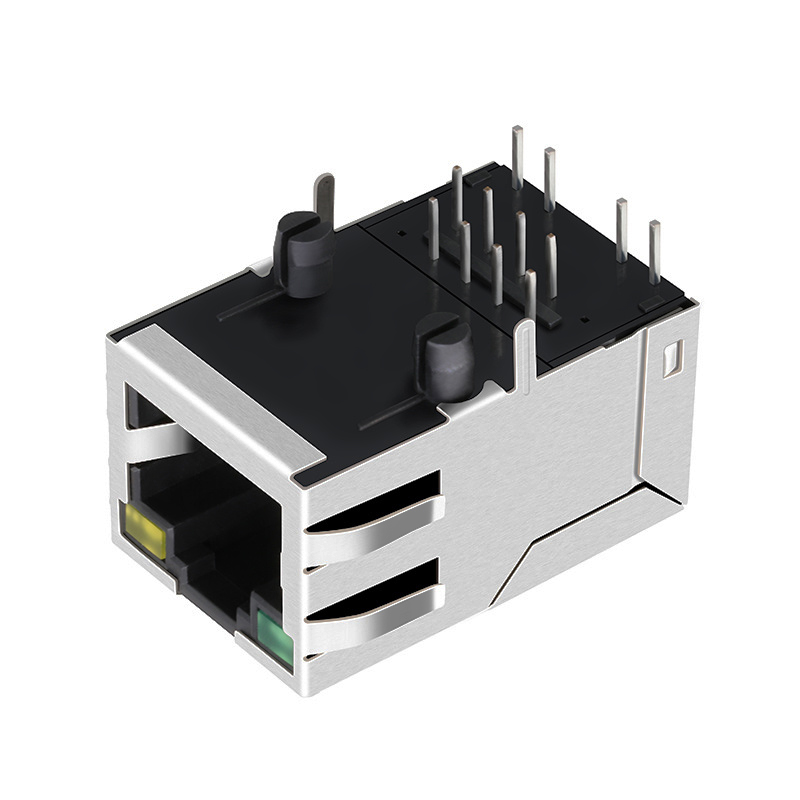

TRJ6014AHNL 10/100 Base-T Single Port Shielded RJ45 Jack Module Tab Up Green/Yellow Led
share
Parameter
Brand: ： Trxcom
P/N: ： TRJ6014AHNL
Port: ： 1X1
Rate: ： 10/100Base-T
PoE: ： NONE-PoE
Latch: ： Up
LED: ： Green/Yellow
Mount: ： -40℃ to +85°C
Shield Tabs: ： Yes
DetailReview(0)
Trxcom TRJ6014AHNL 10/100 Base-T Shielded RJ45 Jack Module for Smart Camera and Game Controller (Single Port, Tab Up, Green/Yellow Led)
The TRJ6014AHNL from Trxcom supports 10/100 Base-T network speed and complies with relevant standards including IEEE 802.3, UL, REACH, RoHS, ISO19001 and ISO14001. It is suitable for application scenarios of devices such as photovoltaic inverters, game controllers and smart cameras.
| Part Number | TRJ6014AHNL | Brand | Trxcom |
| Connector Type | Jack | Mounting Type | Through Hole |
| Number of Positions/Contacts | 8p8c(RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100 Base-T |
| Latch | UP | Cores per Port | 4 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With | LED Option | Green/Yellow Leds |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.530/13.45 | Package Length (Inches/mm) | 0.994/25.25 |
| Package Width (Inches/mm) | 0.636/16.15 | Temperature | -40℃ TO 85℃ |
| Bst Circuit | Yes | AutomDX | Yes |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T、C |
