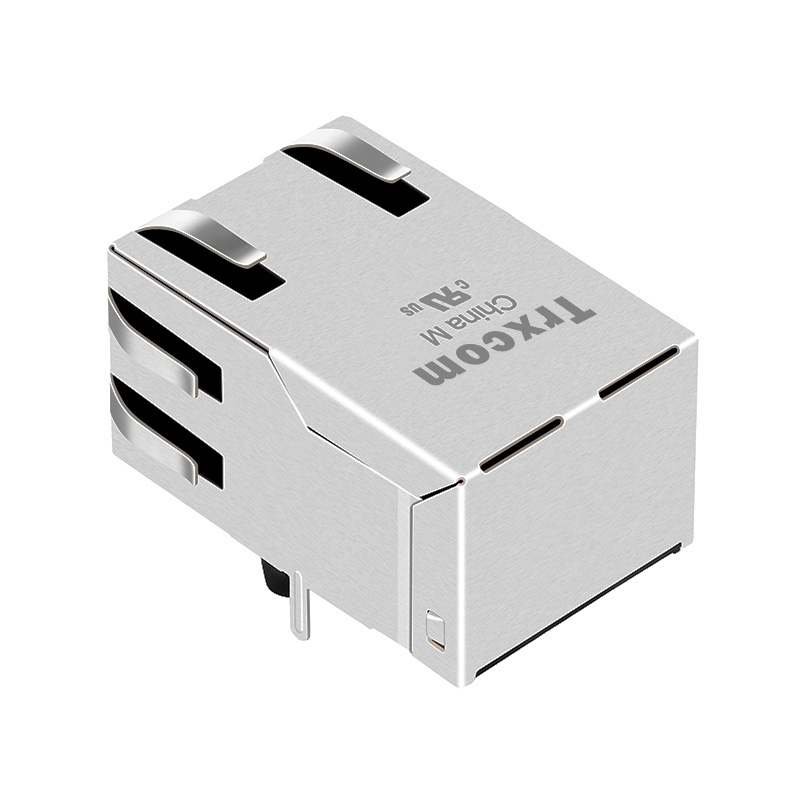

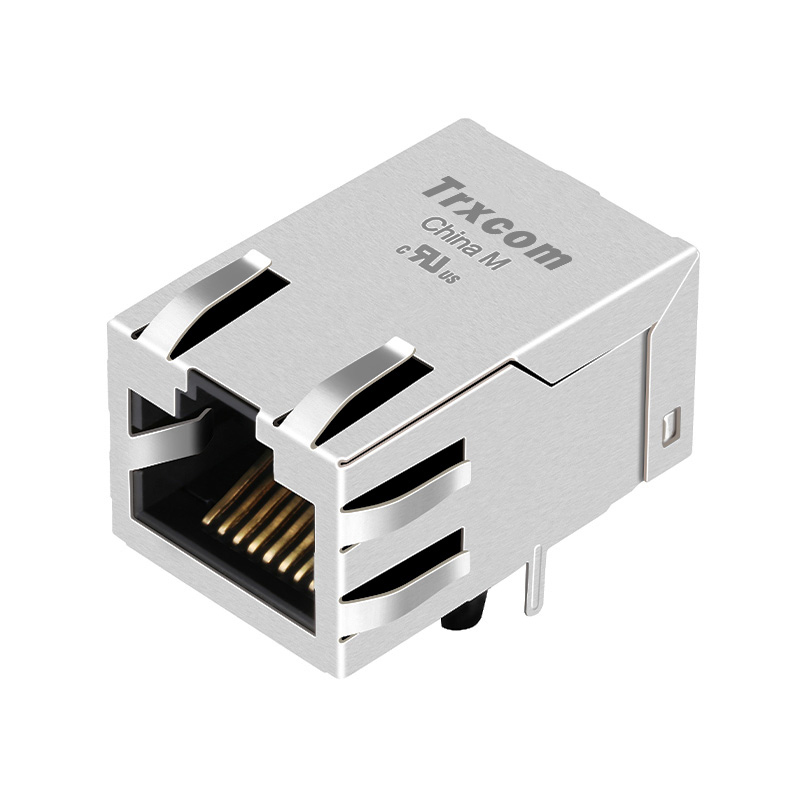

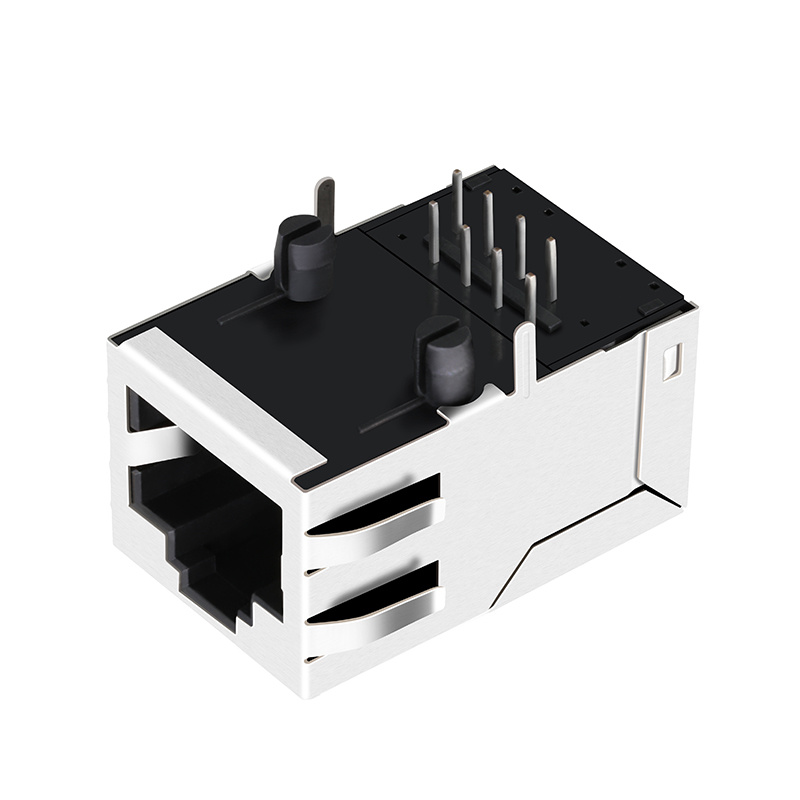

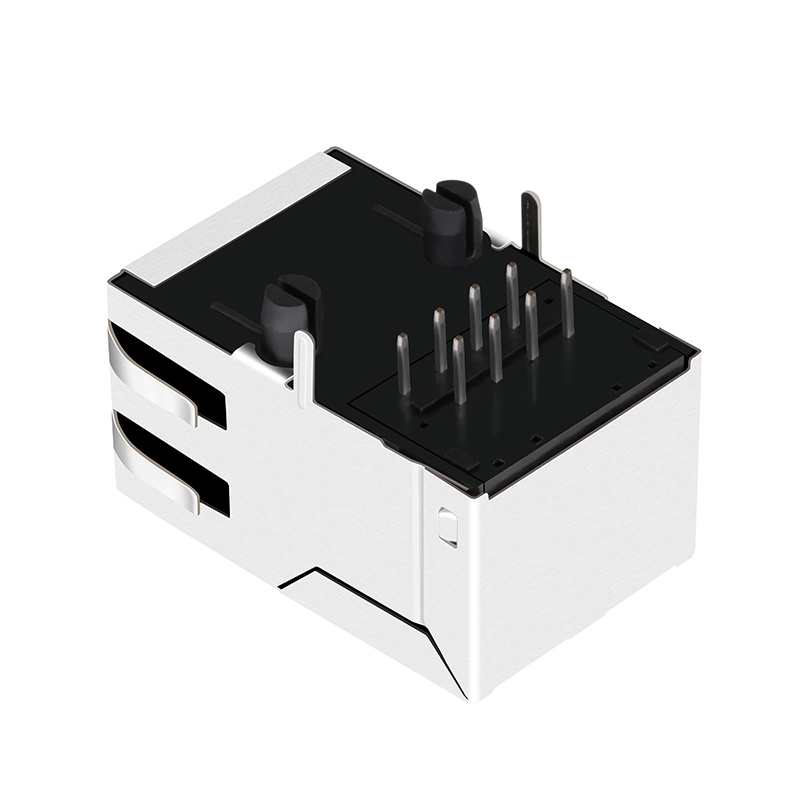

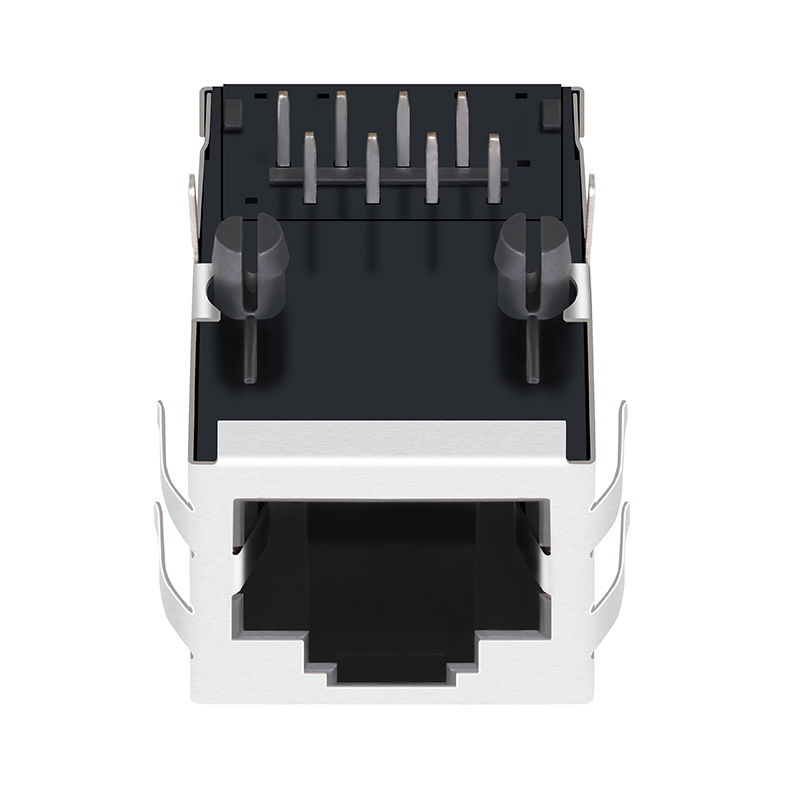

TRJ1014CNL 10/100 Base-T RJ45 Magnetic Jack Tab Up Without Led

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJ1014CNL
Port: ： 1X1
Rate: ： 10/100Base-T
PoE: ： NONE-PoE
Latch: ： Up
LED: ： No LED
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

Trxcom TRJ1014CNL 10/100 Base-T RJ45 Magnetic Jack for Fieldbus System and Game Controller (1 Port, Tab Up, Without Led)

The Trxcom TRJ1014CNL supports 10/100 Base-T transmission rate and complies with relevant standards including IEEE 802.3, UL, REACH, RoHS, ISO9001 and ISO14001. It can be applied to equipment scenarios such as solar inverters, game controllers and digital cameras.

Part NumberTRJ1014CNLBrandTrxcom
Connector TypeJackMounting TypeThrough Hole
Number of Positions/Contacts8p8c(RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x1 PortSpeed10/100 Base-T
LatchUPCores per Port4
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionWithout Leds
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.531/ 13.50Package Length (Inches/mm)1.00/25.40
Package Width (Inches/mm)0.640/16.25Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYes
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT、C
