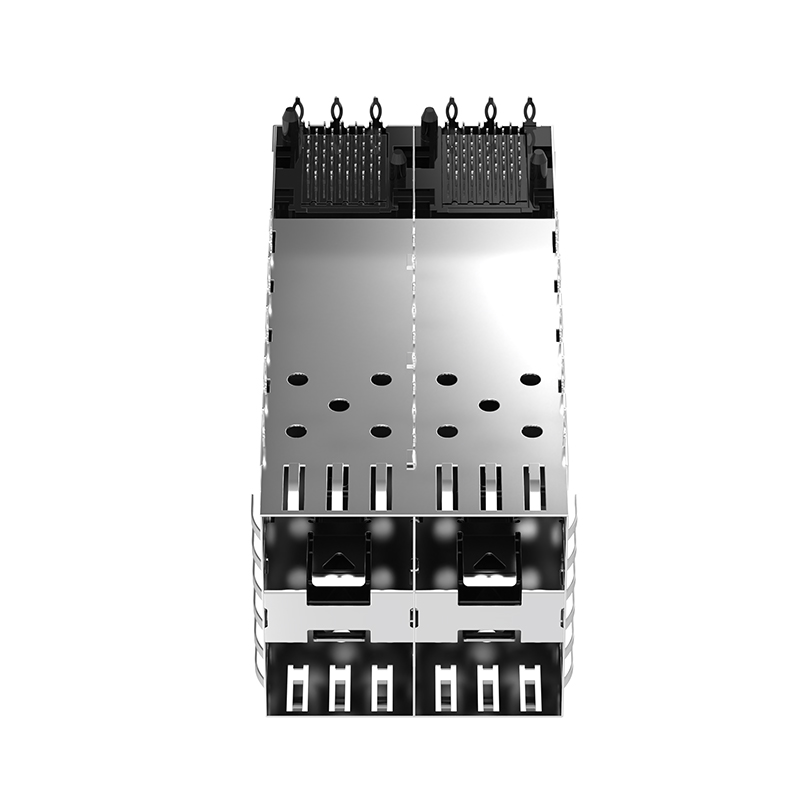

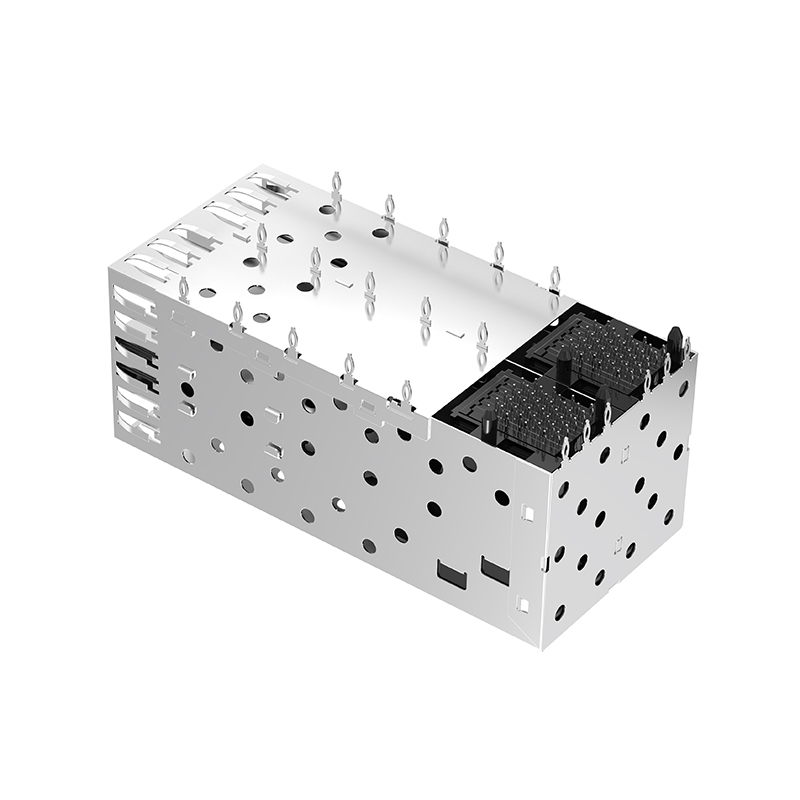

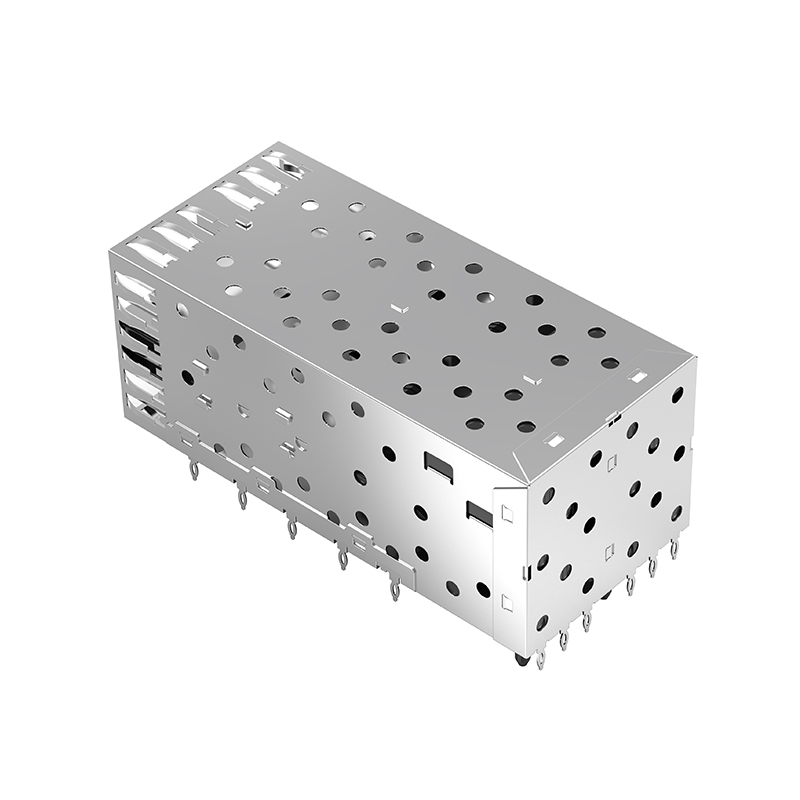

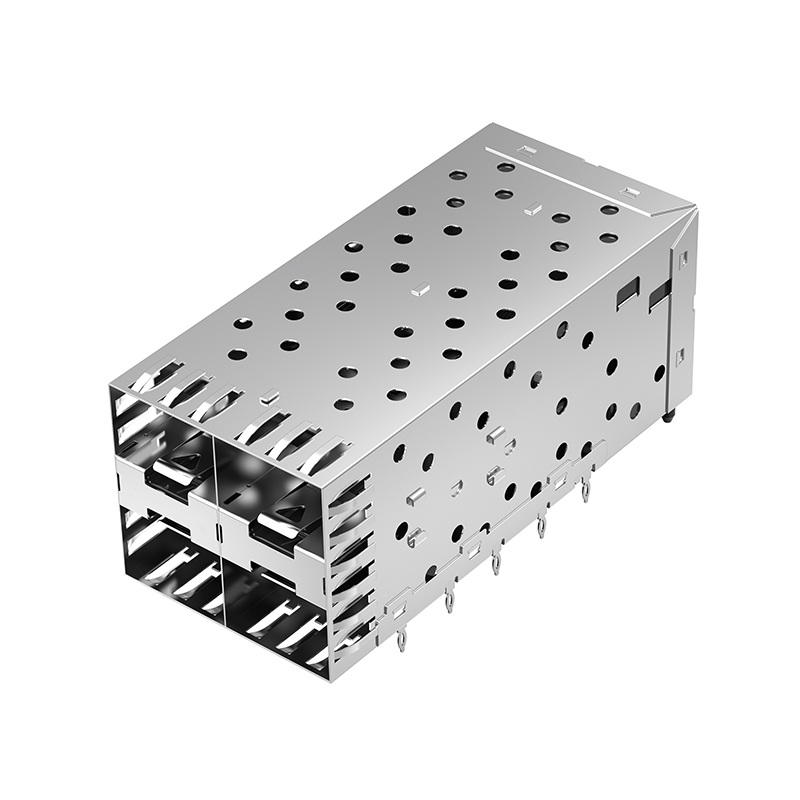

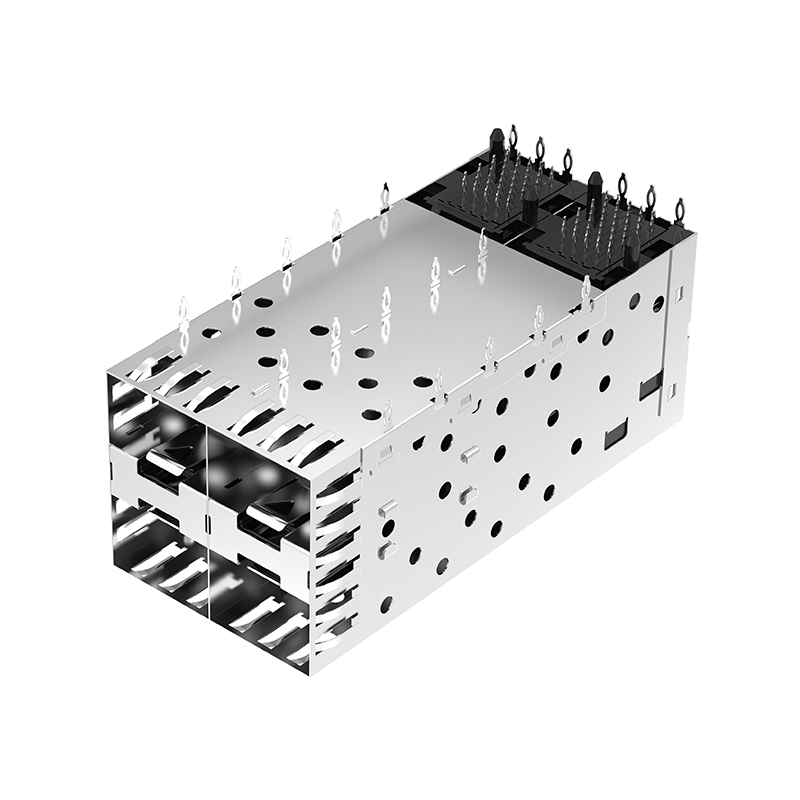

TR22AC01301 2x2 Port SFP Cage Connector Press-Fit With Outer LightPipe

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Number ： TR22AC01301
Brand ： Trxcom
Types ： SFP
Number of Ports ： 2x2
Pluggable I/O Product Type ： Cage Assembly with Integrated Connector
Data Rate (Max)(Gb/s) ： 16
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： With Lightpipe
Termination Method to Printed ： Through Hole - Press-Fit
Operating Tem Perature Range(° ： -40℃ to 85℃
Get a Quote
Consult products
DetailReview(0)

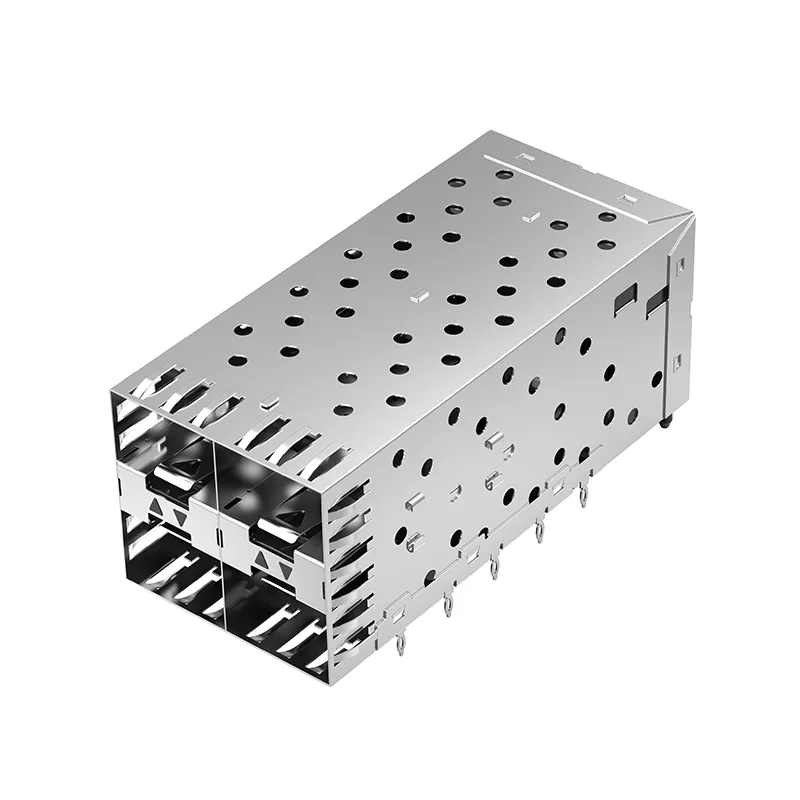

Trxcom TR22BC01301 2x2 Port SFP Cage Connector Press-Fit With Outer LightPipe

TR22BC01301 is a 2×2 port SFP press-fit cage connector from Trxcom, equipped with outer light pipe. It features 4-port high-density layout and press-fit solderless mounting. Integrated EMI shielding springs and nickel-plated copper alloy housing deliver outstanding shielding performance and durability. Supporting industrial wide temperature range, it ensures stable high-speed signal transmission, suitable for network switches, servers and industrial communication devices.

Part NumberTR22BC01301Part StatusActive
Connector StyleCageConnector TypeSFP
CageCOPPER ALLOY,Ni PL ATEDPACKAGINGTRAY PACKAGING
Port Matrix Configuration2x2 PortNumber of Ports4
Operating Temperature Range-40 – 85°CMounting StyleThrough Hole, Right Angle
Included LightpipeOuter LightPipeTerminationPress-Fit
Height (Inches/mm)25.20/0.992Length (Inches/mm)63.25/2.490
Width (Inches/mm)28.75/1.132EMI Containment Feature TypeEMI Springs
