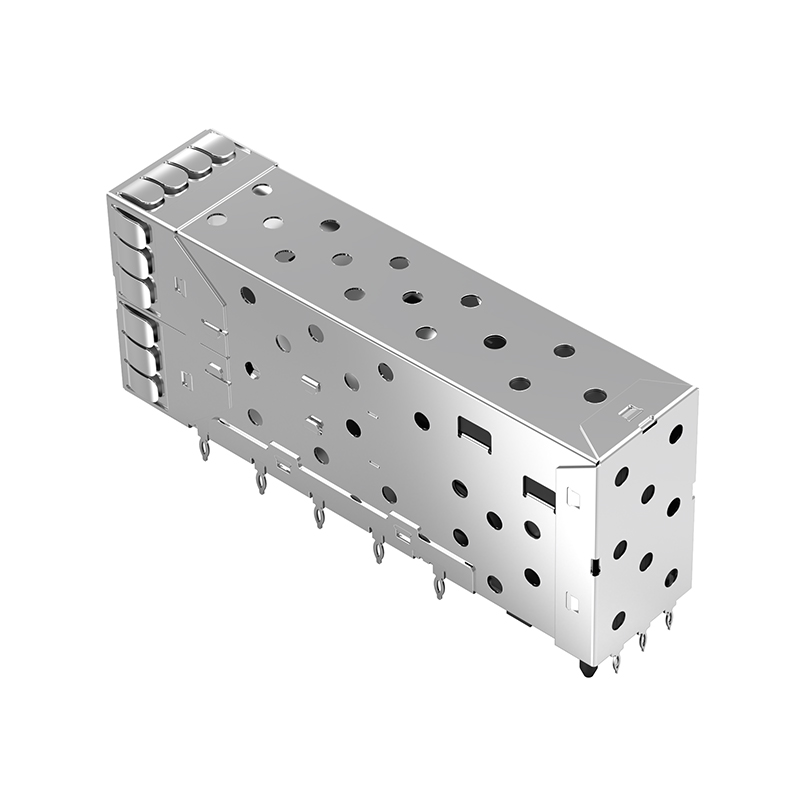

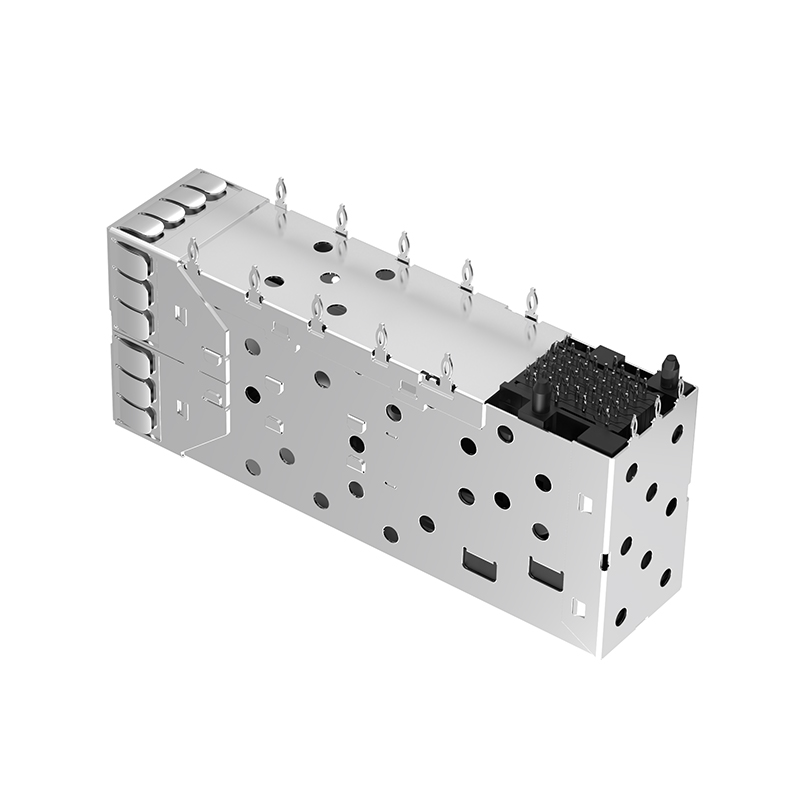

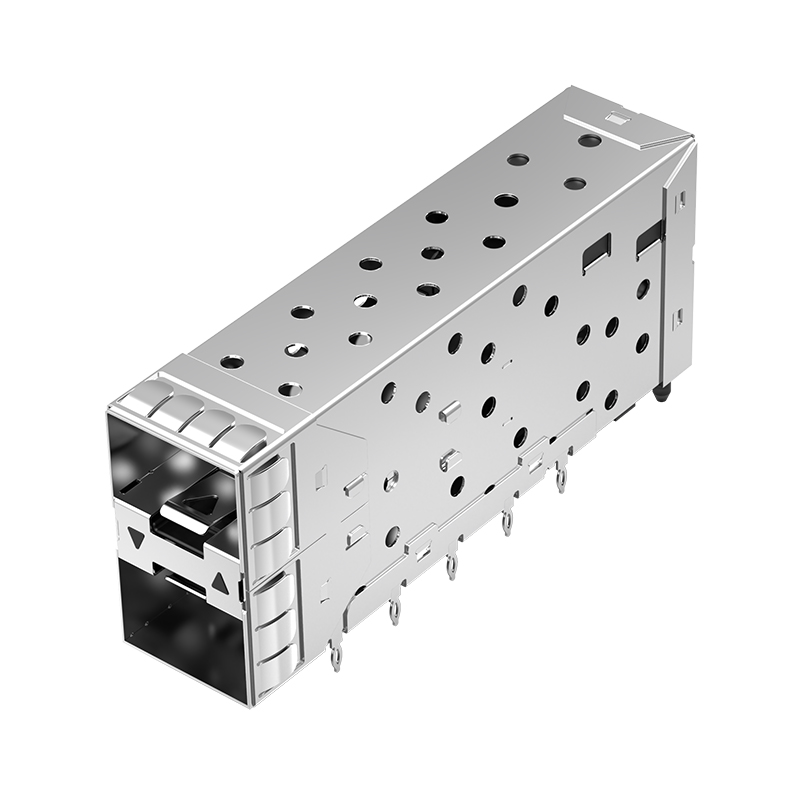

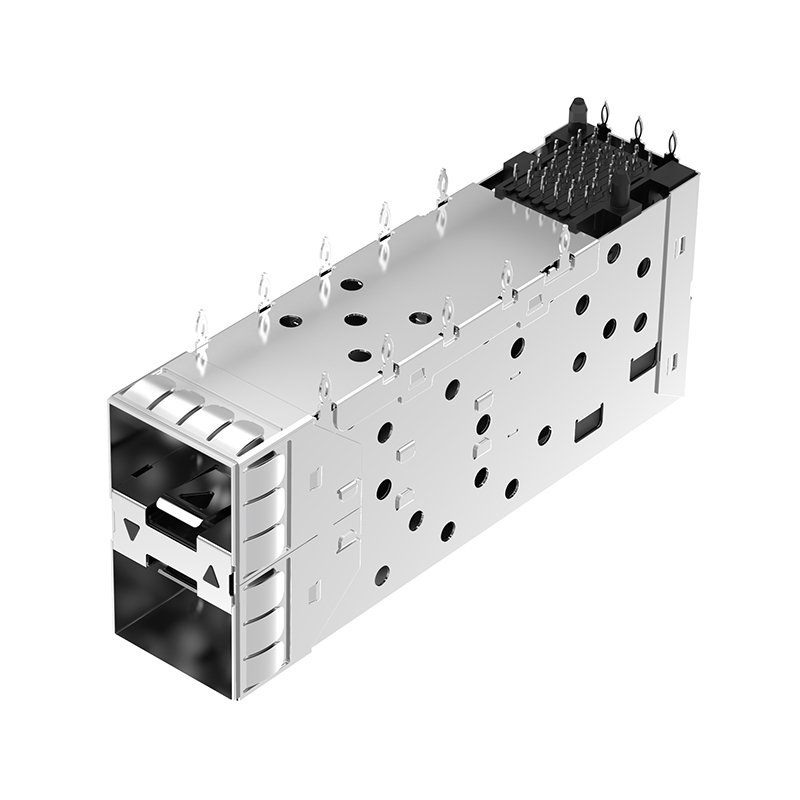

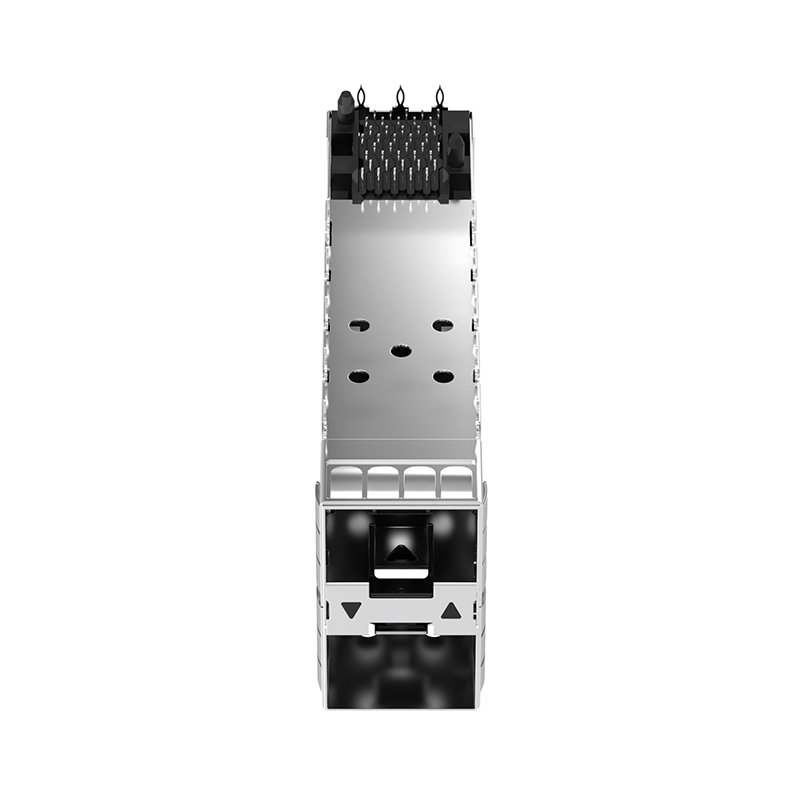

TR21BC01301 2x1 Port SFP+ Cage Connector With Outer LightPipe
share
Parameter
Number ： TR21BC01301
Brand ： Trxcom
Types ： SFP+
Number of Ports ： 2x1
Pluggable I/O Product Type ： Cage Assembly with Integrated Connector
Data Rate (Max)(Gb/s) ： 16
EMI Containment Feature Type ： Elastomeric Gasket
Lightpipe Options ： With Lightpipe
Termination Method to Printed ： Through Hole - Press-Fit
Operating Tem Perature Range(° ： -40℃ to 85℃
DetailReview(0)

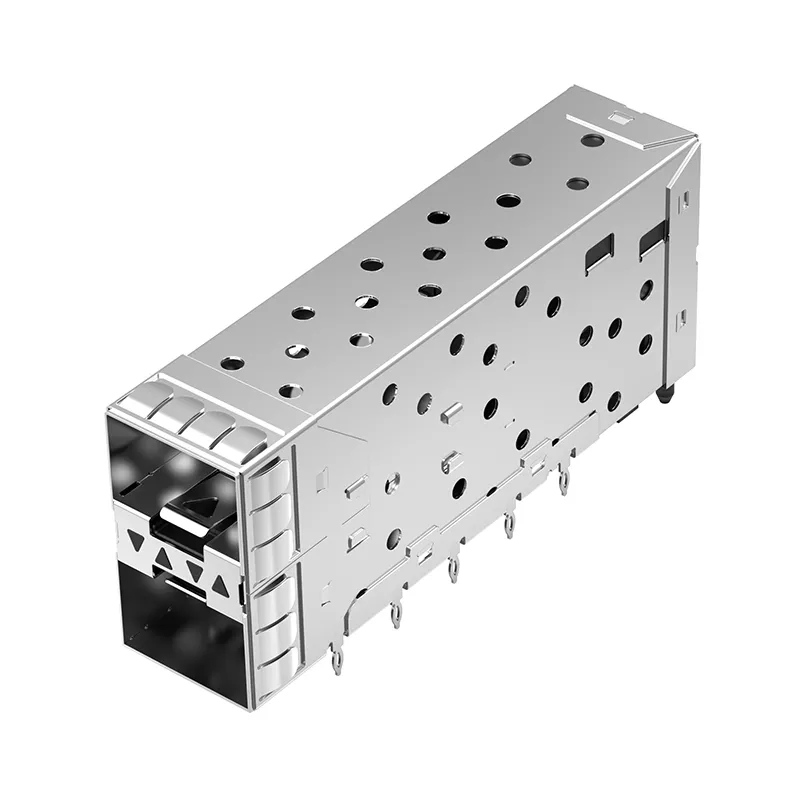

Trxcom TR21BC01301 2x1 Port SFP+ Cage Connector With Outer LightPipe
The Trxcom TR21BC01301 is a high-performance 2×1 port SFP+ cage connector equipped with outer light pipe, engineered for 10G high-speed data communication applications. It adopts a compact 2-row 1-column structure to save PCB space and support flexible port layout, ideal for high-density I/O design of enterprise switches, servers, network cards and industrial networking equipment.
| Part Number | TR21BC01301 | Part Status | Active |
| Connector Style | Receptacle with Cage, Ganged (2x1) | Connector Type | SFP+ |
| Data Rate (Max)(Gb/s) | - | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 2x1 Ports | Number of Ports | 2 |
| Operating Temperature Range | -40 – 85°C | Pluggable I/O Applications | SFP+ |
| Circuit Application | Signal | EMI Containment Feature Type | External Springs |
| Included Lightpipe | With Outer LightPipe | Cage Material | COPPER ALLOY 30u” |
| Length (Inches/mm) | 63.25/2.490 | Width (Inches/mm) | 14.00/0.551 |
| Height (Inches/mm) | 25.53/1.005 | PCB Thickness (Recommended) | 2.36MM( .093 INCH) |
