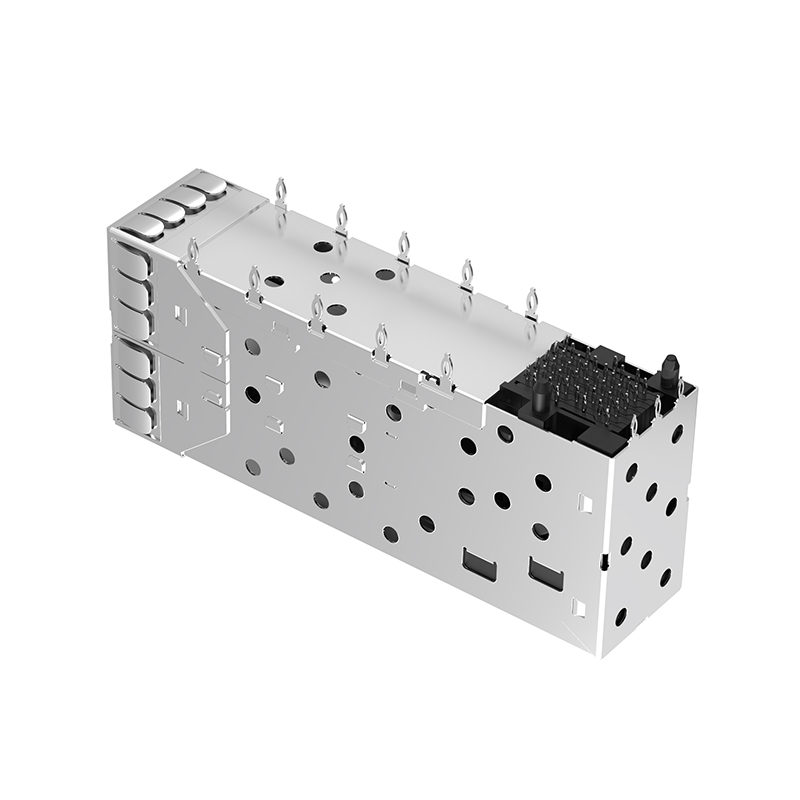

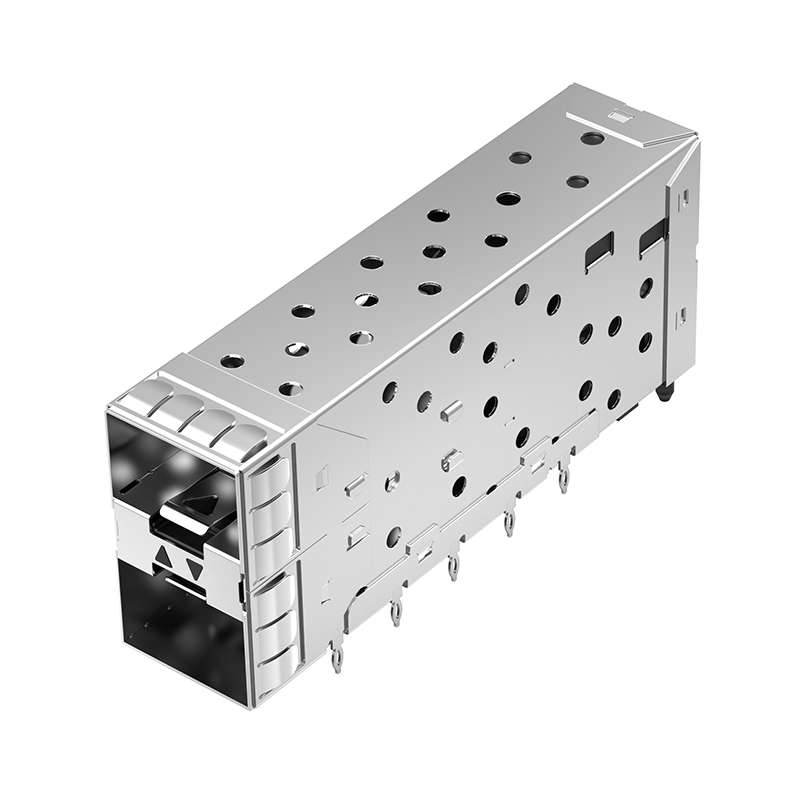

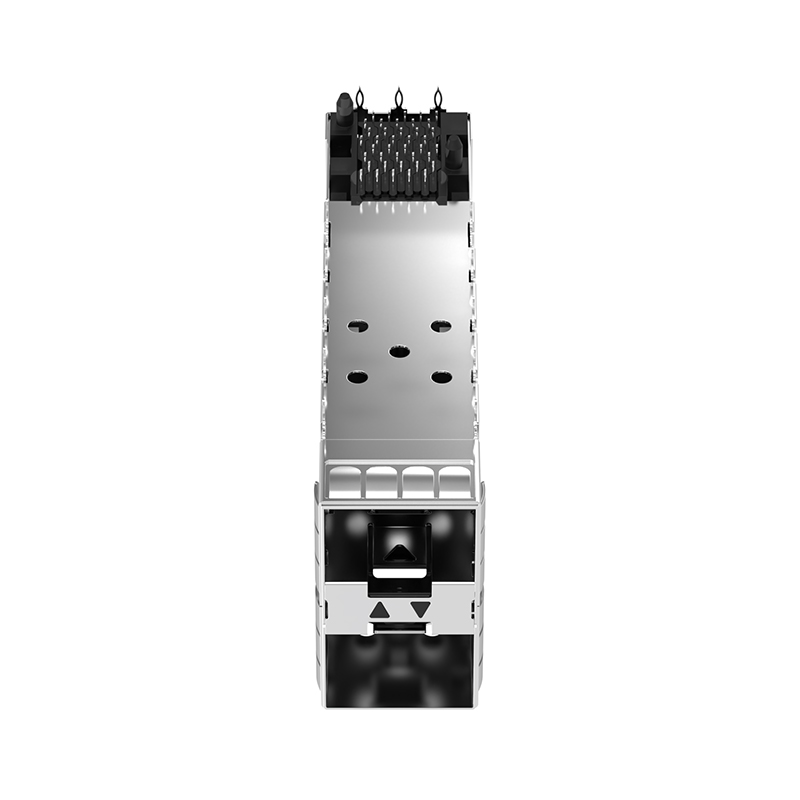

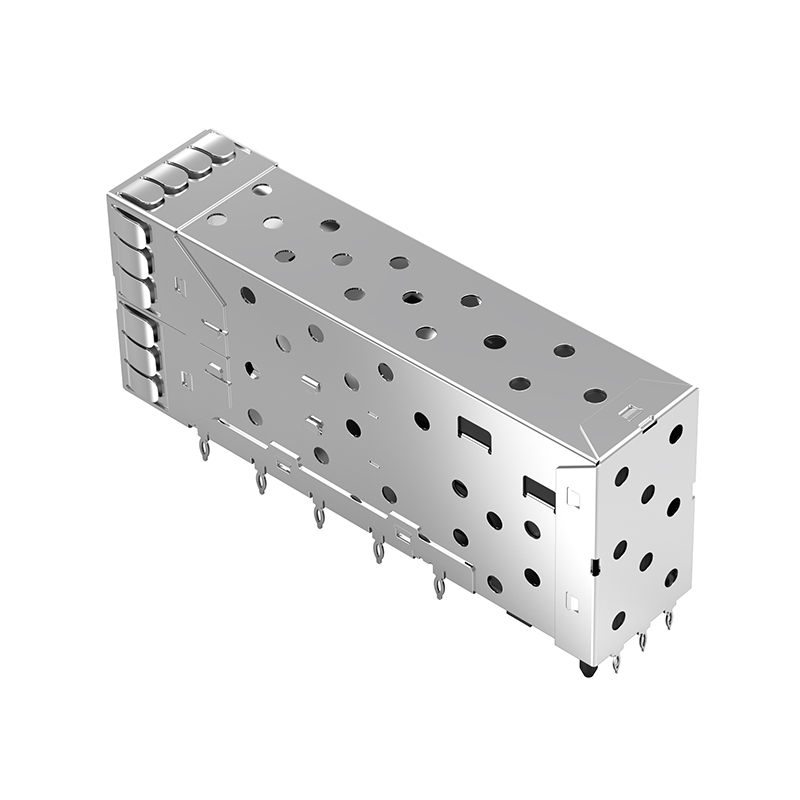

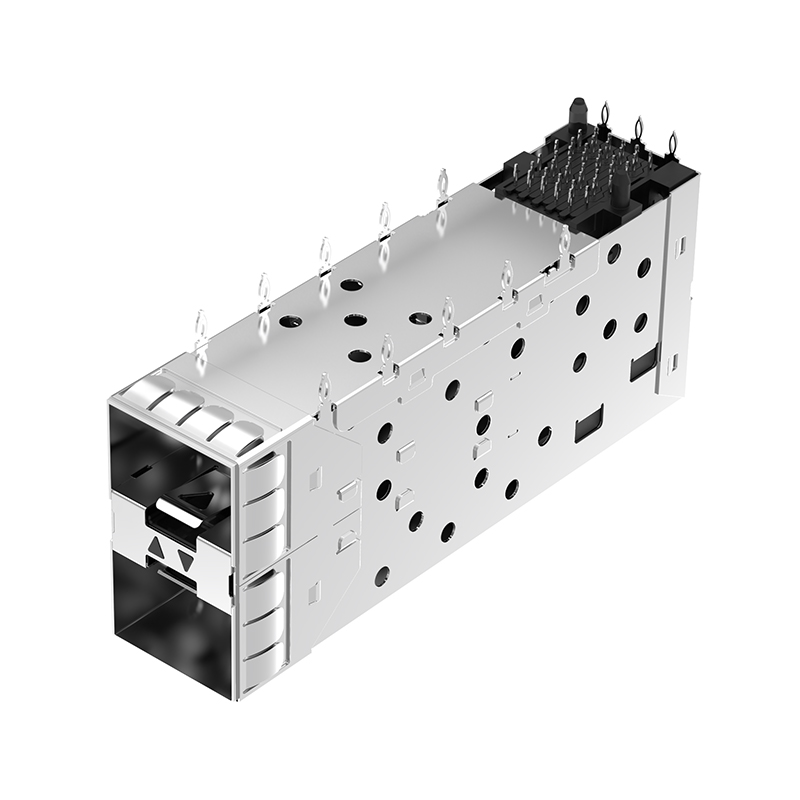

TR21BC0120 2x1 Port SFP+ Cage Connector With Inner LightPipe

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Number ： TR21BC0120
Brand ： Trxcom
Types ： SFP+
Number of Ports ： 2x1
Pluggable I/O Product Type ： Cage Assembly with Integrated Connector
Data Rate (Max)(Gb/s) ： 10
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： With Lightpipe
Termination Method to Printed ： Through Hole - Press-Fit
Operating Tem Perature Range(° ： -40℃ to 85℃
Get a Quote
Consult products
DetailReview(0)

Trxcom TR21BC01201 2x1 Port SFP+ Cage Connector With Inner LightPipe

The Trxcom TR21BC01201 is a high-performance 2×1 port SFP+ cage connector with inner light pipe, tailored for 10G high-speed data communication systems. Featuring a compact 2-row 1-column layout, it delivers dual-port expansion while saving valuable PCB space, perfectly supporting high-density I/O layout for networking hardware. Built with integrated EMI shielding structure and premium metal housing, it ensures reliable signal integrity and excellent anti-interference capability. Widely applicable to enterprise switches, servers, network adapters and industrial networking devices.

Part NumberTR21BC01201Part StatusActive
Connector StyleReceptacle with Cage, Ganged (2x1)Connector TypeSFP+
Data Rate (Max)(Gb/s)-Mounting TypeThrough Hole, Right Angle
TerminationPress-FitFeaturesEMI Shielded
Port Matrix Configuration2x1 PortsNumber of Ports2
Operating Temperature Range-40 – 85°CPluggable I/O ApplicationsSFP+
Circuit Application-EMI Containment Feature TypeExternal Springs
Included LightpipeWithCage MaterialCOPPER ALLOY 30u”
Length (Inches/mm)63.25/2.490Width (Inches/mm)14.00/0.551
Height (Inches/mm)25.53/1.005PCB Thickness (Recommended)2.36MM( .093 INCH)
