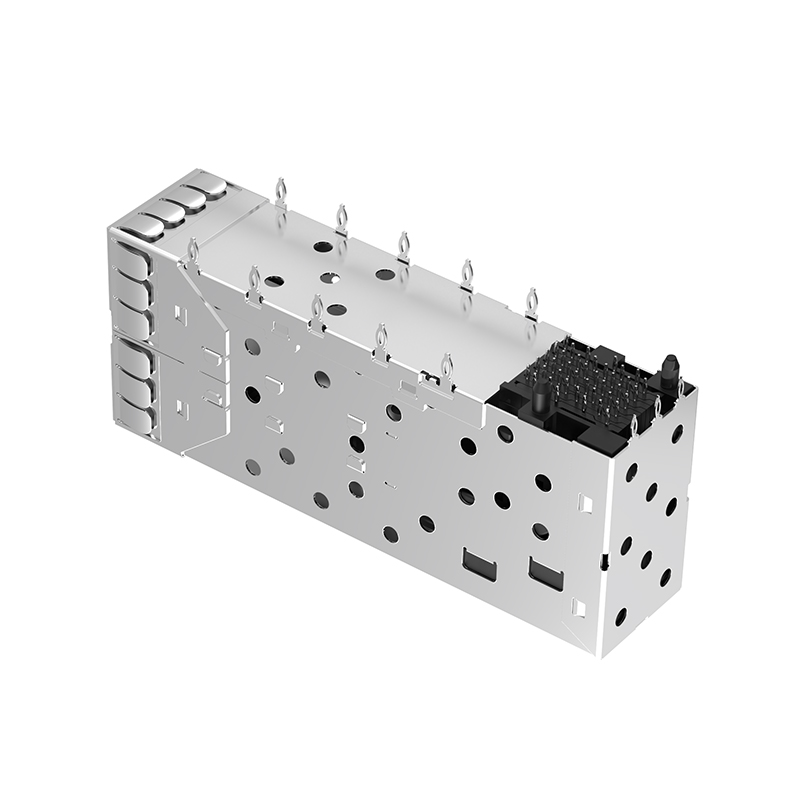

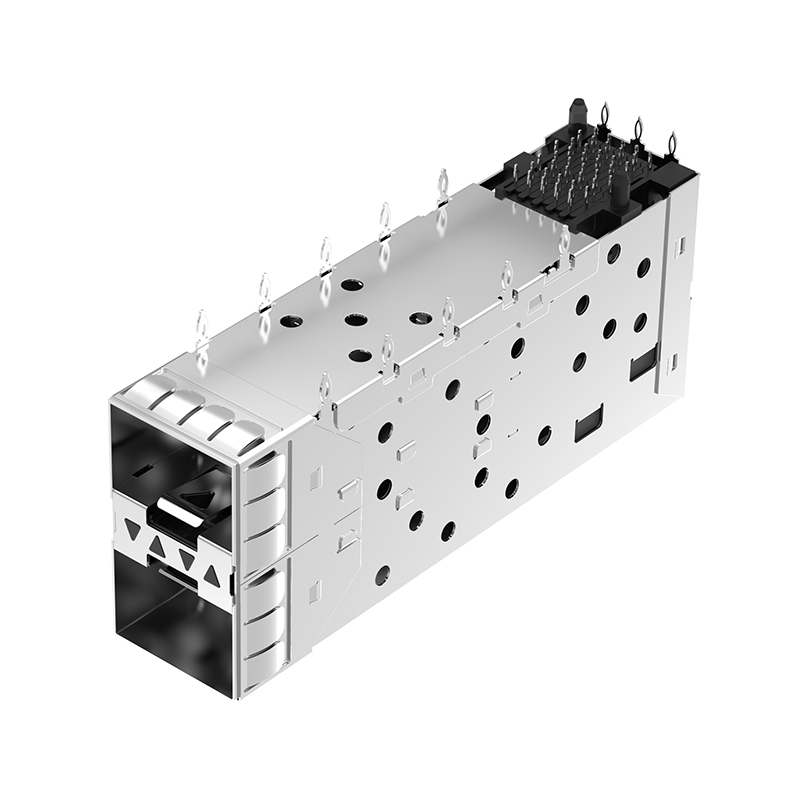

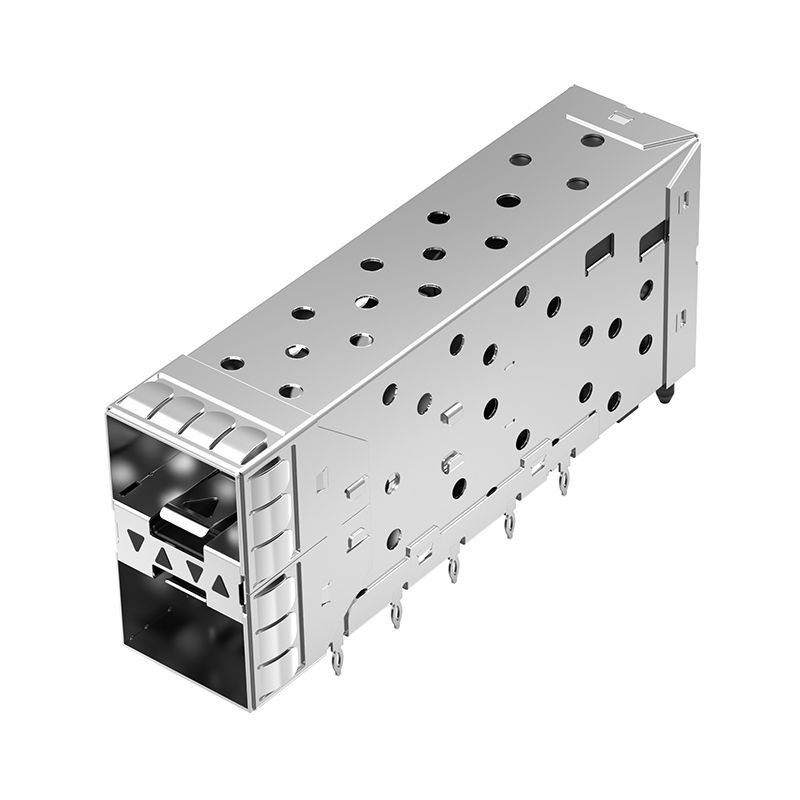

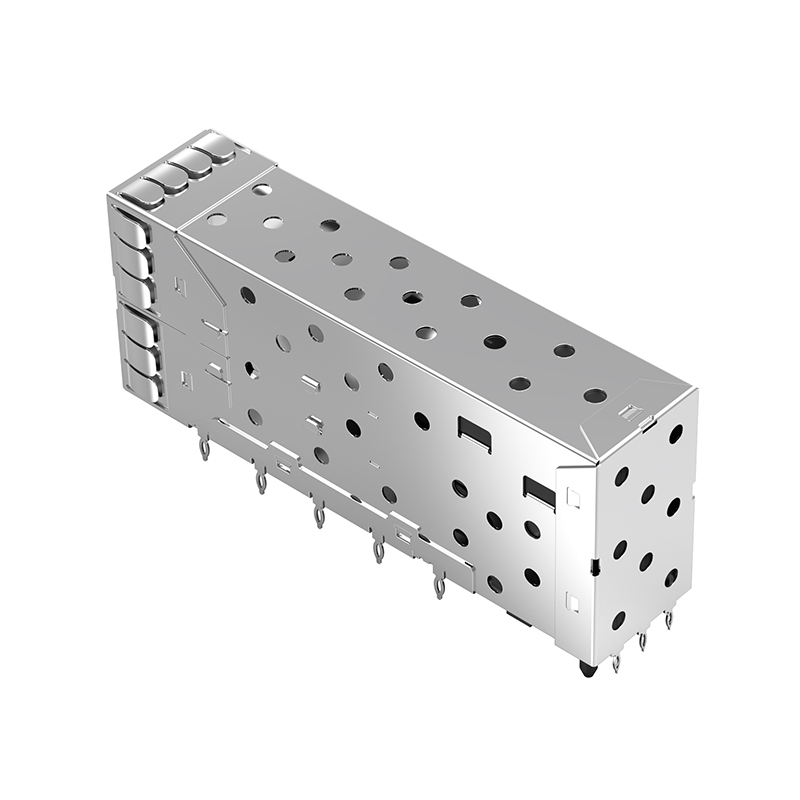

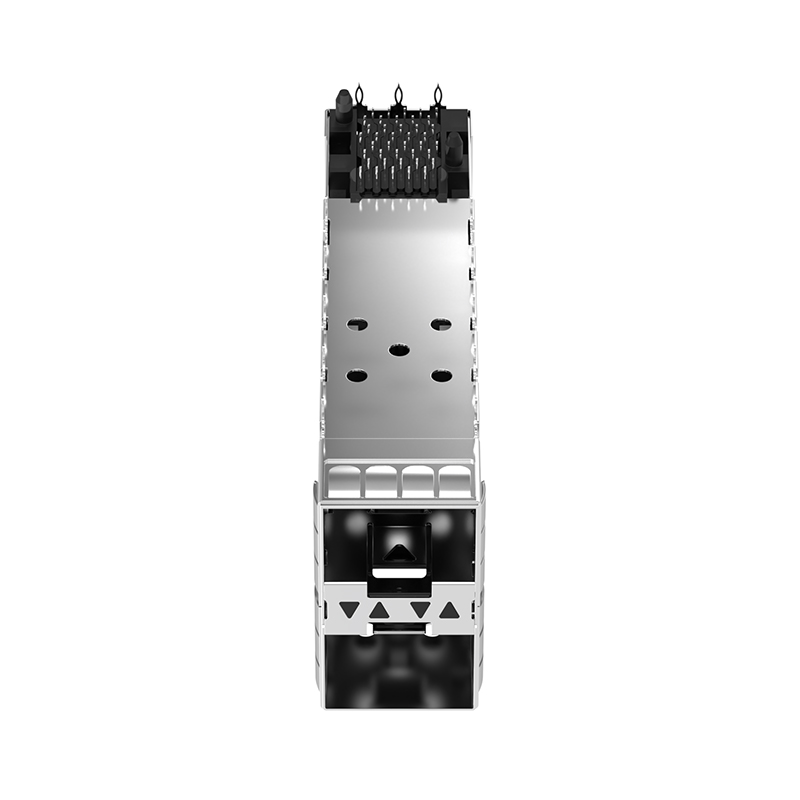

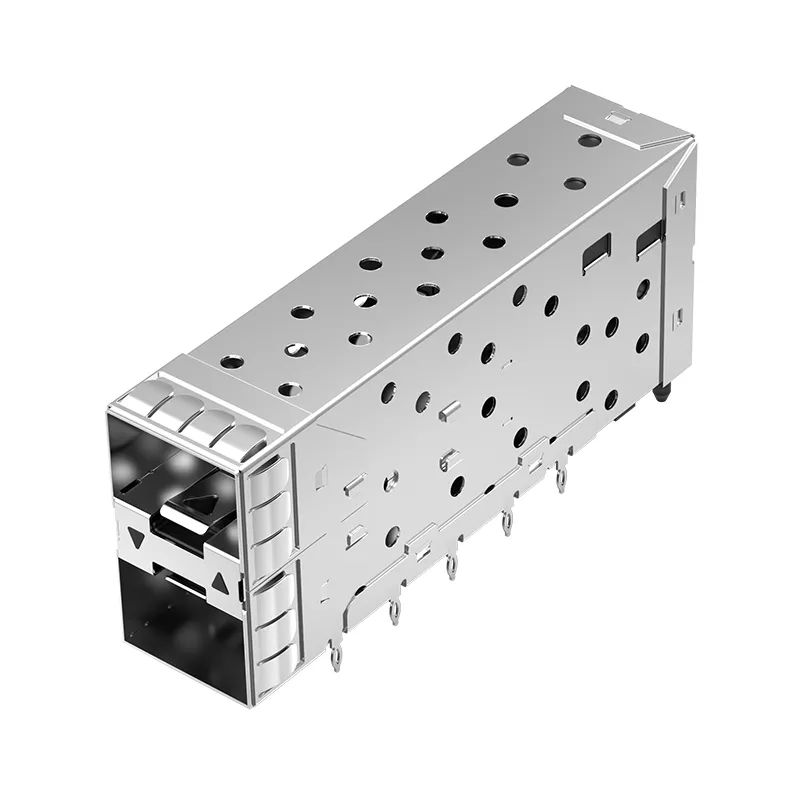

TR21BC01101 2x1 Port SFP+ Cage Connector With Outer/Inner LightPipe
share
Parameter
Number ： TR21BC01101
Brand ： Trxcom
Types ： SFP+
Number of Ports ： 2x1
Pluggable I/O Product Type ： Cage Assembly with Integrated Connector
Data Rate (Max)(Gb/s) ： 10
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： With Lightpipe
Termination Method to Printed ： Through Hole - Press-Fit
Operating Tem Perature Range(° ： -40℃ to 85℃
DetailReview(0)
Trxcom TR21BC01101 2x1 Port SFP+ Cage Connector With Outer/Inner LightPipe
The Trxcom TR21BC01101 is a high-performance 2×1 port SFP+ cage connector with both outer and inner light pipes. It features a compact layout, integrated EMI shielding and nickel-plated copper alloy housing, suitable for enterprise switches, servers and industrial networking devices requiring reliable 10G high-speed connections.
| Part Number | TR21BC01101 | Part Status | Active |
| Connector Style | Receptacle with Cage, Ganged (2x1) | Connector Type | SFP+ |
| Data Rate (Max)(Gb/s) | - | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 2x1 Ports | Number of Ports | 2 |
| Operating Temperature Range | -40 – 85°C | Pluggable I/O Applications | SFP+ |
| Circuit Application | Signal | EMI Containment Feature Type | External Springs |
| Included Lightpipe | With Outer/Inner LightPipe | Cage Material | COPPER ALLOY 30u” |
| Length (Inches/mm) | 63.25/2.490 | Width (Inches/mm) | 14.00/0.551 |
| Height (Inches/mm) | 25.53/1.005 | PCB Thickness (Recommended) | 2.36MM( .093 INCH) |
Data Center
Telecommunications
Medical Equipment
Industrial Control
Consumer Electronics
Security System
Military Industry
