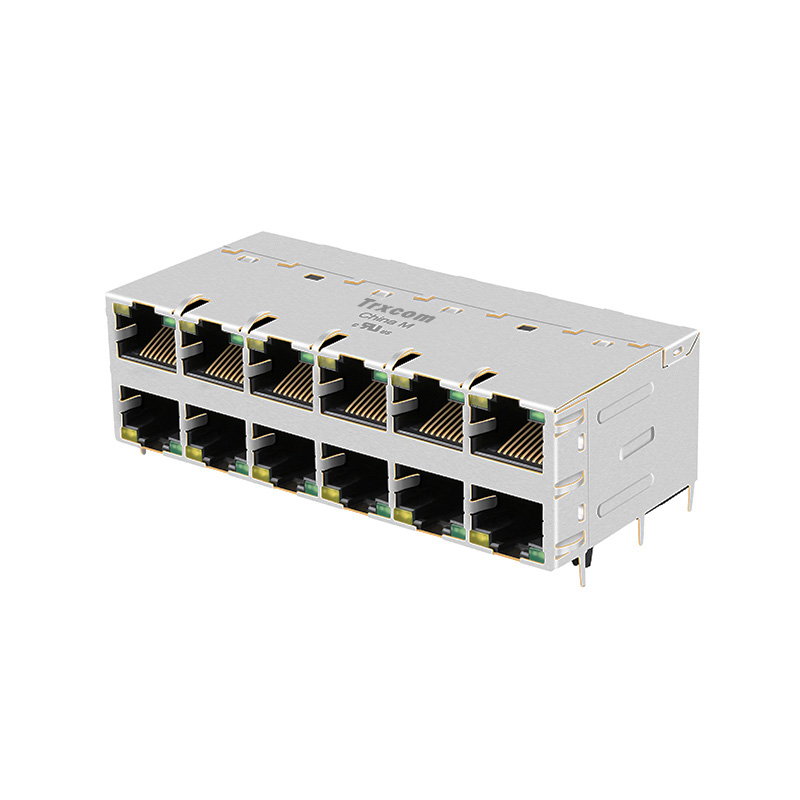

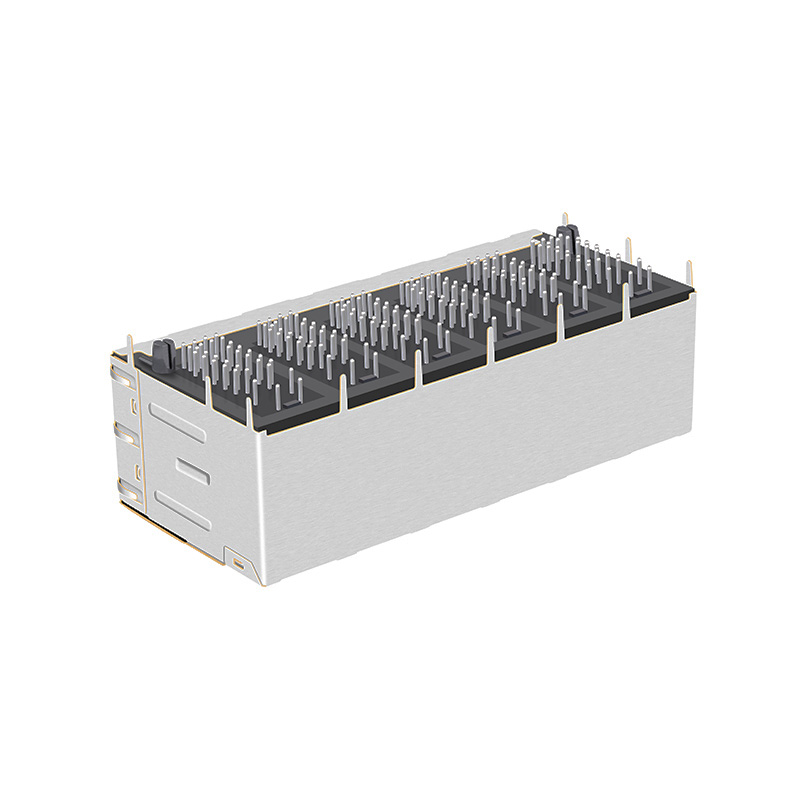

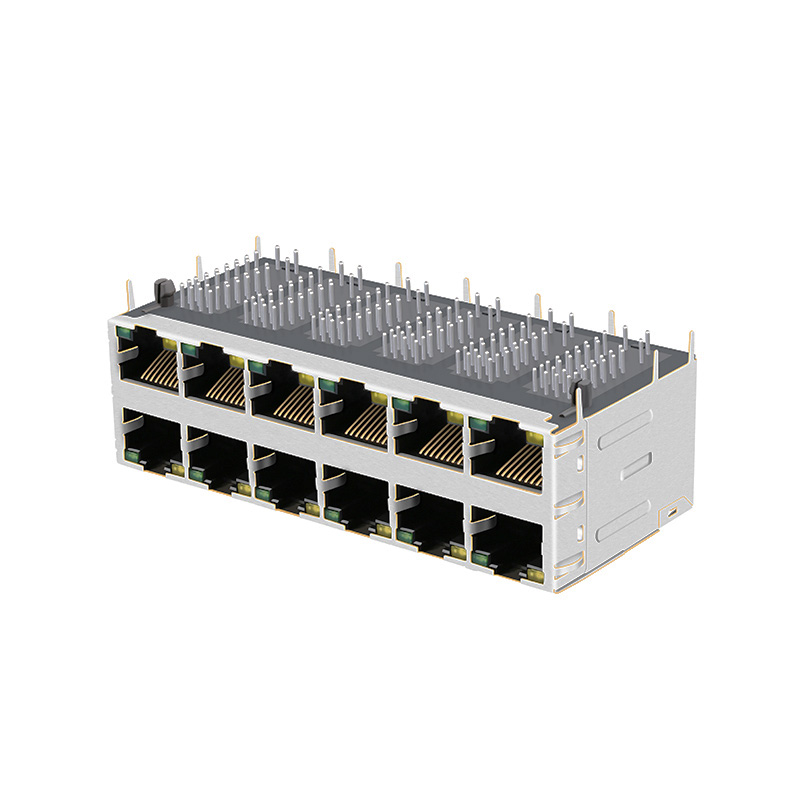

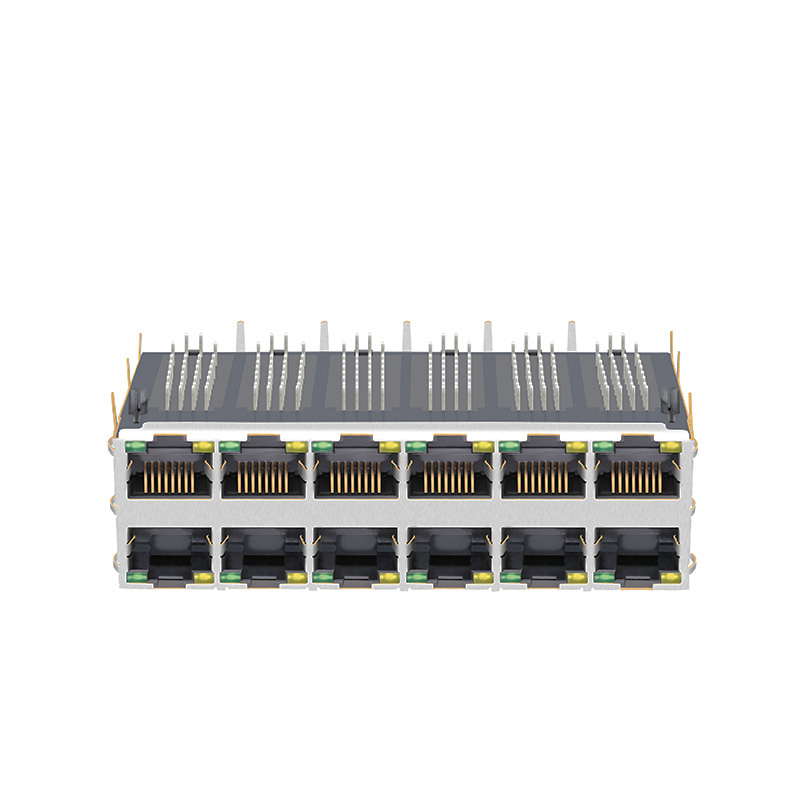

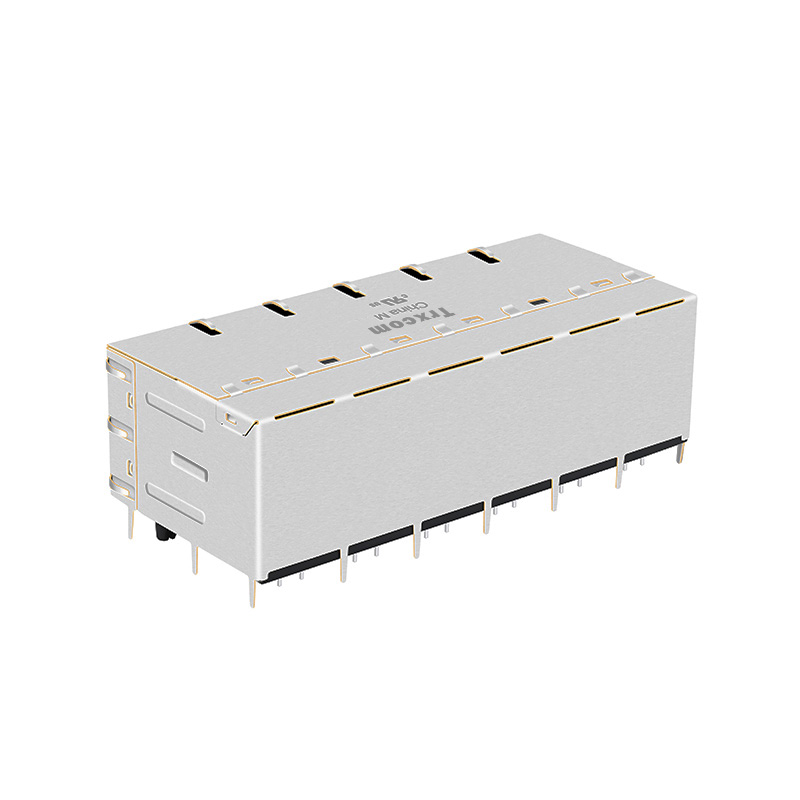

1000 Base-T 2x6 Port Gigabit Ethernet 8 Core Non-PoE Single Port RJ45 Connector TRJG67016AGNL
share
Parameter
Brand: ： Trxcom
P/N: ： TRJG67016AGNL
Port: ： 2X6
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Up/Down
LED: ： Yellow/Green
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
DetailReview(0)
Trxcom TRJG67016AGNL 2x6 Port RJ45 Connector with 10/100/1000 Base-T Integrated Magnetics, Green/Green&Yellow LED, RoHS
Trxcom TRJG67016AGNL supports 10/100/1000 Base-T speed and complies with IEEE 802.3, UL, Reach, RoHs, ISO9001 and ISO14001 standards. It can be applied to scenarios such as network cards, optical terminals, game controllers and automation equipment.
| Part Number | TRJG67016AGNL | Connector Type | Jack |
| Part Status | Active | Mounting Type | Through Hole |
| Number of Positions/Contacts | 10p8c (RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 2x6 Port | Speed | 10/100/1000 Base-T |
| Latch | Up/Down | Cores per Port | 4 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With | LED Option | Green/Green&Yellow Led |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 1.015/25.79 | Package Length (Inches/mm) | 1.116/28.35 |
| Package Width (Inches/mm) | 3.430/87.12 | Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes | AutomDX | YES |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C |
Quality Certifications
We strictly control product quality, including strict control of manufacturer qualifications, quality control processes and production process standards, and compliance with various certifications and safety standards. Currently, our products comply with industry standards and mainstream quality certifications, such as ISO 9001, ISO 14001, CE, RoHS, REACH, UL, etc. For more details, please visit the Compliance Center Center to get documents.
