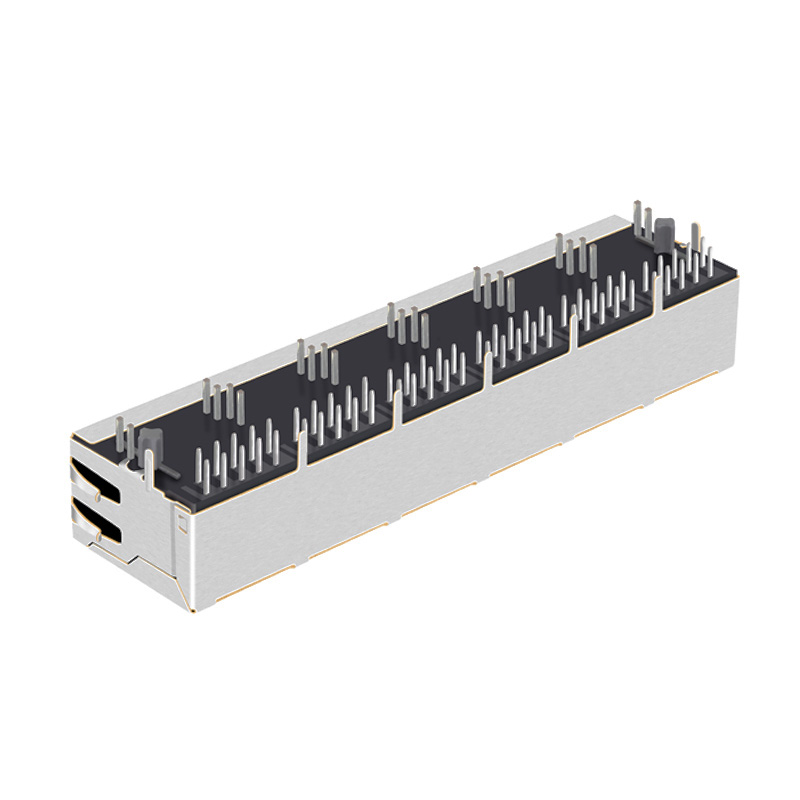

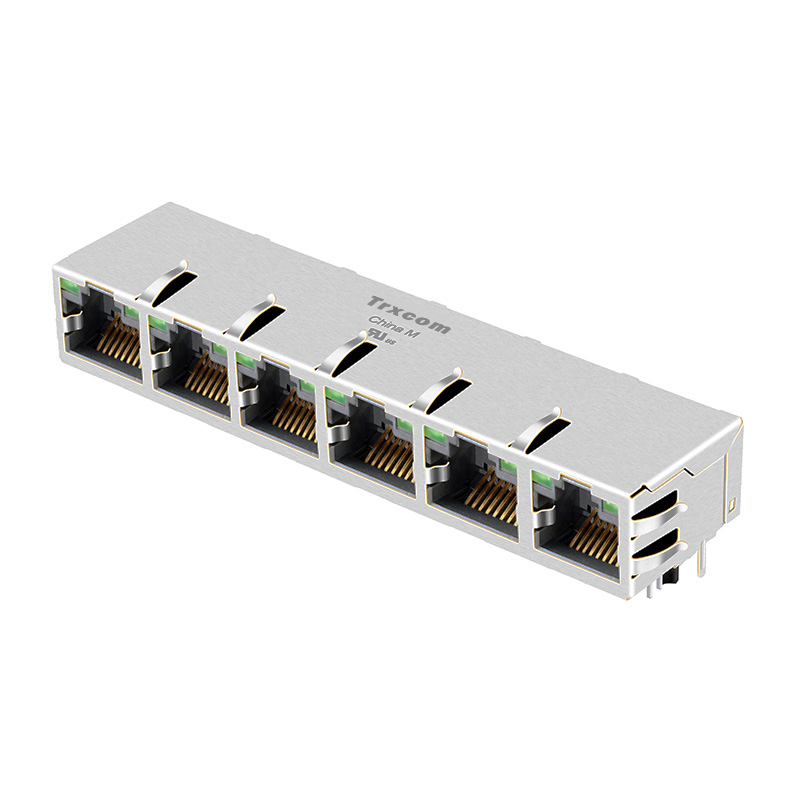

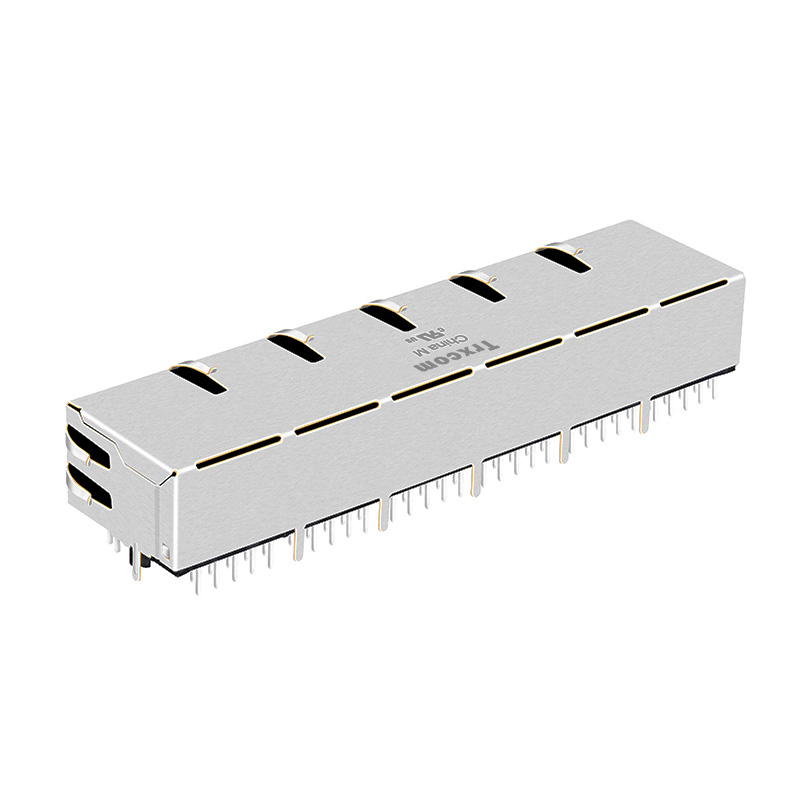

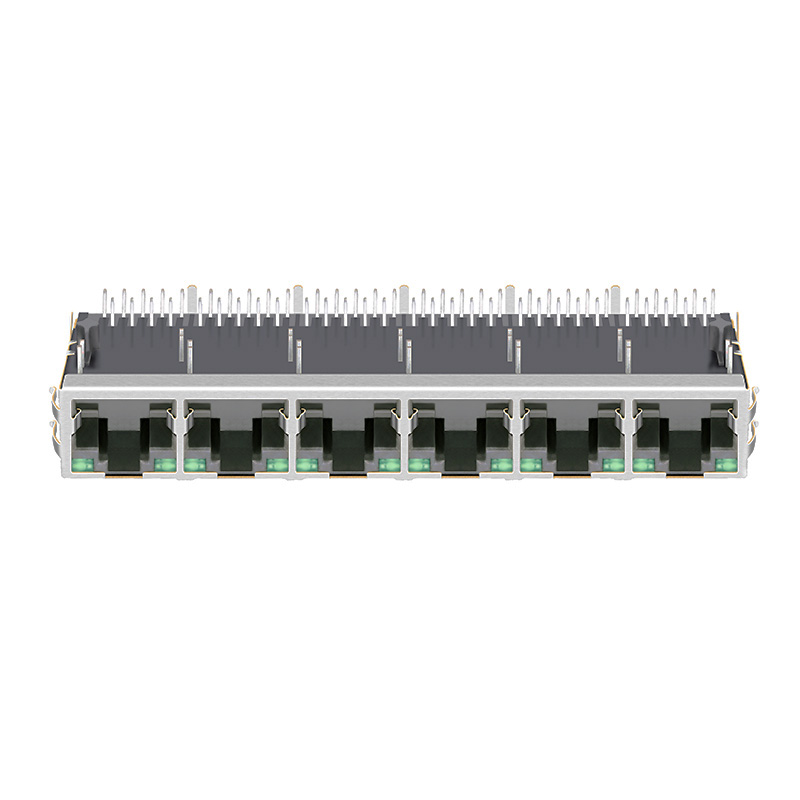

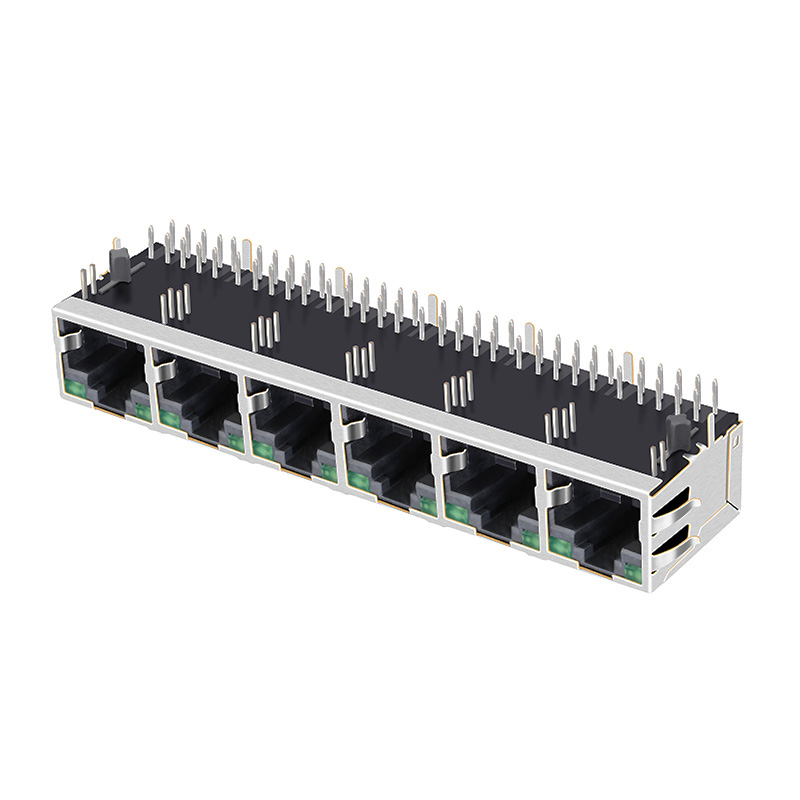

TRJG68851AWNL 1x6 Port 100/1000 Base-T RJ45 Magjacks Tab Up Green/Green Led

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJG68851AWNL
Port: ： 1X6
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Up
LED: ： Green/Green
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

Trxcom TRJG68851AWNL 100/1000 Base-T RJ45 Magjacks for Server and Network Firewall (1x6 Port, Tab Up, Green/Green Led)）

The Trxcom TRJG68851AWNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Hub, Switches, Server and Network Firewall.

Part NumberTRJG68851AWNLConnector TypeJack
Part StatusActiveMounting TypeThrough Hole
Number of Positions/Contacts10p8c (RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x6 PortSpeed10/100/1000 Base-T
LatchUpCores per Port8
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionGreen/Green Led
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.535/13.60Package Length (Inches/mm)0.996/25.30
Package Width (Inches/mm)3.438/87.33Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYES
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C
