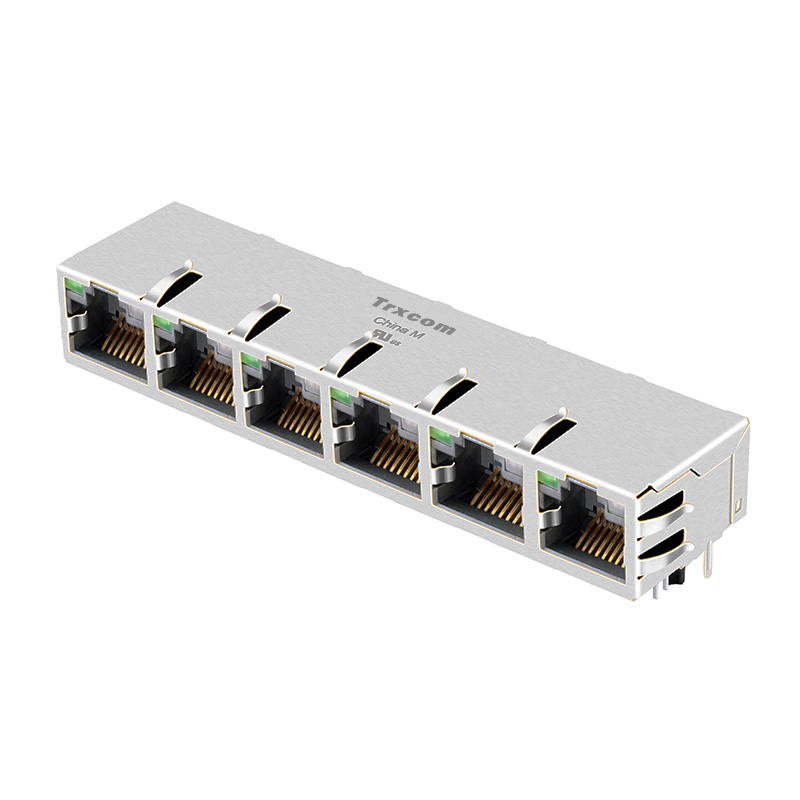

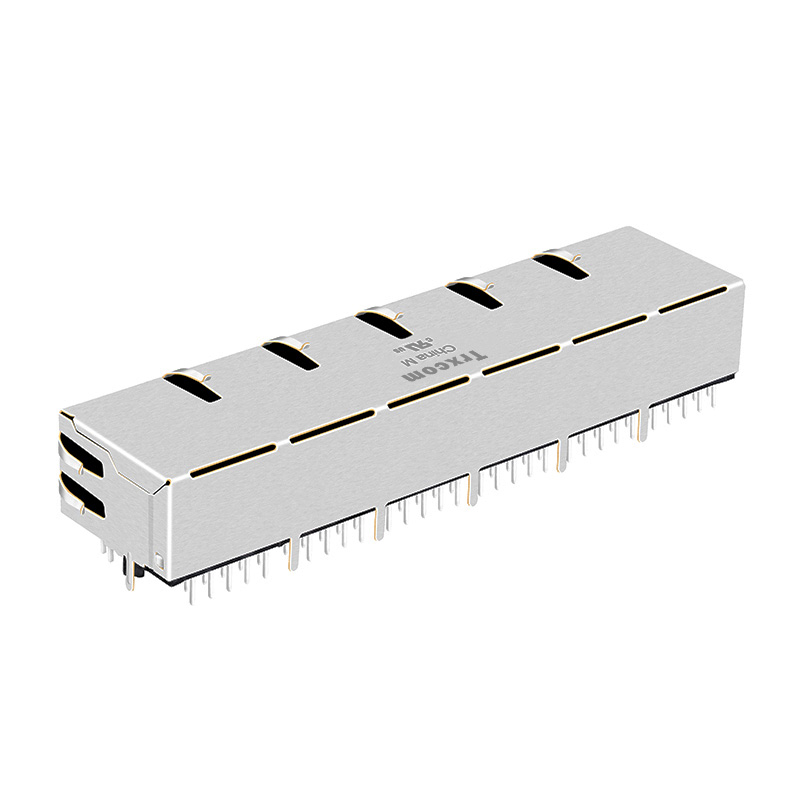

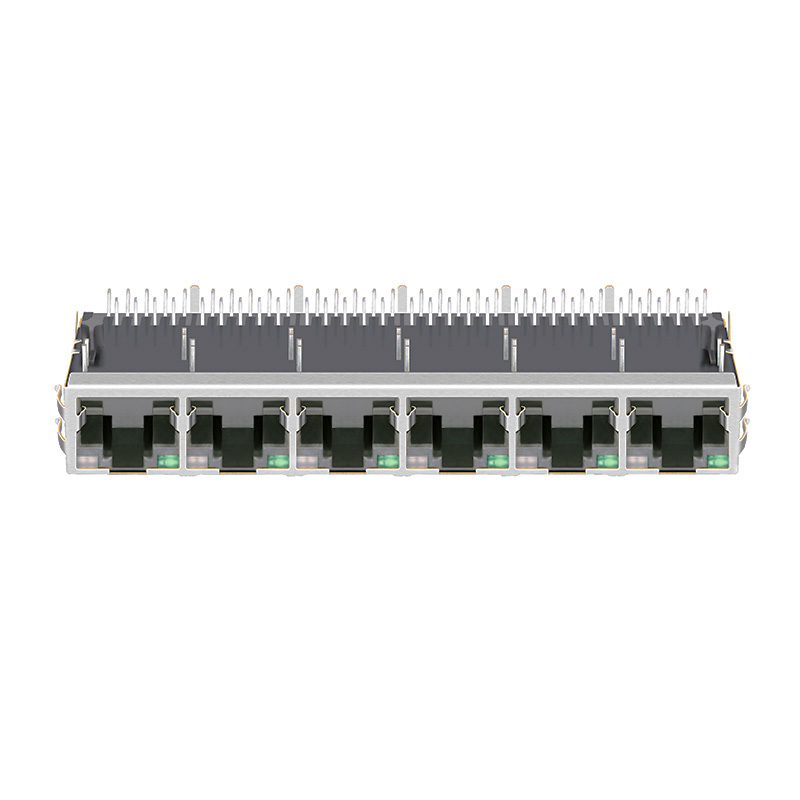

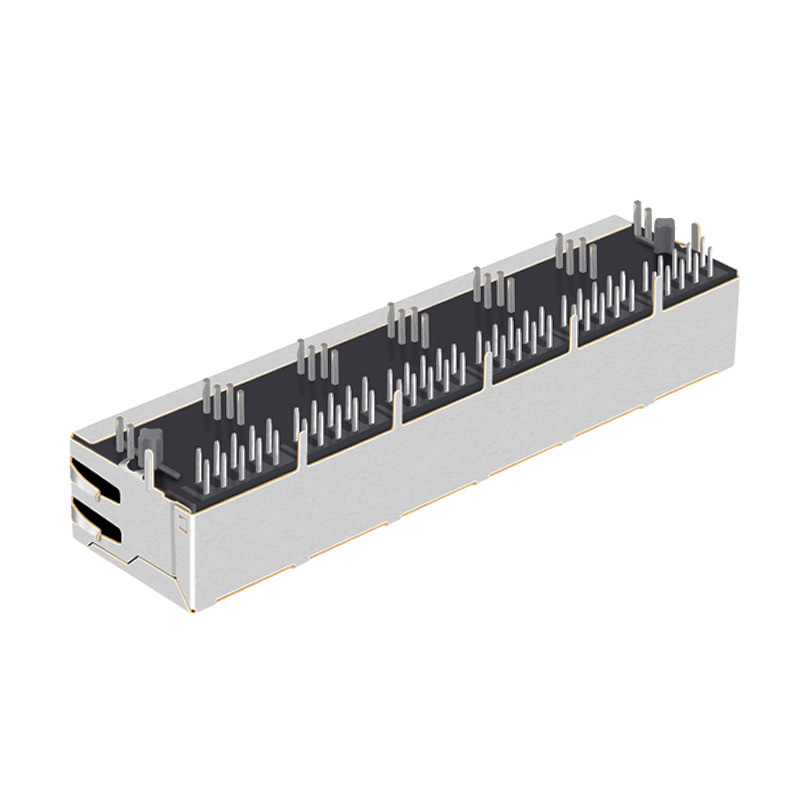

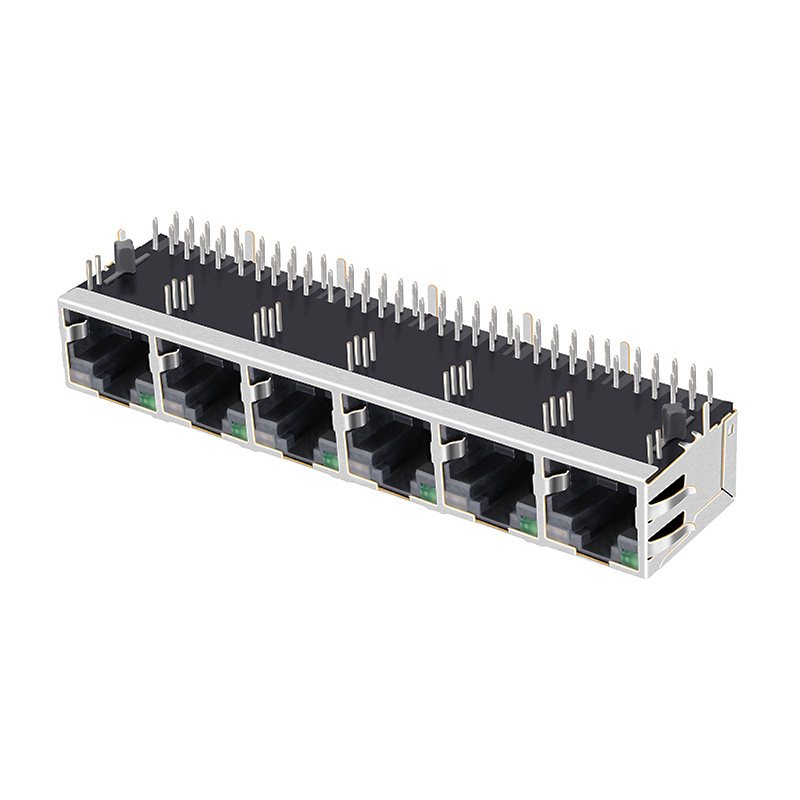

1x6 Port 1000 Base-T RJ45 Jack Tab Up Green/Orange&Green LED For Sale TRJG68837A63NL

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJG68837A63NL
Port: ： 1X6
Rate: ： 1000Base-T
PoE: ： PoE
Latch: ： Up
LED: ： Green/White
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

Trxcom TRJG68837A63NL   1000   Base-T RJ45 Jack For Sale for TV and Industrial PC (1x6 Port , Tab Up   ,Green/Orange&Green LED)

The Trxcom TRJG68837A63NL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as TV, Industrial PC,Media Player and Game Controller.

Part NumberTRJG68837A63NLConnector TypeJack
Part StatusActiveMounting TypeThrough Hole
Number of Positions/Contacts10p8c (RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x6 PortSpeed10/100/1000 Base-T
LatchUpCores per Port8
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionGreen/Orange&Green Led
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.535/13.60Package Length (Inches/mm)0.996/25.30
Package Width (Inches/mm)3.438/87.33Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYES
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C
