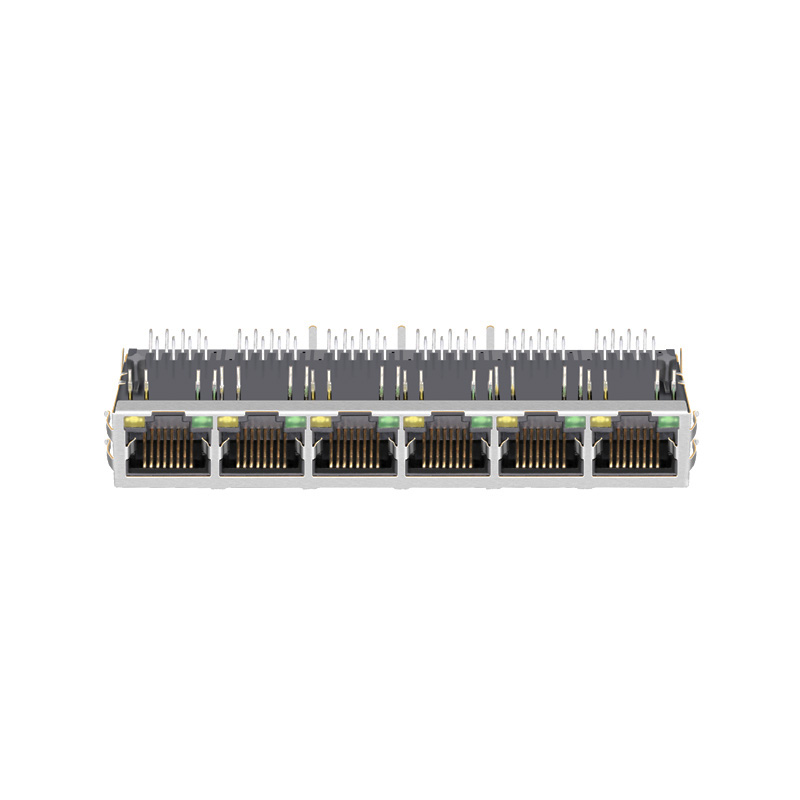

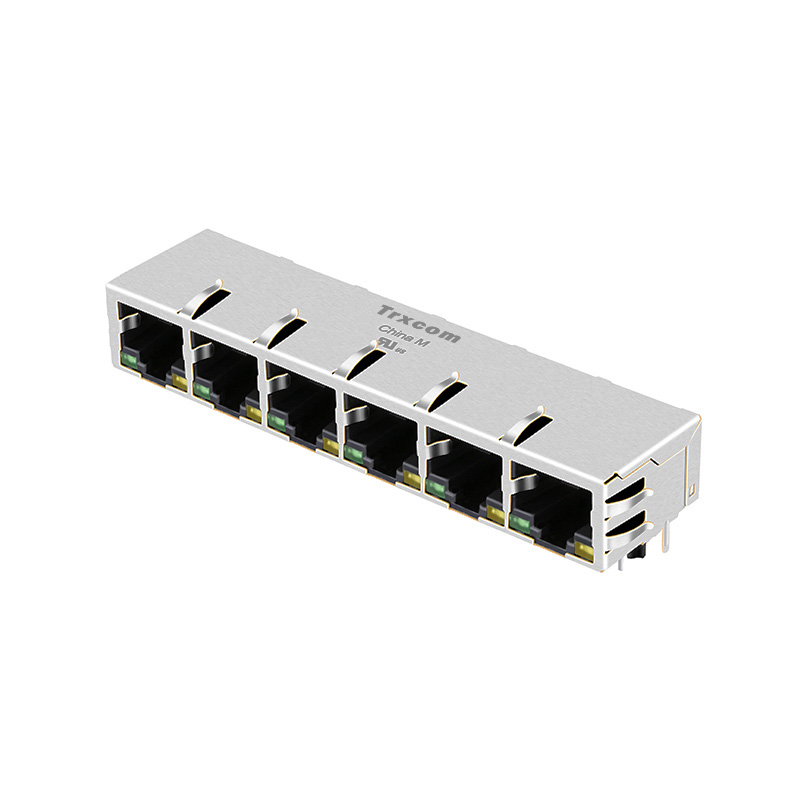

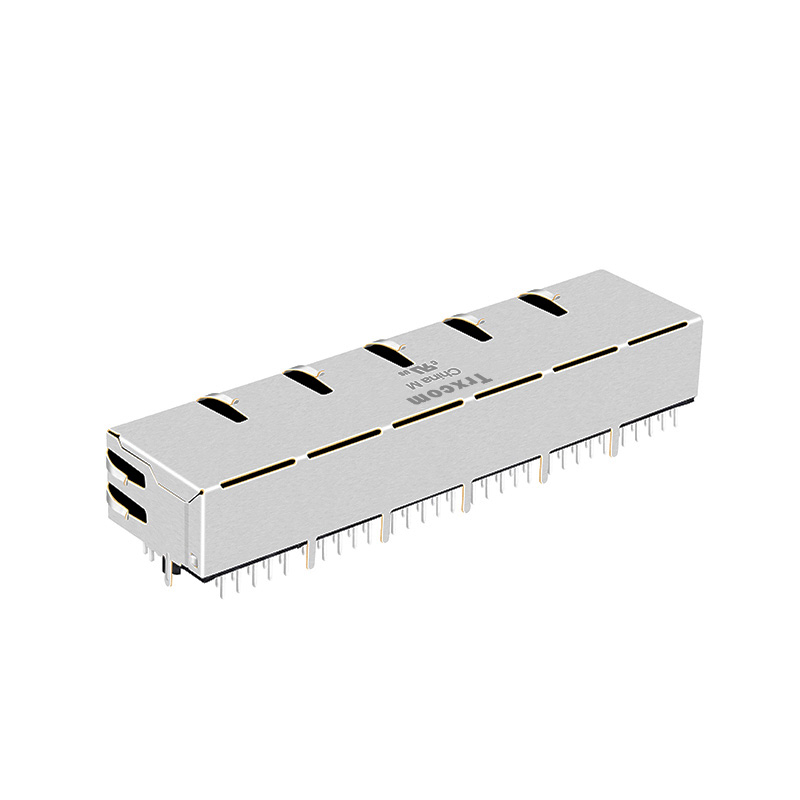

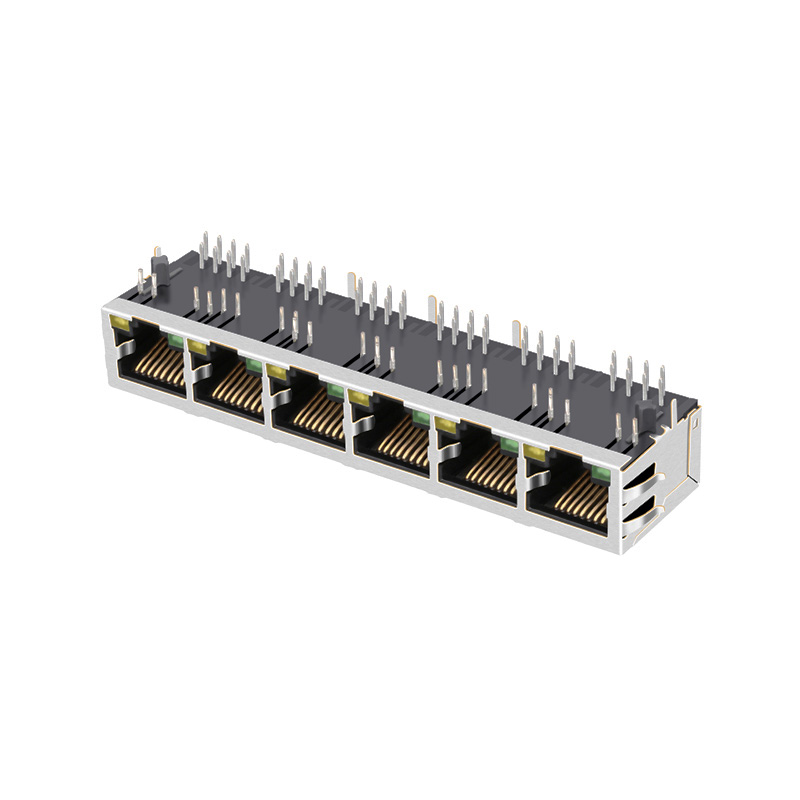

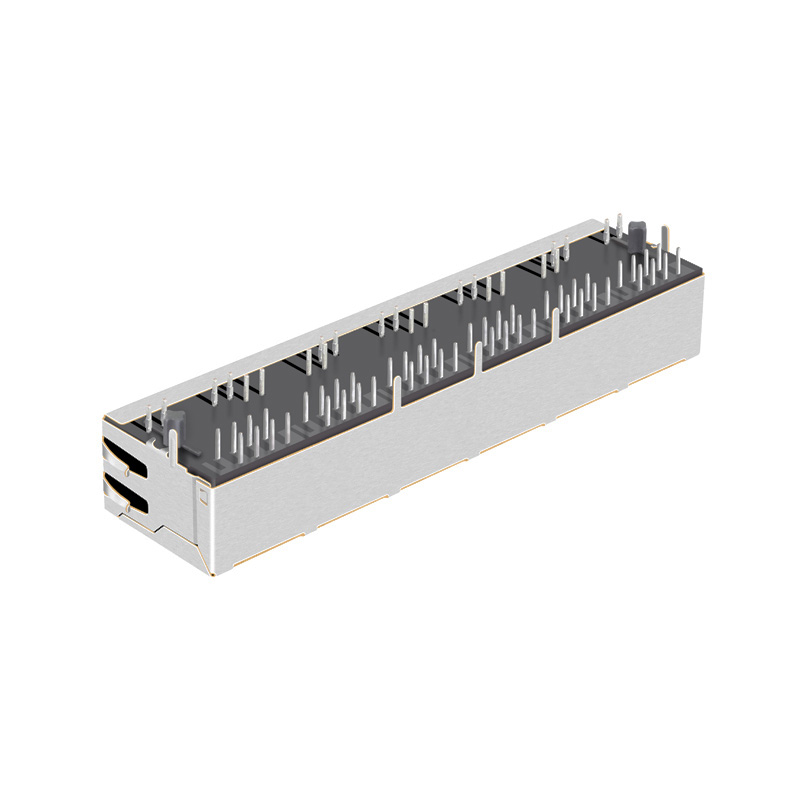

10/100 Base-T 1x6 Port RJ45 Magnetic Connectors Green/Yellow LED Tab Down TRJG66820AENL

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJG66820AENL
Port: ： 1X6
Rate: ： 1000Base-T
PoE: ： PoE+
Latch: ： Down
LED: ： Green/Yellow
Mount: ： -40℃ to +85°C
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

Trxcom TRJG66820AENL 10/100 Base-T 1X6 Port RJ45 Multi Magnetic Connectors Green/Yellow LED Tab Down

The Trxcom TRJG66820AENL supports 100/1000 Base-T speed and complies with IEEE 802.3, UL, Reach, RoHS, ISO9001 and ISO14001 standards. It can be applied to devices such as televisions, industrial computers, media players and game controllers.

Part NumberTRJG66820AENLConnector TypeJack
Part StatusActiveMounting TypeThrough Hole
Number of Positions/Contacts8p8c (RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x6 PortSpeed10/100 Base-T
LatchDownCores per Port4
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionGreen/Yellow Led
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.531/13.50Package Length (Inches/mm)0.839/21.30
Package Width (Inches/mm)3.425/86.99Temperature-40℃ TO 85℃
Bst CircuitYesAutomDXYES
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C
