10/100 Base-T 1X6 Port Jack RJ45 Female Connector Without Leds TRJF66204CNL

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJF66204CNL
Port: ： 1X6
Rate: ： 10/100Base-T
PoE: ： NONE-PoE
Latch: ： Down
LED: ： No LED
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

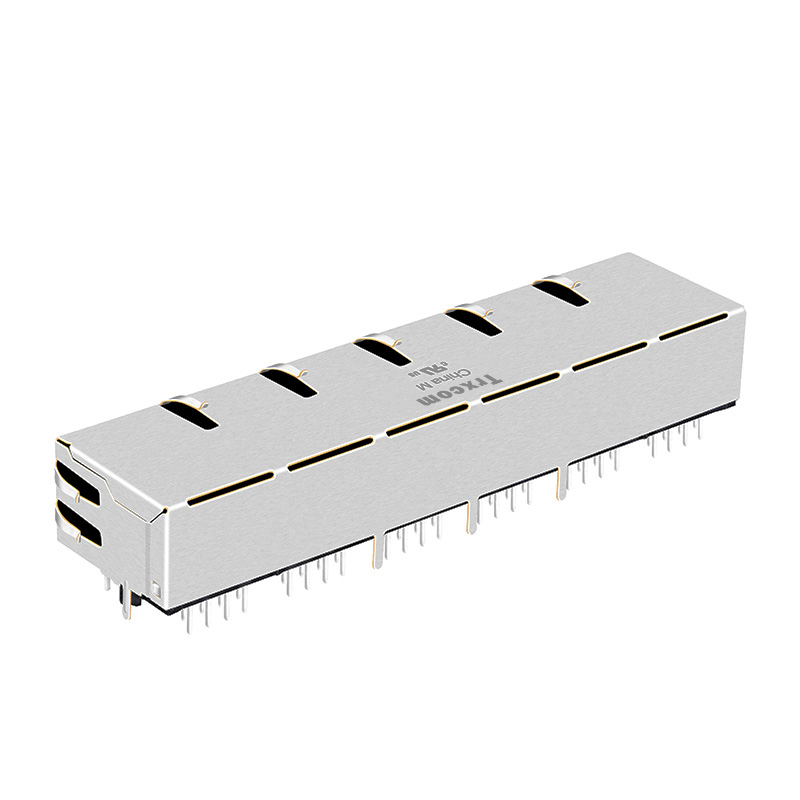

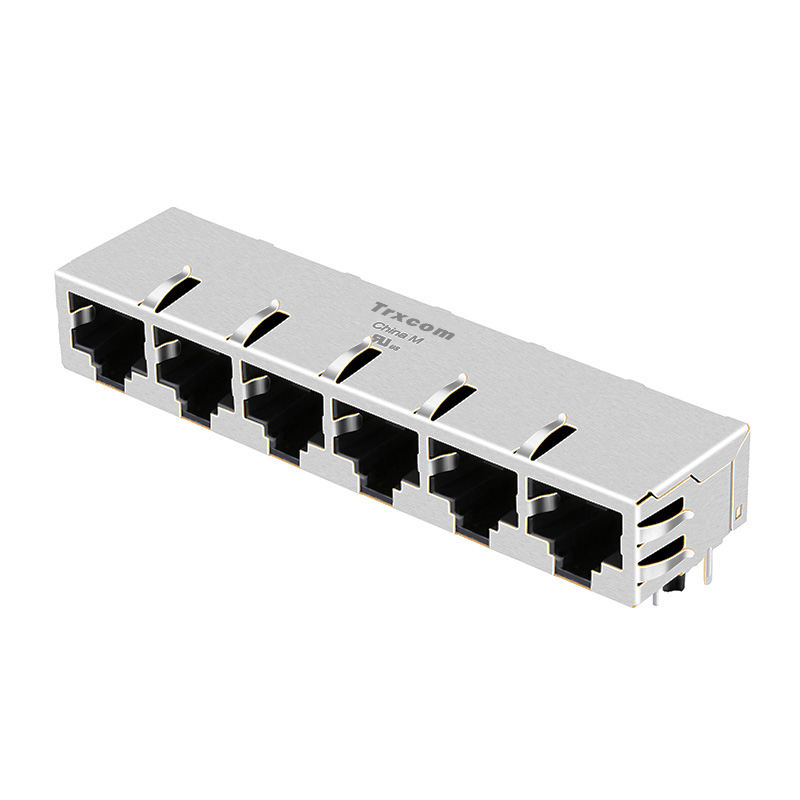

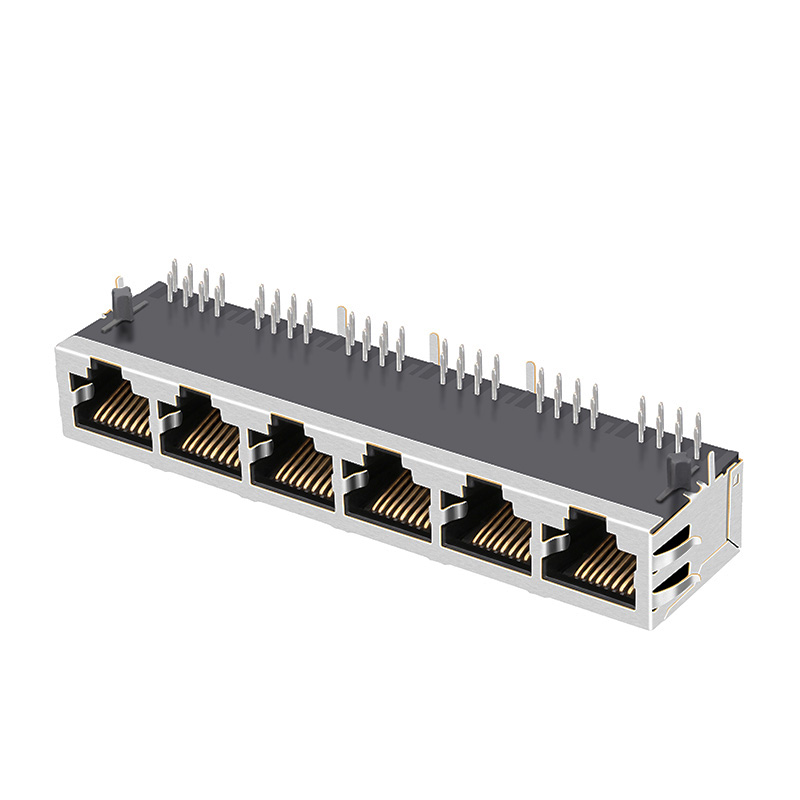

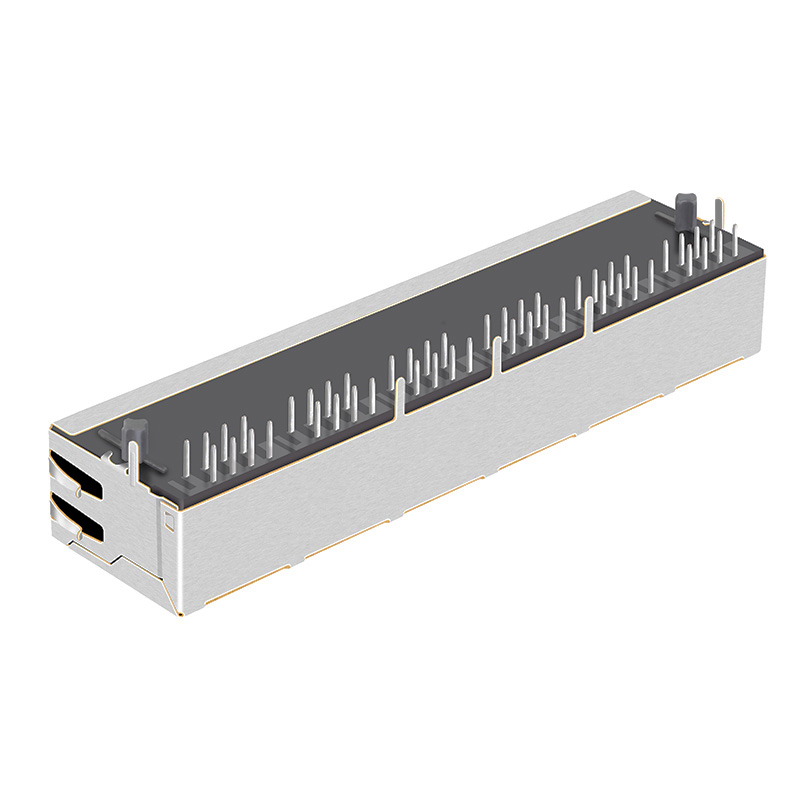

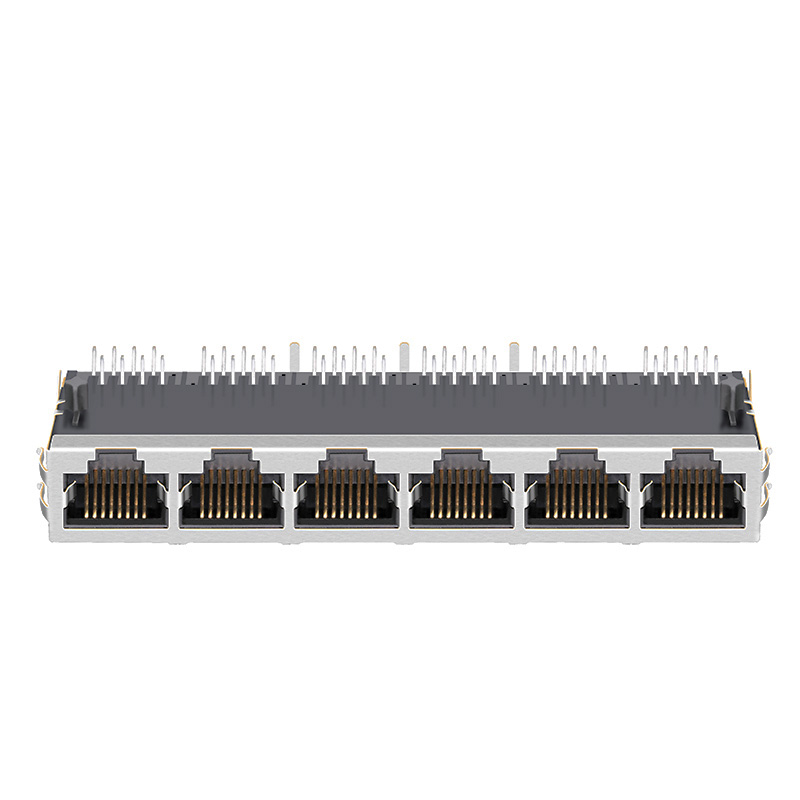

TRXCOM TRJF66204CNL 10/100 Base-T RJ45 Female Connector with   Integrated Magnetics(1x6 Port,Without LED,Tab Down)

The Trxcom TRJF66204CNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Hub, Switches, Server and Network Firewall.

Part NumberTRJF66204CNLConnector TypeJack
Part StatusActiveMounting TypeThrough Hole
Number of Positions/Contacts8p8c (RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x6 PortSpeed10/100 Base-T
LatchDownCores per Port4
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionWithout
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.531/13.50Package Length (Inches/mm)0.839/21.30
Package Width (Inches/mm)3.425/86.99Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYES
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C
