TRB85861NLE T1/CEPT/ISDN-PRI Transformers Module 16PIN SMD
share
Parameter
Brand ： Trxcom
Model ： TRB85861NLE
Data Rate ： 10/100Base-T
PoE ： No
Mount ： SMT
Temperature ： 0℃ to +70℃
PIN ： 16PIN
DetailReview(0)

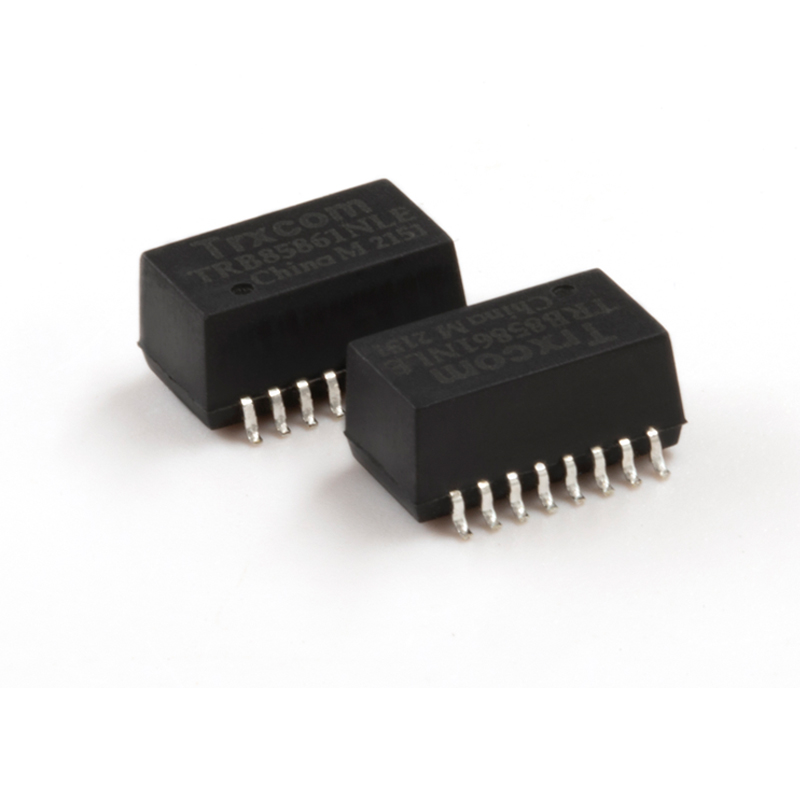

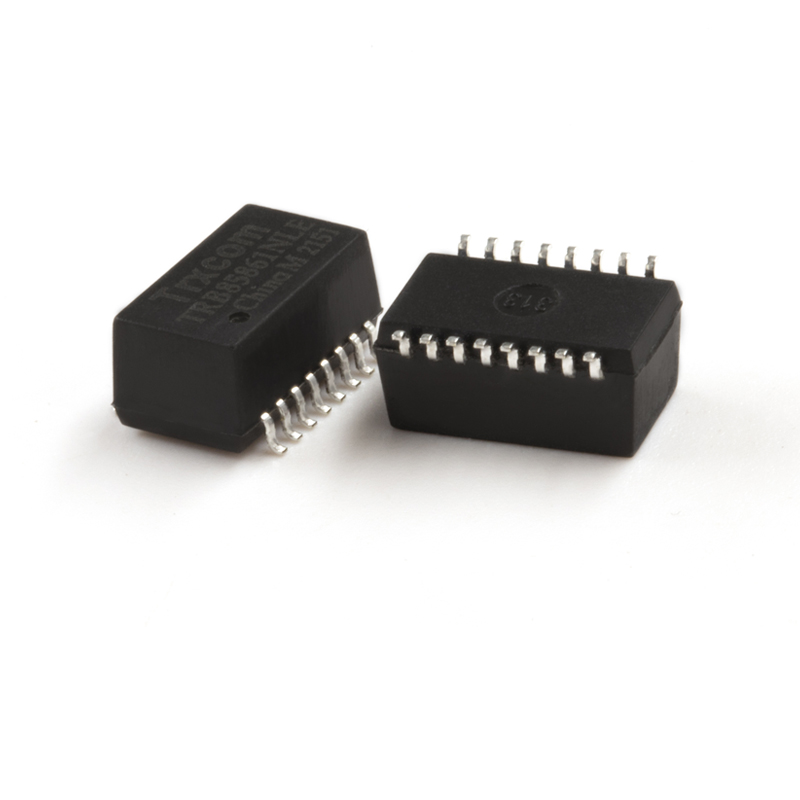

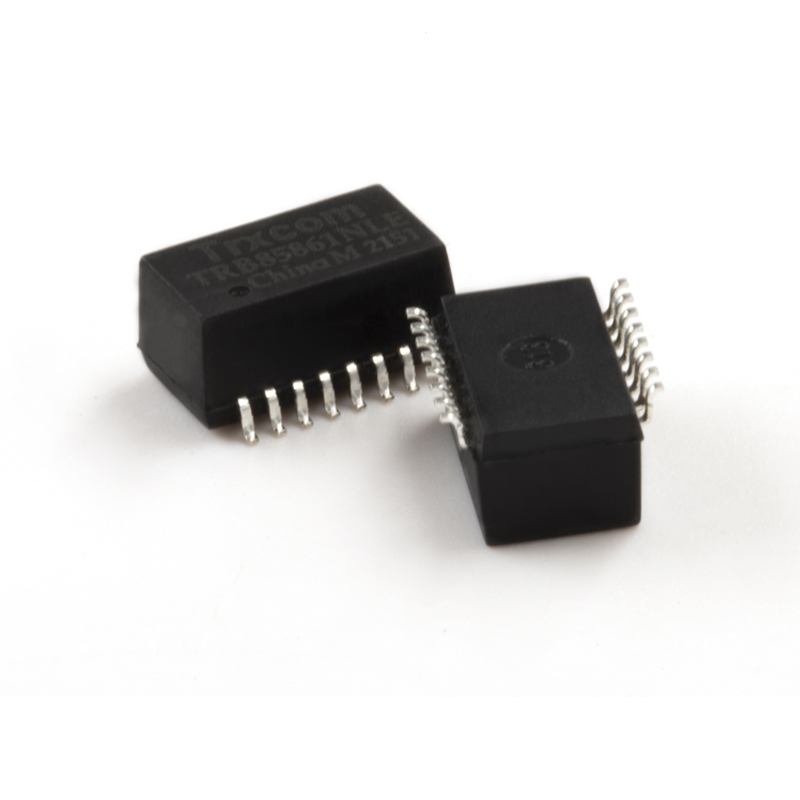

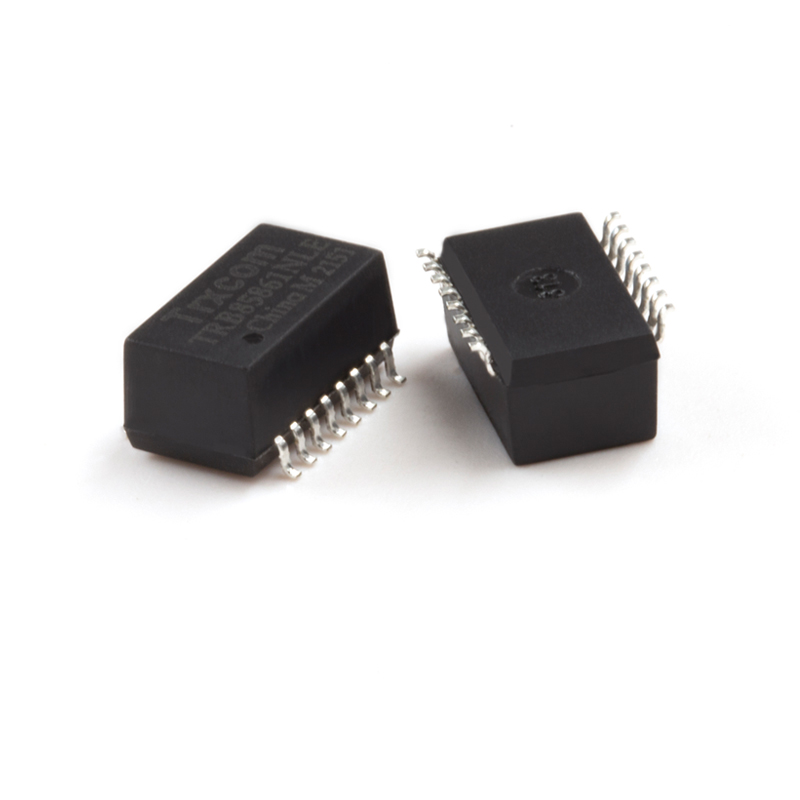

Trxcom TRB85861NLE T1/CEPT/ISDN-PRI Transformers Module 16PIN SMD
1.T1/CEPT/ISDN-PRI Transformer.
2. With various turns ratios.
3. The part is RoHS compliant.
4. Maximun reflow temperature is 245°C,5 Sec.
5. UL Certification: File Number E321120.
| Trxcom Part Number | TRB85861NLE | Transformer Type | T1/CEPT/ISDN-PRI Transformer |
| Part Status | Active | Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver |
| Construction | OPEN FRAME | Application-Lan | Ethernet(PoE) |
| Number of Ports | Single Port | Speed | 10/100 Base-T |
| Package | Tape & Reel | Cores per Port | 2 |
| AutomDX | Yes | Comment | SAME AS NL VERSION |
| PIN number | 16 | Mounting Type | Surface Mount |
| Package Height (Inches/mm) | 0.244/6.20 | Package Length (Inches/mm) | 0.500/12.70 |
| Package Width (Inches/mm) | 0.366/9.30 | Temperature | -40℃ TO +85℃ |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C,S |
Consumer Electronics
Security System
Military Industry
