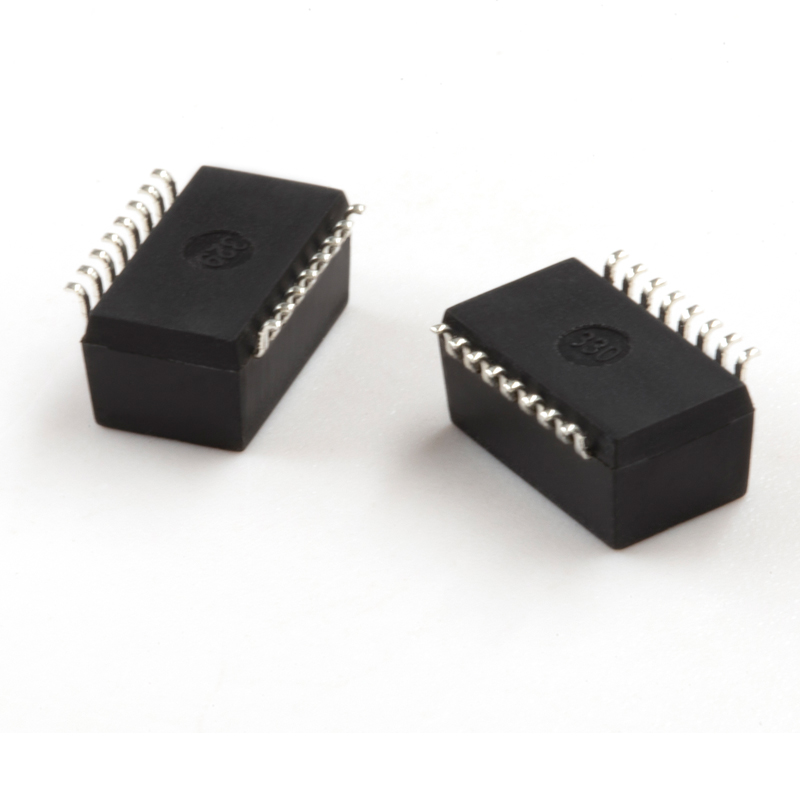

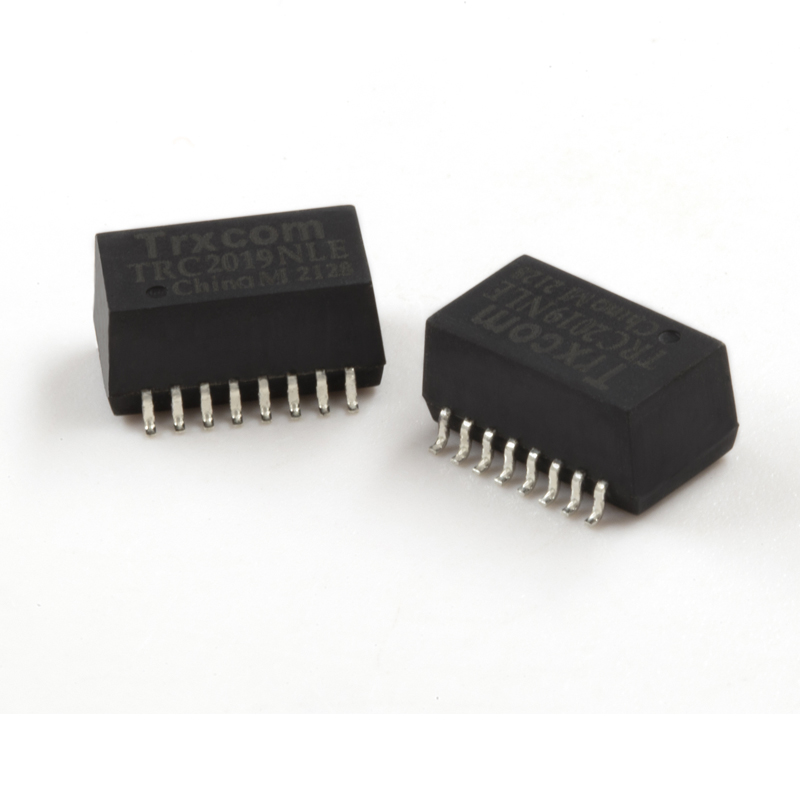

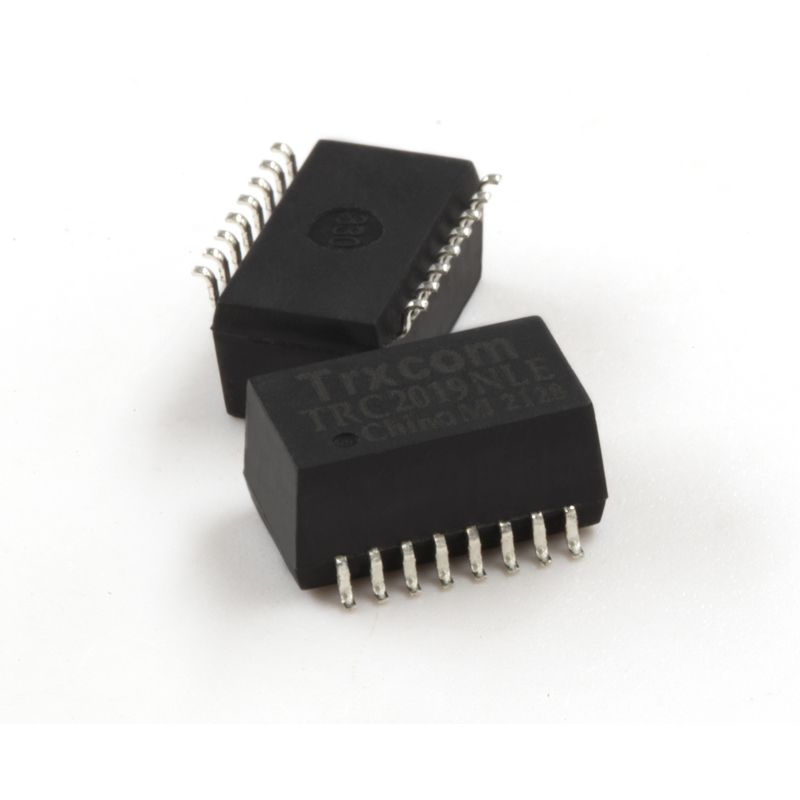

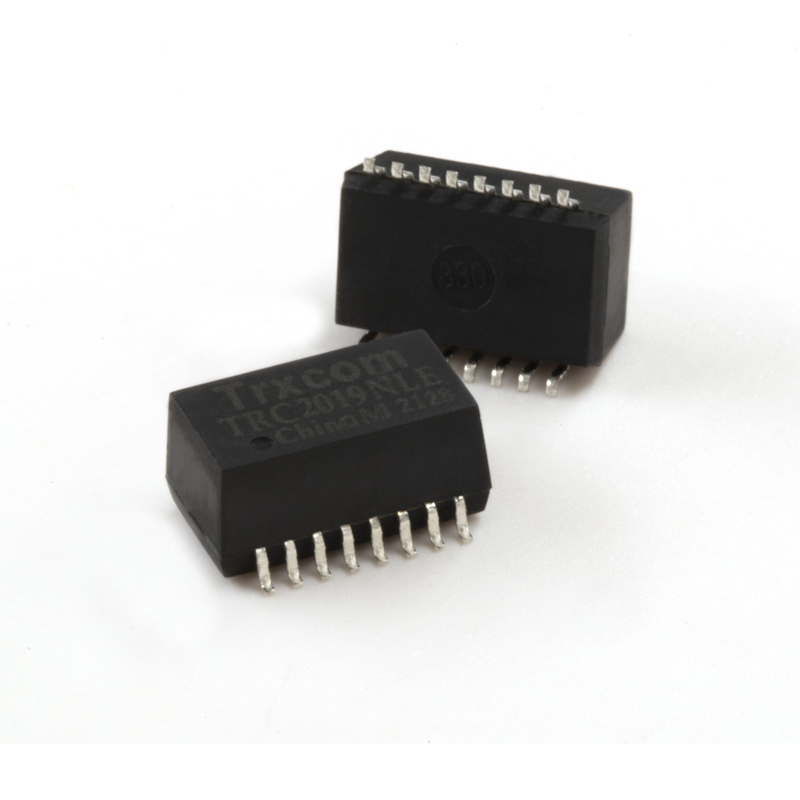

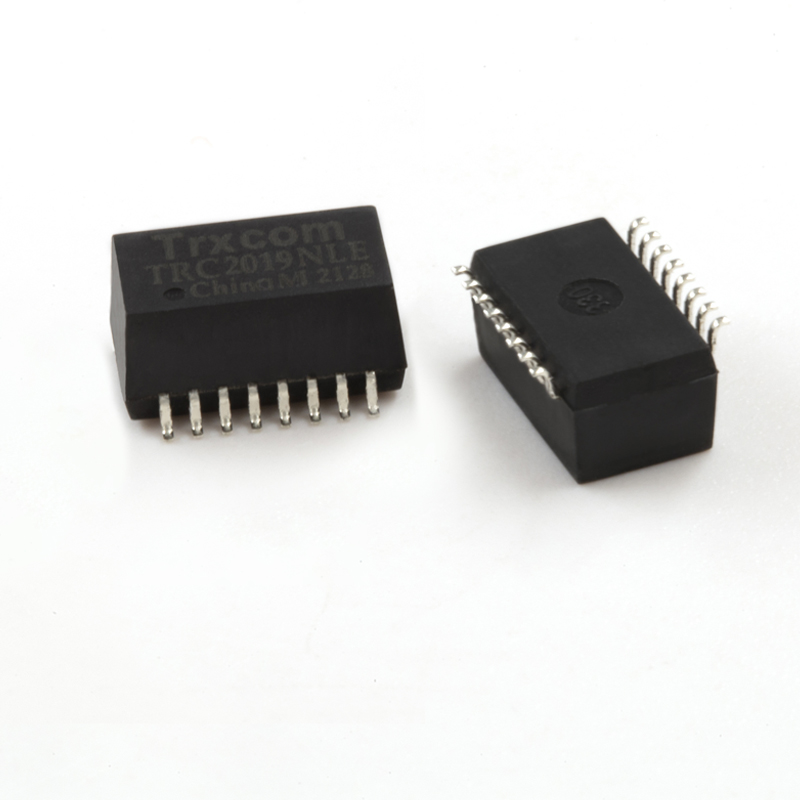

Single Port 10/100 BASE-T Ethernet Transformer POE+ 350mA16Pin TRC2019NLE

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand ： Trxcom
Model ： TRC2019NLE
Data Rate ： 10/100Base-T
PoE ： PoE+
Mount ： SMT
Temperature ： -40℃ to +85℃
PIN ： 16PIN
Get a Quote
Consult products
DetailReview(0)

Trxcom TRC2019NLE Single Port 10/100 BASE-T Ethernet Transformer, LAN Magnetic Components, POE+ 350mA 16-Pin

The TRC2019NLE speed 10/100 Base-T, is compliant to IEEE 802.3 at, UL, Reach, RoHs, ISO19001, and ISO14001 standards. It can be used for routers, Smart Homes, Smart Meters, and satellites.

Part NumberTRC2019NLETransformer TypeLan Transformer
Part StatusActiveTurns Ratio - Primary:Secondary1:1 Transmitter, 1:1 Receiver
ConstructionOPEN FRAMEApplication-LanEthernet((PoE+)
Number of PortsSingle PortSpeed10/100 Base-T
PackageTape & ReelCores per Port4
AutomDXYesCommentSAME AS NL VERSION
PIN number16Mounting TypeSurface Mount
Package Height (Inches/mm) 0.226/5.75Package Length (Inches/mm)0.500/12.70
Package Width (Inches/mm)0.366/9.30Temperature-40℃ TO +85℃
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C,S
