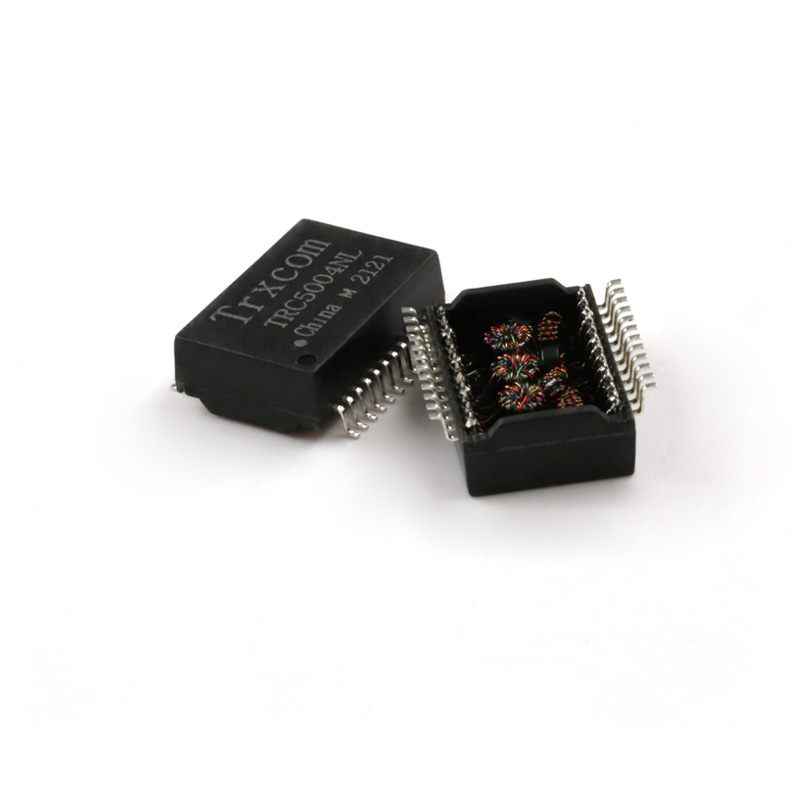

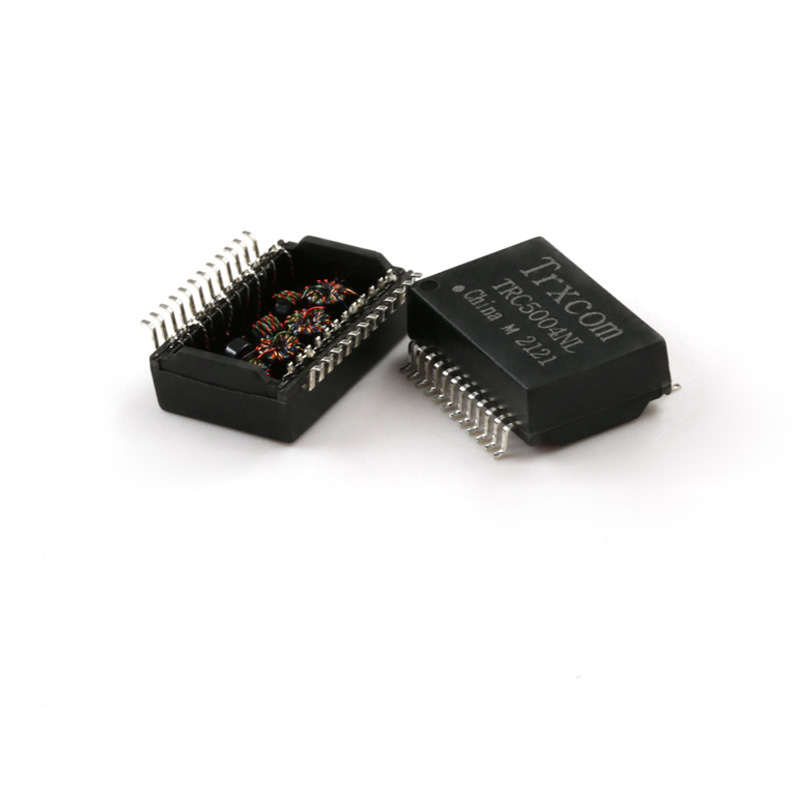

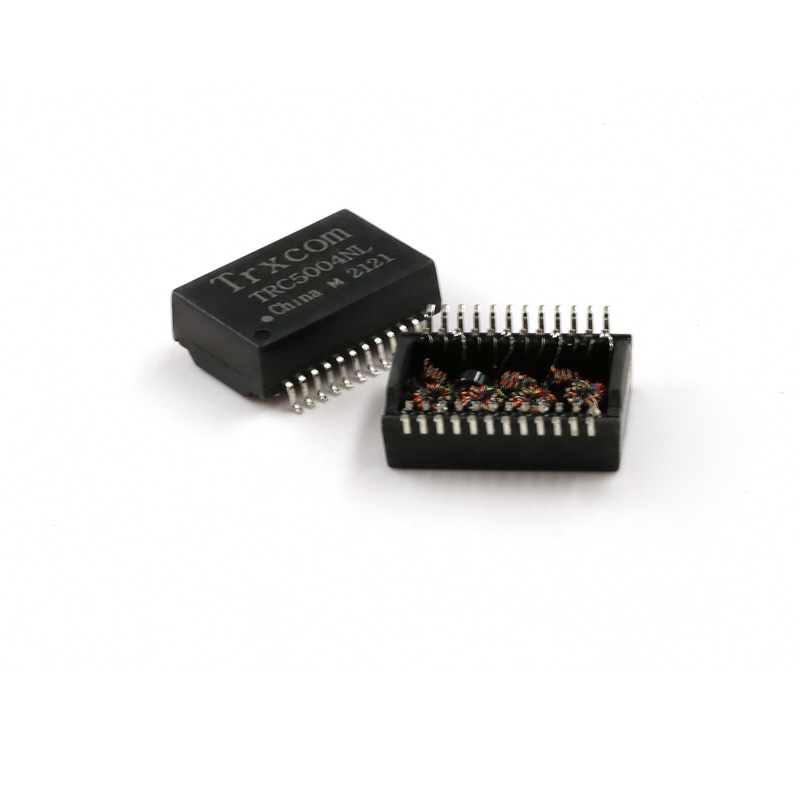

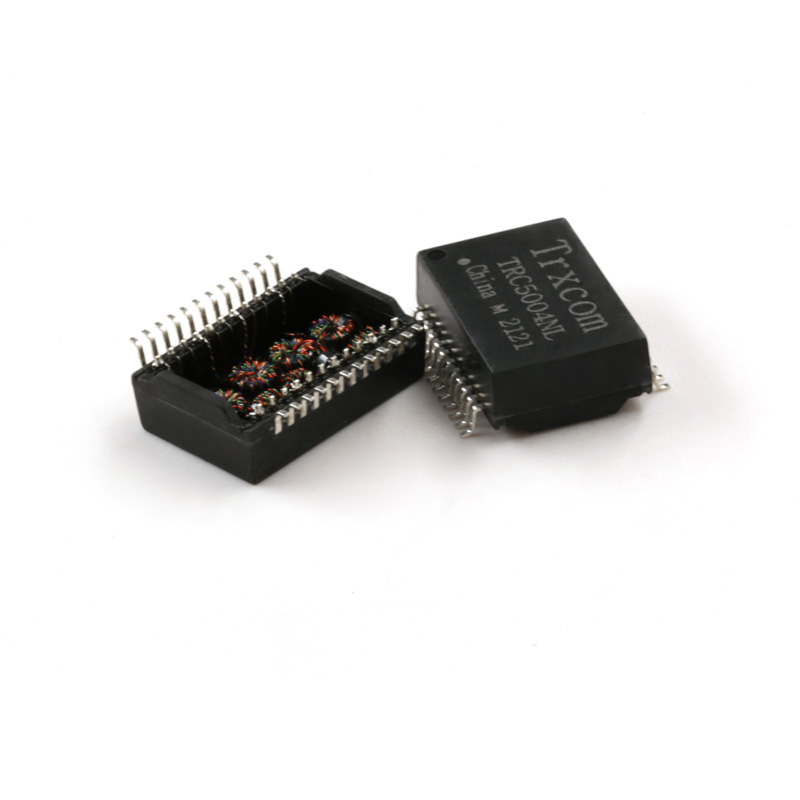

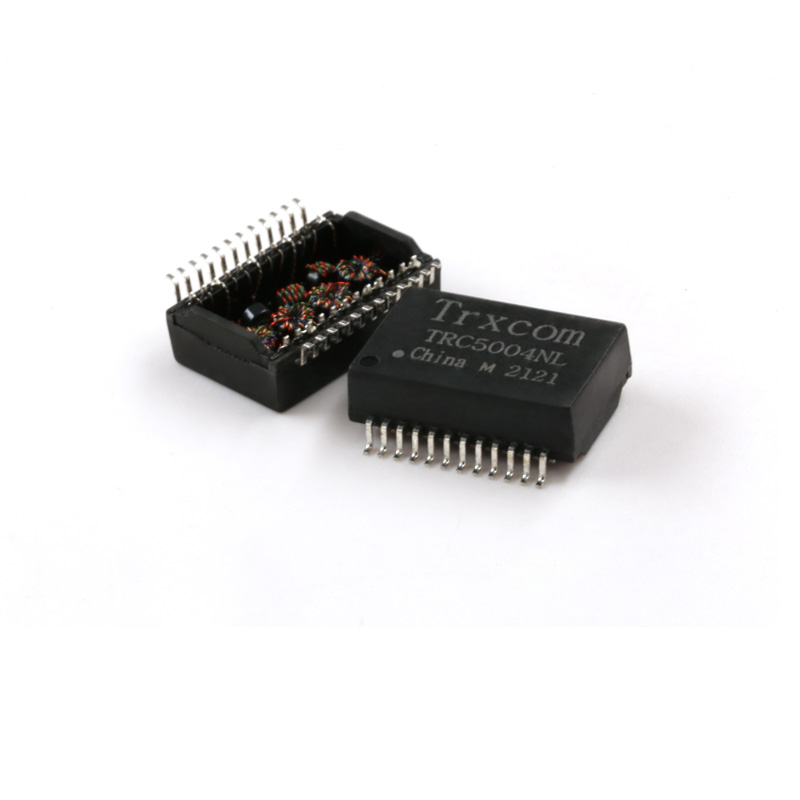

Single Port Lan Transformer SMD 100/1000 BASE-T 24Pin TRC5004NL
share
Parameter
Brand ： Trxcom
Model ： TRC5004NL
Data Rate ： 1000Base-T
PoE ： No
Mount ： SMT
Temperature ： -40℃ to +85℃
PIN ： 24PIN
DetailReview(0)
Trxcom TRC5004NL Single Port, 10/100/1000 BASE-T Ethernet Transformer Module, Surface Mount Device, RoHS compliant
The TRC5004NL speed 10/100/1000 Base-T complies with IEEE 802.3, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can be used for Industrial PC, Embedded Main Boards, Automation, and Game Controller.
| Part Number | TRC5004NL | Transformer Type | Lan Transformer |
| Part Status | Active | Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver |
| Construction | OPEN FRAME | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | Single Port | Speed | 10/100/1000 Base-T |
| Package | Tape & Reel | Cores per Port | 8 |
| AutomDX | Yes | Comment | SAME AS NL VERSION |
| PIN number | 24 | Mounting Type | Surface Mount |
| Package Height (Inches/mm) | 0.260/6.60 | Package Length (Inches/mm) | 0.697/17.70 |
| Package Width (Inches/mm) | 0.622/15.80 | Temperature | -40℃ TO +85℃ |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C,S |
