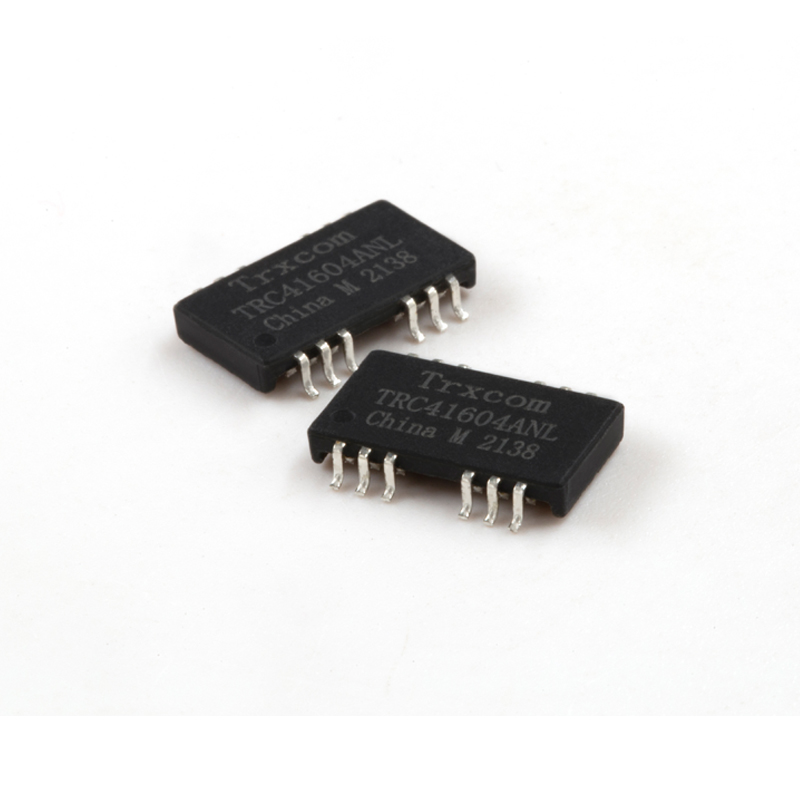

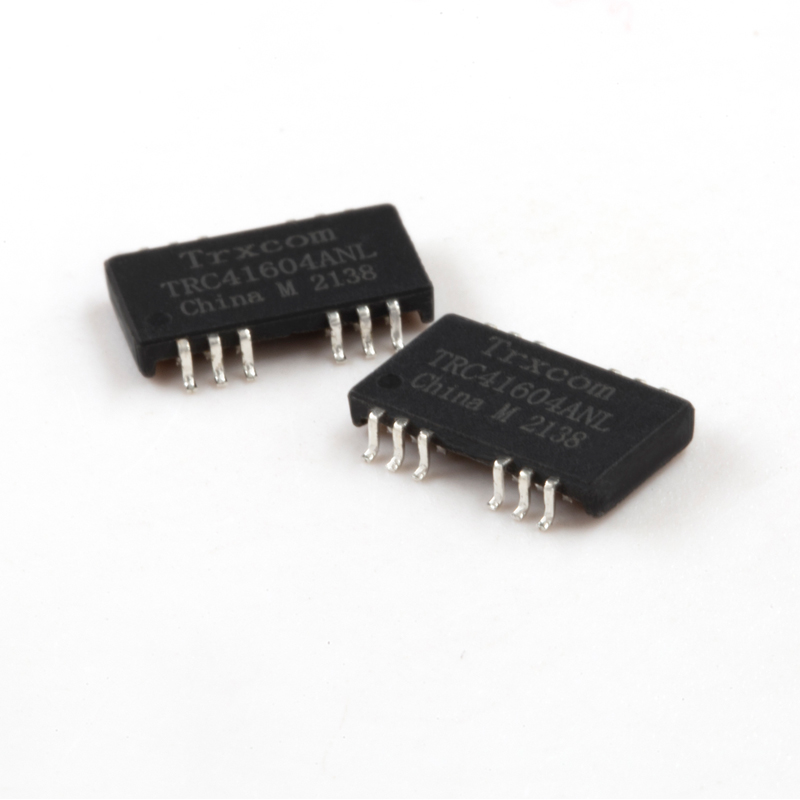

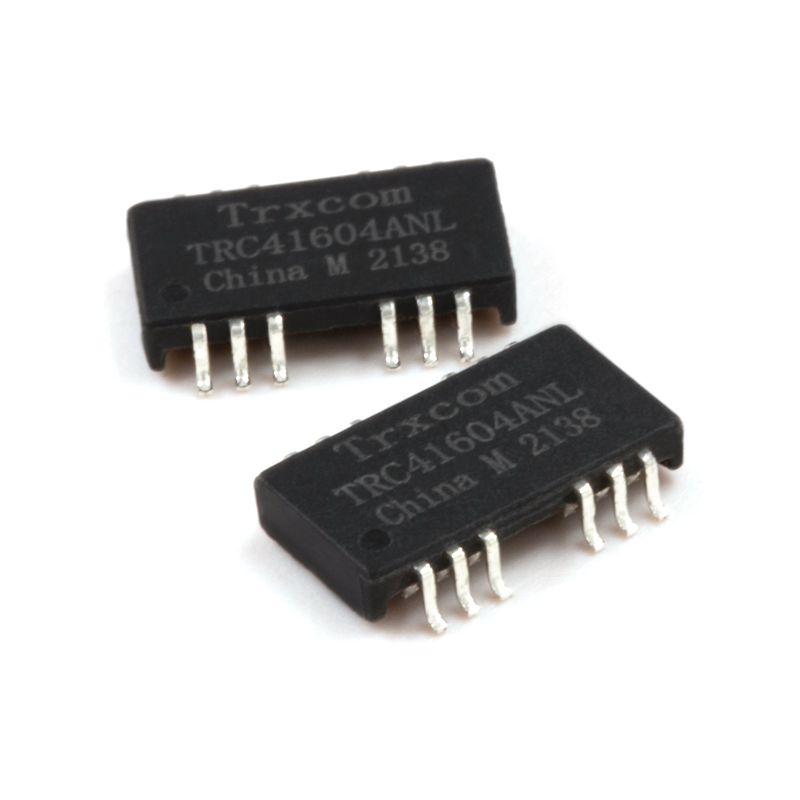

Low Profile Ethernet Transformer Modules Single Port 10/100 BASE-T SMD 12 Pin TRC41604AN
share
Parameter
Brand ： Trxcom
Model ： TRC41604ANL
Data Rate ： 10/100Base-T
PoE ： No
Mount ： SMT
Temperature ： -40℃ to +85℃
PIN ： 12PIN
DetailReview(0)
TRXCOM TRC41604ANL Single Port, 10/100 BASE-T Ethernet Transformer Modules, SMD，Rohs
The TRC41604ANL speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to Router, Set-top Box, SMPS, Digital Camera.
| Part Number | TRC41604ANL | Transformer Type | Lan Transformer |
| Part Status | Active | Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver |

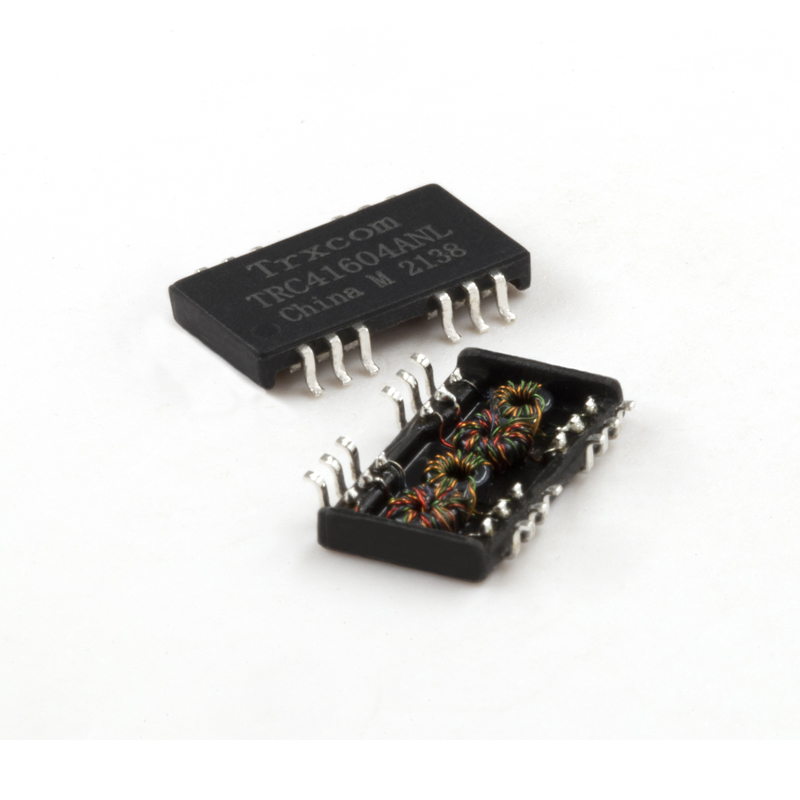

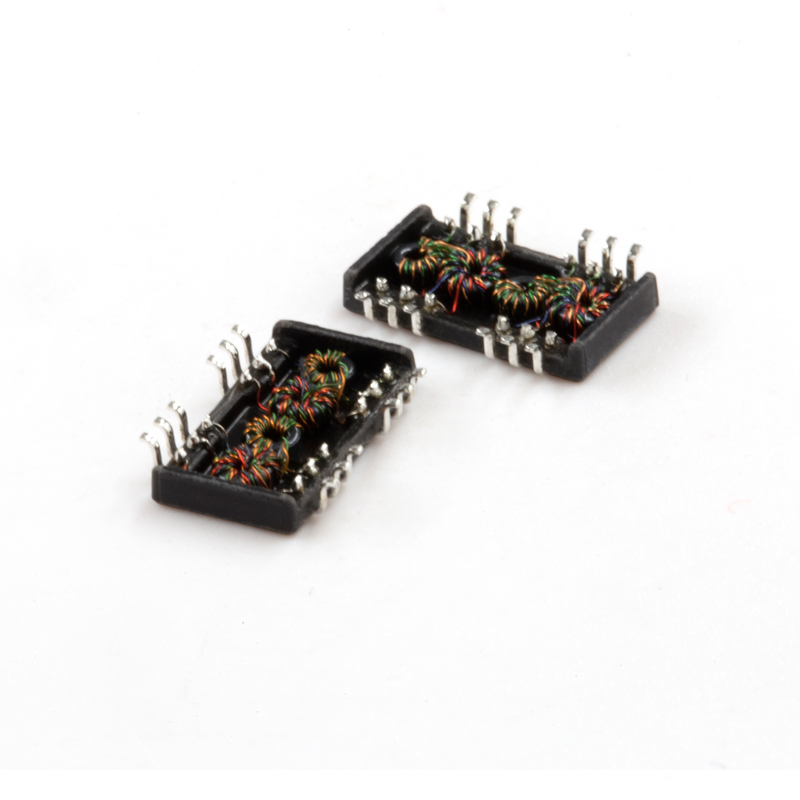

| Construction | OPEN FRAME | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | Single Port | Speed | 10/100 Base-T |
| Package | Tape & Reel | Cores per Port | 4 |
| AutomDX | Yes | Comment | SAME AS NL VERSION |
| PIN number | 12 | Mounting Type | Surface Mount |
| Package Height (Inches/mm) | 0.090/2.29 | Package Length (Inches/mm) | 0.380/9.65 |
| Package Width (Inches/mm) | 0.500/12.70 | Temperature | -40℃ TO +85℃ |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C,S |
