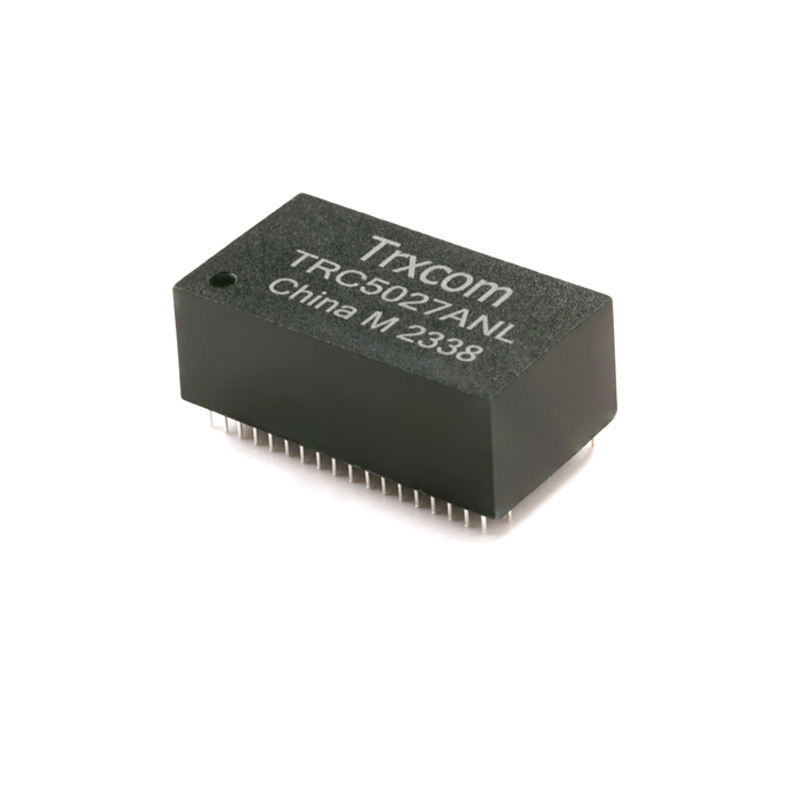

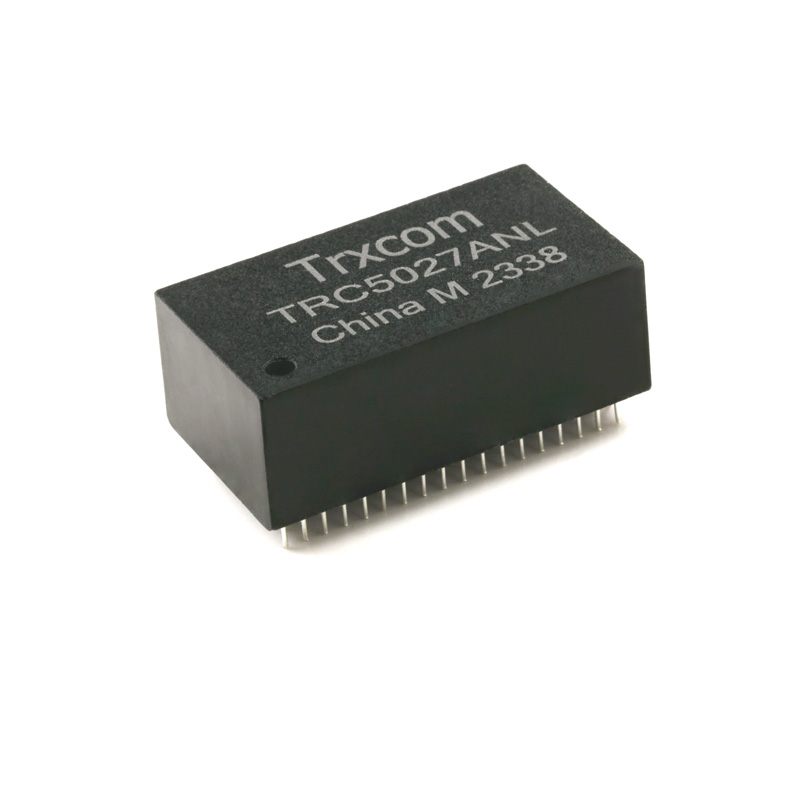

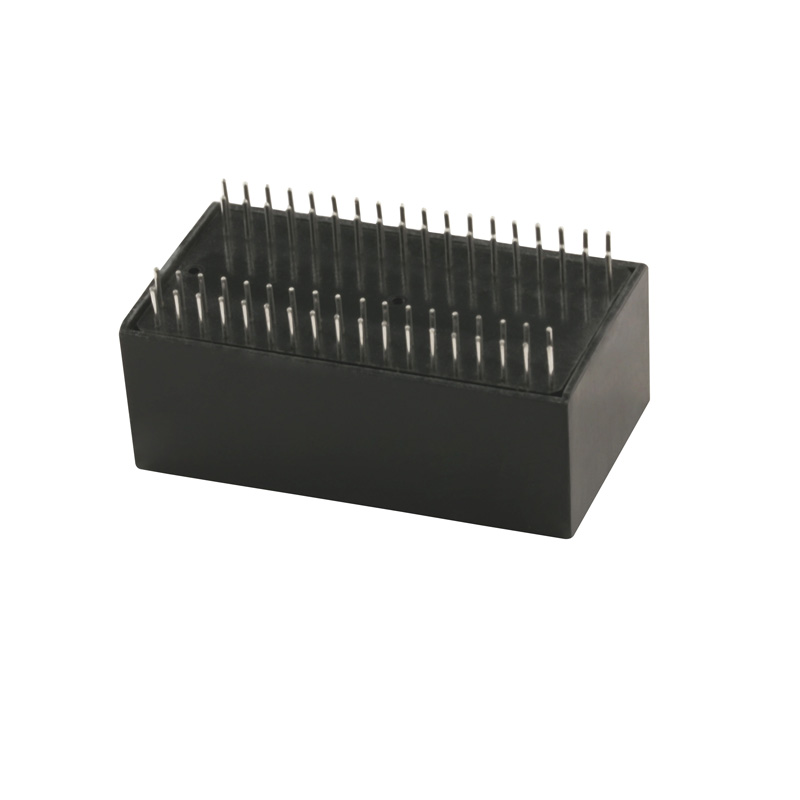

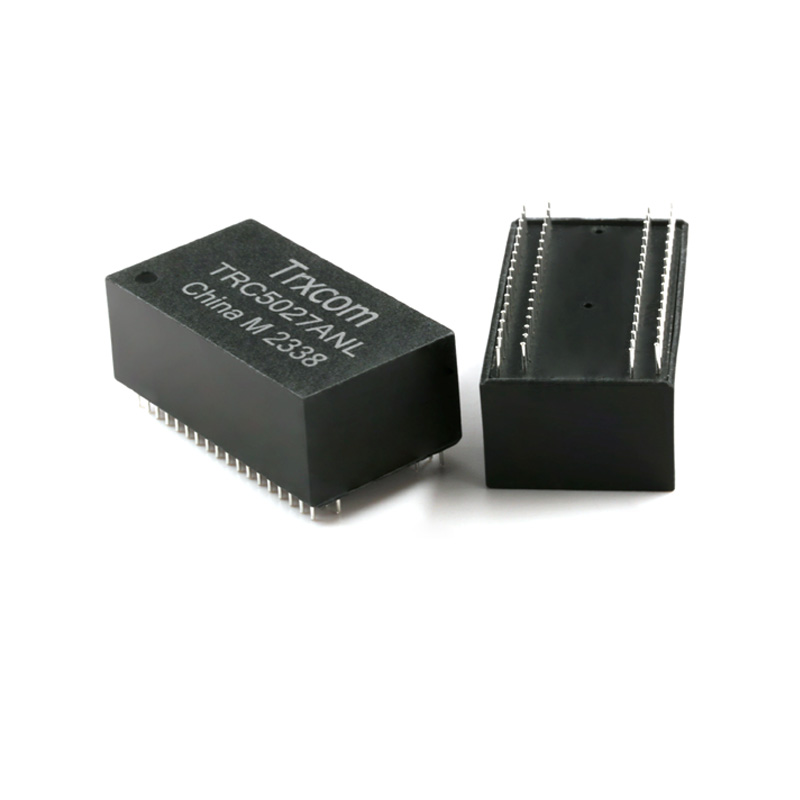

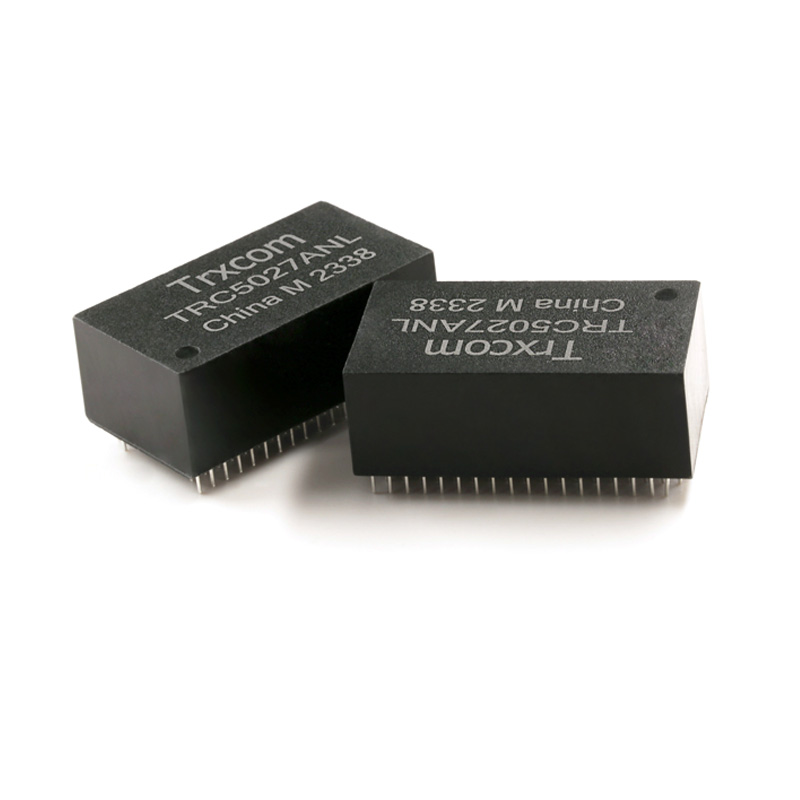

Quad Port 1000 BASE-T THT 72 Pin Networking Transformers Telecom Modules TRC5027ANL

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand ： Trxcom
Model ： TRC5027ANL
Data Rate ： 1000Base-T
PoE ： No
Mount ： THT
Temperature ： 0℃ to +70℃
PIN ： 72PIN
Get a Quote
Consult products
DetailReview(0)

TRXCOM TRC5027ANL Quad Port, 10/100/1000 Base-T Transformer Modules , THT, Rohs

The Trxcom TRC5027ANL Quad port LAN transformer supports 10/100/1000Base-T Ethernet transmission rates with various turns ratios. It is designed for applications such as SOHO (ADSL modems), LAN-on-Motherboard (LOM), hubs and switches.

Part NumberTRC5027ANLTransformer TypeLan Transformer
Part StatusActiveTurns Ratio - Primary:Secondary1:1 Transmitter, 1:1 Receiver
ConstructionOPEN FRAMEApplication-LanEthernet(NoN PoE)
Number of PortsQuad PortSpeed10/100/1000 Base-T
PackageTape & ReelCores per Port16
AutomDXYesCommentSAME AS NL VERSION
PIN number72Mounting TypeTHT
Package Height (Inches/mm)0.492/12.50Package Length (Inches/mm)1.358/34.5
Package Width (Inches/mm)0.744/18.90Temperature0℃ TO +70℃
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C,S
