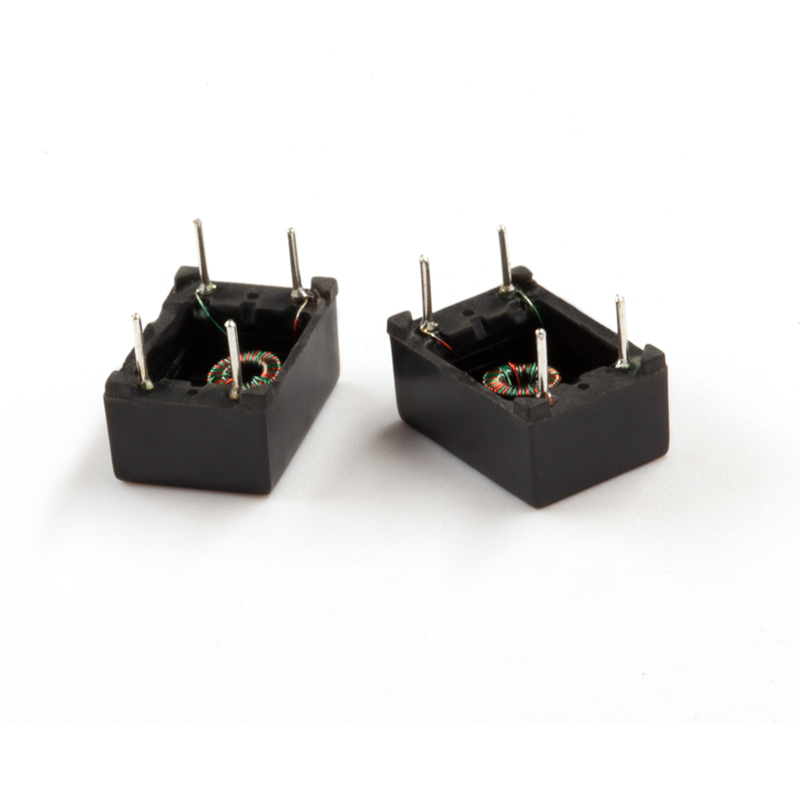

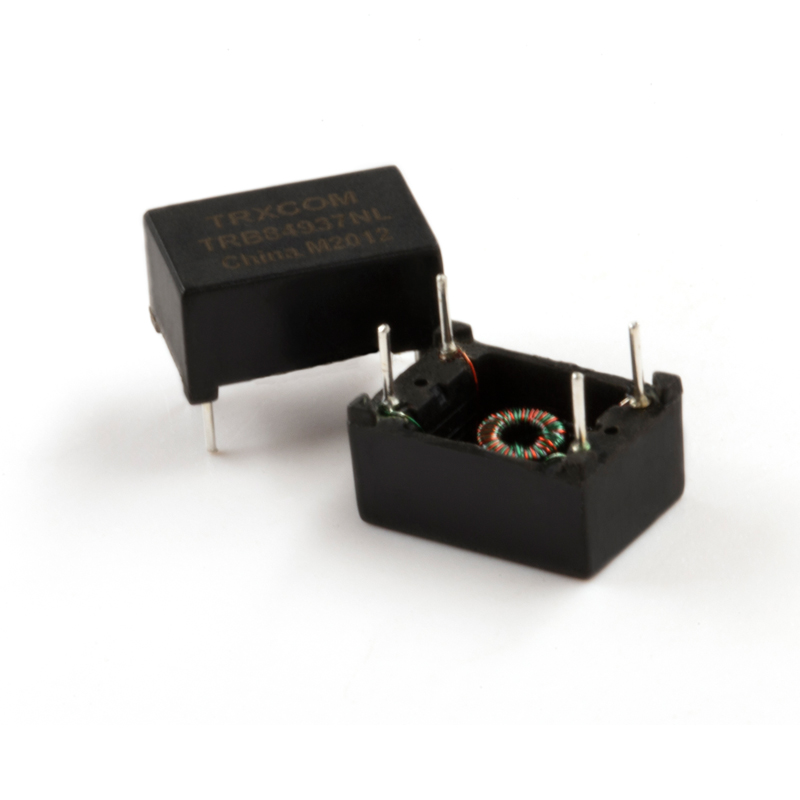

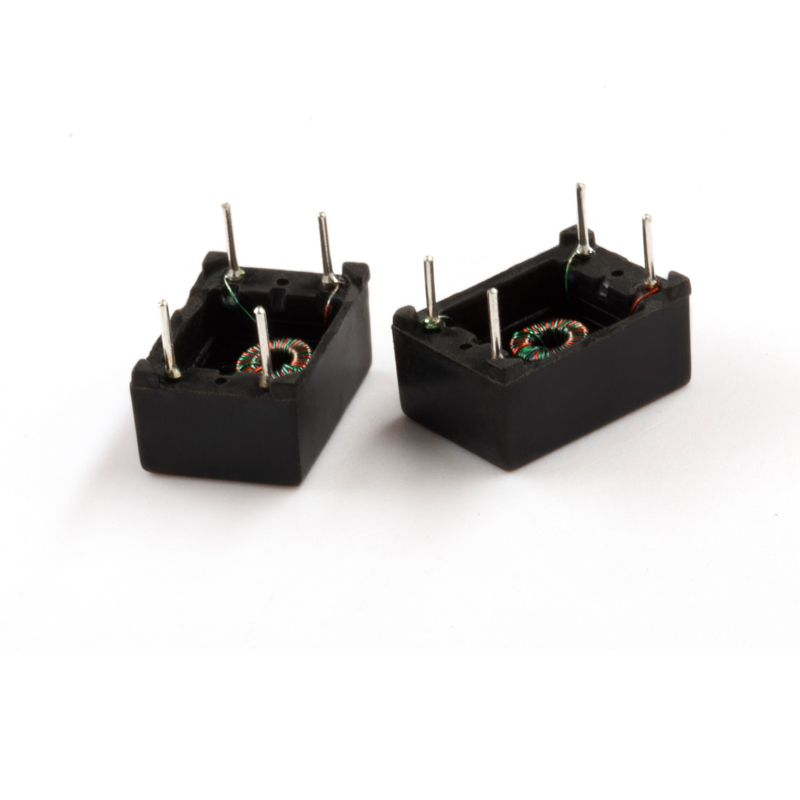

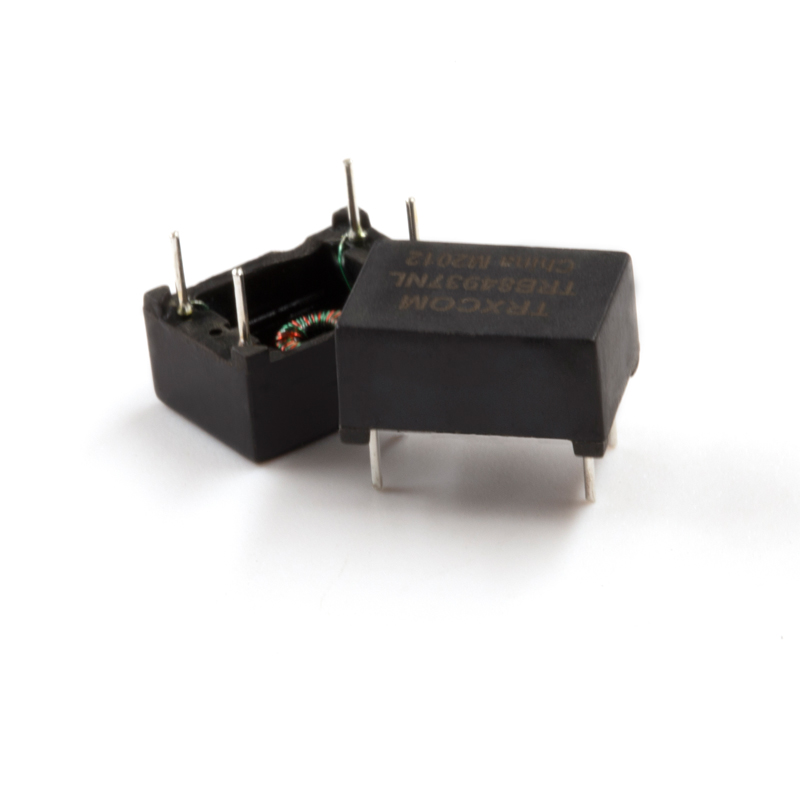

3000V Withstand Voltage Through-hole 4PIN Converter Isolation Module TRB34937NL
share
Parameter
Brand ： Trxcom
Model ： TRB34937NL
PoE ： No
Mount ： SMT
Temperature ： -40℃ to +85℃
PIN ： 4PIN
DetailReview(0)
TRB34937NL Single Port, Hipot 3000Vrms Ethernet Transformer Modules, THT, Rohs
The Trxcom TRB34937NL is available with various turns ratios. It is designed for applications including SOHO (ADSL modems), LAN-on-Motherboard (LOM), hubs and switches.
| Part Number | TRB34937NL | Transformer Type | Lan Transformer |
| Part Status | Active | Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver |
| Construction | OPEN FRAME | Application-Lan | |
| Number of Ports | SINGLE | Speed | |
| Package | Tape & Reel | Cores per Port | 1 |
| AutomDX | Yes | Isolation Voltage | 3000Vrms |
| PIN number | 4 | Mounting Type | THT |
| Package Height (Inches/mm) | 0.25/6.35 | Package Length (Inches/mm) | 0.50/12.70 |
| Package Width (Inches/mm) | 0.35/8.89 | Temperature | -40℃ TO +105℃ |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C,S |
