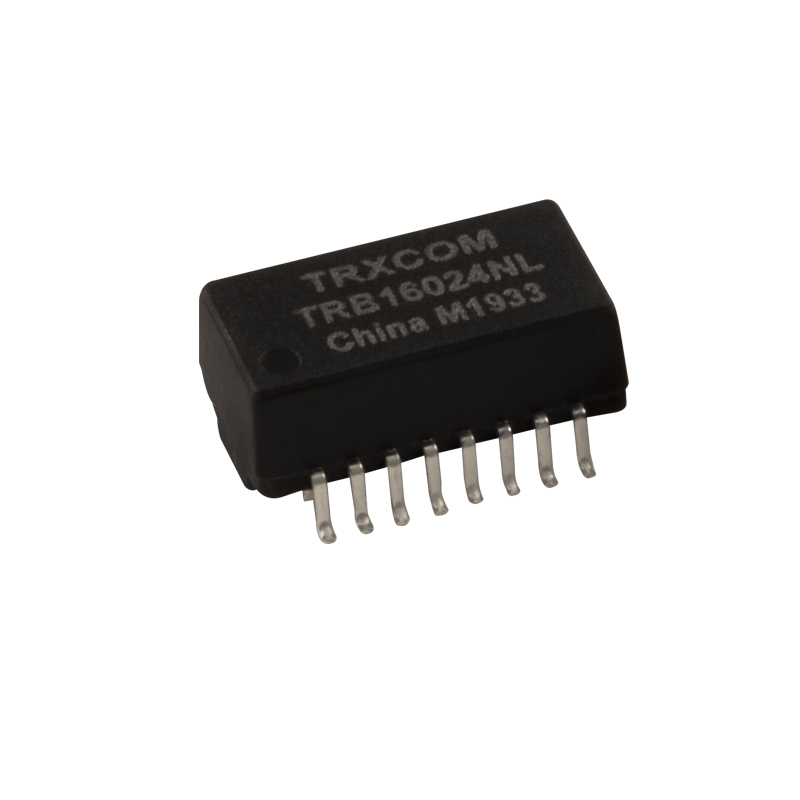

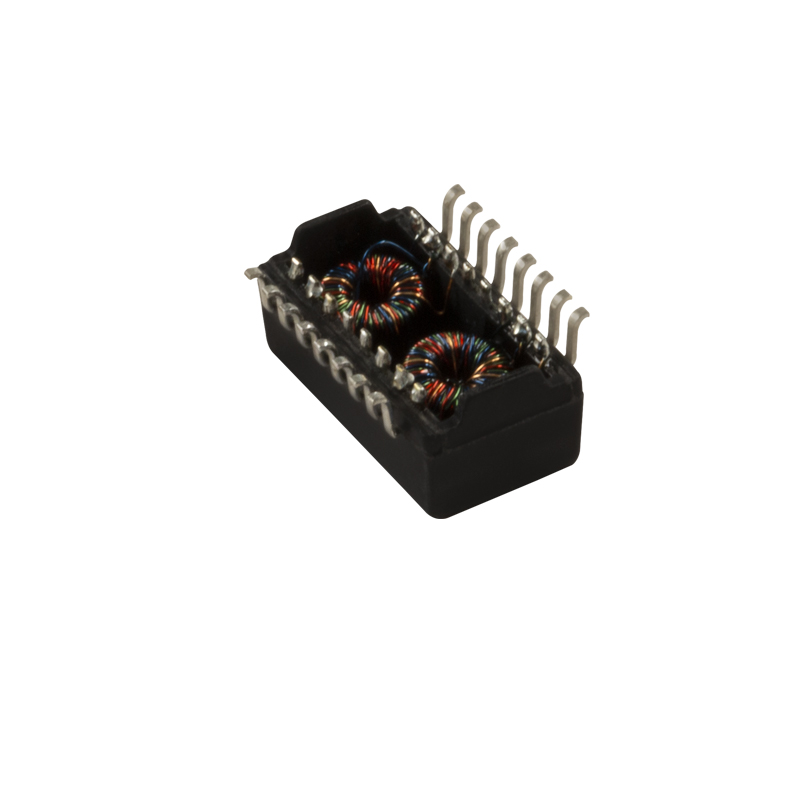

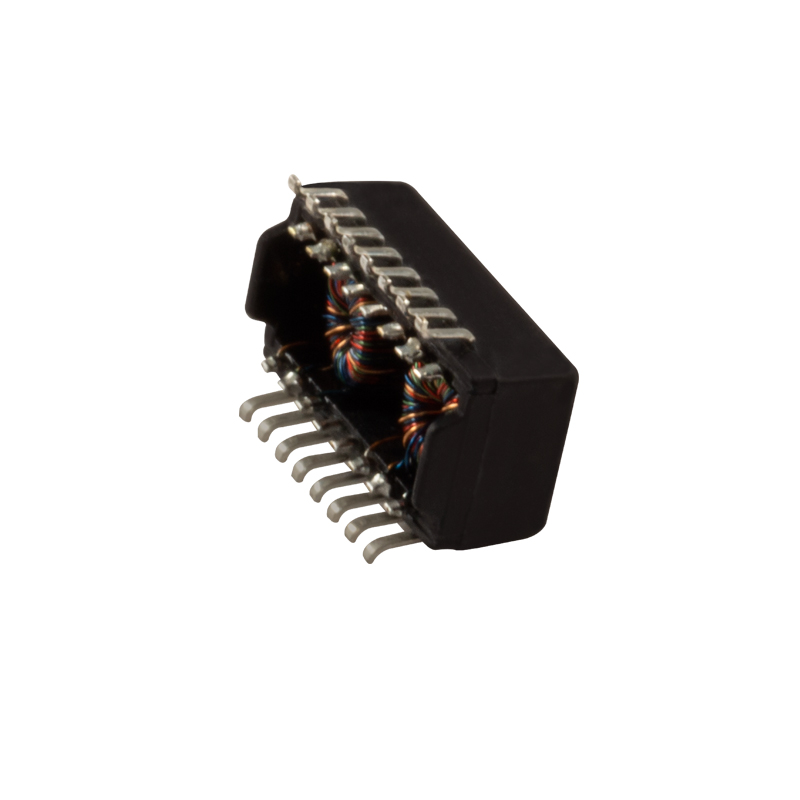

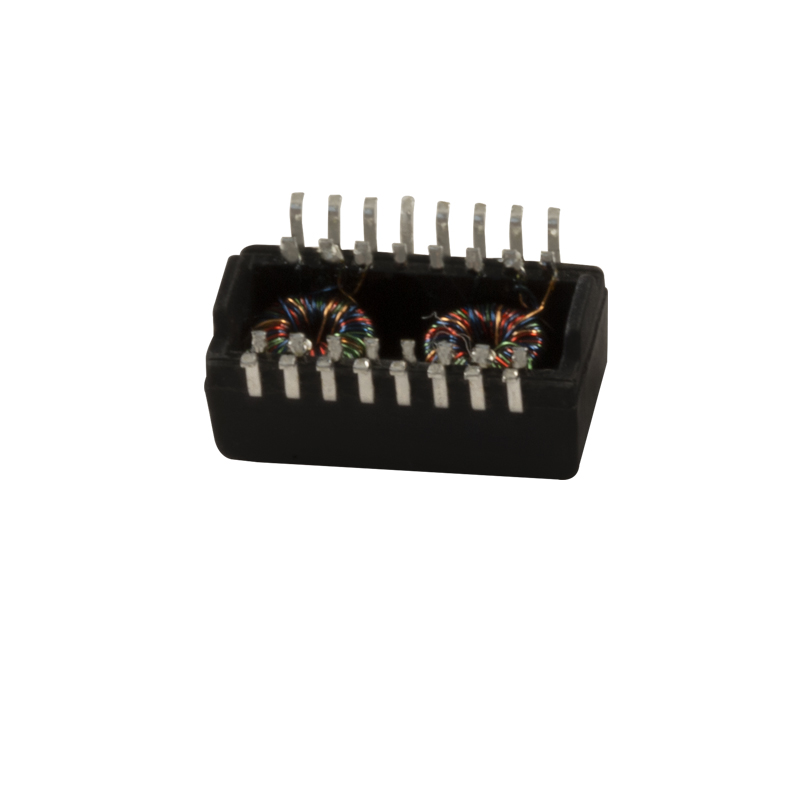

Single Port 10/100Base-T LAN Communication Transformer SMD 16PIN TRB16024NL
share
Parameter
Brand ： Trxcom
Model ： TRB16024NL
Data Rate ： 10/100Base-T
PoE ： No
Mount ： SMT
Temperature ： -40℃ to +85℃
PIN ： 16PIN
DetailReview(0)
TRXCOM TRB16024NL Router with 10/100 Base-T Ethernet Transformer (PoE+ SMD 16-Pin Single Port)
Trxcom TRB16024NL supports 10/100/1000 Base‑T speed and complies with IEEE 802.3at, UL, REACH, RoHS, ISO9001 and ISO14001 standards. It can be applied to routers, handheld devices, operation generators and other equipment.
| Part Number | TRB16024NL | Transformer Type | Lan Transformer |
| Part Status | Active | Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver |
| Construction | OPEN FRAME | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | Single Port | Speed | 10/100 Base-T |
| Package | Tape & Reel | Cores per Port | 4 |
| AutomDX | Yes | Comment | SAME AS NL VERSION |
| PIN number | 16 | Mounting Type | Surface Mount |
| Package Height (Inches/mm) | 0.244/6.20 | Package Length (Inches/mm) | 0.500/12.70 |
| Package Width (Inches/mm) | 0.366/9.30 | Temperature | 0℃ TO +70℃ |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C,S |
